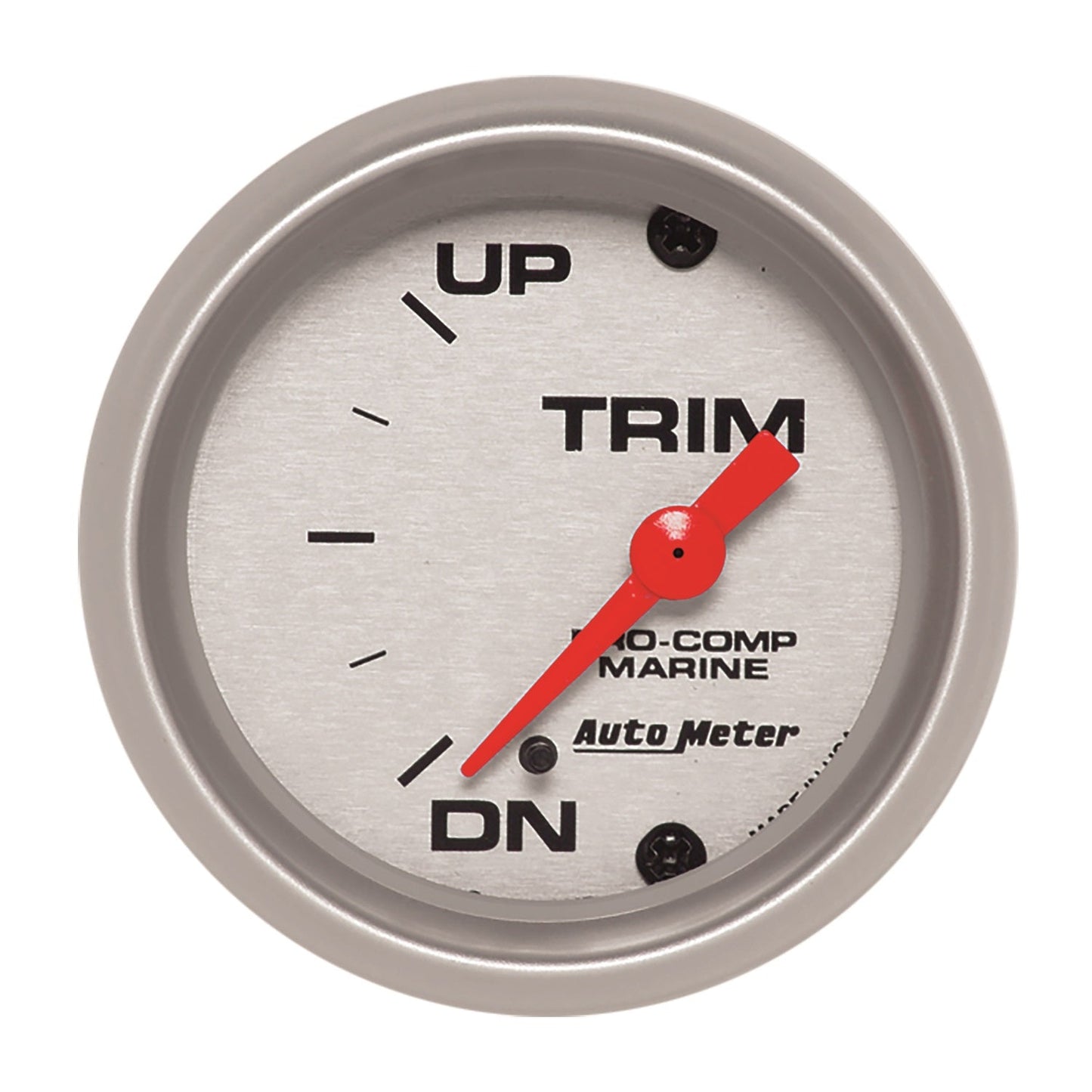

AutoMeter Marine Trim Level Gauge (200766-33)
AutoMeter Marine Trim Level Gauge (200766-33)
SKU:200766-33
Out of stock
Couldn't load pickup availability
The AutoMeter Marine Trim Level Gauge is a specialized instrument designed to monitor and display the trim angle of a boat's outdrive or propeller unit. This gauge provides critical real-time feedback on the boat's attitude in the water, allowing operators to optimize performance, fuel efficiency, and comfort by adjusting the trim accordingly. Constructed with durable materials suitable for marine environments, it ensures reliable operation in harsh conditions. The gauge helps boaters achieve precise control over the vessel's positioning, enhancing handling and ride quality during various speeds and load conditions.
Designed for marine applications, this trim level gauge is compatible with a wide range of boats where trim adjustment is essential for optimal performance. It is suitable for use on boats with outdrive or stern drive systems, enabling operators to fine-tune the boat's attitude for improved speed, fuel economy, and ride comfort. The gauge is a direct replacement or upgrade for existing trim indicators, typically installed in the helm or dashboard area. It is ideal for boaters seeking enhanced control and performance during cruising, fishing, or recreational activities.
Share
Overview
Overview
The" attitude" of a boat in the water can be controlled to a large extent by" trimming" the outdrive/propeller unit in relation to the stern of the boat. As the drive is trimmed up,the prop exerts more force downward,causing the bow to lift out of the water. As the drive is trimmed down,the force is exerted more in line with the boat hull,resulting in the bow riding lower in the water. Depending on a given trim angle,you can see increased or decreased speed,fuel economy,comfort and control at a given prop RPM. The trim gauge connects to a resistance based sender in the pivot of the outdrive. This functions much like the sender in a gas tank,with the gauge measuring resistance of the sender from totally down/in to totally up/out. This allows the operator to adjust for conditions and load quickly and easily.
Features:
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Works with 0 Ohm Down/90 Ohm Up trim level sending unit
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
- Traditional incandescent lighting illuminates around the perimeter of the dial
