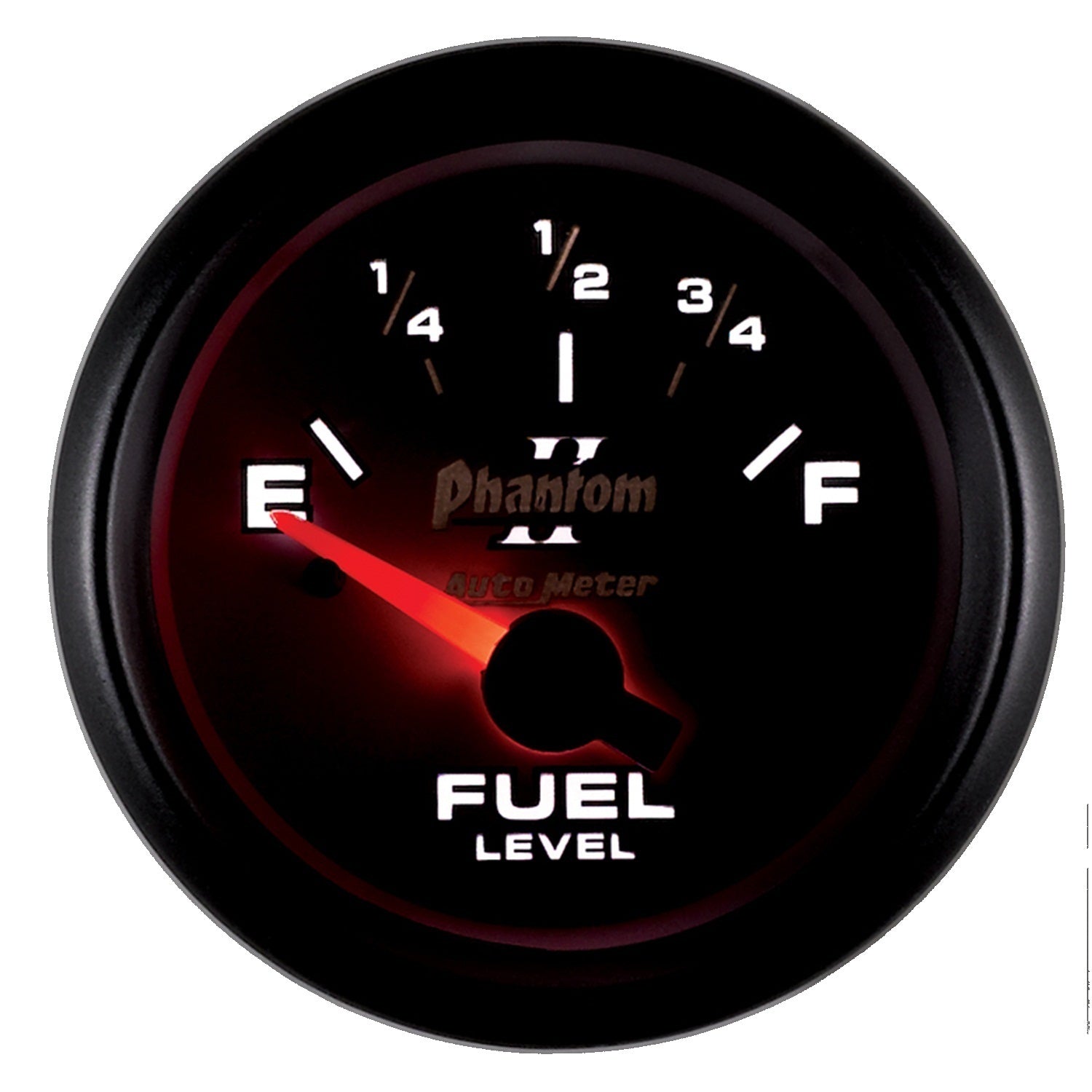

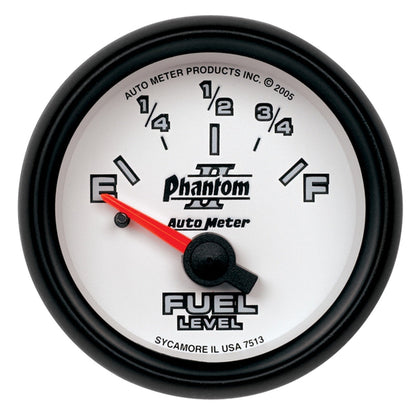

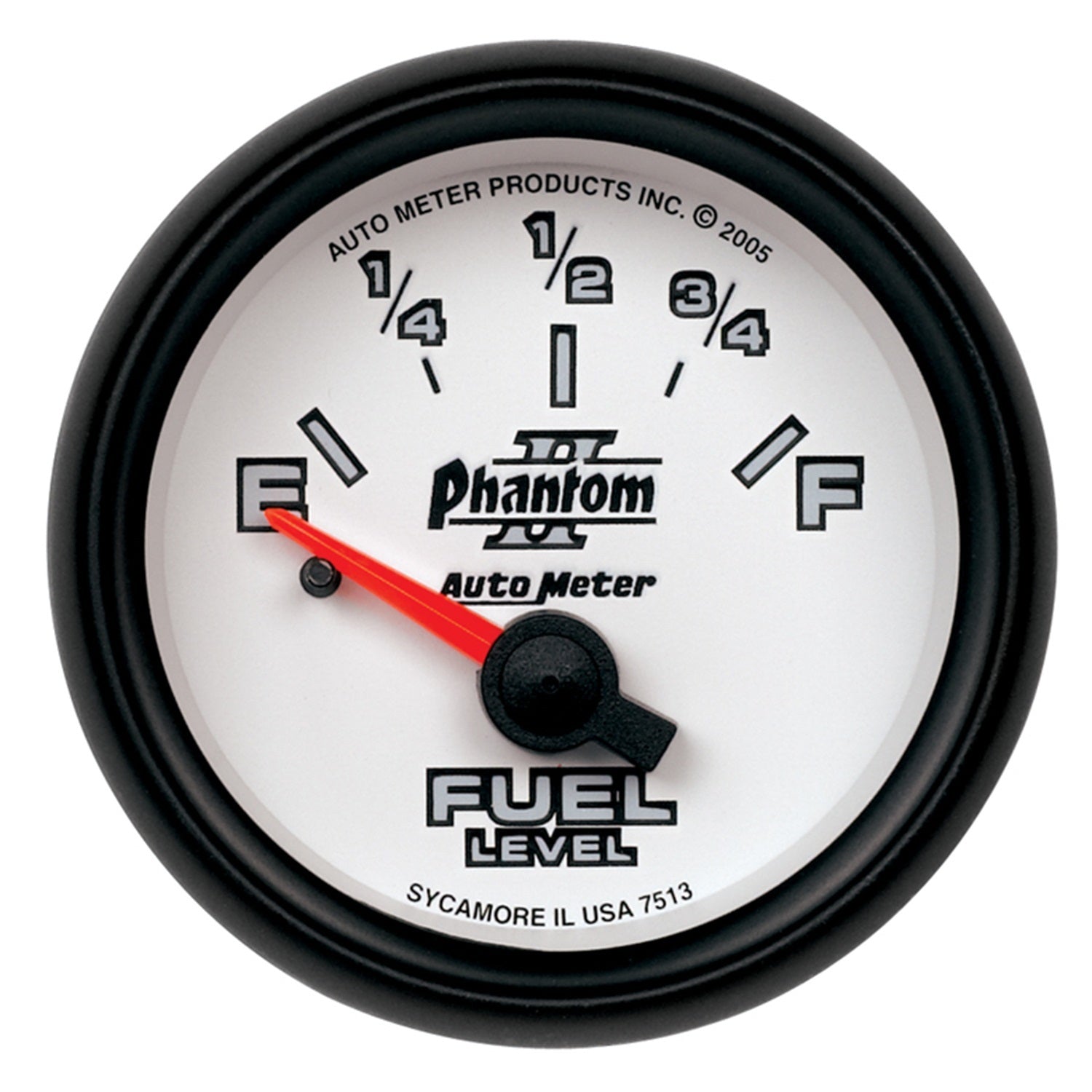

AutoMeter Phantom 2-1/16in 0-90 OHM Fuel Level Gauge (7513)

AutoMeter Phantom 2-1/16in 0-90 OHM Fuel Level Gauge (7513)

7513

Out of stock

$90.45 USD
$105.49 USD $90.45 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AutoMeter Phantom 2-1/16 inch 0-90 Ohm Fuel Level Gauge is a precision instrument designed to provide accurate fuel level readings across a variety of vehicle applications. Featuring a patented air core meter movement with enhanced dampening, this gauge effectively minimizes the effects of fuel slosh in non-baffled tanks, ensuring stable and reliable measurements. It offers five different resistance range configurations, allowing compatibility with a wide range of fuel sending units. The gauge's robust construction and precise calibration make it an essential addition to any dashboard, delivering clear visibility and consistent performance in demanding conditions.

This fuel level gauge is suitable for a broad spectrum of vehicles, including classic and modern cars with different fuel sender resistances. It is compatible with 0-90 Ohm (GM mid 60s to mid 90s), 0-30 Ohm (early GM), 73-10 Ohm (pre-90s Ford and Chrysler), 16-158 Ohm (later model Fords), and 240-33 Ohm (aftermarket senders such as Autometer 3262). Designed for direct installation, it serves well in street, track, or custom applications where accurate fuel monitoring is critical. The kit includes the gauge and necessary components for seamless integration into your vehicle’s dashboard.

Overview

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.

Features:

  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
  • Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up
  • Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • User definable resistance setting programmable anywhere between 0-280 ohms
