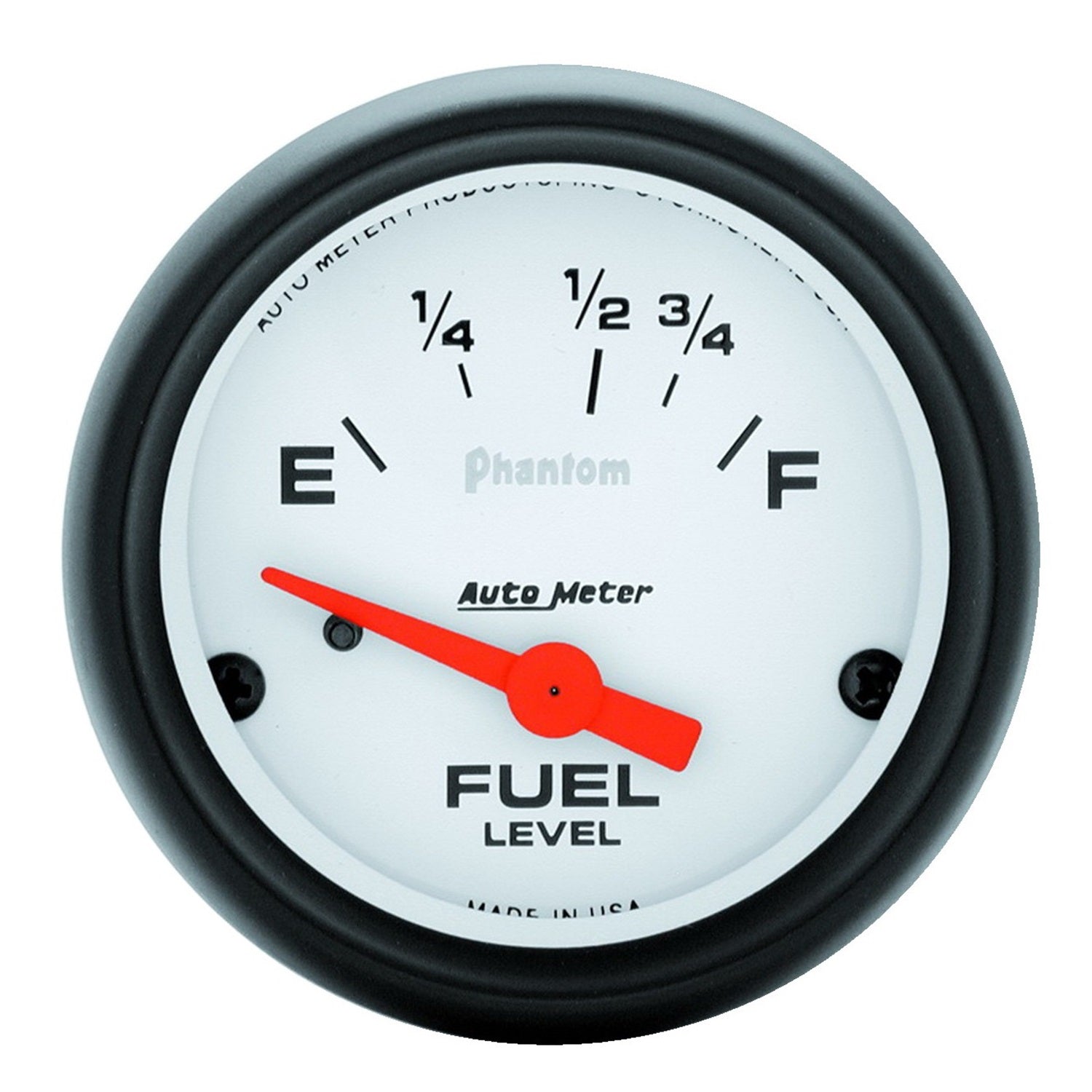

AutoMeter Phantom 2-1/16in Electrical Fuel Level Gauge

Fits 2000–2010 Ford, Chrysler, GM, and aftermarket fuel sending units with 16-158 Ohm resistance

Part #: 5718

Overview

The AutoMeter Phantom 2-1/16 inch Electrical Fuel Level Gauge is an essential instrument for any performance enthusiast or daily driver looking to monitor their fuel levels accurately. Designed with precision and reliability in mind, this gauge provides clear, real-time readings of your vehicle's fuel tank status, helping you avoid running out of fuel unexpectedly and ensuring optimal vehicle operation.

Ideal for custom dashboards, race cars, or upgraded street builds, this gauge offers a straightforward way to keep tabs on your fuel levels. Its sleek design and easy installation make it a popular choice among automotive enthusiasts who demand both style and functionality. Whether you're tuning your vehicle for performance or simply want a more accurate fuel reading, this gauge delivers dependable performance and easy integration.

Key Features

The AutoMeter Phantom Fuel Level Gauge incorporates several advanced features to enhance your vehicle's instrumentation setup:

• Designed with a 2-1/16 inch (52mm) diameter, fitting standard gauge pods and panels for a clean, professional look.
• Utilizes a patented air core meter movement with extra dampening to minimize the effects of fuel slosh in non-baffled tanks, providing stable and accurate readings.
• Available in multiple resistance configurations to match various fuel sending units, ensuring compatibility across a wide range of vehicles and aftermarket setups.
• Resistance options include 0-90 Ohms (matching GM mid 60s to mid 90s), 0-30 Ohms (early GM models), 73-10 Ohms (pre-90s Ford and Chrysler), 16-158 Ohms (later model Fords), and 240-33 Ohms (aftermarket senders like Autometer 3262).
• Constructed with high-quality materials for durability and long-lasting performance in demanding automotive environments.
• Clear, easy-to-read dial with a black face and white markings for excellent visibility in all lighting conditions.
• Simple electrical hookup with standard wiring, making installation straightforward for experienced DIYers and professional installers alike.

Construction & Design

The AutoMeter Phantom Fuel Level Gauge features a robust construction designed to withstand the rigors of automotive use. Its housing is made from durable, high-impact plastic, ensuring longevity and resistance to vibration and temperature fluctuations. The gauge's face is protected by a clear lens that resists scratches and glare, maintaining visibility over time.

The internal air core meter movement is a key component, providing precise readings with minimal needle flutter. The extra dampening incorporated into the design helps combat fuel slosh effects, which can cause inaccurate readings in non-baffled tanks. The gauge's compact size and straightforward wiring harness facilitate easy installation into a variety of dashboard configurations.

Performance & Sound

This fuel gauge is designed primarily for accurate, stable readings rather than producing any sound or performance enhancements. Its focus is on providing reliable fuel level information to help you manage your vehicle's fuel consumption effectively. The multiple resistance configurations ensure compatibility with a wide range of fuel sending units, supporting accurate readings across different vehicle makes and models.

Installation & Fitment

The AutoMeter Phantom Fuel Level Gauge is a bolt-in replacement for standard 2-1/16 inch gauge openings. Installation involves wiring the gauge to the vehicle's fuel sending unit and power supply, with no need for complex modifications. The gauge's wiring harness is designed for easy connection, and detailed instructions are included to guide you through the process.

Because it is an electrical gauge, no additional tuning or calibration is typically required beyond matching the resistance configuration to your vehicle's fuel sender. The gauge is suitable for both professional installations and DIY enthusiasts with basic automotive wiring skills.

What's Included

• AutoMeter Phantom 2-1/16 inch Electrical Fuel Level Gauge
• Wiring harness with connectors
• Installation instructions

Ideal For

• Performance and street car enthusiasts
• Custom dashboard builds
• Race cars requiring precise fuel monitoring
• Anyone upgrading or replacing their existing fuel gauge for improved accuracy and durability

Emissions Note

This product is designed for off-road or racing use only and may not be legal for street use in all jurisdictions. Please check local regulations before installation if compliance is a concern.
