• Autometer Phantom Series 2-1/16'' Fuel Level Programmable 0-280 ? Gauge (5710)
1 1

Autometer Phantom Series 2-1/16'' Fuel Level Programmable 0-280 ? Gauge (5710)

Autometer Phantom Series 2-1/16'' Fuel Level Programmable 0-280 ? Gauge (5710)

5710

Out of stock

$193.90 USD
$193.90 USD $193.90 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

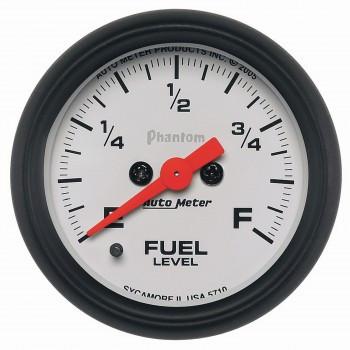

The AutoMeter Phantom Series 2-1/16" Fuel Level Programmable Gauge (5710) is a high-precision digital fuel level indicator designed to provide accurate readings across a wide range of applications. Featuring a programmable resistance range from 0 to 280 ohms, this gauge simplifies installation and setup by allowing users to easily configure it to match their specific fuel sender. The gauge includes seven factory-stored configurations, covering the majority of common fuel sender types, ensuring quick and reliable compatibility. Its stepper motor technology guarantees smooth needle movement and precise readings, making it an ideal choice for performance and enthusiast vehicles. Constructed with durable materials and a clear, easy-to-read display, this gauge enhances both functionality and aesthetic appeal in the dashboard.

Designed to fit standard 2-1/16" instrument openings, the Phantom Series fuel gauge is suitable for a wide range of vehicles, including race cars, street performance builds, and custom projects. It is compatible with various fuel sender types, provided the resistance range is within the programmable limits. This gauge is intended for use in applications requiring accurate fuel level monitoring, whether for daily driving, track use, or off-road adventures. Installation involves connecting the sender wire and power supply, with no additional sensors needed. The kit includes the gauge and necessary wiring, making it a straightforward upgrade or replacement for existing fuel level indicators.

Overview

Phantom Series Fuel Level Programmable Gauge 0-280 ? by Autometer

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.

Features

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
  • User definable resistance setting programmable anywhere between 0-280 ohms

Benefits

  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Auto Meter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up

Applications

  • Universal

What's in the Box?

  • Gauge kit includes 20 ft
  • Wiring harness
  • Bulb and socket assembly
  • Red and green bulb covers
  • Mounting hardware
  • Detailed instructions for installation

Warranty

  • N/A
