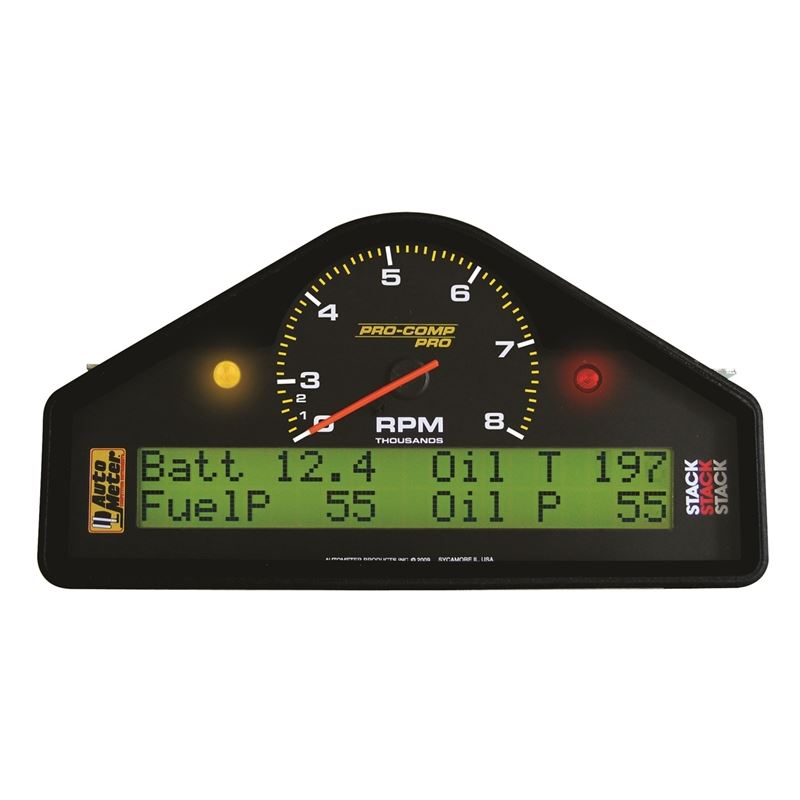

AutoMeter Pro-Comp Race Dash 0-8k RPM/Speed/Oil Press and Temp/WaterTemp/Fuel Pressure/Battery Gauge (6011)

The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.

Features:

• Built-in warning and shift light LEDs
• Configurable for engines from 1-12 cylinders
• Dimensions - 8.3in Wide x 5.2-1/16in High x 1.4in Deep
• Display features digital values for vehicle parameters and configurable text warning messages
• Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
• IP67 sealed
• Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, and Fuel Pressure
• Optional shift light output, single stage or progressive shift light
• Programmable Speed input
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
