AutoMeter Racing LCD Display | Shift/Alarm Lights/Data Logging/CD7 (6021)
AutoMeter Racing LCD Display | Shift/Alarm Lights/Data Logging/CD7 (6021)
SKU:6021
Out of stock
Couldn't load pickup availability

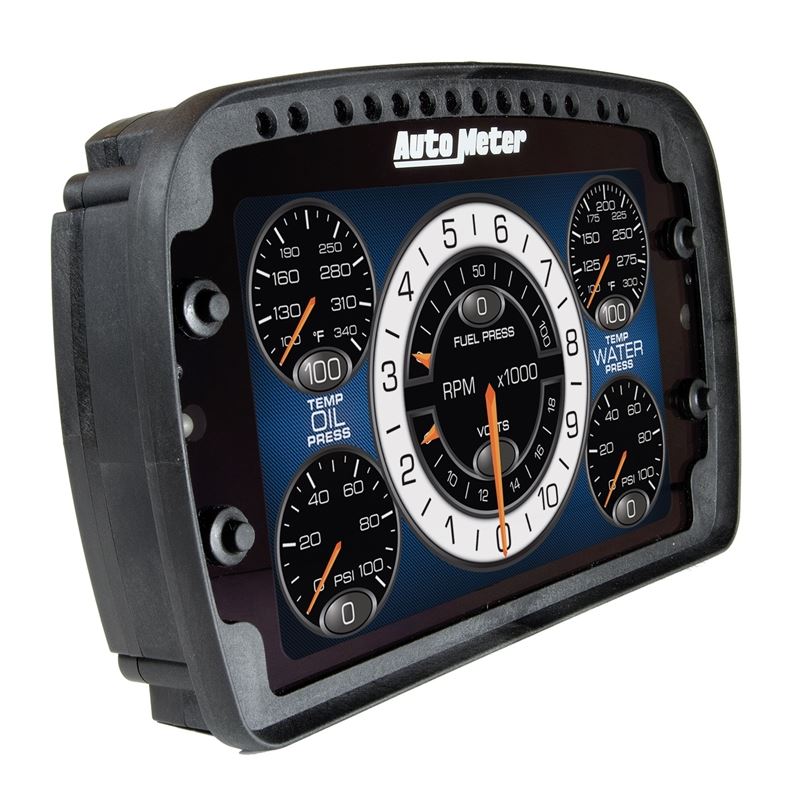

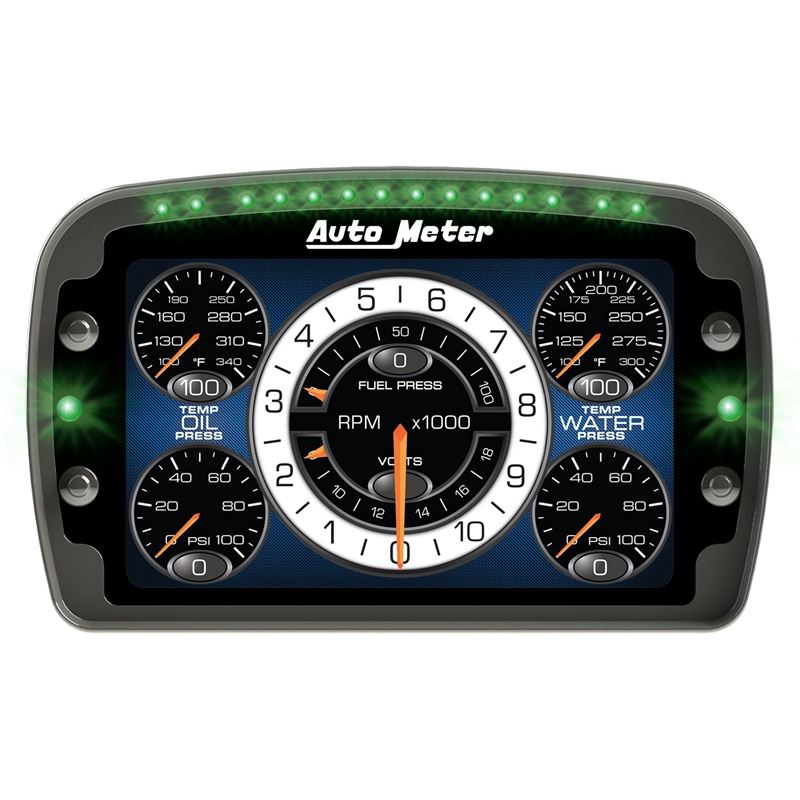

The AutoMeter Racing LCD Display, model CD7 (6021), is an advanced driver communication and data logging system designed for high-performance automotive applications. Featuring a 7-inch LCD panel with retina-level pixel density, it provides exceptional visibility and clarity in all lighting conditions. The display includes shift lights, alarm indicators, and data logging capabilities, making it an essential tool for racing and performance driving. Constructed with a durable carbon composite housing, it is IP65 sealed to resist water, dust, and harsh environmental conditions. The display is engineered to withstand 20g of continuous vibration and 50g of shock, ensuring reliable operation in demanding scenarios. Its optically bonded lens minimizes glare, enhancing readability during intense driving situations.
This display is compatible with a wide range of vehicles used in racing, track days, and performance testing. It is suitable for installation in cars subjected to extreme conditions, including off-road and motorsport environments. The system is designed for direct integration with existing vehicle electronics and can be configured for various data inputs. Installation typically involves mounting the display in a visible location within the cockpit, with connections for power, data, and sensors. The kit includes the LCD unit and necessary mounting hardware, with no specific vehicle year or model restrictions, making it versatile for different makes and models engaged in competitive or high-performance driving.
Share
Overview
Overview
The AutoMeter Competition LCD Display is the next evolution of driver communication and data acquisition. Designed specifically for the harshest of environments, the carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. Our 7" LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable to your individual specifications. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information.
Features:
- 16 configurable multi-color LED indicator lights can be programmed for a wide variety of alarm and shift / gear change indication functions
- Analog and Digital Combination Offers Optimized Precision for Both Accurate Values and Rate of Change
- Configurable CAN Input for PCM Connections, Up to 12 Discrete Sensor Inputs With Internal 3-axis Accelerometer and Voltage
- DataLogging: 4 GB onboard memory, up to 128 channels of information, sampling rates up to 500Hz with select channels to 1kHz
- Dimensions - 8.3in Wide x 5.2in High x 1.4in Deep
- Includes powerful DataPro Analysis Software
- IP65 Sealed For Protection Against Dust and Moisture
- Optically Bonded, Super Bright 7in Display Provides Unmatched Day and Night Time Visibility
- Single High Density Motorsport Connector and Starter Harness
- Surface Mounted and Remote Mounted Button Interface For Driver Input and Menu Navigation
