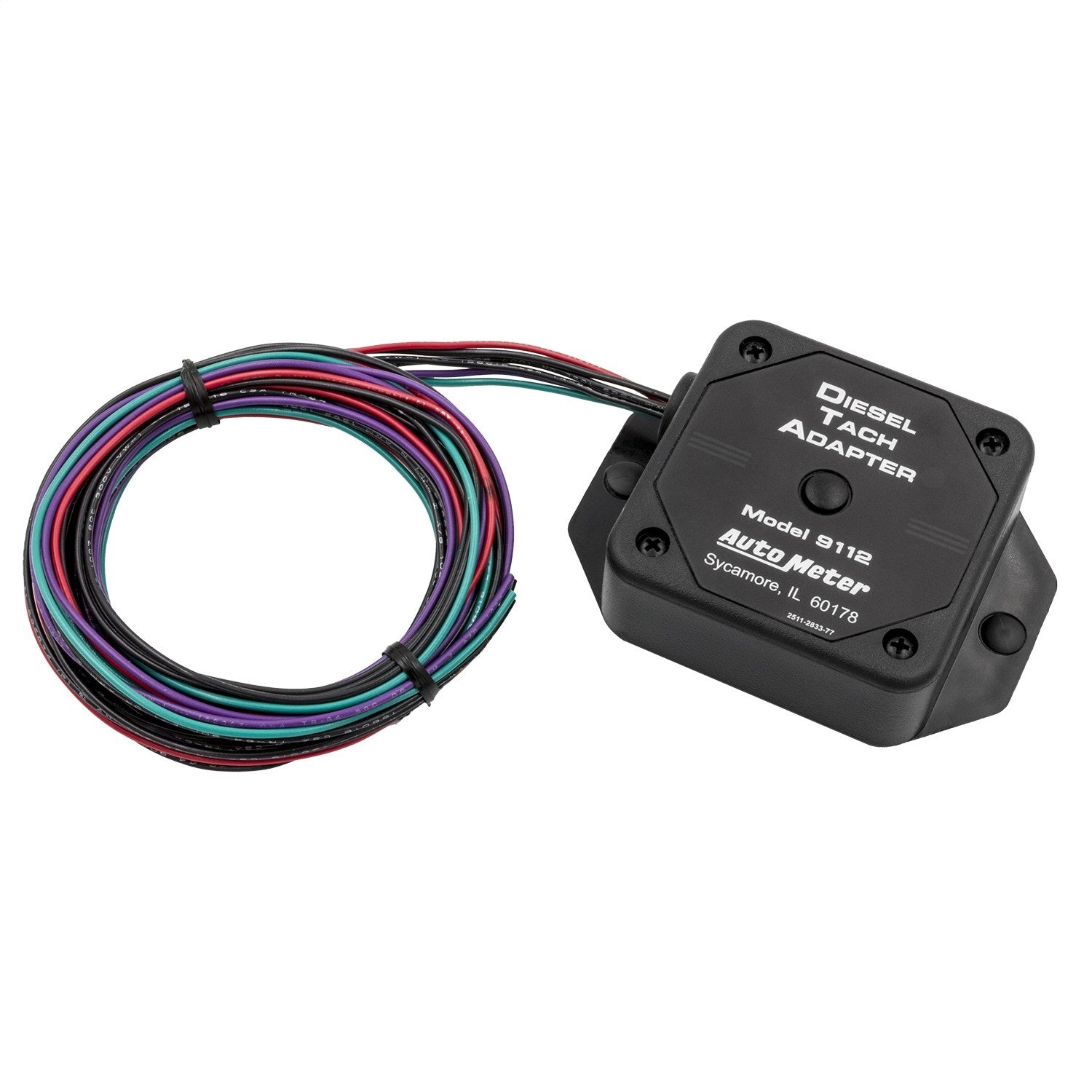

AutoMeter RPM Signal Tach Adapter

Compatible with Diesel Engines and Non-Standard Ignition Systems

Part #: 9112

Overview

The AutoMeter RPM Signal Tach Adapter is a compact, easy-to-install module designed to help you accurately monitor engine RPM on diesel engines and vehicles with non-standard ignition systems. Whether you're a performance enthusiast, a professional tuner, or a DIY mechanic, this adapter provides a reliable solution for integrating aftermarket tachometers, shift lights, and other RPM-based devices with your vehicle's electrical system.

Specifically engineered for diesel applications and engines with alternator-equipped setups, this tach adapter simplifies the process of synchronizing your aftermarket gauges with the engine's actual RPM signals. Its straightforward calibration process ensures precise readings, enhancing your ability to monitor engine performance during tuning, racing, or daily driving.

Key Features

The AutoMeter RPM Signal Tach Adapter offers a range of features designed for durability, ease of use, and accurate signal conversion:

• Compact and lightweight design that fits seamlessly into your engine bay without adding clutter or weight.
• Equipped with a sensor mounted directly to the alternator casing, providing a stable and consistent signal source for accurate RPM readings.
• One-time setup calibration via a push-button interface, allowing you to synchronize the adapter with your engine's crank RPM quickly and easily.
• Compatible with a wide range of diesel engines and gasoline engines with alternator-based ignition systems, making it versatile for various vehicle setups.
• Designed to support aftermarket tachometers, shift lights, data loggers, and other RPM-based devices, improving your vehicle's monitoring capabilities.
• Built with high-quality components to ensure long-lasting performance in demanding automotive environments.
• Easy installation process that requires minimal wiring and no complex tuning, making it suitable for both professionals and enthusiasts.
• Provides a clean, reliable signal that helps prevent false readings or signal dropouts during high-performance driving or tuning sessions.
• Compatible with AutoMeter gauges and many other aftermarket products, ensuring broad usability across different brands and models.

Construction & Design

The AutoMeter RPM Signal Tach Adapter features a robust construction designed to withstand the harsh conditions of engine bays. Its sensor is mounted securely to the alternator casing, utilizing durable materials that resist heat, vibration, and electrical interference. The module itself is compact and designed for easy integration into existing wiring harnesses, with clearly labeled connections for straightforward installation.

The calibration interface is user-friendly, employing a push-button system that allows for quick synchronization without the need for complex tuning procedures. This design ensures that both professional installers and DIY enthusiasts can set up the adapter with minimal effort, saving time and reducing installation errors.

Performance & Reliability

By providing a stable and accurate RPM signal, the AutoMeter Tach Adapter enhances the performance monitoring capabilities of your vehicle. It ensures that aftermarket gauges display precise engine speed data, which is critical for tuning, diagnostics, and optimal driving performance. The high-quality components and thoughtful design contribute to long-term reliability, even in demanding racing or off-road environments.

Installation & Fitment

Installing the AutoMeter RPM Signal Tach Adapter is a straightforward process that involves mounting the sensor to the alternator casing and connecting the wiring harness to your vehicle's electrical system. No cutting, drilling, or complex modifications are required. The adapter's plug-and-play design allows for quick setup, making it suitable for both professional shops and home mechanics.

• Mount the sensor securely to the alternator casing using the provided hardware.
• Connect the adapter's wiring to your aftermarket tachometer and vehicle power source as per the included instructions.
• Use the push-button interface to calibrate the module, ensuring accurate RPM readings.

Once installed and calibrated, the adapter provides a reliable signal that enhances your vehicle's monitoring system without interfering with existing electrical components.

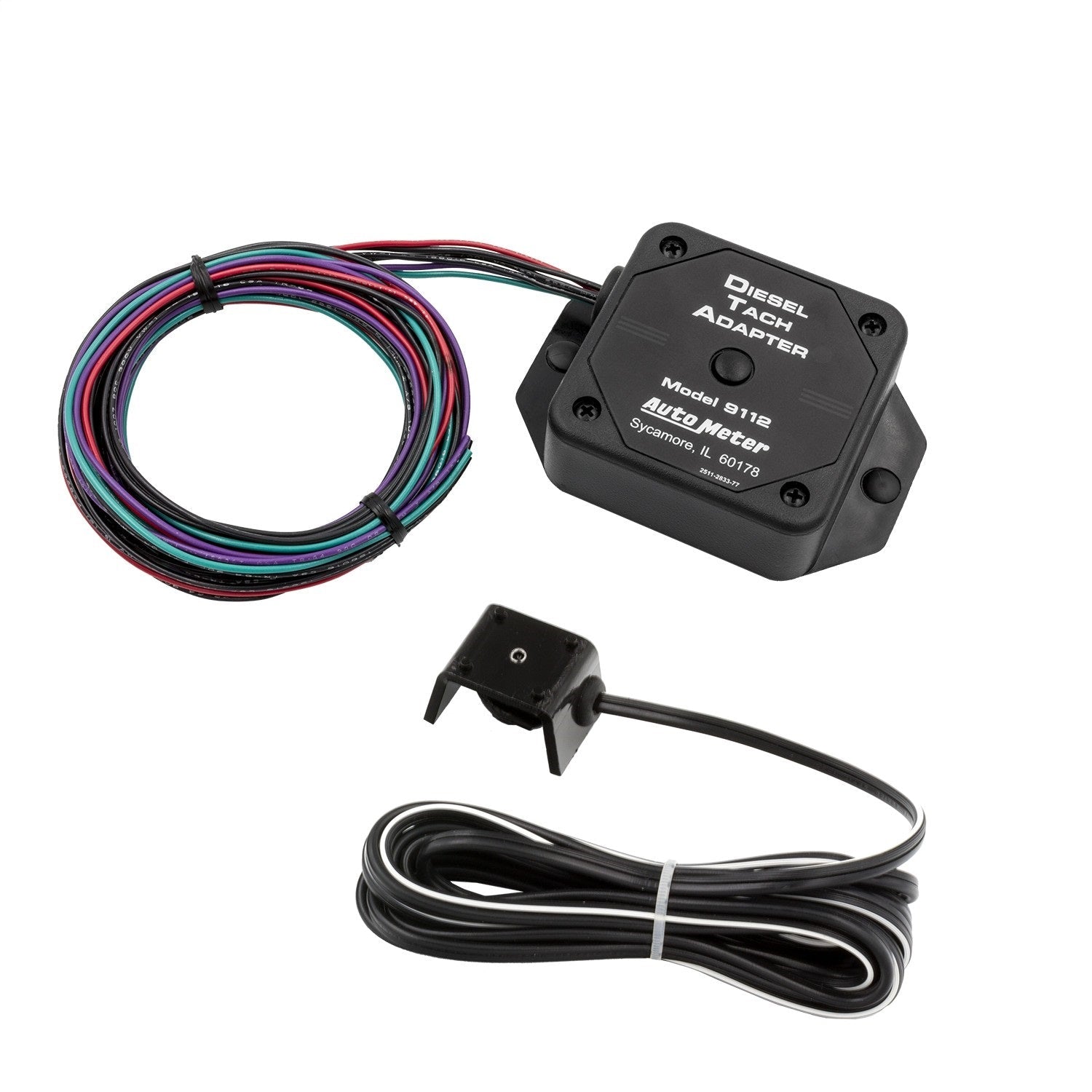

What's Included

• AutoMeter RPM Signal Tach Adapter module
• Sensor with mounting hardware
• Wiring harness and connectors
• Installation instructions

Ideal For

• Diesel engine enthusiasts and tuners
• Vehicles with non-standard ignition systems
• Performance drivers seeking accurate RPM monitoring
• Professional automotive technicians and DIY mechanics
• Racing applications requiring precise engine speed data

Emissions Note

This product is designed for off-road, racing, or performance use only and may not be legal for street use in all jurisdictions. Please check local regulations before installation.
