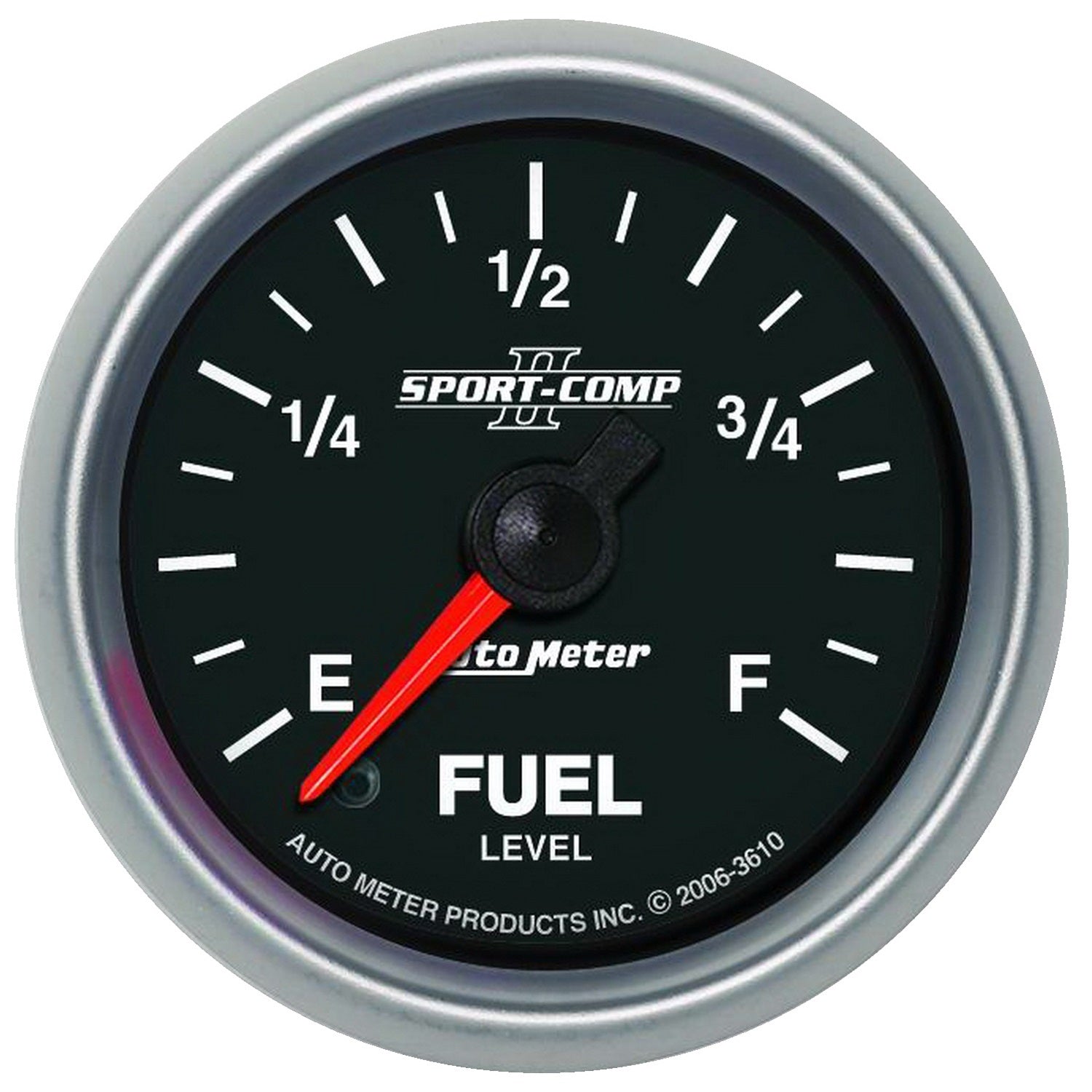

• AutoMeter Sport-Comp II 52mm 0-280 ohms Programmable Electronic Fuel Level Gauge (3610)
1 1

AutoMeter Sport-Comp II 52mm 0-280 ohms Programmable Electronic Fuel Level Gauge (3610)

AutoMeter Sport-Comp II 52mm 0-280 ohms Programmable Electronic Fuel Level Gauge (3610)

3610

Out of stock

$165.76 USD
$193.34 USD $165.76 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AutoMeter Sport-Comp II 52mm 0-280 ohms Programmable Electronic Fuel Level Gauge is a high-precision instrument designed to provide accurate fuel level readings for performance and racing applications. Featuring a digital stepper motor, this gauge offers easy configuration of resistance ranges, simplifying the setup process. With seven factory-stored common configurations, it covers the majority of fuel sender types, ensuring compatibility across various vehicles. An innovative custom calibration mode allows users to fine-tune the gauge for non-standard senders, enhancing accuracy and reliability. Constructed with durable materials suitable for demanding environments, this gauge delivers consistent performance and clear visibility, making it an essential component for enthusiasts seeking precise fuel monitoring.

Designed to fit standard 52mm instrument panels, the AutoMeter Sport-Comp II gauge is compatible with a wide range of vehicles and applications. It supports a resistance range of 0-280 ohms, making it suitable for many fuel sender types found in street and race cars. The gauge is a direct replacement for existing fuel level indicators, offering straightforward installation with minimal wiring adjustments. It is ideal for use in performance vehicles, race cars, or custom builds where accurate fuel level data is critical. The product does not include the fuel sender but provides flexible calibration options to match your specific setup, ensuring optimal functionality in various vehicle configurations.

Overview

Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.

Features:

  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
  • Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up
  • Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • User definable resistance setting programmable anywhere between 0-280 ohms
