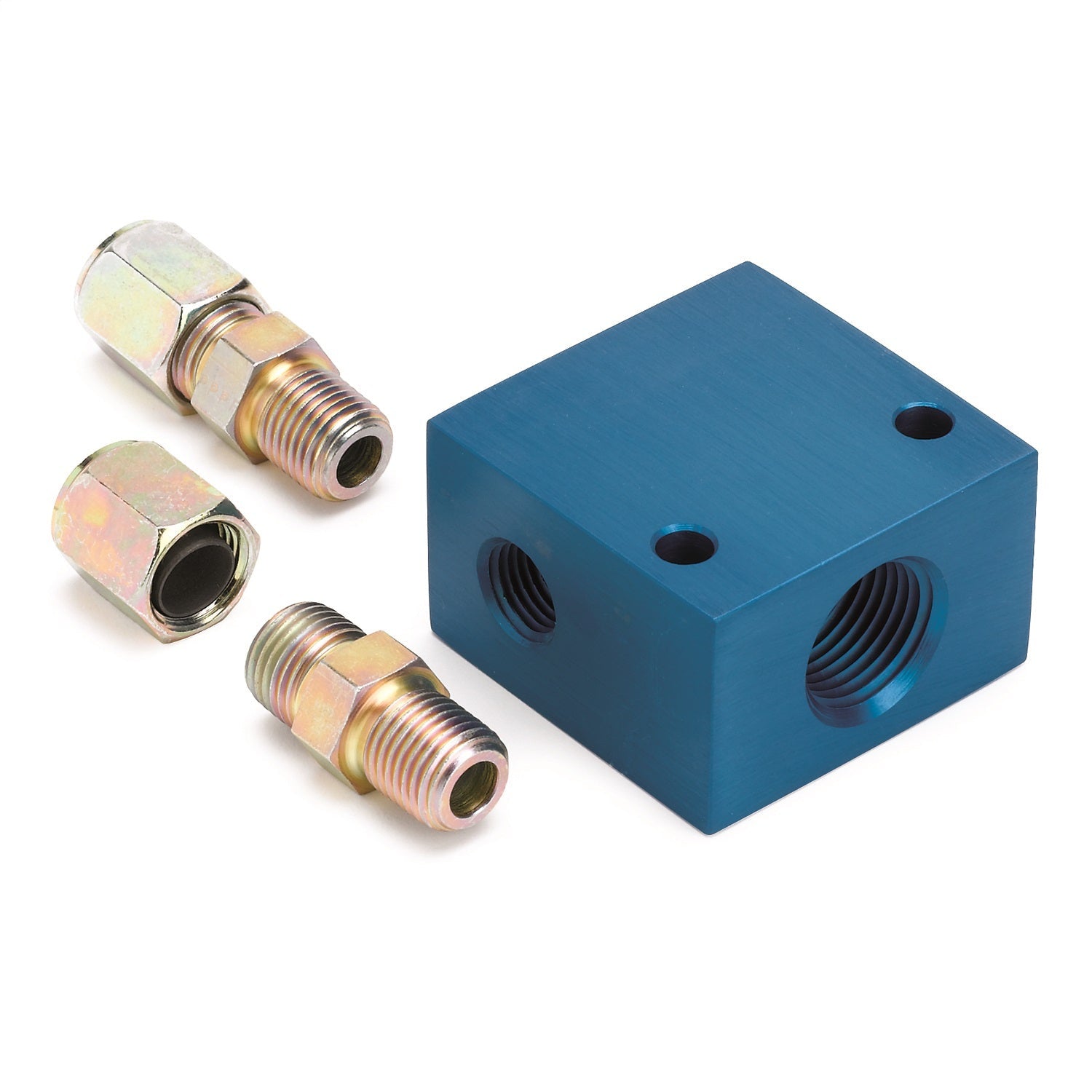

AutoMeter Temperature Manifold Adapter for 3/8 O.D. Tubing

Application: Transmission Temperature Gauges

Part #: 2286

Overview

The AutoMeter Temperature Manifold Adapter is a precision-engineered component designed to facilitate the installation of mechanical and electric transmission temperature gauges. When monitoring transmission temperatures, especially in applications where a dedicated temperature port or pan installation isn't feasible, this manifold adapter provides a reliable and straightforward solution. Crafted from high-quality materials and finished in a striking bright blue anodized coating, it combines durability with an attractive appearance.

This adapter is ideal for automotive enthusiasts and professionals seeking an efficient way to monitor transmission temperatures without compromising the integrity of the transmission system. Whether you're upgrading your performance vehicle or maintaining a stock setup, this manifold ensures accurate readings and easy installation, helping you keep your transmission within optimal temperature ranges for maximum performance and longevity.

Key Features

The AutoMeter Transmission Temperature Manifold Adapter boasts several technical features that make it a valuable addition to your vehicle's instrumentation setup:

• High-Strength Construction: Machined from aircraft-grade aluminum alloy, this manifold offers exceptional strength and resistance to corrosion, ensuring long-lasting performance under demanding conditions.
• Bright Blue Anodized Finish: The anodized coating not only enhances the visual appeal but also provides an extra layer of protection against environmental elements and heat.
• Multiple Port Configuration: Equipped with a 1/2 inch NPT sensor port and two 1/4 inch NPTF line ports, it allows for versatile installation options, accommodating various sensor and line configurations.
• Included Fittings: Comes with a 1/4 inch NPTF to 3/8 inch compression fittings, simplifying the connection process and ensuring a secure, leak-free fit.
• Compact Dimensions: Measuring approximately 2 inches by 2 inches by 1.25 inches, the manifold is designed to fit neatly in tight engine bay spaces without obstructing other components.
• Ease of Installation: The machined ports and included fittings make installation straightforward, requiring only basic tools and minimal effort.
• Versatile Compatibility: Suitable for a wide range of transmission cooling lines and sensor types, making it a flexible choice for various vehicle models and setups.

Construction & Design

The AutoMeter Transmission Temperature Manifold Adapter is meticulously machined from aircraft-grade aluminum alloy, ensuring high durability and resistance to thermal and mechanical stresses. Its bright blue anodized finish not only provides an eye-catching look but also enhances corrosion resistance, making it suitable for both street and racing environments. The compact design allows for easy integration into existing transmission cooling lines or sensor setups, while the multiple ports facilitate flexible routing of sensors and lines.

The inclusion of high-quality compression fittings ensures a secure connection to 3/8 inch O.D. tubing, preventing leaks and maintaining consistent pressure. The precise machining of the NPT ports guarantees a tight seal and accurate sensor placement, which is critical for reliable temperature readings. Overall, the design emphasizes durability, ease of use, and compatibility, making it a dependable component for your transmission monitoring system.

Performance & Functionality

This manifold adapter is engineered to provide a stable and accurate connection point for transmission temperature sensors. By enabling installation directly into the transmission cooler hardline, it allows for real-time temperature monitoring without the need for invasive modifications or pan drilling. The robust construction ensures that the manifold maintains its integrity under high temperatures and vibrations typical of performance driving or heavy-duty applications.

Installation & Fitment

Installing the AutoMeter Transmission Temperature Manifold Adapter is a straightforward process suitable for DIY enthusiasts and professional installers alike. The manifold features standard NPT threads, compatible with most transmission cooling lines and sensors. No cutting or drilling of the transmission case is required, and the included fittings facilitate a quick, secure connection to 3/8 inch O.D. tubing. Basic hand tools are sufficient, and the process typically involves removing the existing line, threading the manifold into place, and attaching the sensor and lines.

Ensure all connections are tightened properly to prevent leaks. The compact size and precise machining allow for seamless integration into your vehicle's transmission cooling system, providing a reliable platform for temperature monitoring.

What's Included

• AutoMeter Transmission Temperature Manifold Adapter
• 1/4 inch NPTF to 3/8 inch compression fittings
• High-strength aircraft-grade aluminum alloy construction
• Bright blue anodized finish

Ideal For

• Performance enthusiasts seeking accurate transmission temperature monitoring
• Street and racing applications where transmission health is critical
• DIY mechanics installing or upgrading transmission gauges
• Vehicles with hardline transmission cooling systems

Emissions Note

This product is designed for off-road, racing, or recreational use only and may not be legal for use on pollution-controlled vehicles in all jurisdictions. Please check local regulations before installation.
