AutoMeter Universal Magnetic Hall Effect Speed Sensor

Universal Fitment for Axle or Driveshaft Mounting, 2010–2025

Part #: 5290

Overview

The AutoMeter Universal Magnetic Hall Effect Speed Sensor is a versatile and reliable solution designed for automotive enthusiasts and professionals who need accurate wheel or driveshaft speed measurements. This sensor is specifically engineered to work seamlessly with AutoMeter electric programmable speedometers, providing a precise 4 pulse per revolution square wave signal at 12V. Whether you're customizing your vehicle's instrumentation or troubleshooting speed-related issues, this sensor offers a straightforward and effective way to monitor wheel or driveshaft speed in applications where conventional gearbox sensors are not feasible.

Ideal for custom builds, race cars, off-road vehicles, or any application requiring driven wheel speed input, the AutoMeter speed sensor ensures consistent performance and easy installation. Its magnetic Hall effect technology delivers accurate, noise-free signals, supporting your vehicle's electronic systems with dependable data. With included mounting hardware and comprehensive installation instructions, this sensor simplifies the setup process, making it accessible for both seasoned technicians and DIY enthusiasts.

Key Features

The AutoMeter Universal Magnetic Hall Effect Speed Sensor boasts several technical features that enhance its performance and durability:

• Magnetic Hall effect sensing technology provides precise, reliable signals for accurate speed measurement.
• Designed for universal mounting on axles or driveshafts, offering flexible installation options across various vehicle types.
• Includes a set of magnets and a mounting bracket, facilitating quick and secure attachment to your vehicle's drivetrain.
• Operates at 12 volts, compatible with most automotive electrical systems, ensuring seamless integration with existing instrumentation.
• Produces a 4 pulse per revolution square wave signal, ideal for high-resolution speed readings and programmable speedometers.
• Constructed with durable materials to withstand harsh engine bay conditions, including heat, vibration, and moisture.
• Easy to install with included hardware and detailed instructions, reducing downtime and installation complexity.
• Problem solver for applications where traditional gearbox sensors are impractical or impossible to mount.
• Supports customization and tuning efforts by providing consistent, accurate speed data for performance monitoring.

Construction & Design

The AutoMeter speed sensor features a robust design built to endure demanding automotive environments. Its magnetic Hall effect sensing element is housed within a corrosion-resistant casing, ensuring longevity and reliable operation over time. The included mounting bracket is engineered for secure attachment to various axle or driveshaft configurations, with adjustable positioning to optimize signal quality. The sensor's compact size allows for flexible placement, minimizing interference with other components. Overall, the construction emphasizes durability, ease of installation, and consistent performance, making it a dependable choice for both street and race applications.

Performance & Sound

While this sensor primarily focuses on providing accurate speed signals rather than audible performance enhancements, its high-quality Hall effect technology ensures noise-free, stable output signals. This stability supports precise speedometer readings and enhances the overall reliability of your vehicle's electronic systems. Its 4 pulse per revolution output offers high-resolution data, beneficial for detailed performance analysis and tuning.

Installation & Fitment

The AutoMeter Universal Magnetic Hall Effect Speed Sensor is designed for straightforward bolt-on installation. It mounts directly onto the axle or driveshaft using the included hardware and bracket, with no need for complex modifications or specialized tools. The sensor connects easily to your AutoMeter programmable speedometer or compatible electronic systems, requiring only a standard 12V power supply. No cutting, drilling, or tuning is typically necessary, making it an accessible upgrade for a wide range of vehicles and setups.

• Mount the sensor on your axle or driveshaft using the provided bracket and hardware.
• Position the included magnets near the sensor to generate the pulse signal.
• Connect the sensor's wiring to your speedometer or electronic control unit, ensuring proper polarity and secure connections.
• Follow the detailed instructions included for calibration and setup to ensure accurate readings.

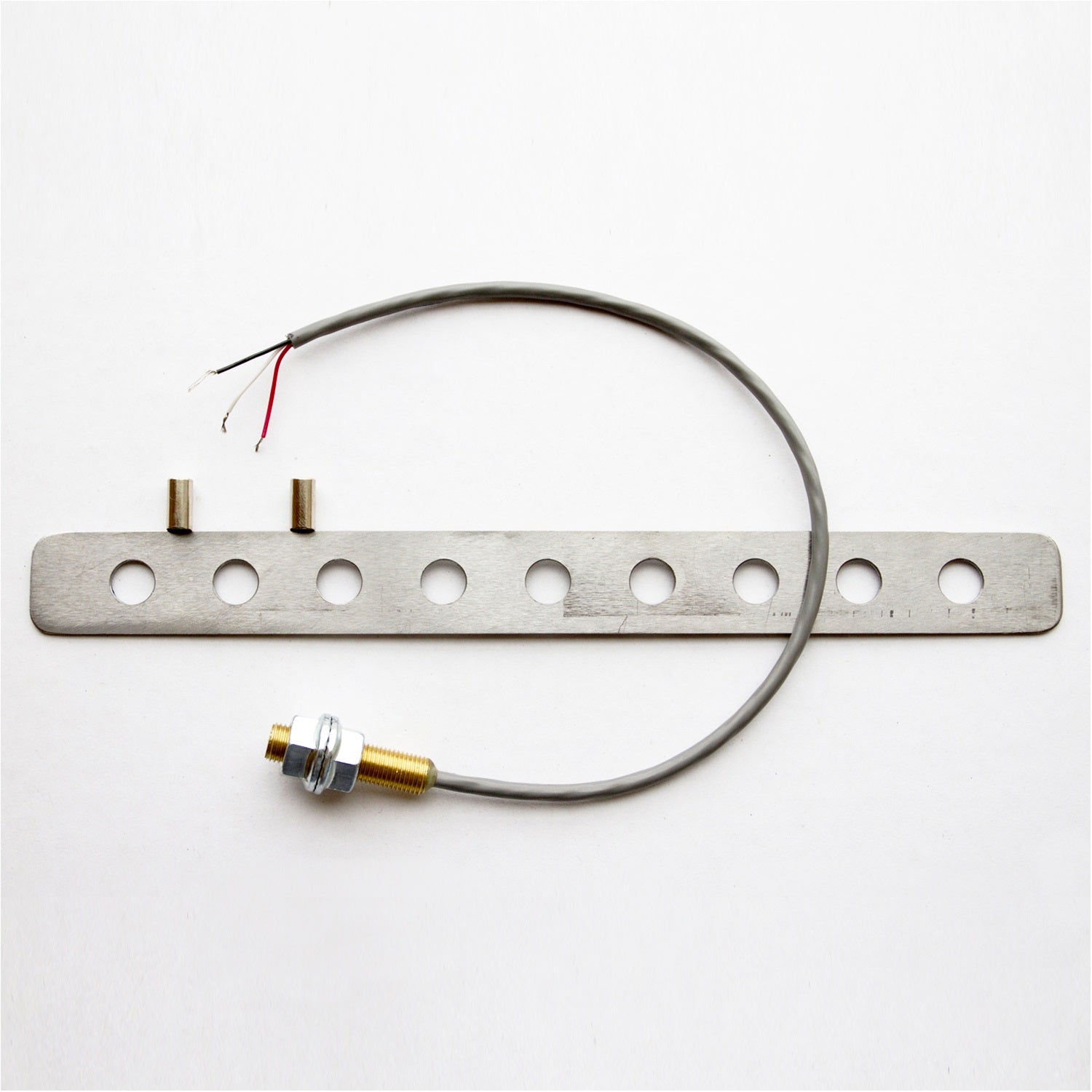

What's Included

• Magnetic Hall effect speed sensor
• Set of magnets for signal generation
• Mounting bracket and hardware
• Installation instructions

Ideal For

• Performance enthusiasts building custom or race vehicles
• Off-road vehicles requiring reliable speed sensing in challenging environments
• DIY mechanics seeking an easy-to-install, accurate speed sensor solution
• Applications where traditional gearbox sensors cannot be mounted or are unreliable

Emissions Note

This product is designed for off-road or racing use only and is not emissions-compliant for street use in certain jurisdictions. Please verify local regulations before installation.
