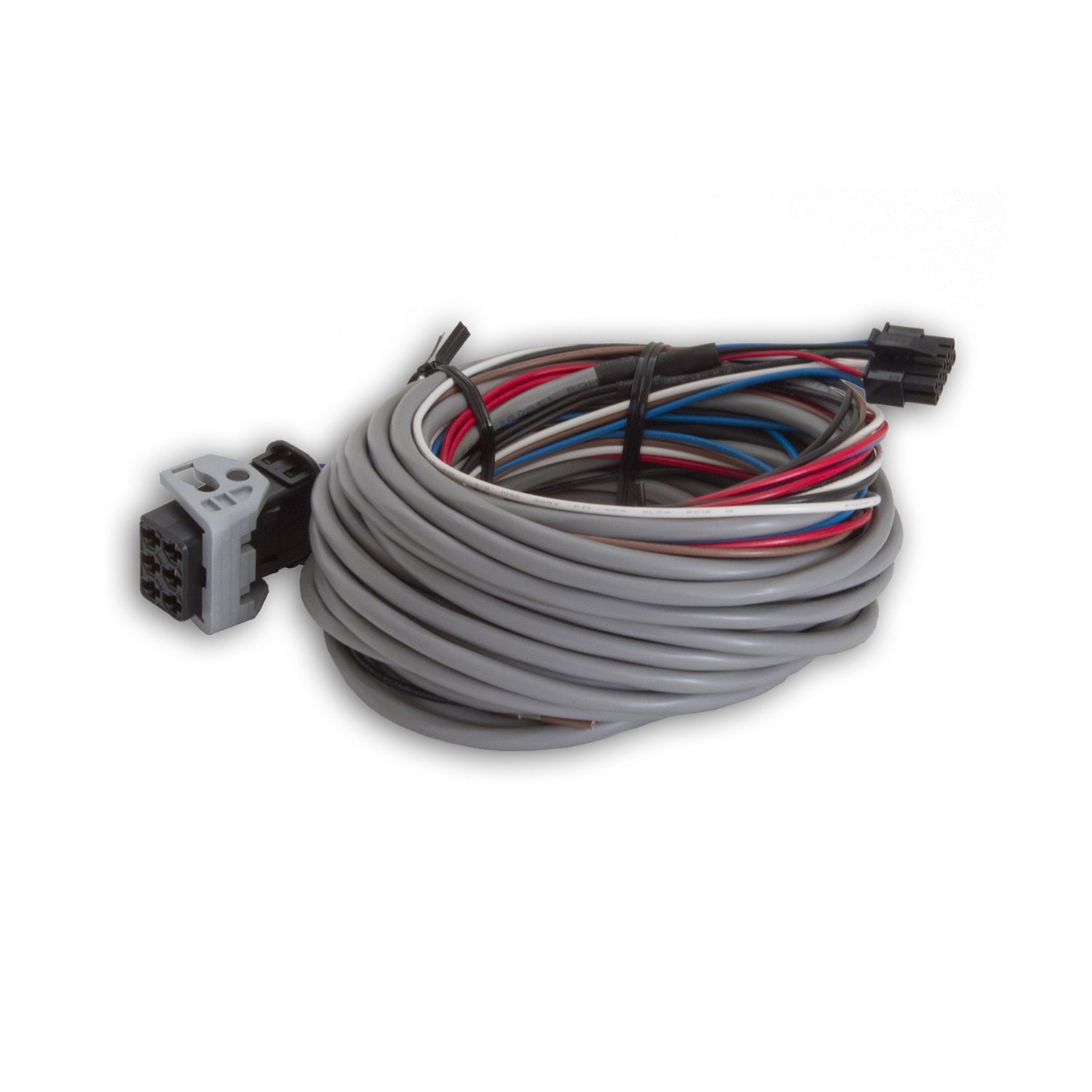

AutoMeter Wideband Extension Wiring Harness

25 Feet for Street and Analog Wideband AFR Gauges

Part #: 5252

Overview

The AutoMeter Wideband Extension Wiring Harness is a versatile accessory designed to extend the reach of your AutoMeter Street or Analog Wideband Air-Fuel Ratio (AFR) gauges. Measuring 25 feet in length, this harness provides the flexibility needed for custom installations, especially in vehicles with mid or rear engine configurations where the factory harness may not be long enough. Whether you're upgrading your existing setup or installing a new wideband gauge in a complex engine bay, this extension ensures a clean and reliable connection.

Ideal for automotive enthusiasts, tuners, and professional installers, this harness allows you to position your AFR gauge precisely where you need it without sacrificing signal integrity or ease of installation. It is especially useful in applications where the gauge needs to be mounted away from the engine bay, such as in the cabin or in custom dash setups. With this extension, you'll get a neat, professional-looking installation that maintains the accuracy and responsiveness of your wideband AFR readings.

Key Features

Designed with quality and durability in mind, the AutoMeter Wideband Extension Wiring Harness offers several key features:

• Extended Length: 25 feet of high-quality wiring provides ample reach for most custom vehicle setups, including mid and rear engine applications.
• Compatibility: Specifically designed for AutoMeter Street and Analog Wideband AFR gauges, ensuring a perfect fit and reliable performance.
• Reliable Signal Transmission: Constructed with premium wiring to maintain accurate AFR readings over longer distances, minimizing signal degradation.
• Easy Installation: Features plug-and-play connectors that simplify wiring and reduce installation time, making it accessible for both professionals and DIY enthusiasts.
• Replacement Option: Serves as a direct replacement for the standard 8 ft. harness included with your gauge, providing flexibility for custom setups.
• Note: Not compatible with AutoMeter PRO Series gauges; please see model #5253 for that application.
• Versatile Use: Suitable for a wide range of vehicle types, including those with mid or rear engine configurations where longer wiring runs are necessary.

Construction & Design

The AutoMeter Wideband Extension Wiring Harness is built with high-quality materials to ensure durability and consistent performance. The wiring is insulated with robust, heat-resistant sheathing to withstand the harsh conditions of engine bays and underdash environments. The connectors are precision-machined to provide a secure, vibration-resistant connection that maintains signal integrity over extended lengths. Designed for ease of use, the harness features color-coded wiring and clearly labeled connectors, simplifying the installation process and reducing the risk of wiring errors.

Performance & Sound

While this extension harness does not directly influence engine performance or sound, it plays a critical role in ensuring your wideband AFR gauge functions accurately and reliably. By providing a longer, high-quality connection, it helps maintain precise AFR readings, which are essential for tuning and monitoring your vehicle's air-fuel mixture. This ensures optimal engine performance, fuel efficiency, and emissions compliance when used with your AutoMeter AFR gauge.

Installation & Fitment

The AutoMeter Wideband Extension Wiring Harness is designed for straightforward, bolt-on installation. It connects seamlessly to your existing AutoMeter Street or Analog Wideband AFR gauge, with no cutting or splicing required. The harness features plug-and-play connectors that lock securely into place, ensuring a stable connection. No additional tools or modifications are necessary, making it suitable for both professional installers and DIY enthusiasts. This extension is ideal for custom vehicle builds, race cars, or any application where gauge placement needs to be flexible.

• Plug-and-play design for quick installation
• No cutting, drilling, or special tuning required
• Compatible exclusively with AutoMeter Street and Analog Wideband AFR gauges

What's Included

• 25-foot wiring harness extension for AutoMeter Wideband AFR gauges
• Connectors and wiring for a secure, reliable connection
• Installation instructions (if provided)

Ideal For

• Automotive enthusiasts upgrading or customizing their AFR gauge setup
• Professionals installing wideband sensors in mid or rear engine vehicles
• Race car builders requiring flexible gauge placement
• DIYers seeking a reliable, extended wiring solution for their AutoMeter gauges

Emissions Note

This product is designed solely for use with AutoMeter Street and Analog Wideband AFR gauges and does not affect vehicle emissions or legality. It is intended for off-road, racing, or diagnostic applications only and does not alter or improve emissions compliance.
