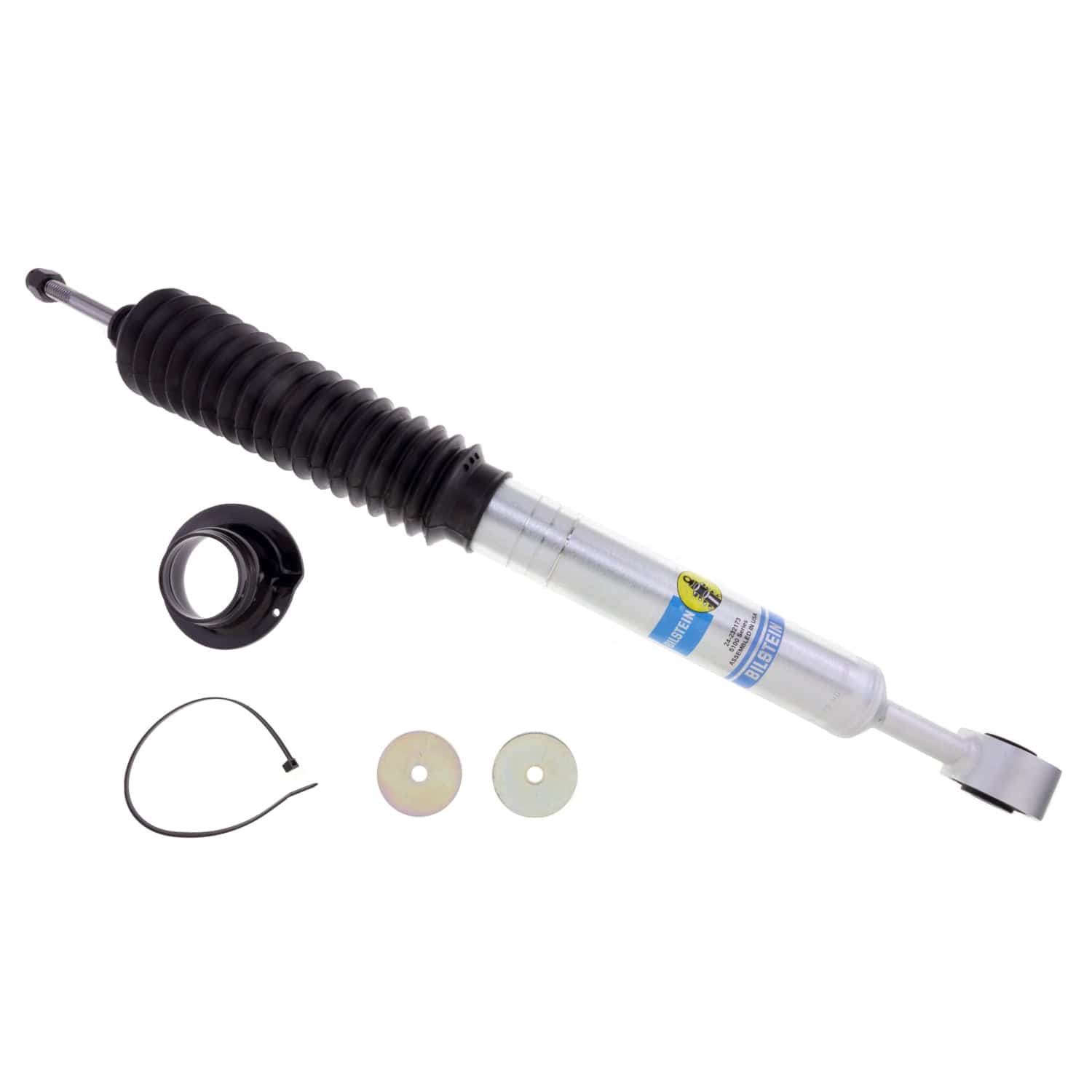

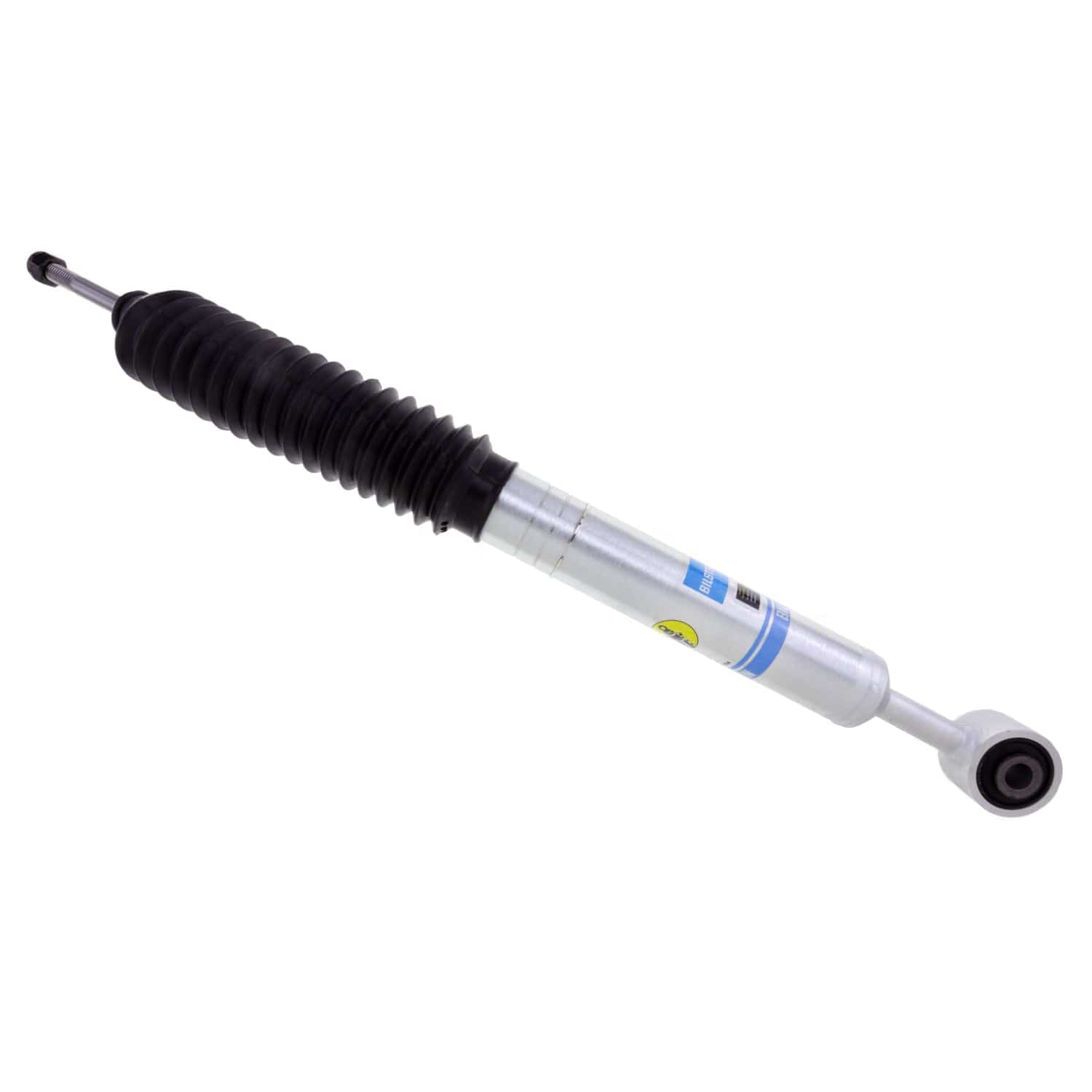

Bilstein 07-13 Toyota Tundra 2Dr/4Dr 46mm Front Shock Absorber
Bilstein 07-13 Toyota Tundra 2Dr/4Dr 46mm Front Shock Absorber
SKU:24-232173
Regular price
$168.00 USD
Regular price
$235.00 USD
Sale price
$168.00 USD
Unit price
/
per
Couldn't load pickup availability
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2007-2021 Toyota Tundra are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-232173 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2021 Toyota Tundra |
| UPC | 651860730707 |
| Front Lift Height | 0.875 - 2.3 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 17.77 in. |
| Collapsed Length | 451.3 mm |
| Damping Adjustable | No |
| Extended Length | 24.21 in. |
| Extended Length | 615.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16.4 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
- 2016 Toyota Tundra
- 2017 Toyota Tundra
- 2018 Toyota Tundra
- 2019 Toyota Tundra
- 2020 Toyota Tundra
- 2021 Toyota Tundra
