Bilstein 07-16 Chevy Silverado 1500/GMC Sierra 1500 B8 Front Upper Control Arm Kit

Bilstein 07-16 Chevy Silverado 1500/GMC Sierra 1500 B8 Front Upper Control Arm Kit

SKU:51-304669

Regular price $713.00 USD
Regular price $745.60 USD Sale price $713.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

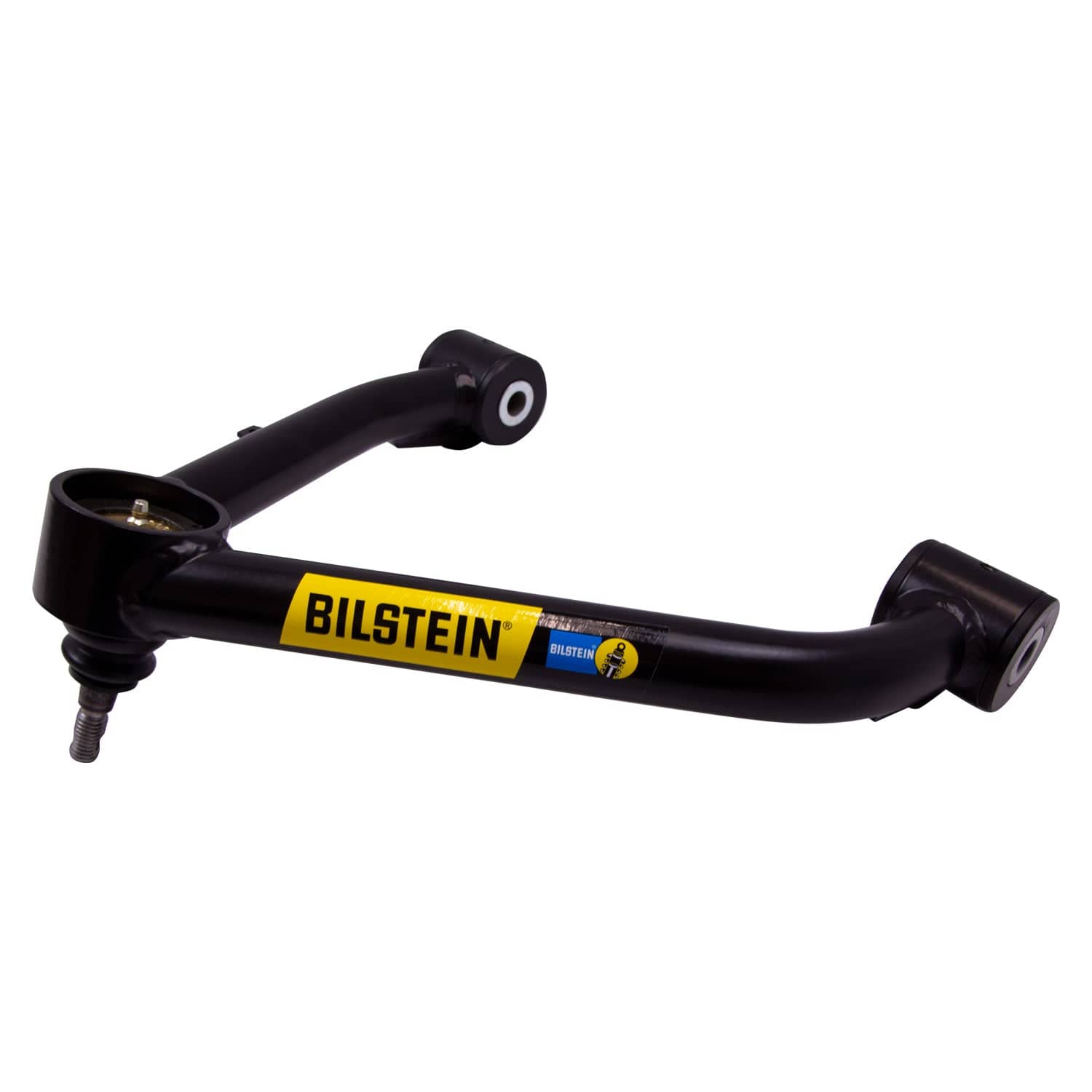

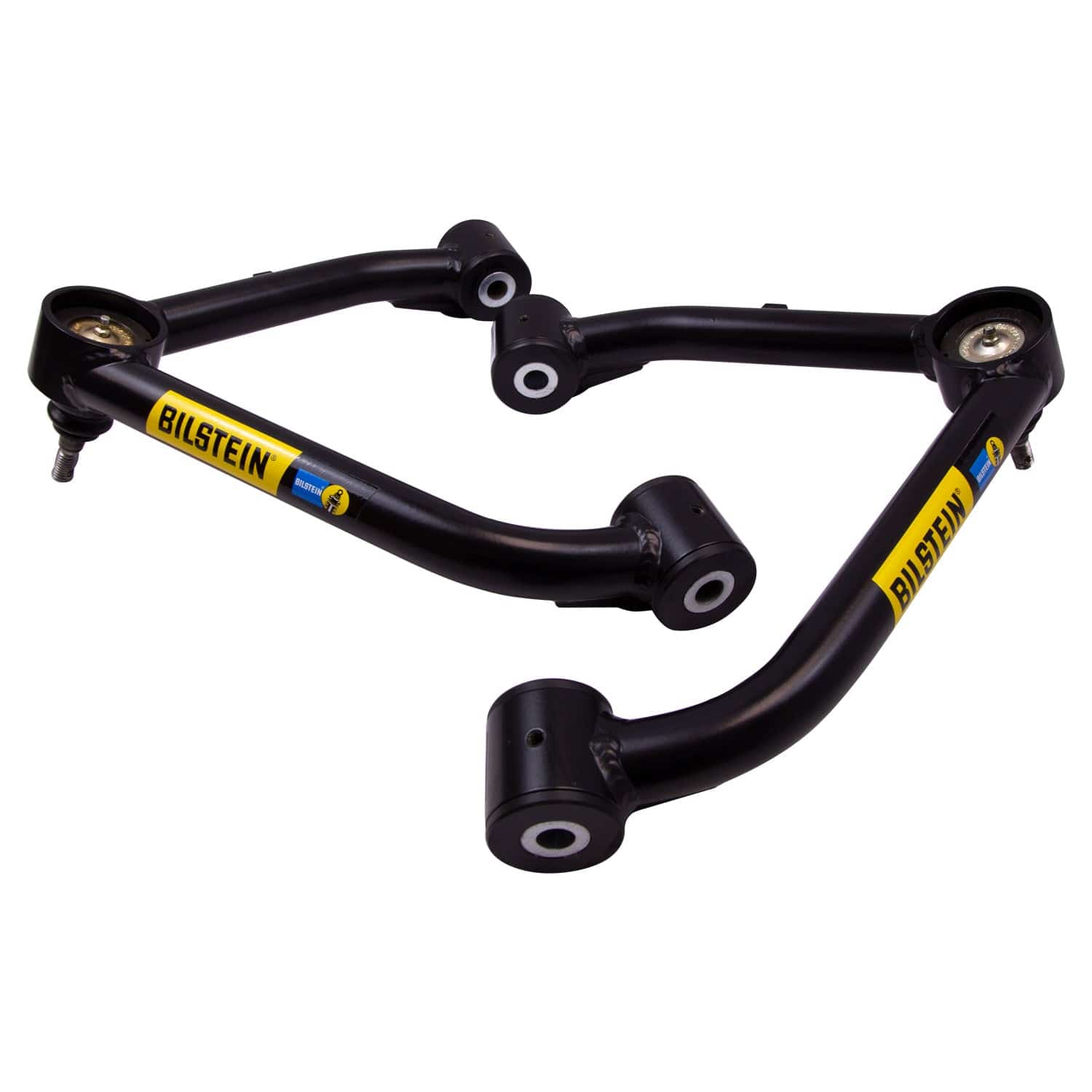

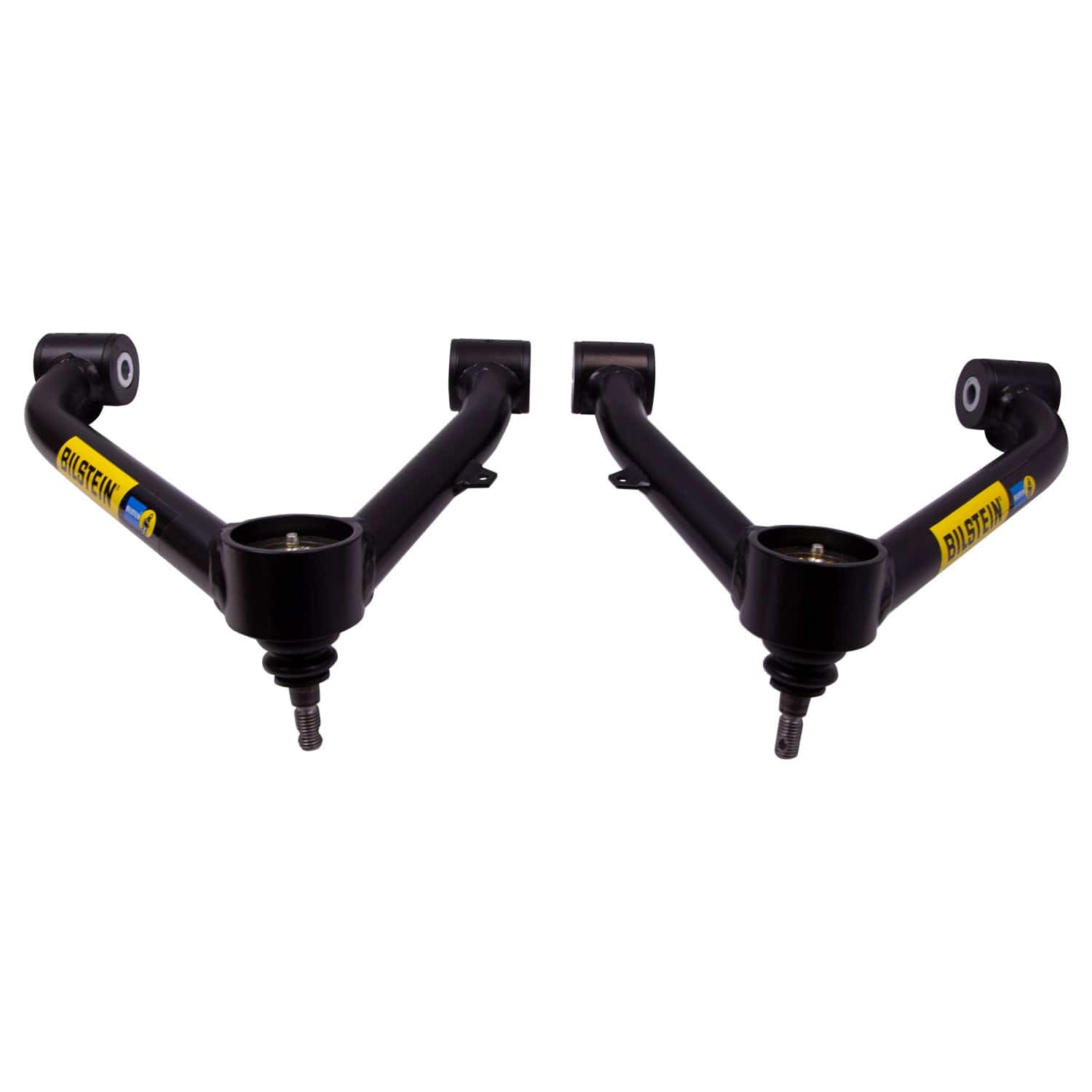

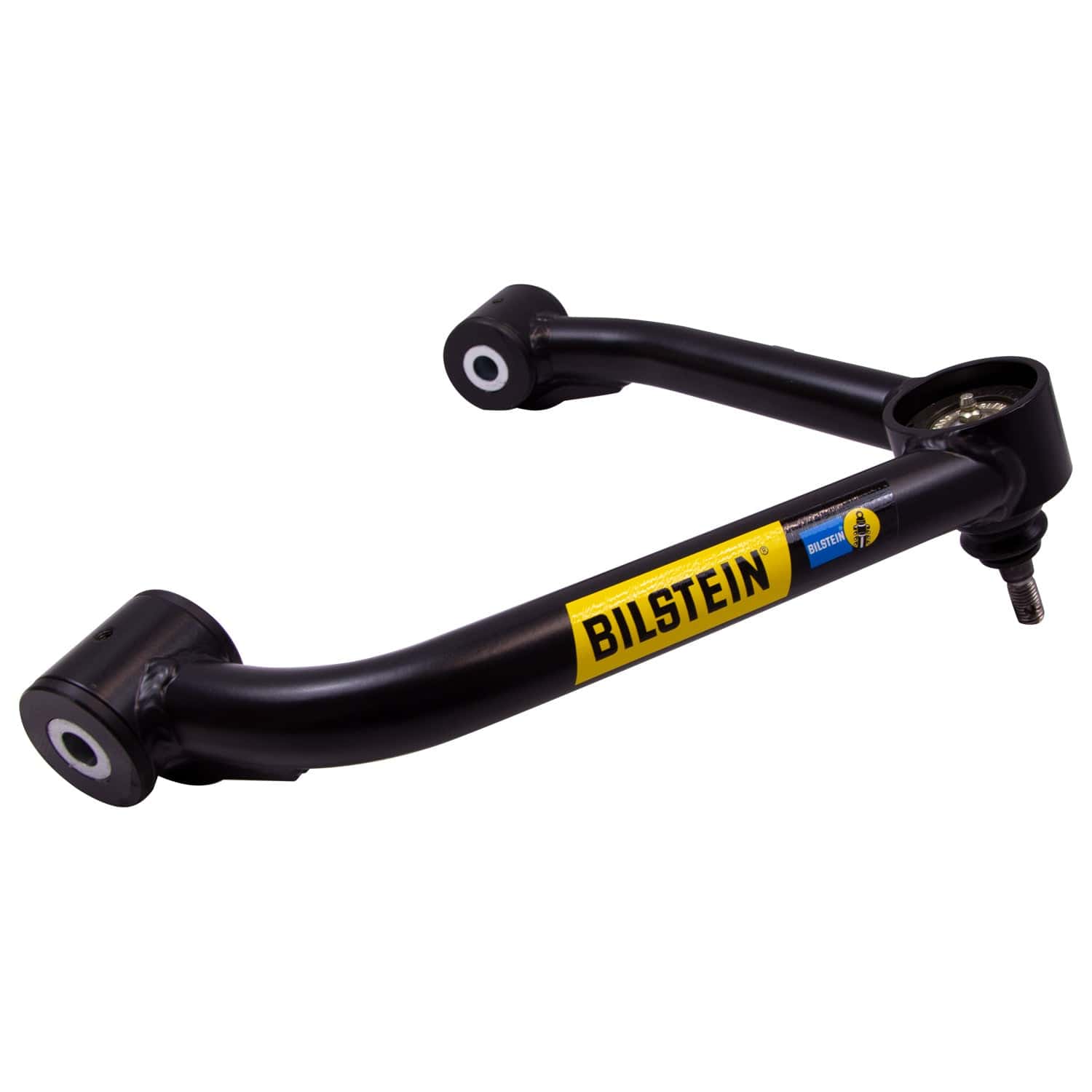

B8 Control Arms for the 2007-2016 GMC Sierra 1500 are a direct fit upgrade for factory upper control arms on trucks and SUVs. The kit contains a pair of control arms which correct the caster alignment for better straight line stability with lifted suspensions, and the improved pivot angles increase wheel travel and reduce stress on the joints. These strong black powder-coated 4130 chromoly steel arms are a tubular design which allows for more spring and shock clearance and feature greasable polyurethane bushings and heavy duty ball joints for the ideal combination of ride quality and durability with minimal maintenance needed. They come with detailed instructions and all necessary hardware for easy installation and are compatible with all Bilstein shocks and coilover kits. All components are replaceable.

Standard Features

  • B8 Control Arms are a direct fit upgrade for factory upper control arms on trucks and SUVs
  • The kit contains a pair of control arms which correct the caster alignment for better straight line stability with lifted suspensions, and the improved pivot angles increase wheel travel and reduce stress on the joints
  • Strong black powder-coated 4130 chromoly steel arms are a tubular design which allows for more spring and shock clearance and feature greasable polyurethane bushings and heavy duty ball joints
Specifications
Part Number 51-304669
Part Name Control Arm Kit
Vehicle 2007-2016 GMC Sierra 1500
UPC 651860890890
Arm Design Tubular
Arm Inner Pivot Type Greasable Black Delrin Bushings
Arm Material 4130 Chromoly Tubing
Arm Outer Pivot Type Greasable Sealed Ball Joint
Finish Powder-Coated Black

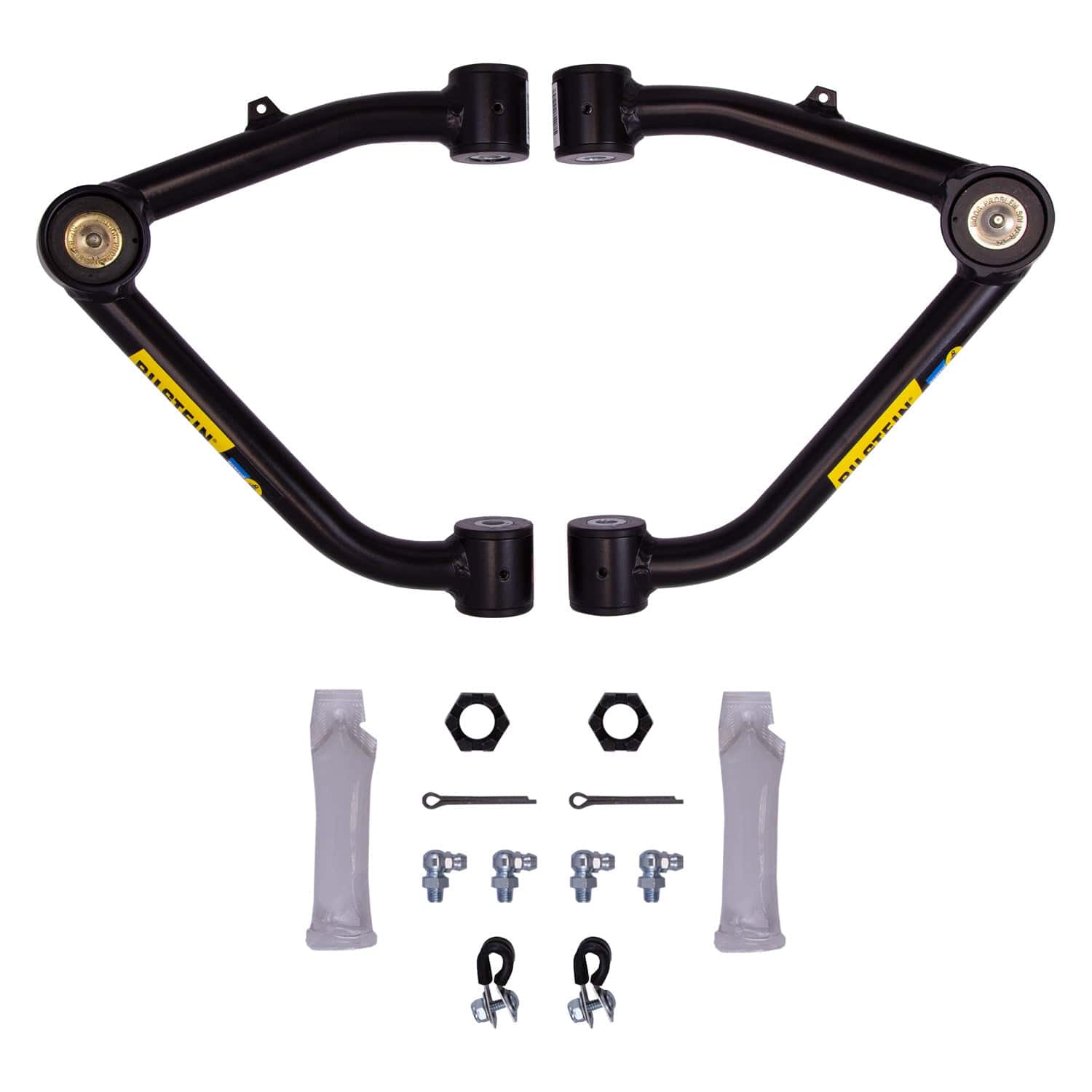

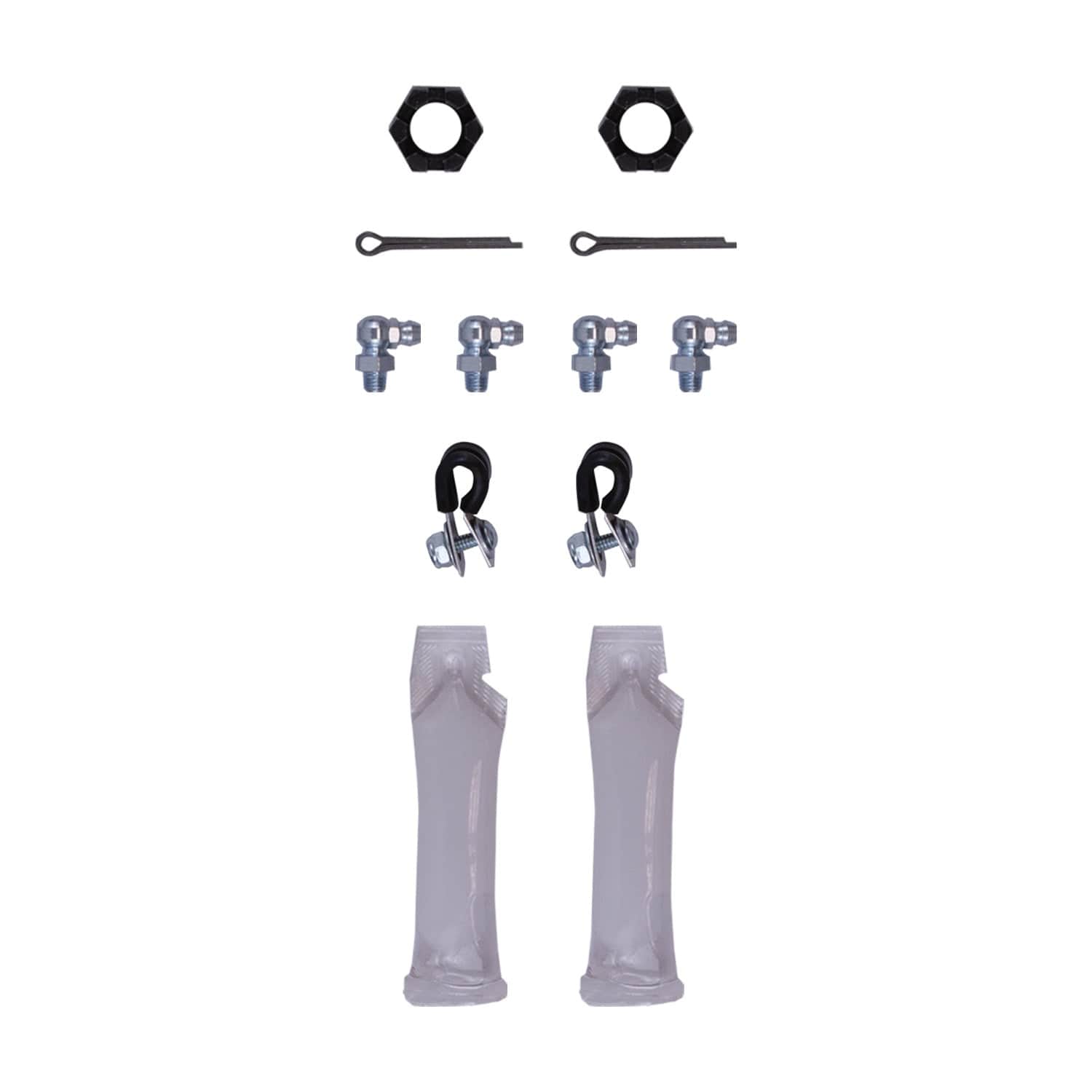

Kit Contents Pair of Upper Control Arms with Ball Joints, Mounting Hardware, Bushings, Grease Fittings, Instructions
Segment Light Truck
Series B8 Control Arms
Notes Compatible with direct fit lift shocks or coilovers only; Compatible with OEM spindles only; Not for use with lift spacers; Requires wheels with maximum 4.75" backspacing
Vehicle Fitment
  • 2007 GMC Sierra 1500
  • 2008 GMC Sierra 1500
  • 2009 GMC Sierra 1500
  • 2010 GMC Sierra 1500
  • 2011 GMC Sierra 1500
  • 2012 GMC Sierra 1500
  • 2013 GMC Sierra 1500
  • 2014 GMC Sierra 1500
  • 2015 GMC Sierra 1500
  • 2016 GMC Sierra 1500
