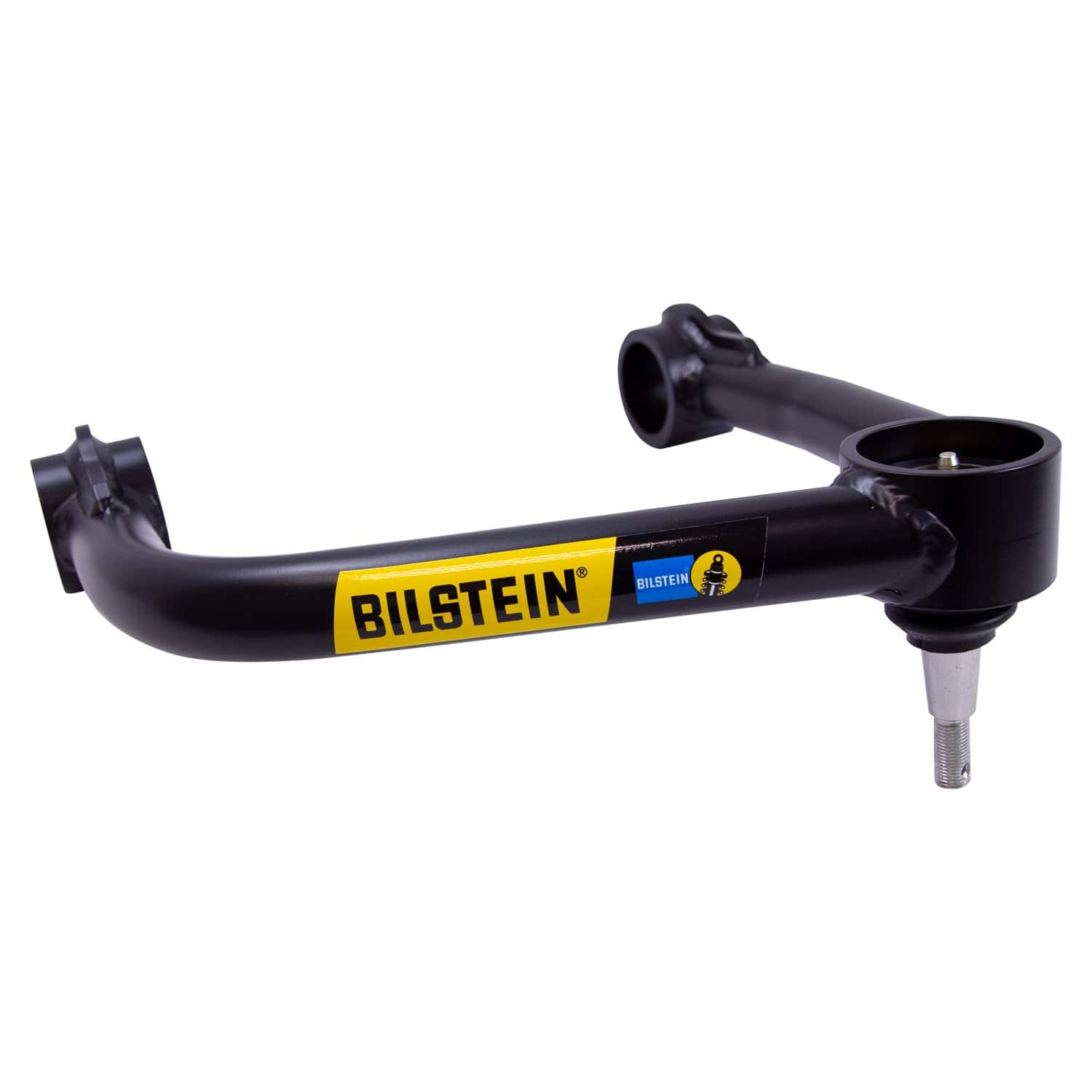

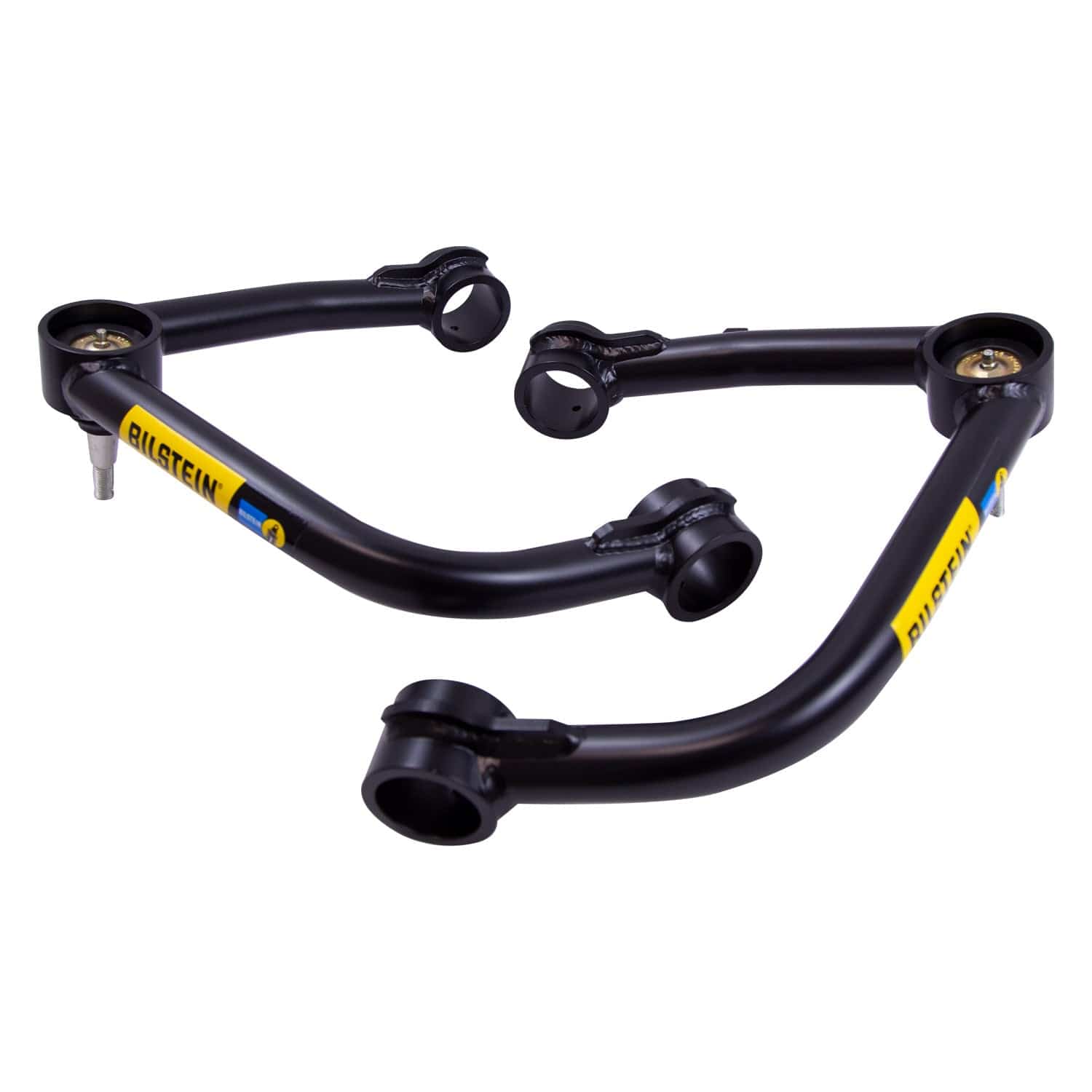

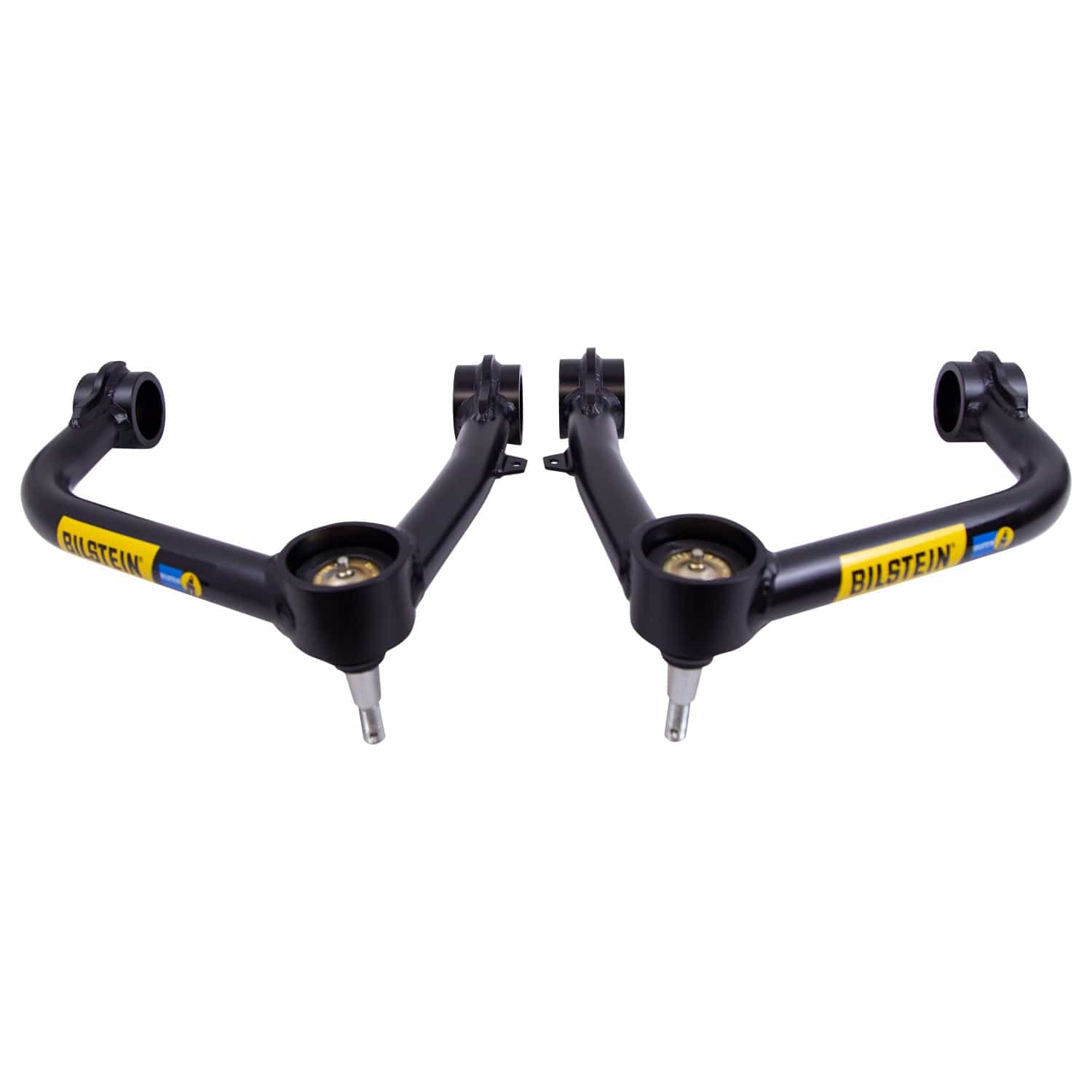

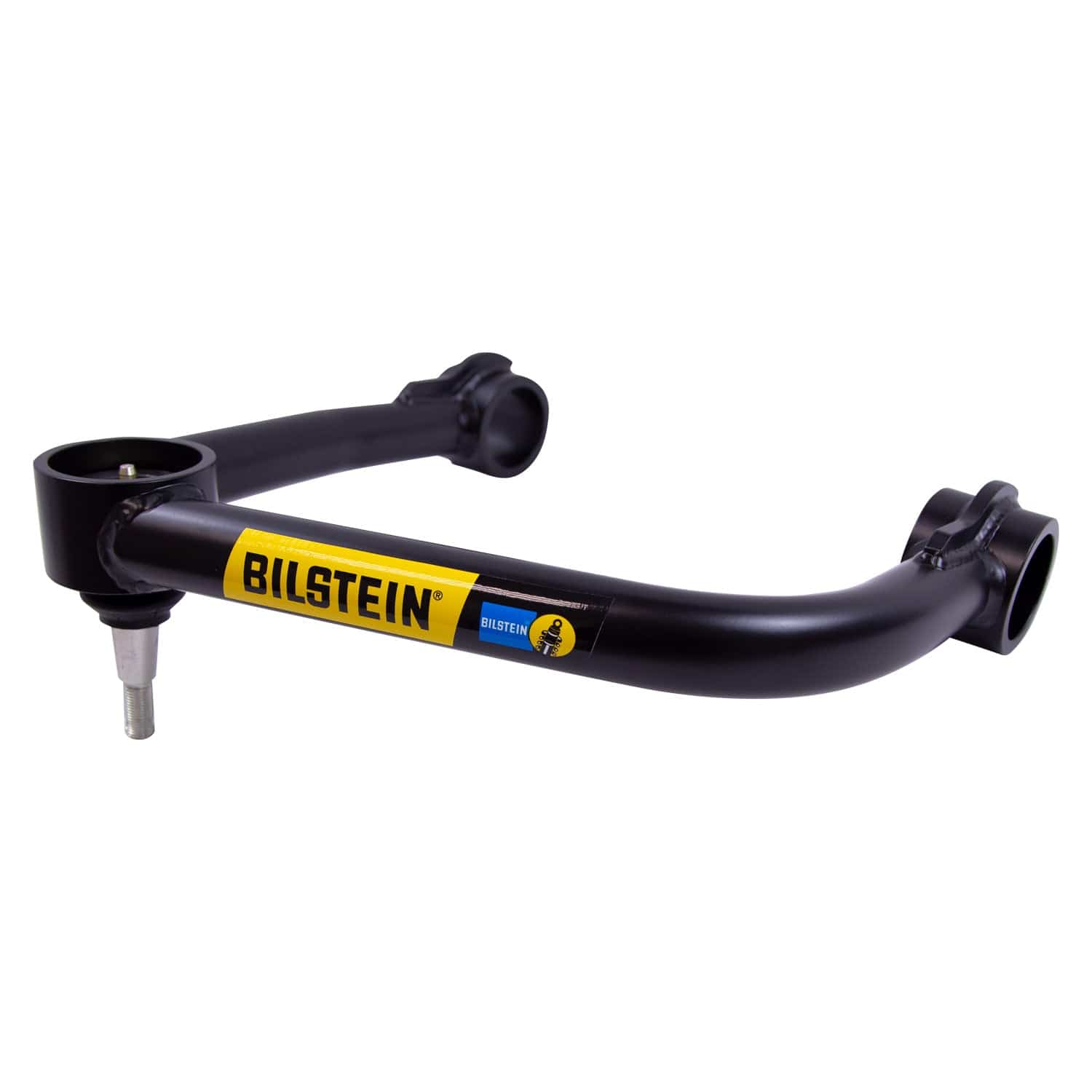

B8 Control Arms for the 2022 GMC Sierra 1500 Limited are a direct fit upgrade for factory upper control arms on trucks and SUVs. The kit contains a pair of control arms which correct the caster alignment for better straight line stability with lifted suspensions, and the improved pivot angles increase wheel travel and reduce stress on the joints. These strong black powder-coated 4130 chromoly steel arms are a tubular design which allows for more spring and shock clearance and feature greasable polyurethane bushings and heavy duty ball joints for the ideal combination of ride quality and durability with minimal maintenance needed. They come with detailed instructions and all necessary hardware for easy installation and are compatible with all Bilstein shocks and coilover kits. All components are replaceable.
Standard Features
B8 Control Arms are a direct fit upgrade for factory upper control arms on trucks and SUVs
The kit contains a pair of control arms which correct the caster alignment for better straight line stability with lifted suspensions, and the improved pivot angles increase wheel travel and reduce stress on the joints
Strong black powder-coated 4130 chromoly steel arms are a tubular design which allows for more spring and shock clearance and feature greasable polyurethane bushings and heavy duty ball joints
Specifications
Part Number
51-322335
Part Name
Control Arm Kit
Vehicle
2022 GMC Sierra 1500 Limited
UPC
651860888262
Arm Design
Tubular
Arm Inner Pivot Type
Greasable Black Urethane Bushings
Arm Material
4130 Chromoly Tubing
Arm Outer Pivot Type
Greasable Sealed Ball Joint
Finish
Powder-Coated Black
Kit Contents

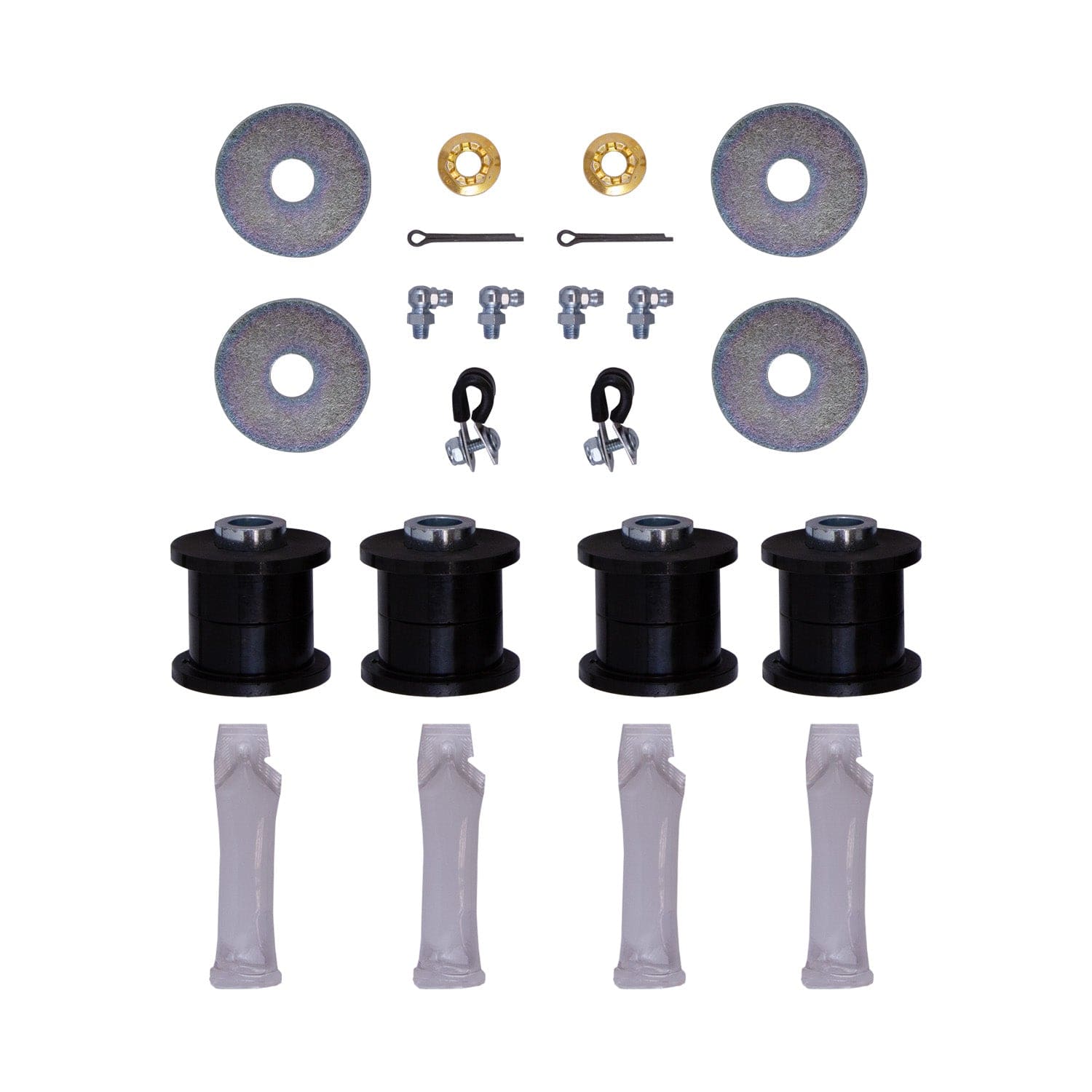

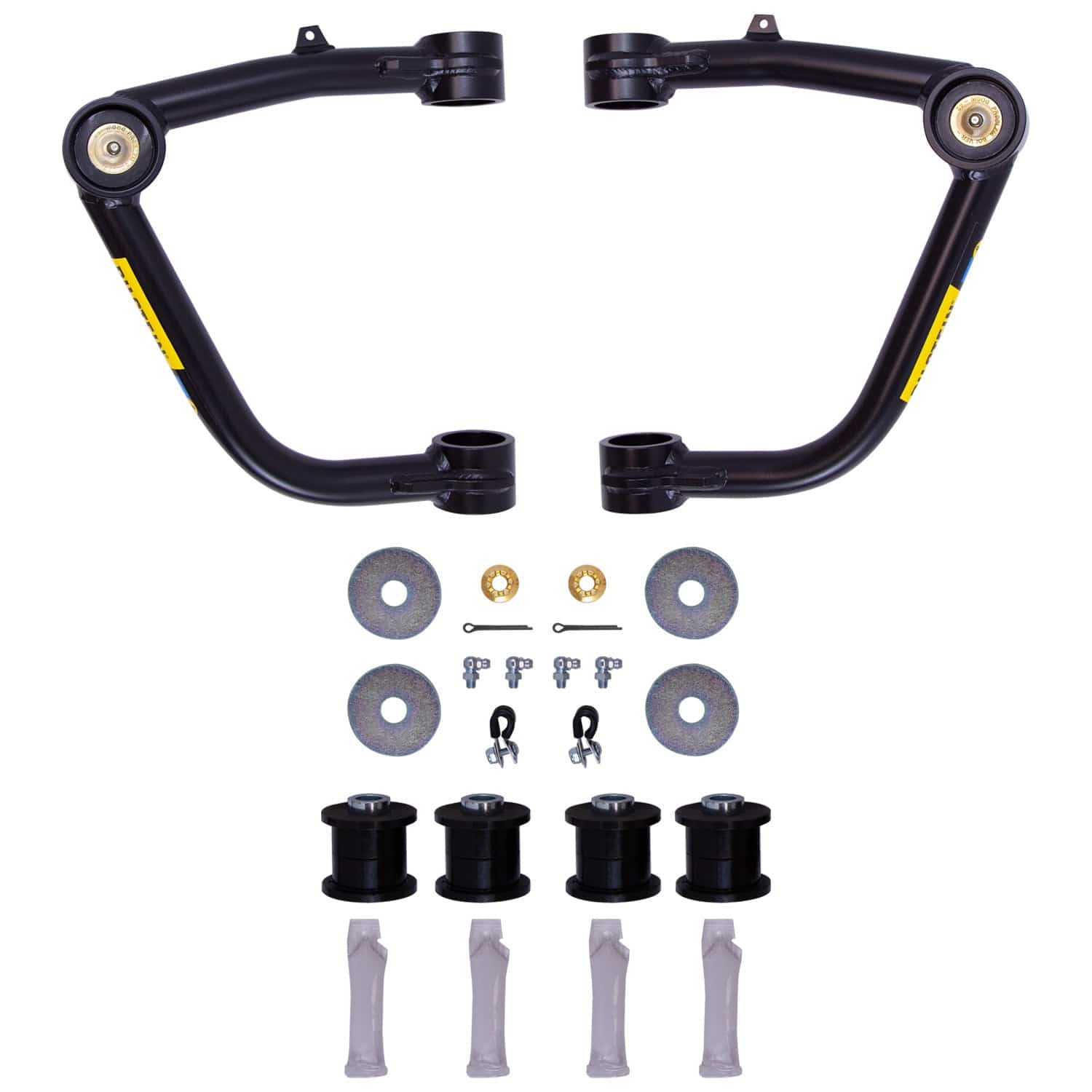

Pair of Upper Control Arms with Ball Joints, Mounting Hardware, Bushings, Grease Fittings, Instructions
Segment
Light Truck
Series
B8 Control Arms
Notes
Compatible with direct fit lift shocks or coilovers only; Compatible with OEM spindles only; Not for use with lift spacers; Requires wheels with maximum 4.75" backspacing
