| Year | Make | Model |
|---|---|---|
| 2014 - 2017 | Ford | Expedition EL King Ranch |
| 2014 - 2017 | Ford | Expedition EL Limited |
| 2015 - 2017 | Ford | Expedition EL Platinum |
| 2016 - 2017 | Ford | Expedition EL SSV |
| 2014 - 2017 | Ford | Expedition EL XL |
| 2014 - 2017 | Ford | Expedition EL XLT |
| 2014 - 2017 | Ford | Expedition King Ranch |
| 2020 - 2024 | Ford | Expedition King Ranch |
| 2014 - 2024 | Ford | Expedition Limited |
| 2020 - 2024 | Ford | Expedition Max King Ranch |
| 2018 - 2024 | Ford | Expedition Max Limited |
| 2018 - 2019 | Ford | Expedition Max Platinum |
| 2018 - 2019 | Ford | Expedition Max XL |
| 2022 | Ford | Expedition Max XL |
| 2018 - 2024 | Ford | Expedition Max XLT |
| 2015 - 2019 | Ford | Expedition Platinum |
| 2016 - 2020 | Ford | Expedition SSV |
| 2022 - 2024 | Ford | Expedition Timberline |
| 2014 - 2019 | Ford | Expedition XL |
| 2022 - 2023 | Ford | Expedition XL |
| 2024 | Ford | Expedition XL STX |
| 2014 - 2024 | Ford | Expedition XLT |
| 2014 - 2015 | Lincoln | Navigator Base |
| 2019 | Lincoln | Navigator Base |
| 2017 | Lincoln | Navigator L Reserve |
| 2017 | Lincoln | Navigator L Select |
| 2018 | Lincoln | Navigator Premiere |
| 2017 | Lincoln | Navigator Reserve |
1
/
of
1

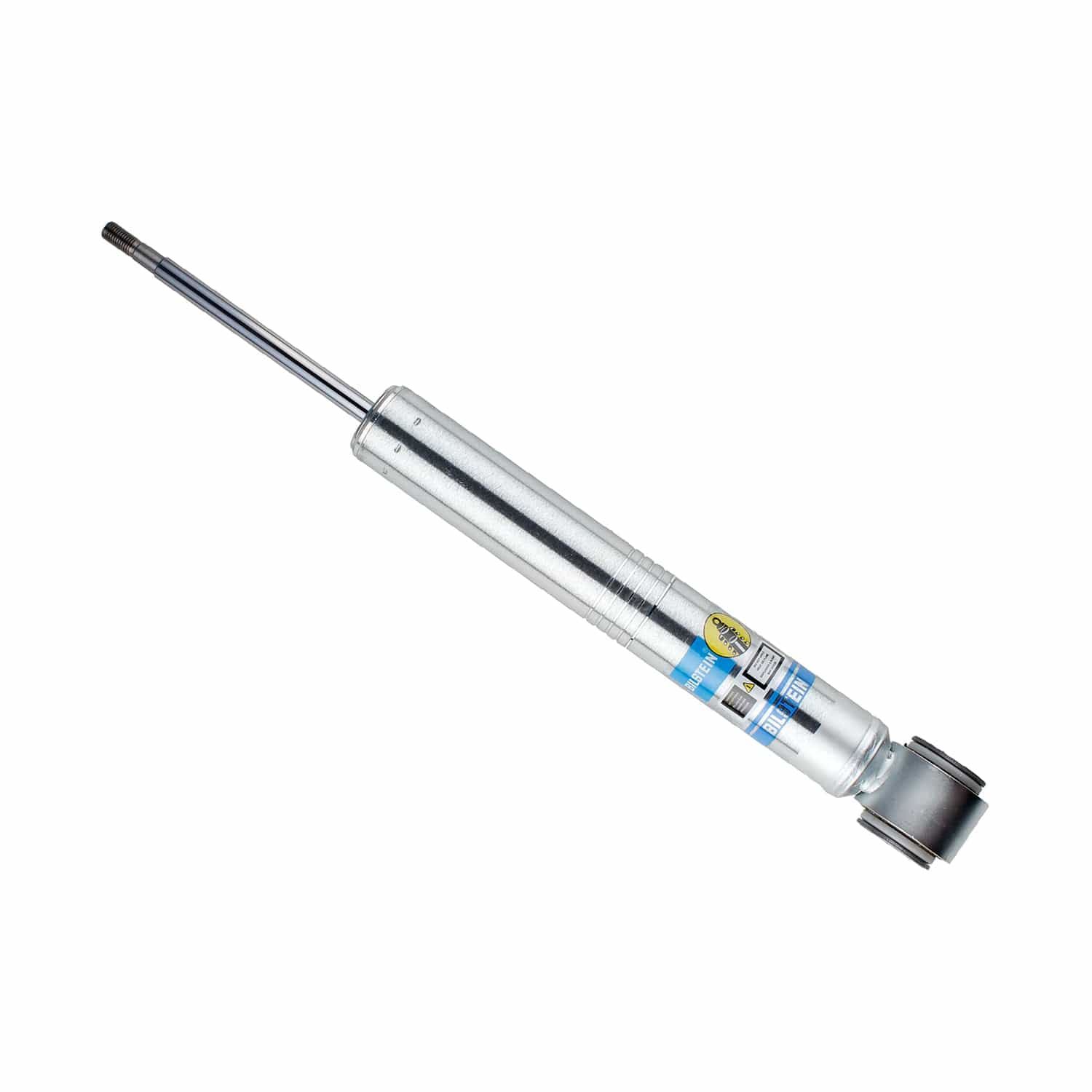

Bilstein 5100 Series 14-19 Ford Expedition / 14-16 Lincoln Navigator Front Shock Absorber
Bilstein 5100 Series 14-19 Ford Expedition / 14-16 Lincoln Navigator Front Shock Absorber
SKU:24-285063
In stock
Regular price
$149.29 USD
Regular price
$235.00 USD
Sale price
$149.29 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2014-2024 Ford Expedition are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-285063 |
| Part Name | Shock Absorber |
| Vehicle | 2014-2024 Ford Expedition |
| UPC | 651860831541 |
| Rear Lift Height | 0 - 1.5 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 15.00 in. |
| Collapsed Length | 381.0 mm |
| Damping Adjustable | No |
| Extended Length | 20.95 in. |
| Extended Length | 531.5 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 20.3 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
| Notes | Without Electronic Controlled Suspension (CCD) or Load Leveling Suspension |
Vehicle Fitment
- 2014 Ford Expedition
- 2015 Ford Expedition
- 2016 Ford Expedition
- 2017 Ford Expedition
- 2018 Ford Expedition
- 2019 Ford Expedition
- 2020 Ford Expedition
- 2021 Ford Expedition
- 2022 Ford Expedition
- 2023 Ford Expedition
- 2024 Ford Expedition
