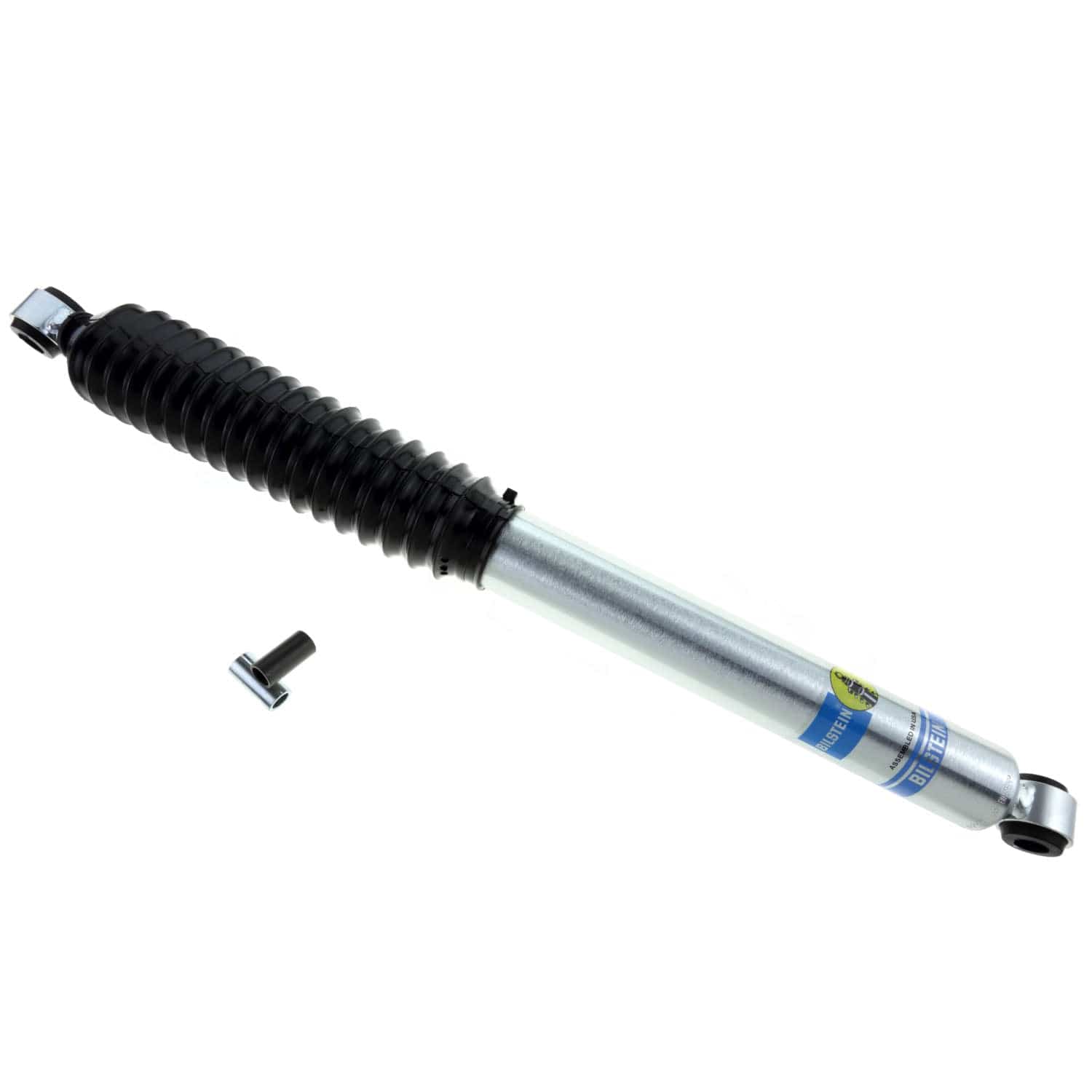

Bilstein 5100 Series 1980 Ford Bronco Custom Rear 46mm Monotube Shock Absorber

Bilstein 5100 Series 1980 Ford Bronco Custom Rear 46mm Monotube Shock Absorber

SKU:24-185530

Regular price $118.00 USD
Regular price $164.00 USD Sale price $118.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 Shock Absorbers for the 1997 Ford F-250 HD are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Specifications
Part Number 24-185530
Part Name Shock Absorber
Vehicle 1997 Ford F-250 HD
UPC 651860453668
Rear Lift Height 2 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Bellows
Collapsed Length 16.14 in.
Collapsed Length 410.0 mm
Damping Adjustable No
Extended Length 26.16 in.
Extended Length 664.5 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 16 mm
Reservoir No
Segment Light Truck
Series B8 5100
Spring Seat Included No
Upper Mount Type Eye 16 mm
Notes 8-lug Wheels
Vehicle Fitment
  • 1997 Ford F-250 HD
