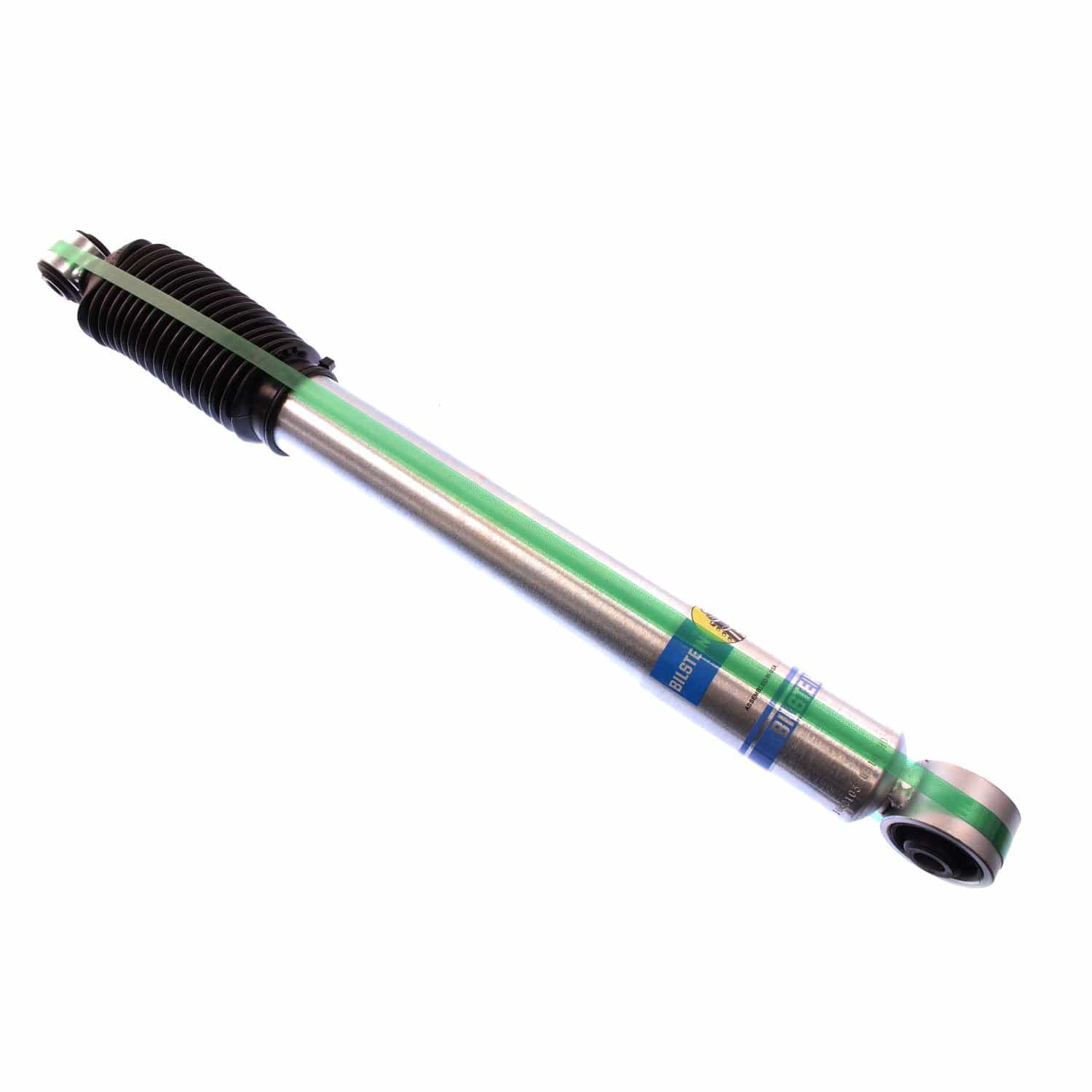

Bilstein 5100 Series 1999 GMC Sierra 2500 SLT Rear 46mm Monotube Shock Absorber

Bilstein 5100 Series 1999 GMC Sierra 2500 SLT Rear 46mm Monotube Shock Absorber

24-186636

$118.00 USD
$164.00 USD $118.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 Shock Absorbers for the 2001-2006 GMC Sierra 1500 HD are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Specifications
Part Number 24-186636
Part Name Shock Absorber
Vehicle 2001-2006 GMC Sierra 1500 HD
UPC 651860482033
Rear Lift Height 3 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Bellows
Collapsed Length 18.17 in.
Collapsed Length 461.5 mm
Damping Adjustable No
Extended Length 29.92 in.
Extended Length 760.0 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Reservoir No
Segment Light Truck
Series B8 5100
Spring Seat Included No
Upper Mount Type Eye 14.1 mm
Notes Without ZX3 Electronic Suspension Package and Quadrasteer
Vehicle Fitment
  • 2001 GMC Sierra 1500 HD
  • 2002 GMC Sierra 1500 HD
  • 2003 GMC Sierra 1500 HD
  • 2004 GMC Sierra 1500 HD
  • 2005 GMC Sierra 1500 HD
  • 2006 GMC Sierra 1500 HD
