| Year | Make | Model |
|---|---|---|
| 2001 - 2007 | Toyota | Sequoia Limited |
| 2001 - 2007 | Toyota | Sequoia SR5 |
| 2000 - 2006 | Toyota | Tundra Base |
| 2000 - 2006 | Toyota | Tundra Limited |
| 2000 - 2006 | Toyota | Tundra SR5 |

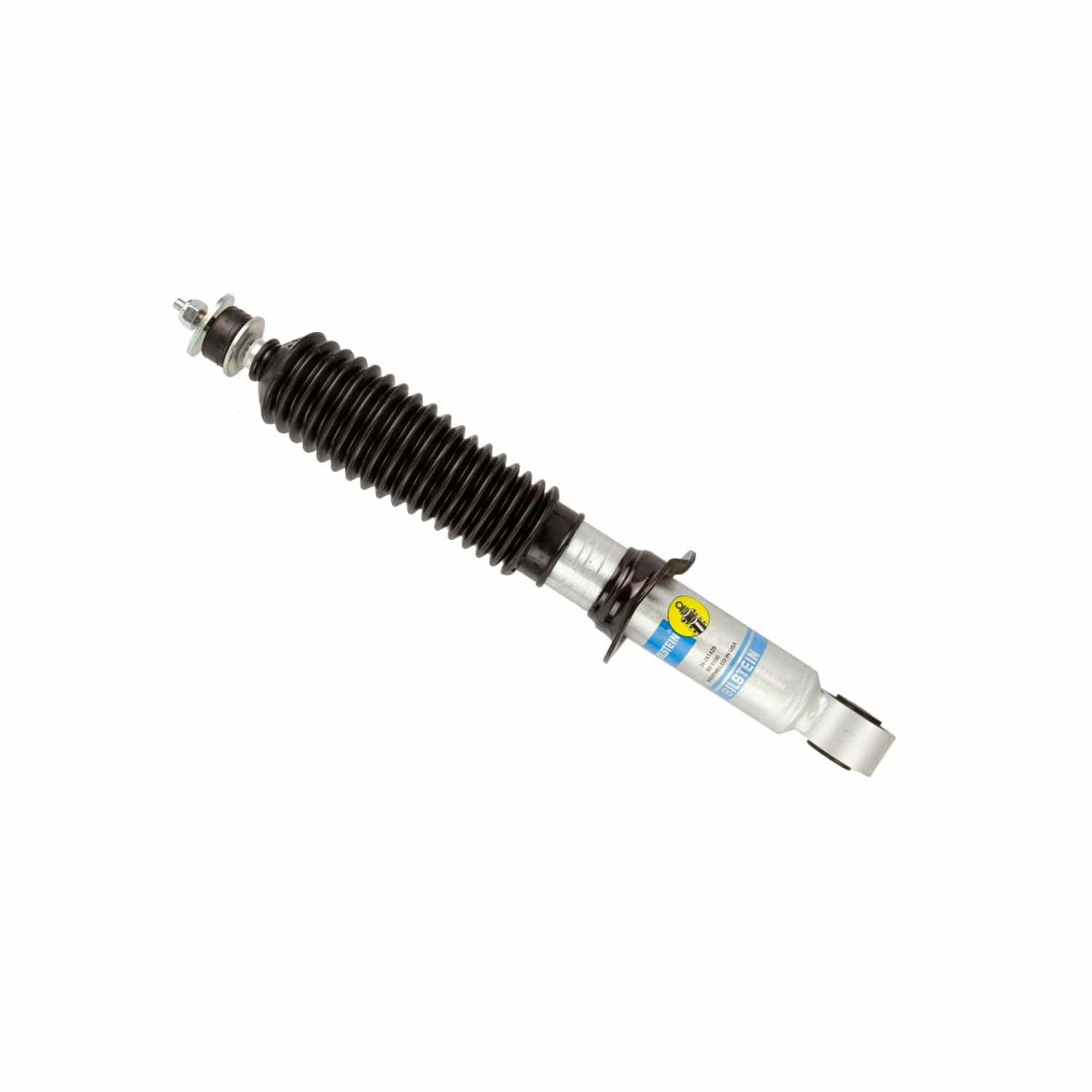

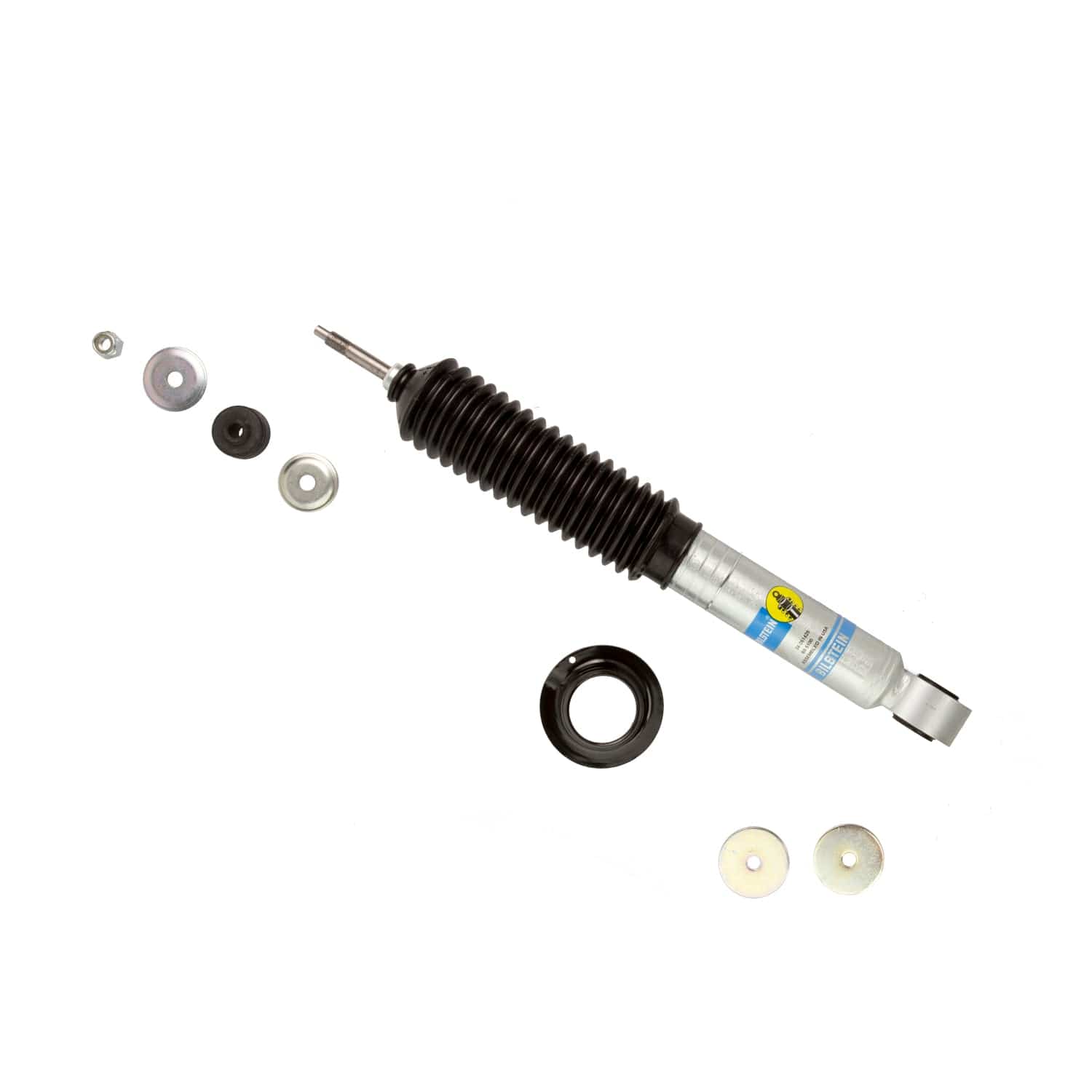

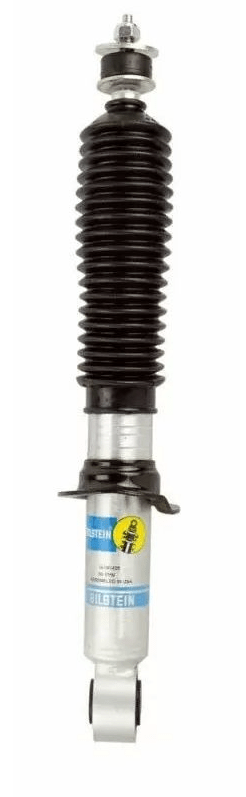

Bilstein 5100 Series 2000 Toyota Tundra Base Front 46mm Monotube Shock Absorber
Bilstein 5100 Series 2000 Toyota Tundra Base Front 46mm Monotube Shock Absorber
SKU:24-261425
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein 5100 Series 2000 Toyota Tundra Front 46mm Monotube Shock Absorber is a high-performance suspension component designed to enhance off-road and on-road handling. Built with a monotube design and a 46mm digressive piston, these shock absorbers provide superior damping control and durability. The adjustable ride height feature allows for 0-3 inches of front lift when used with OE springs, making them ideal for customizing vehicle stance and improving ground clearance. Constructed with high-quality materials, they deliver consistent performance, improved stability, and enhanced ride quality across various terrains.
Designed specifically for the 2001-2007 Toyota Sequoia with front OE coilover style suspension, these shocks are a direct replacement for stock units. They are suitable for trucks and SUVs requiring adjustable lift and improved handling characteristics. The multiple snap-ring grooves enable precise spring seat positioning, catering to different lift heights. Installation is straightforward for those familiar with suspension upgrades, and these shocks are intended for off-road, street, or mixed-use applications. The kit includes the shock absorbers, providing a reliable upgrade for vehicle owners seeking performance and versatility.
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2001-2007 Toyota Sequoia are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-261425 |
| Part Name | Shock Absorber |
| Vehicle | 2001-2007 Toyota Sequoia |
| UPC | 651860783765 |
| Front Lift Height | 0 - 2.4 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 13.23 in. |
| Collapsed Length | 336.0 mm |
| Damping Adjustable | No |
| Extended Length | 18.35 in. |
| Extended Length | 466.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |

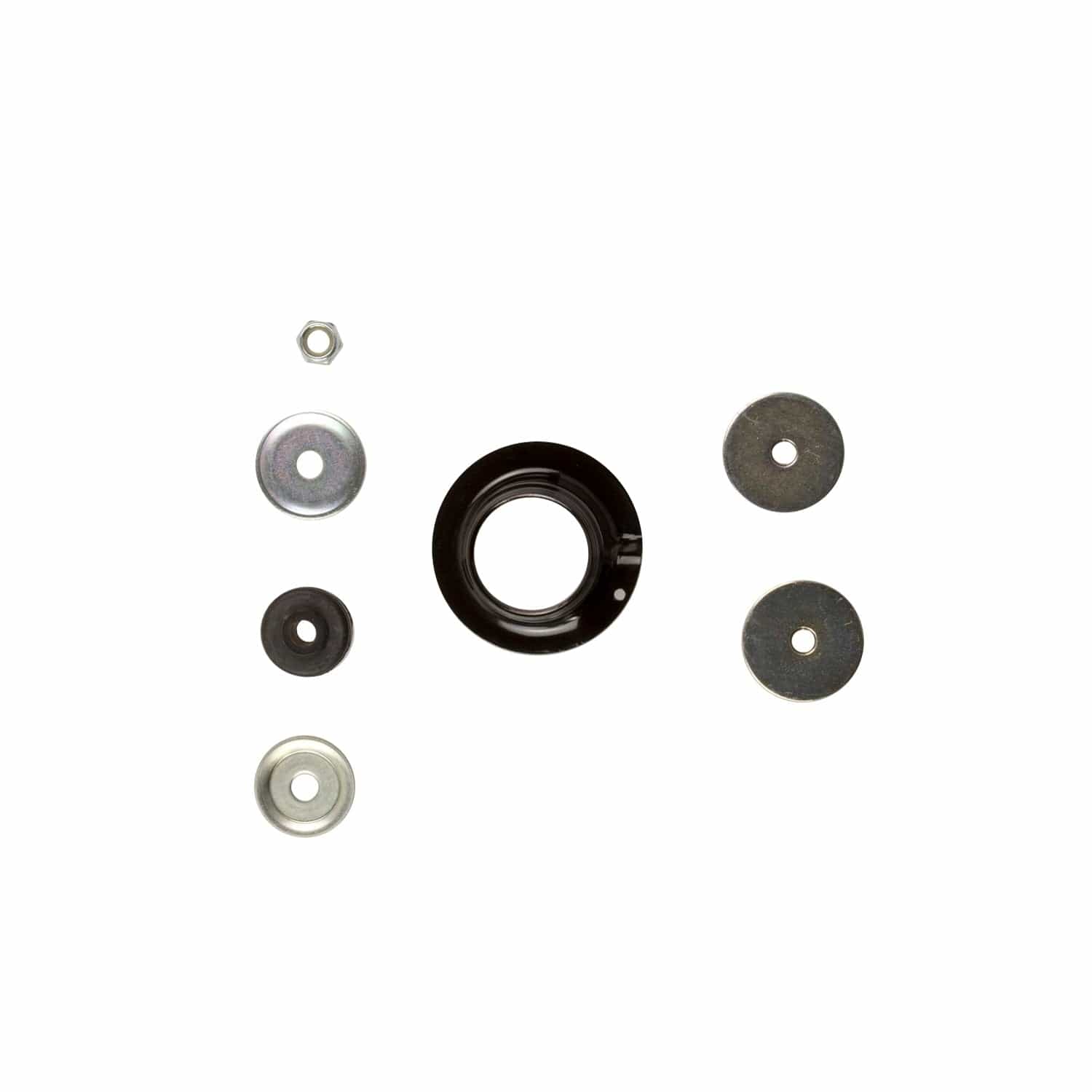

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Notes | Without Electronic or Self-Leveling Suspension |
Vehicle Fitment
- 2001 Toyota Sequoia
- 2002 Toyota Sequoia
- 2003 Toyota Sequoia
- 2004 Toyota Sequoia
- 2005 Toyota Sequoia
- 2006 Toyota Sequoia
- 2007 Toyota Sequoia
