| Year | Make | Model |
|---|---|---|
| 2014 - 2021 | Toyota | Tundra 1794 Edition |
| 2007 - 2013 | Toyota | Tundra Base |
| 2007 - 2021 | Toyota | Tundra Limited |
| 2021 | Toyota | Tundra Nightshade |
| 2013 - 2021 | Toyota | Tundra Platinum |
| 2014 - 2021 | Toyota | Tundra SR |
| 2007 - 2011 | Toyota | Tundra SR5 |
| 2014 - 2021 | Toyota | Tundra SR5 |

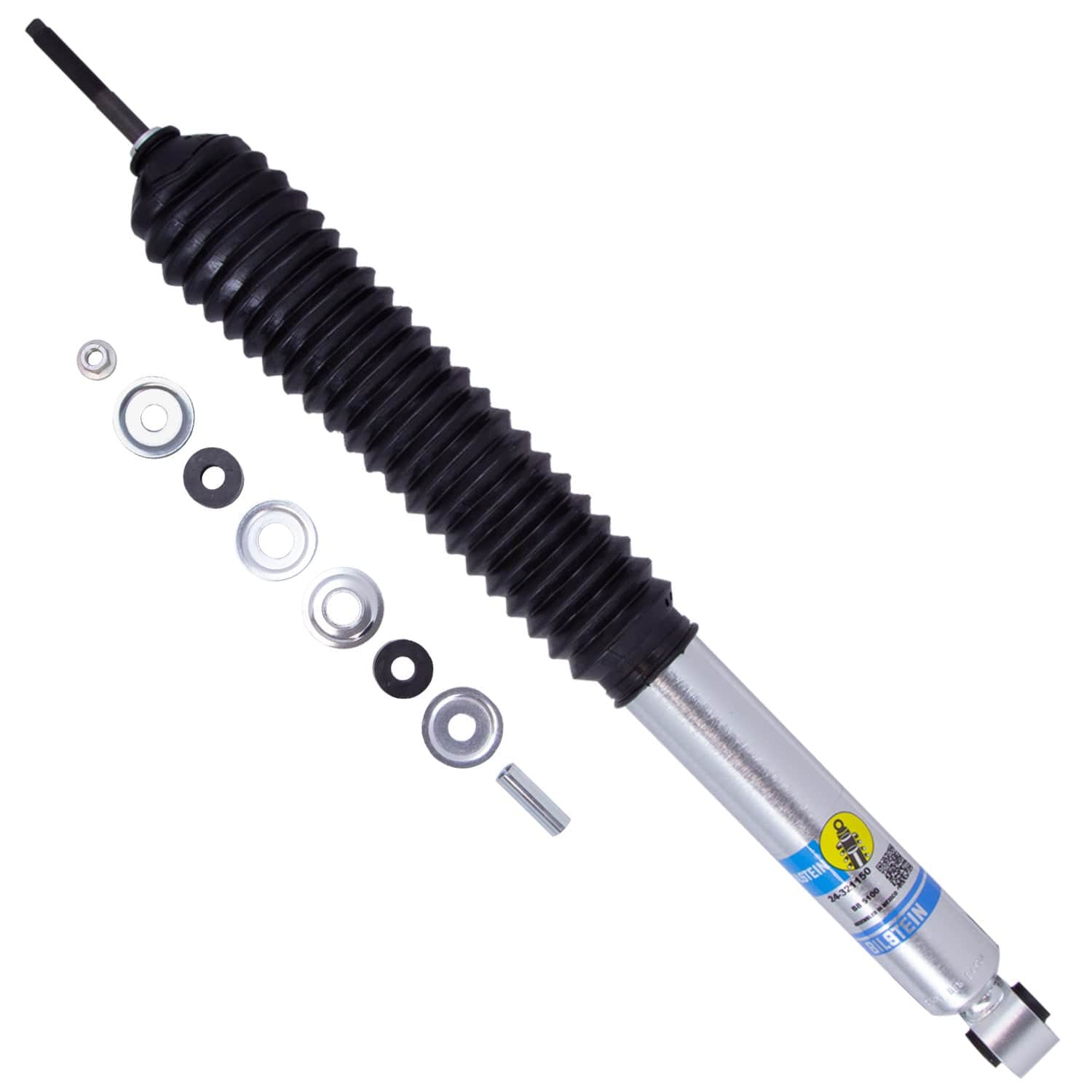

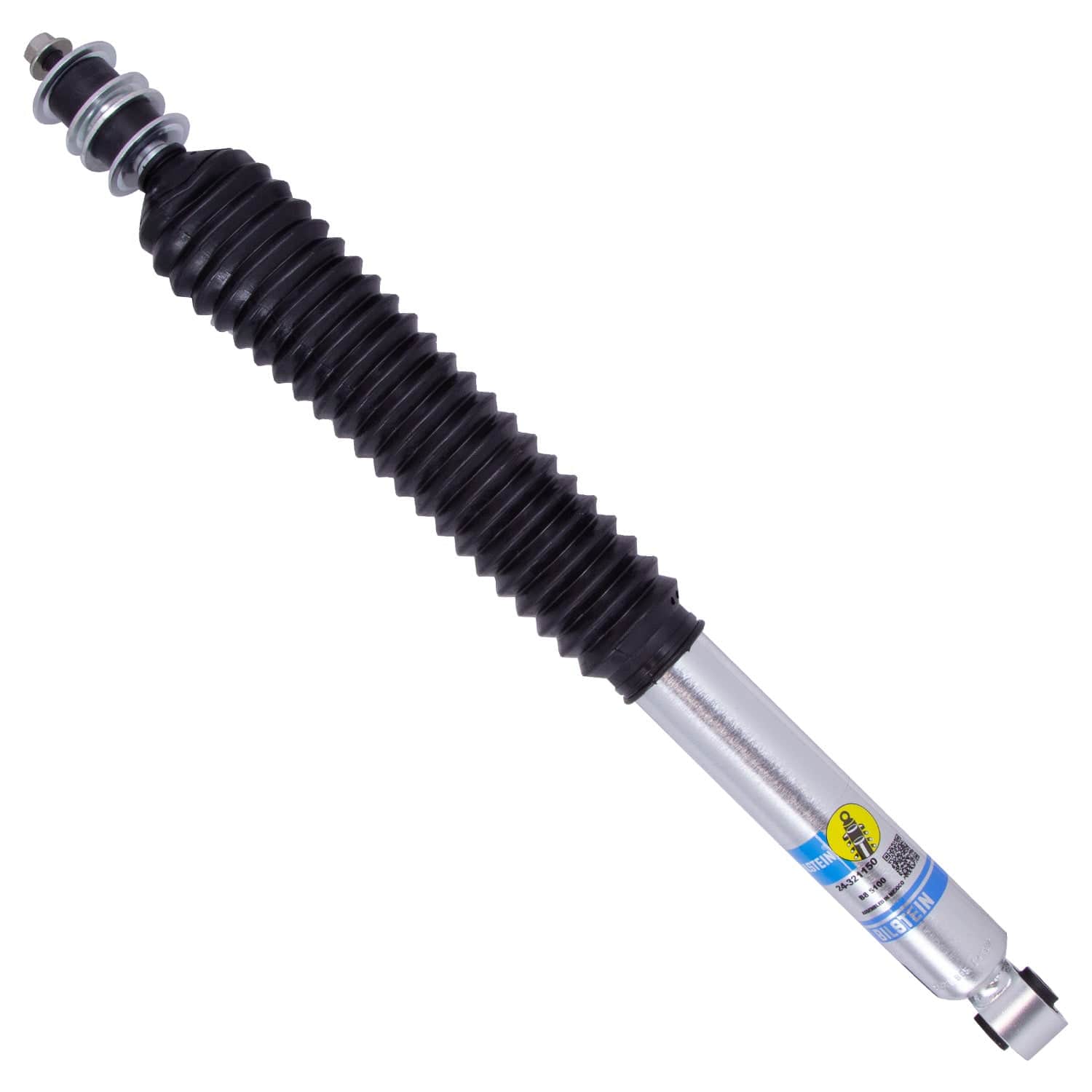

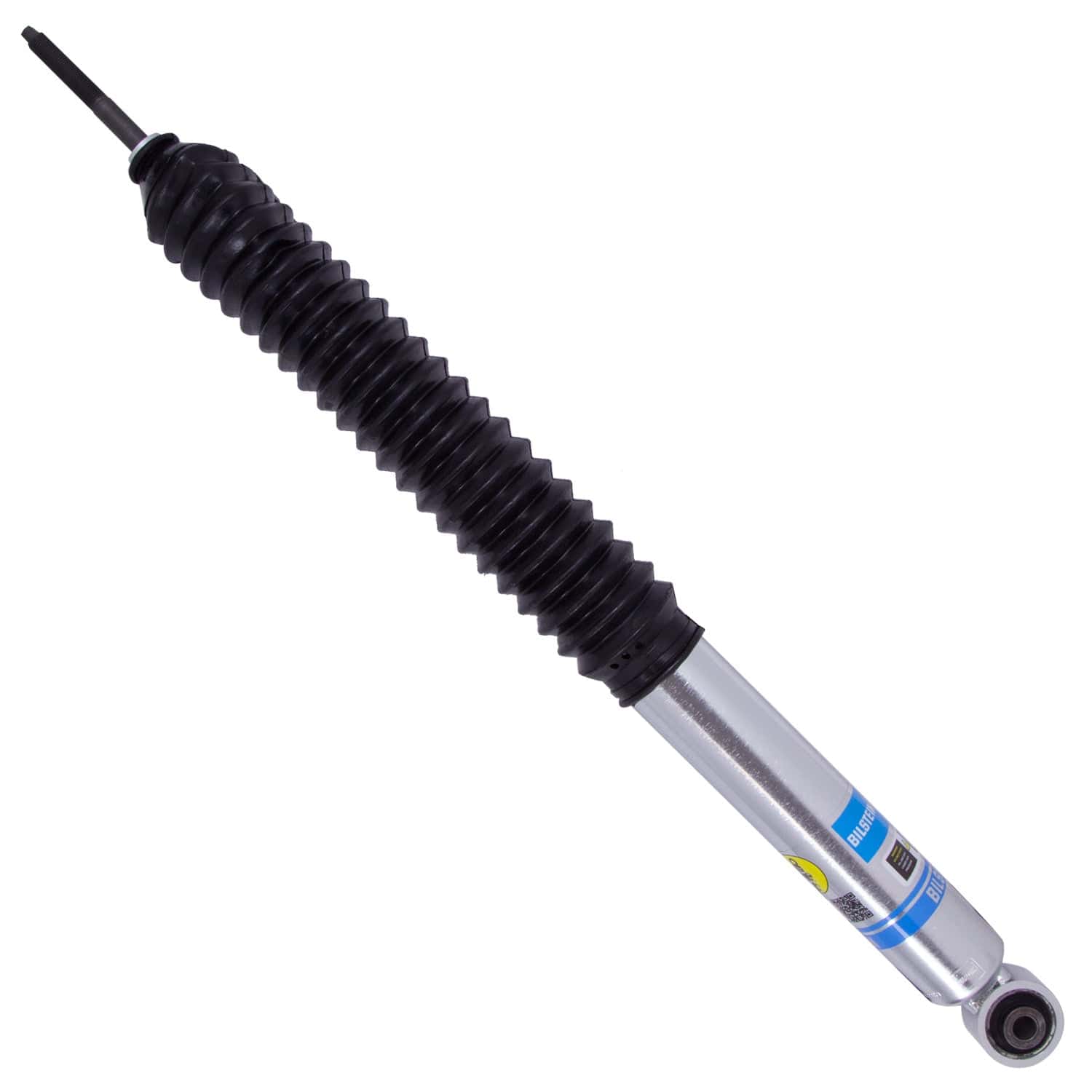

Bilstein 5100 Series 2010 Toyota Tundra SR5 Rear 46mm Monotube Shock Absorber
Bilstein 5100 Series 2010 Toyota Tundra SR5 Rear 46mm Monotube Shock Absorber
SKU:24-321150
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein 5100 Series 2010 Toyota Tundra SR5 Rear 46mm Monotube Shock Absorber is a high-performance suspension component designed to enhance ride quality and handling for lifted trucks. Built with a monotube design, these shock absorbers deliver consistent, fade-free performance under demanding conditions. They feature a velocity-sensitive, digressive piston that adapts to changing road surfaces, ensuring optimal damping and stability. The B8 5100 shocks are specifically tuned for each application, providing improved control, durability, and comfort. Constructed from high-quality materials, these shocks are engineered to withstand off-road and everyday driving stresses, making them a reliable upgrade for lifted vehicles.

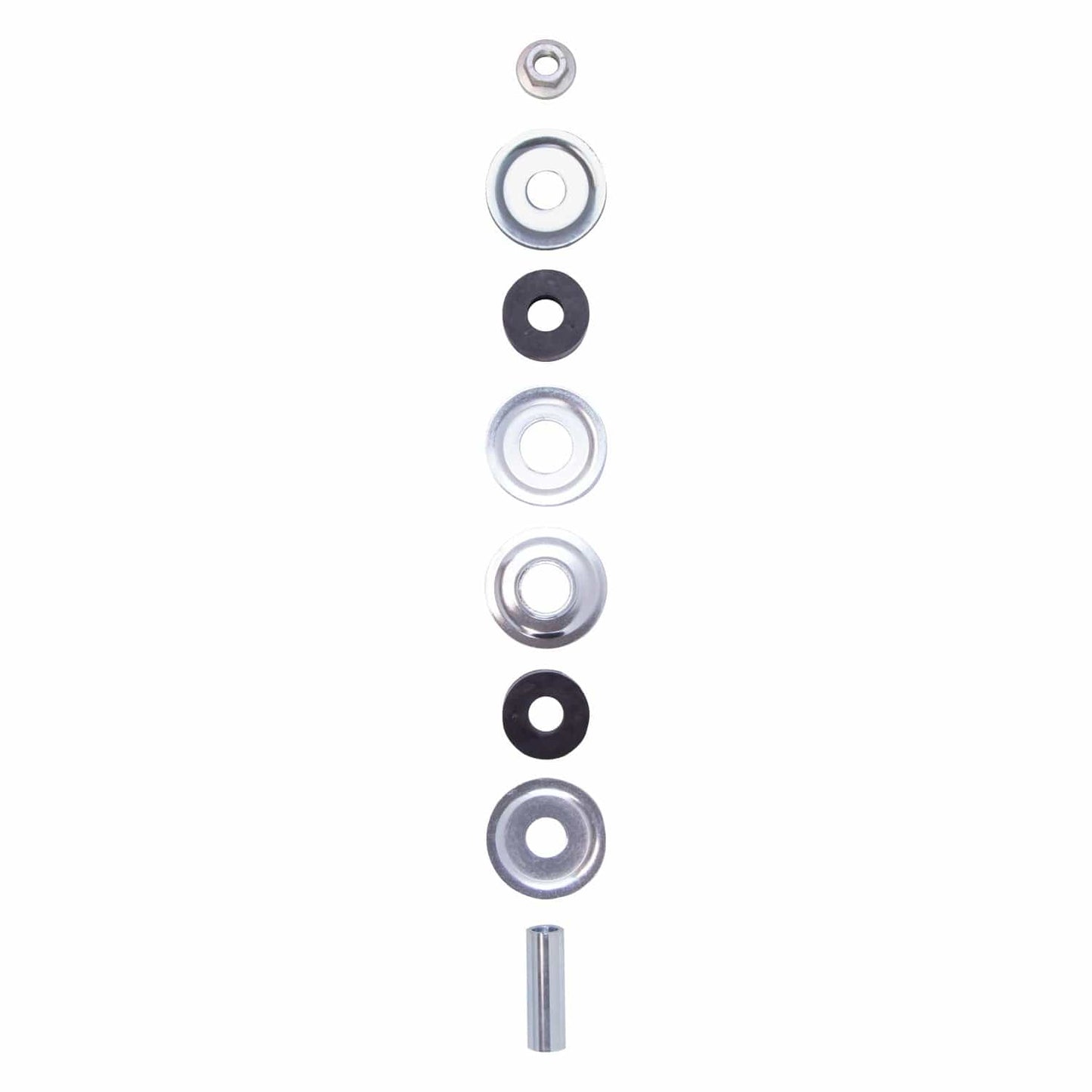

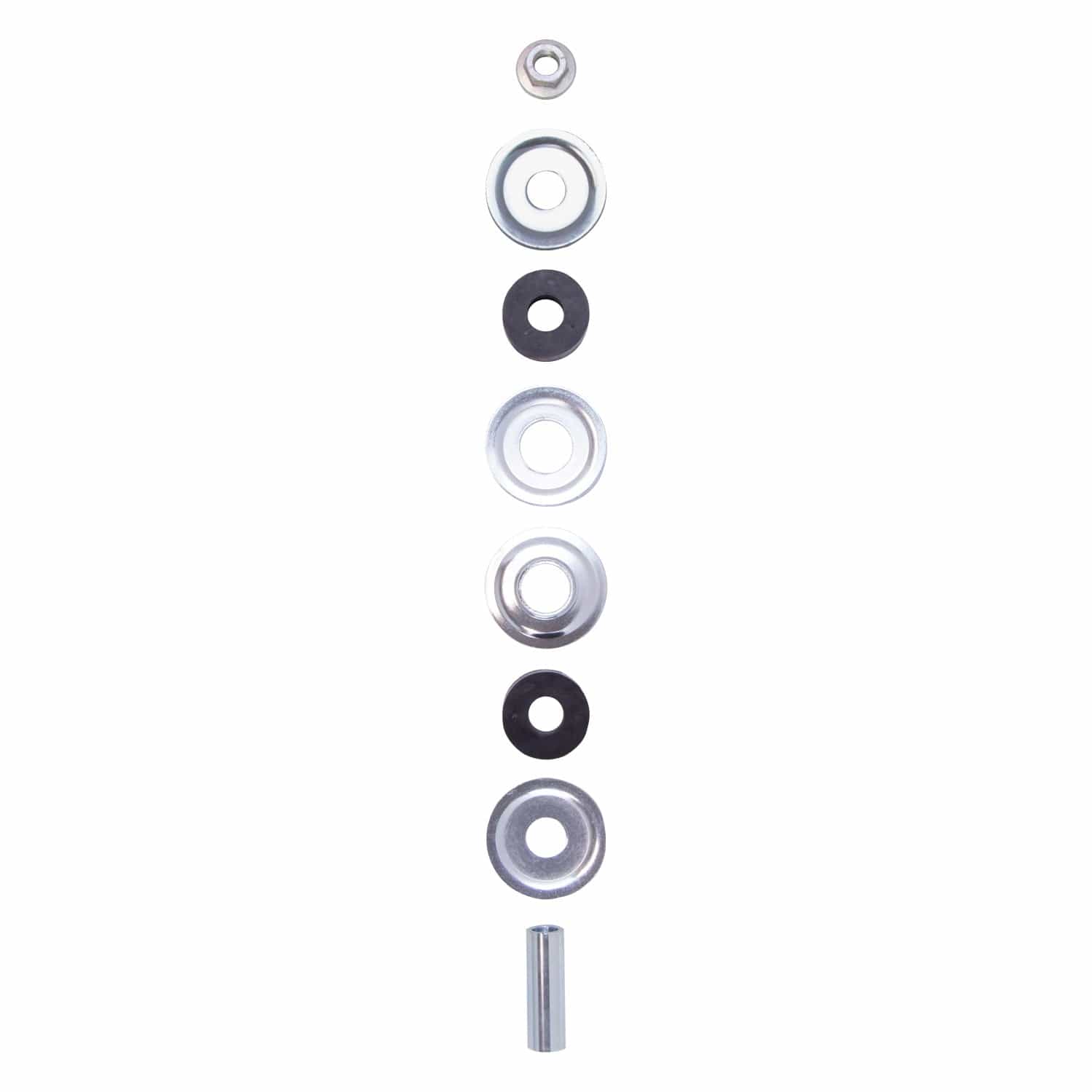

Designed for 2007-2021 Toyota Tundra models, including the SR5 trim, these shocks are a direct fit for trucks with lifted suspensions. They are ideal for off-road enthusiasts, daily drivers, and those seeking enhanced load handling. The installation is straightforward, with a bolt-on design that replaces factory units seamlessly. The kit includes the shock absorbers with all necessary mounting hardware. Suitable for lifted applications, these shocks improve ride quality and vehicle stability across various terrains, ensuring a confident driving experience.
Share
Overview
Overview
Bilstein B8 5100 Shock Absorbers for the 2007-2021 Toyota Tundra are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-321150 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2021 Toyota Tundra |
| UPC | 651860877723 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 15.33 in. |
| Collapsed Length | 389.5 mm |
| Damping Adjustable | No |
| Extended Length | 24.80 in. |
| Extended Length | 630.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.4 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
- 2016 Toyota Tundra
- 2017 Toyota Tundra
- 2018 Toyota Tundra
- 2019 Toyota Tundra
- 2020 Toyota Tundra
- 2021 Toyota Tundra
