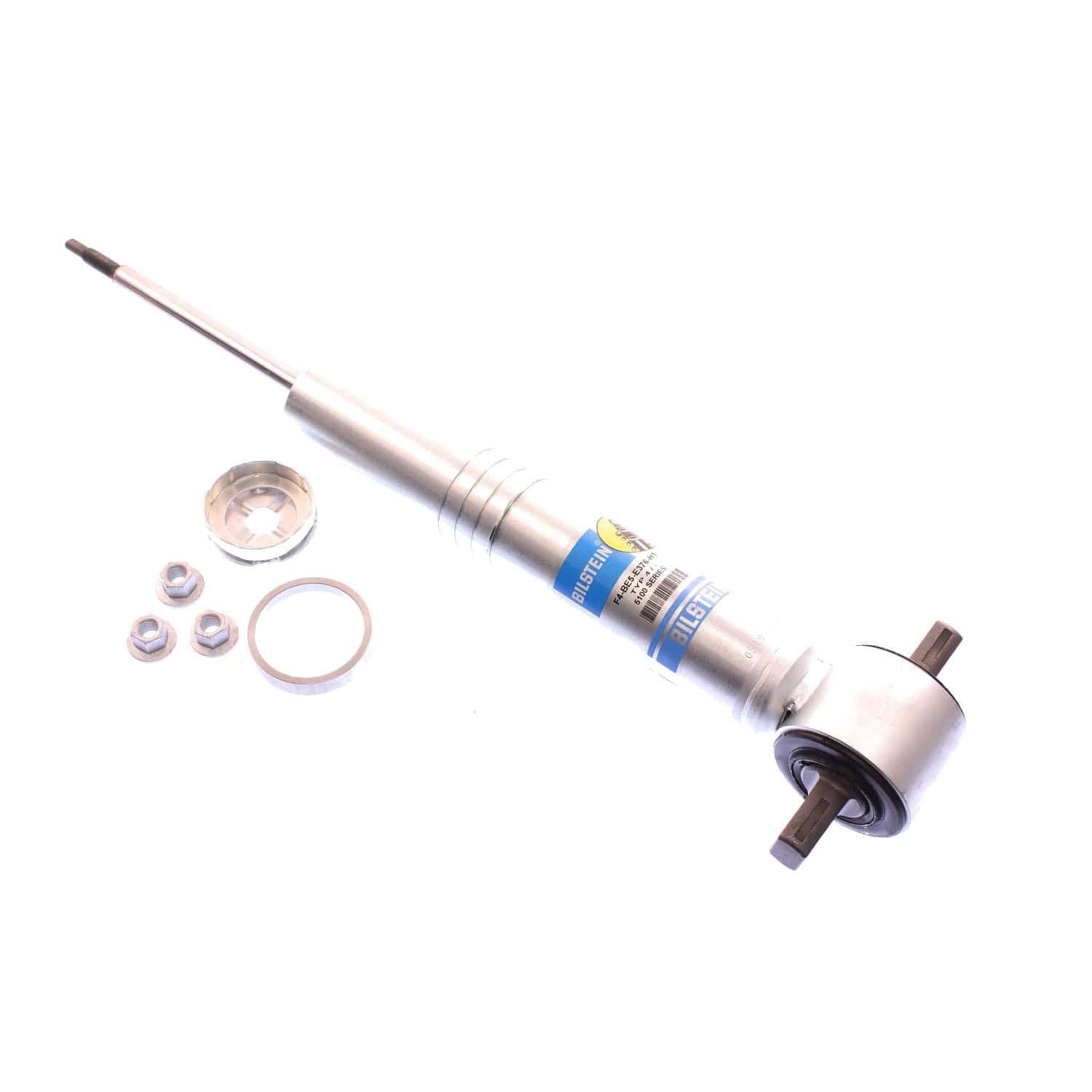

Bilstein 5100 Series 2012 GMC Sierra 1500 XFE Front 46mm Monotube Shock Absorber
Bilstein 5100 Series 2012 GMC Sierra 1500 XFE Front 46mm Monotube Shock Absorber
SKU:24-186940
Regular price
$160.00 USD
Regular price
$223.60 USD
Sale price
$160.00 USD
Unit price
/
per
Couldn't load pickup availability
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2007-2013 Chevrolet Silverado 1500 are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-186940 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2013 Chevrolet Silverado 1500 |
| UPC | 651860640167 |
| Front Lift Height | 0 - 1.75 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 12.95 in. |
| Collapsed Length | 329.0 mm |
| Damping Adjustable | No |
| Extended Length | 18.48 in. |
| Extended Length | 469.3 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
| Notes | Without Z55 Autoride Suspension Package; Without Air Leveling Suspension; Without Police Package |
Vehicle Fitment
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
