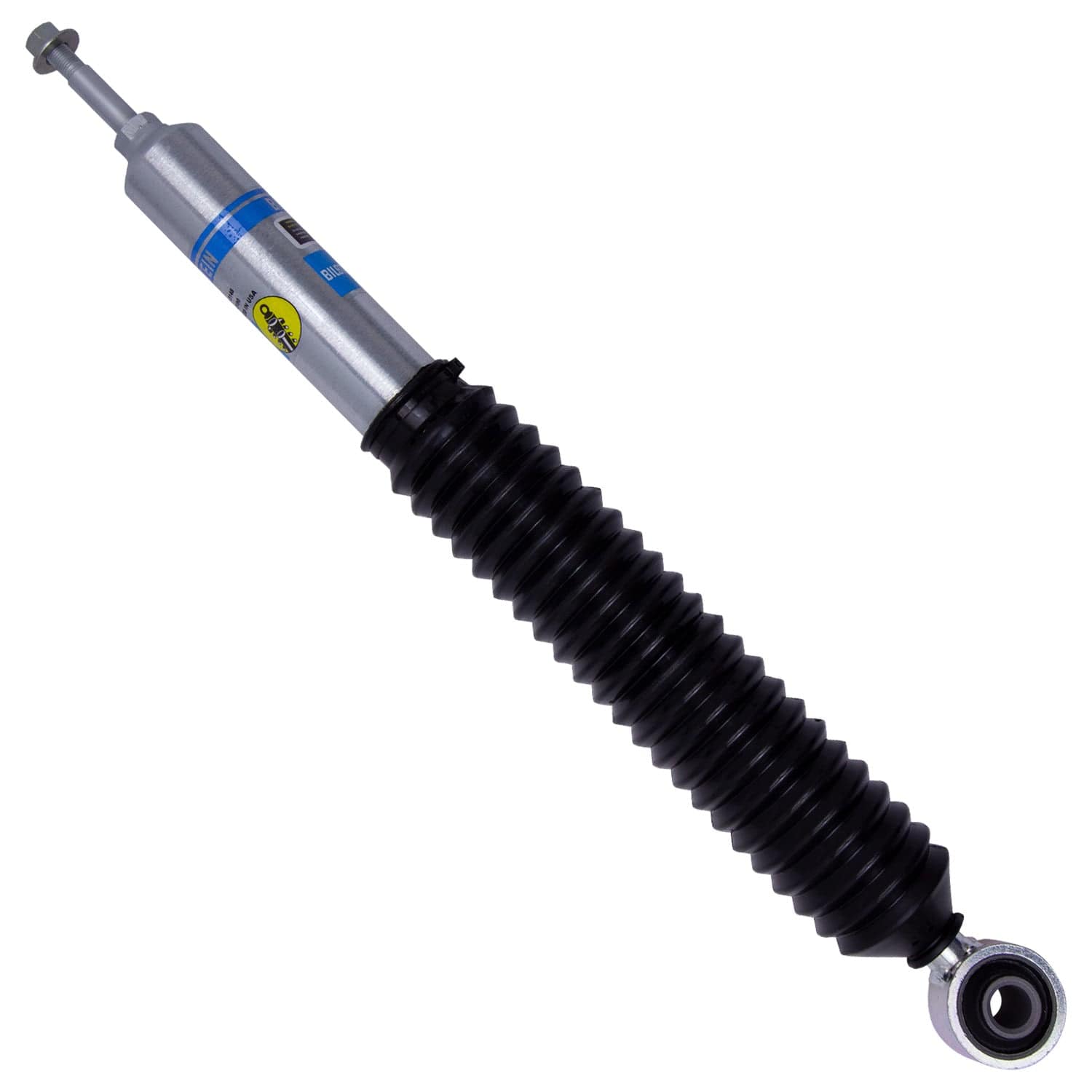

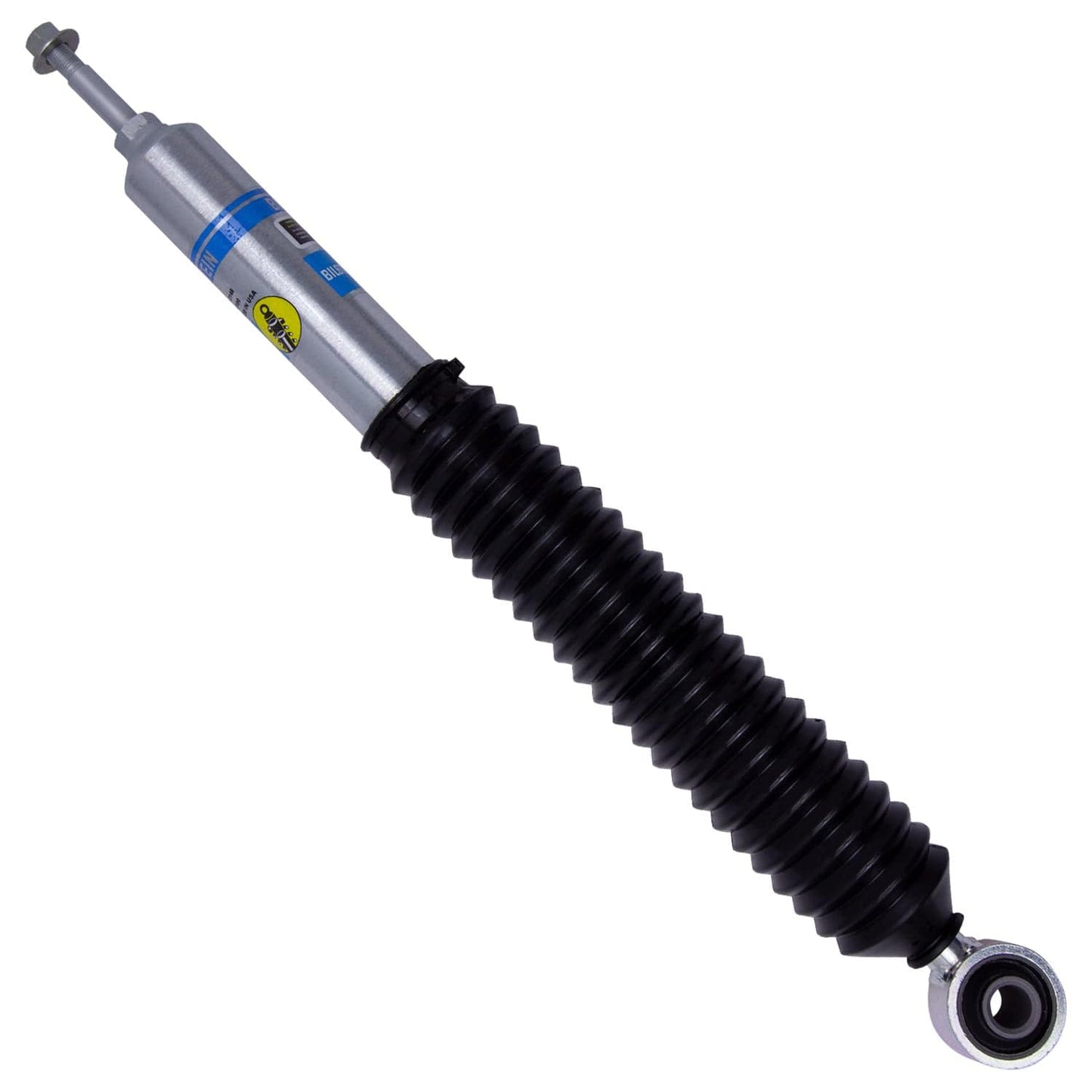

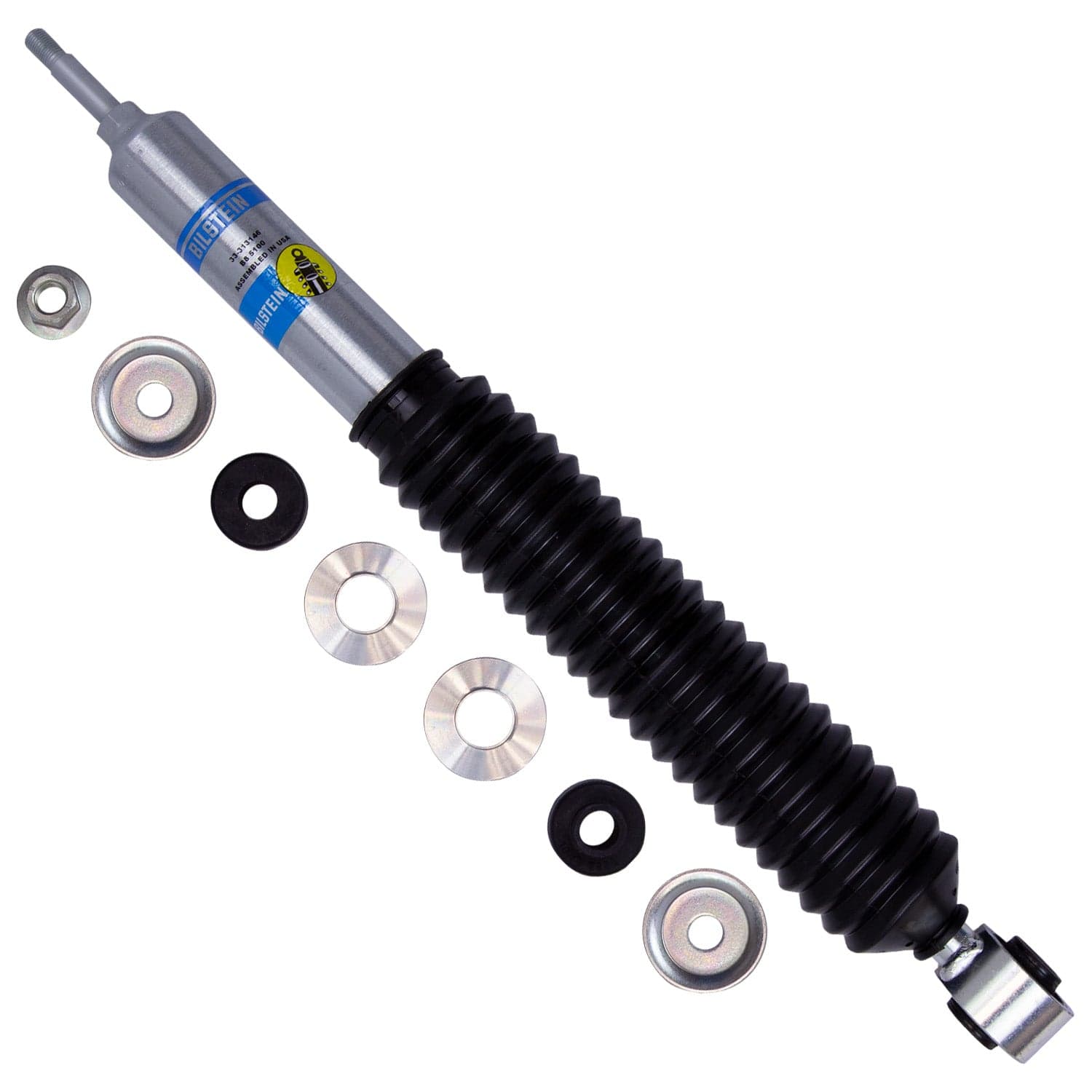

Bilstein 5100 Series 2012 Toyota FJ Cruiser Base Rear 46mm Monotube Shock Absorber

Bilstein 5100 Series 2012 Toyota FJ Cruiser Base Rear 46mm Monotube Shock Absorber

SKU:33-313146

Regular price $118.00 USD
Regular price $164.00 USD Sale price $118.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 Shock Absorbers for the 2007-2014 Toyota FJ Cruiser are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Specifications
Part Number 33-313146
Part Name Shock Absorber
Vehicle 2007-2014 Toyota FJ Cruiser
UPC 651860863245
Rear Lift Height 0.5 - 2.5 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Bellows
Collapsed Length 14.91 in.
Collapsed Length 378.8 mm
Damping Adjustable No
Extended Length 23.03 in.
Extended Length 585.0 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 19.3 mm
Reservoir No
Segment Light Truck
Series B8 5100
Spring Seat Included No
Upper Mount Type Stem
Notes Without X-REAS Suspension
Vehicle Fitment
  • 2007 Toyota FJ Cruiser
  • 2008 Toyota FJ Cruiser
  • 2009 Toyota FJ Cruiser
  • 2010 Toyota FJ Cruiser
  • 2011 Toyota FJ Cruiser
  • 2012 Toyota FJ Cruiser
  • 2013 Toyota FJ Cruiser
  • 2014 Toyota FJ Cruiser
