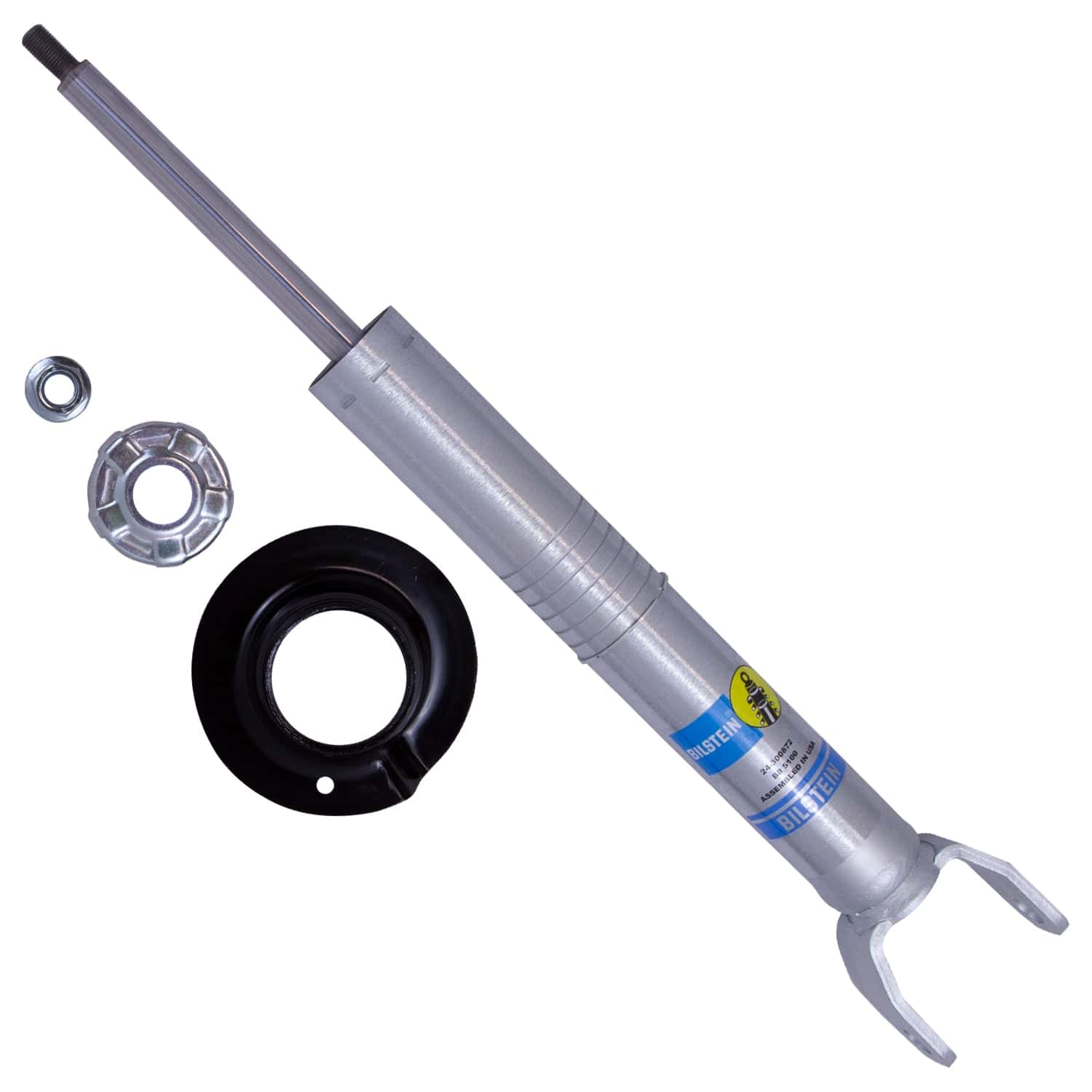

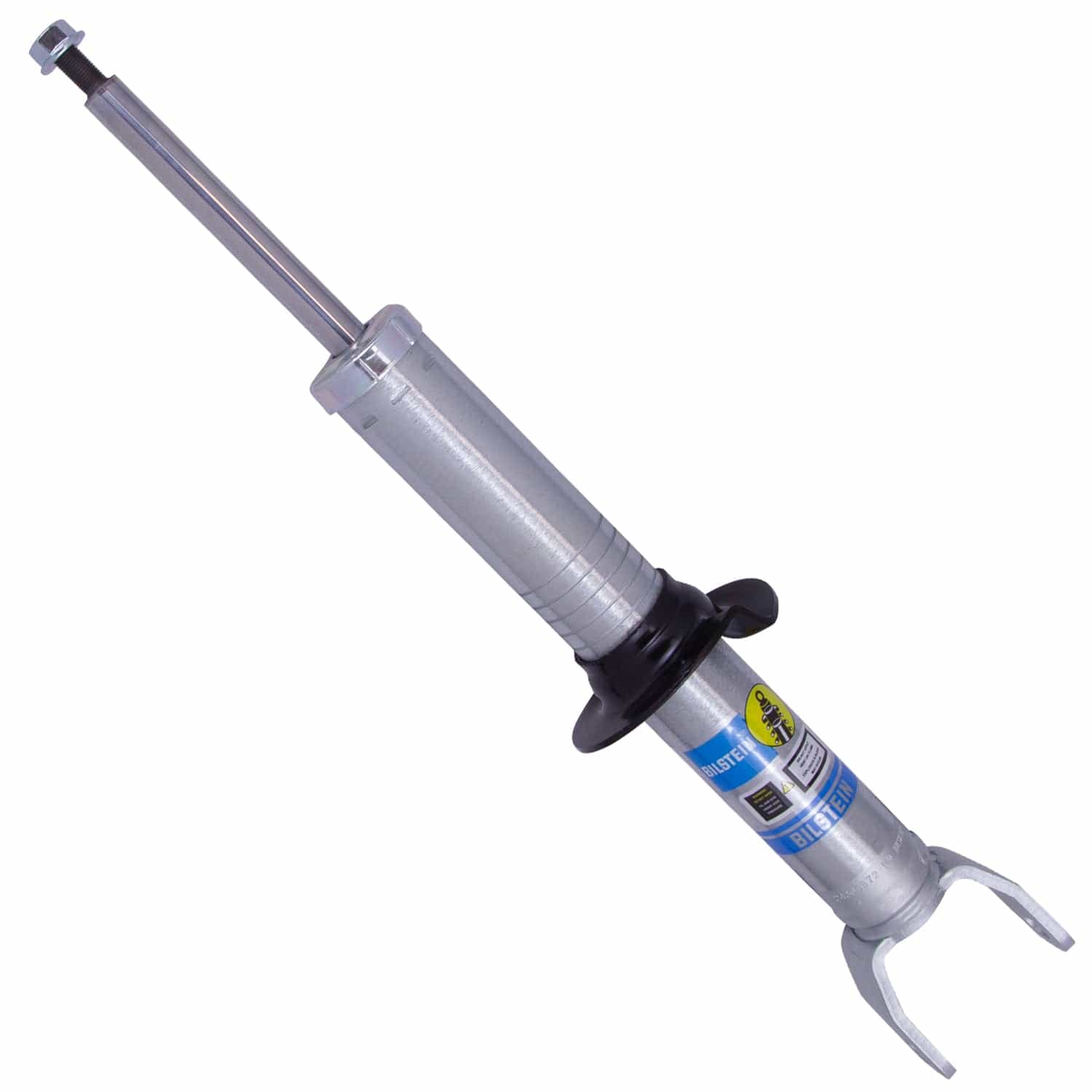

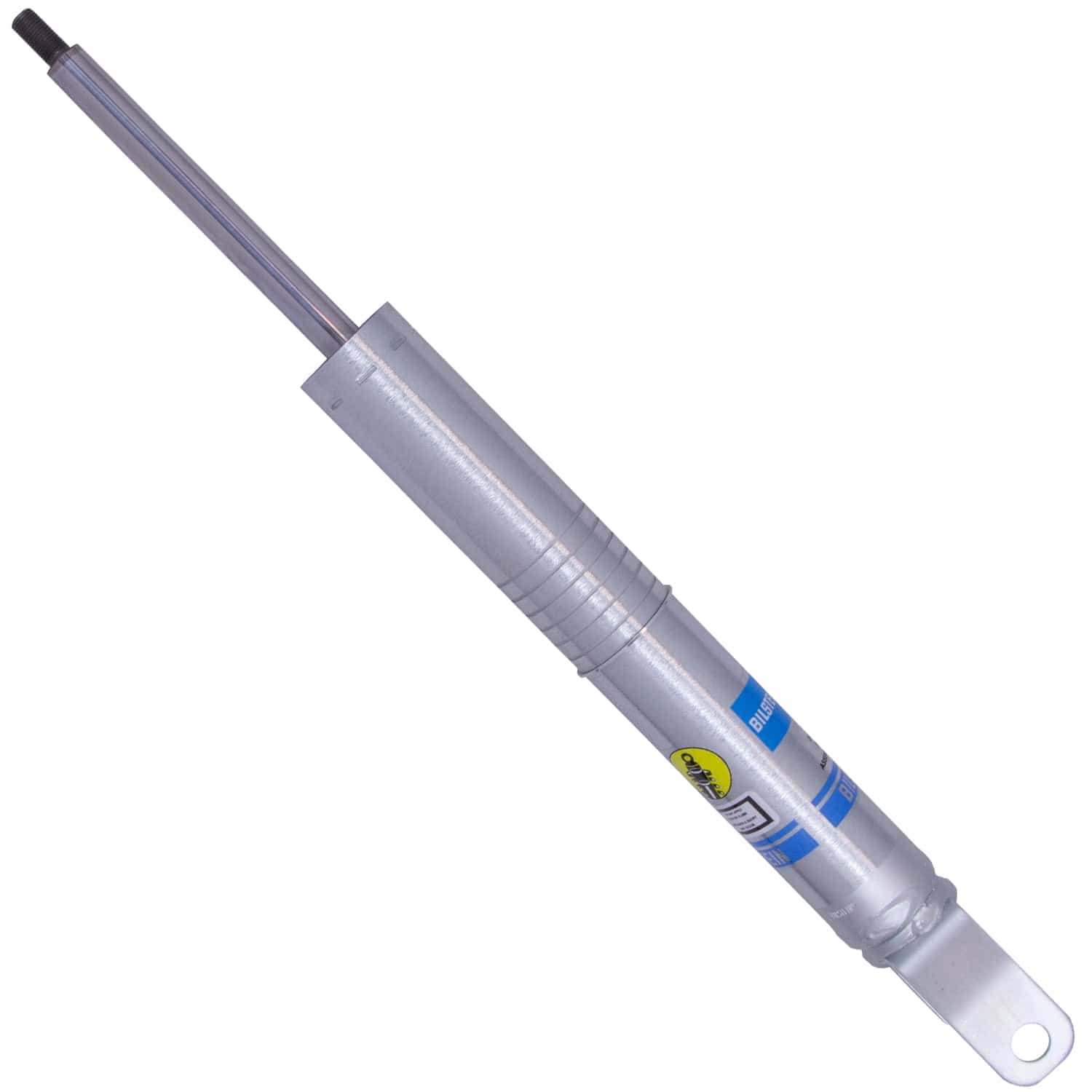

Bilstein 5100 Series 2019 Ram 1500 Front Shock Absorber

Bilstein 5100 Series 2019 Ram 1500 Front Shock Absorber

24-300872

In stock

$149.29 USD
$235.00 USD $149.29 USD
vADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2019-2024 Ram 1500 are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
Part Number 24-300872
Part Name Shock Absorber
Vehicle 2019-2024 Ram 1500
UPC 651860849119
Front Lift Height 0 - 2 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 46 mm
Boot Included No
Collapsed Length 16.00 in.
Collapsed Length 406.5 mm
Damping Adjustable No
Extended Length 22.08 in.
Extended Length 560.9 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Clevis
Reservoir No
Segment Light Truck
Series B8 5100 (Ride Height Adjustable)

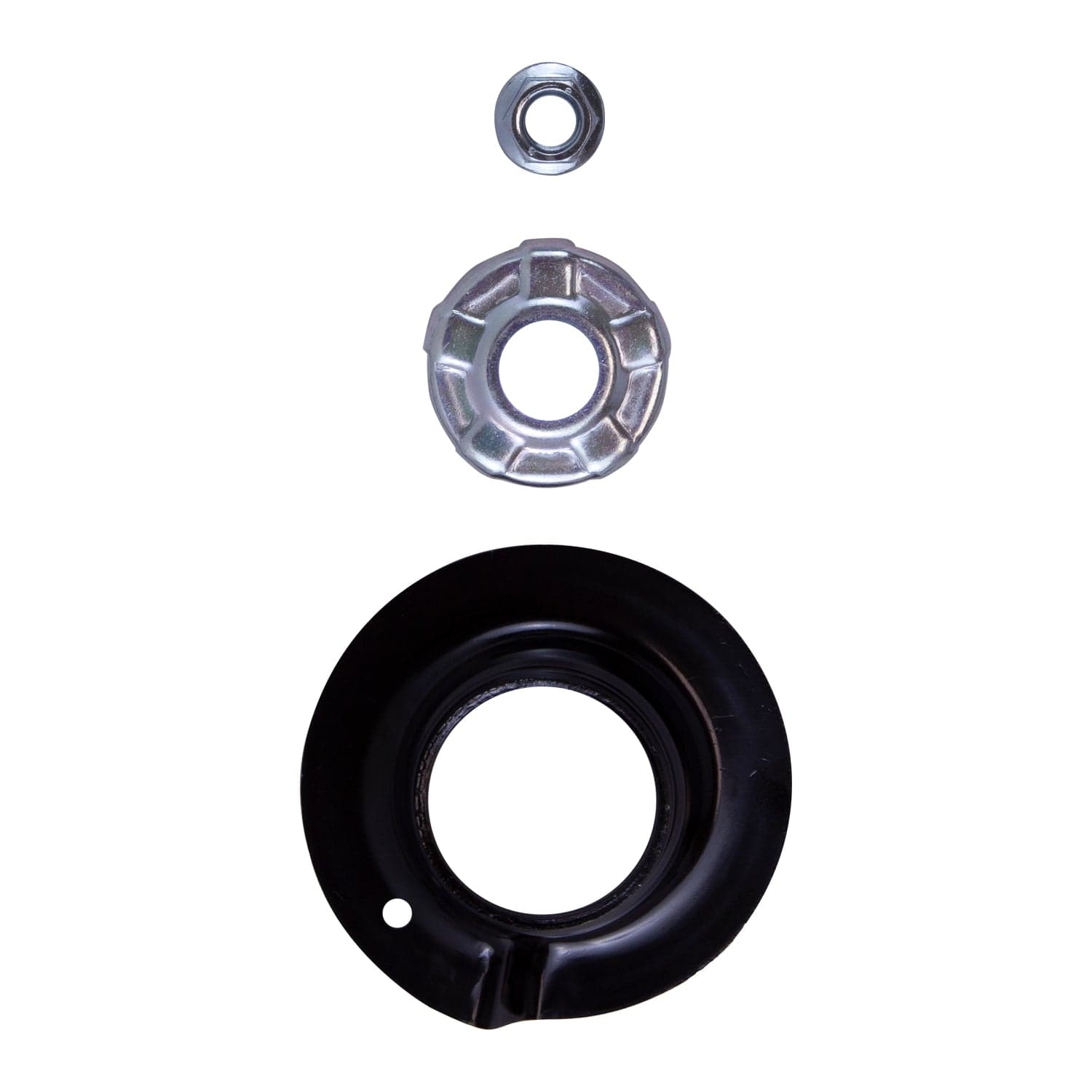

Spring Seat Included Yes
Upper Mount Type Stem
Notes Without Air Suspension
Vehicle Fitment
  • 2019 Ram 1500
  • 2020 Ram 1500
  • 2021 Ram 1500
  • 2022 Ram 1500
  • 2023 Ram 1500
  • 2024 Ram 1500
