| Year | Make | Model |
|---|---|---|
| 1996 - 2004 | Toyota | Tacoma Base |
| 1998 | Toyota | Tacoma DLX |
| 1998 - 2000 | Toyota | Tacoma Limited |
| 1998 - 2004 | Toyota | Tacoma Pre Runner |
| 2001 - 2004 | Toyota | Tacoma S-Runner |
| 1996 - 2000 | Toyota | Tacoma SR5 |
1
/
of
2

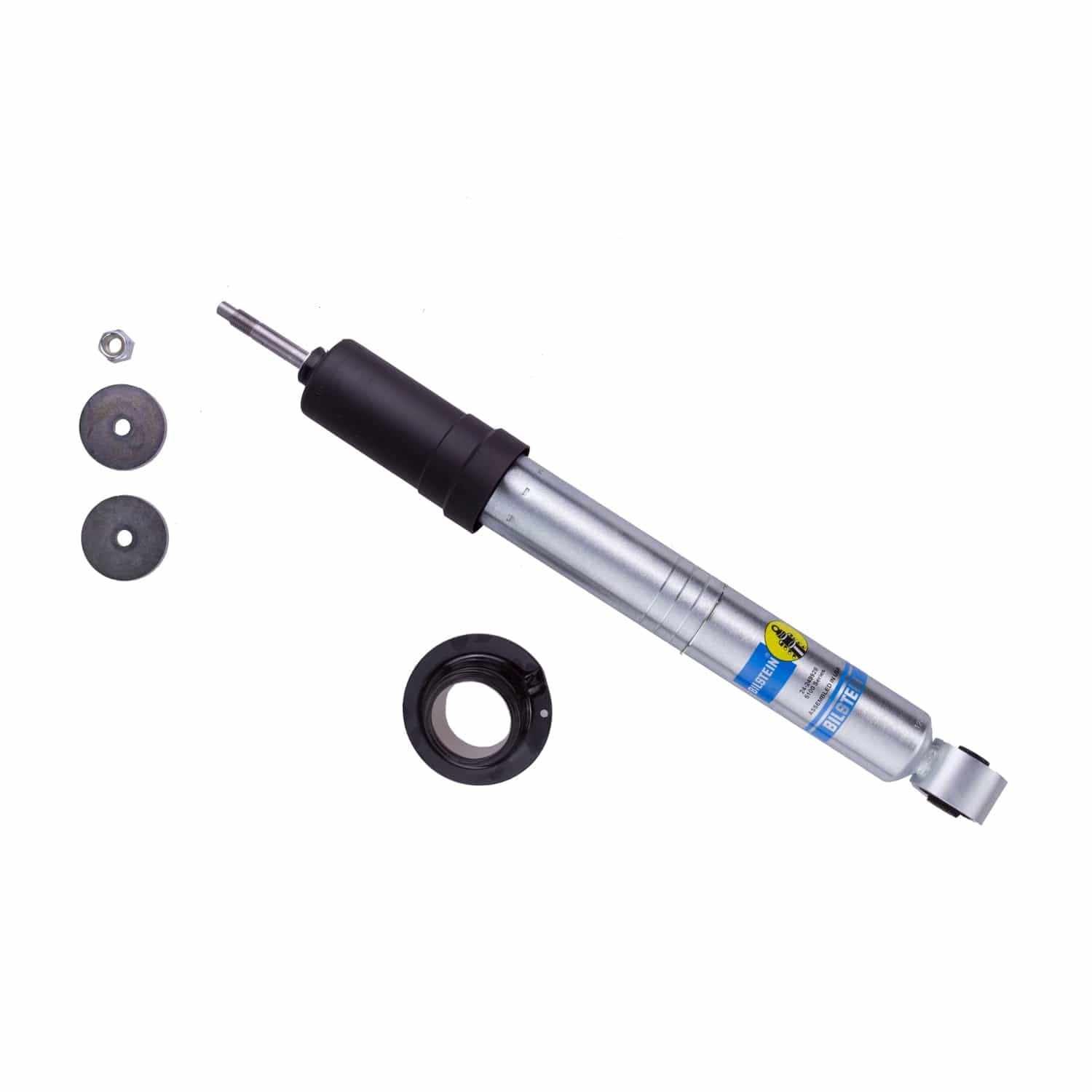

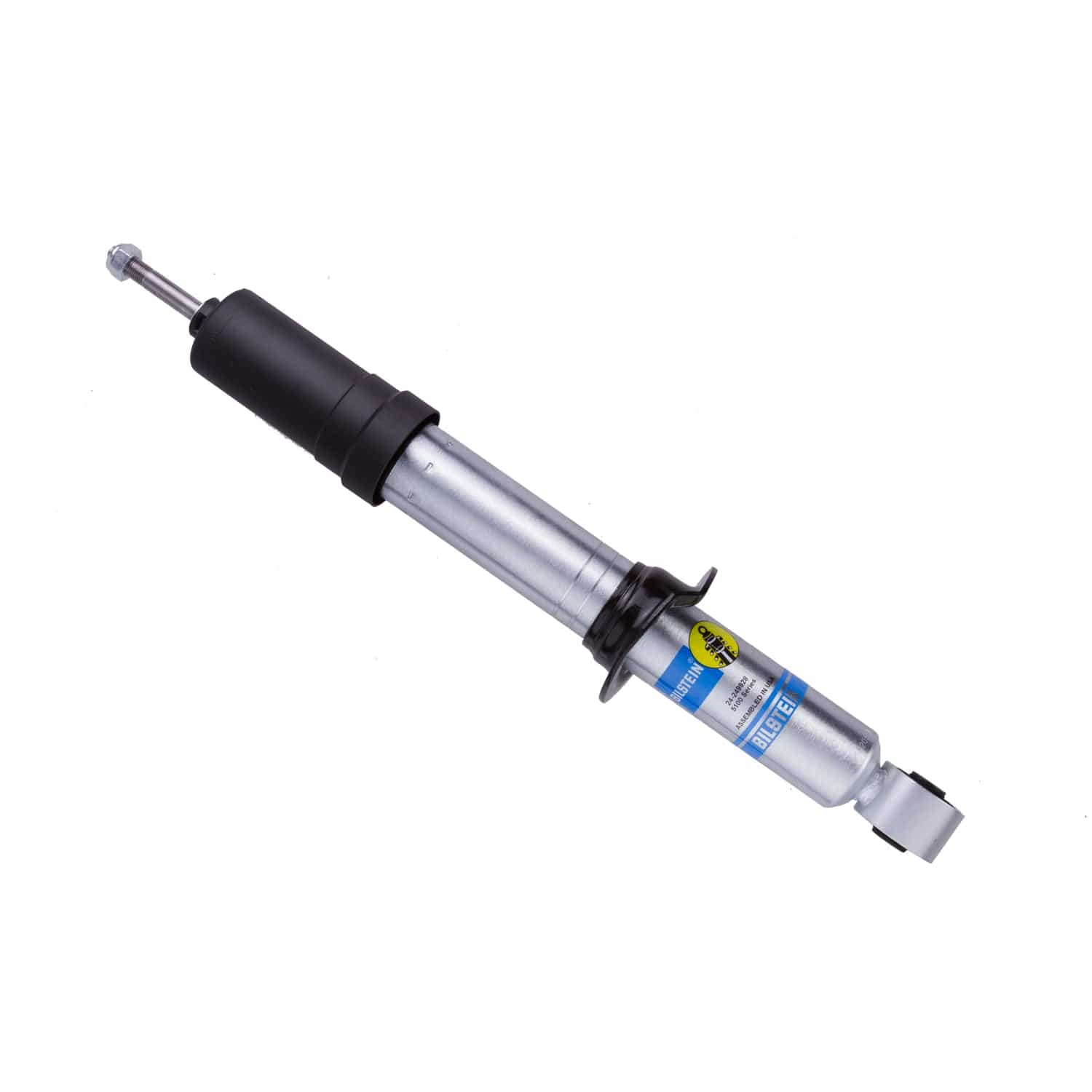

Bilstein 5100 Series 96-04 Toyota Tacoma Front 46mm Monotube Shock Absorber
Bilstein 5100 Series 96-04 Toyota Tacoma Front 46mm Monotube Shock Absorber
SKU:24-249928
In stock
Regular price
$149.29 USD
Regular price
$235.00 USD
Sale price
$149.29 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 1996-2004 Toyota Tacoma are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-249928 |
| Part Name | Shock Absorber |
| Vehicle | 1996-2004 Toyota Tacoma |
| UPC | 651860764580 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Straight |
| Collapsed Length | 13.86 in. |
| Collapsed Length | 352.0 mm |
| Damping Adjustable | No |
| Extended Length | 18.66 in. |
| Extended Length | 474.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.2 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
Vehicle Fitment
- 1996 Toyota Tacoma
- 1997 Toyota Tacoma
- 1998 Toyota Tacoma
- 1999 Toyota Tacoma
- 2000 Toyota Tacoma
- 2001 Toyota Tacoma
- 2002 Toyota Tacoma
- 2003 Toyota Tacoma
- 2004 Toyota Tacoma
