| Year | Make | Model |
|---|---|---|
| 1996 - 2004 | Toyota | Tacoma Base |
| 1998 | Toyota | Tacoma DLX |
| 1998 - 2000 | Toyota | Tacoma Limited |
| 1998 - 2004 | Toyota | Tacoma Pre Runner |
| 2001 - 2004 | Toyota | Tacoma S-Runner |
| 1996 - 2000 | Toyota | Tacoma SR5 |

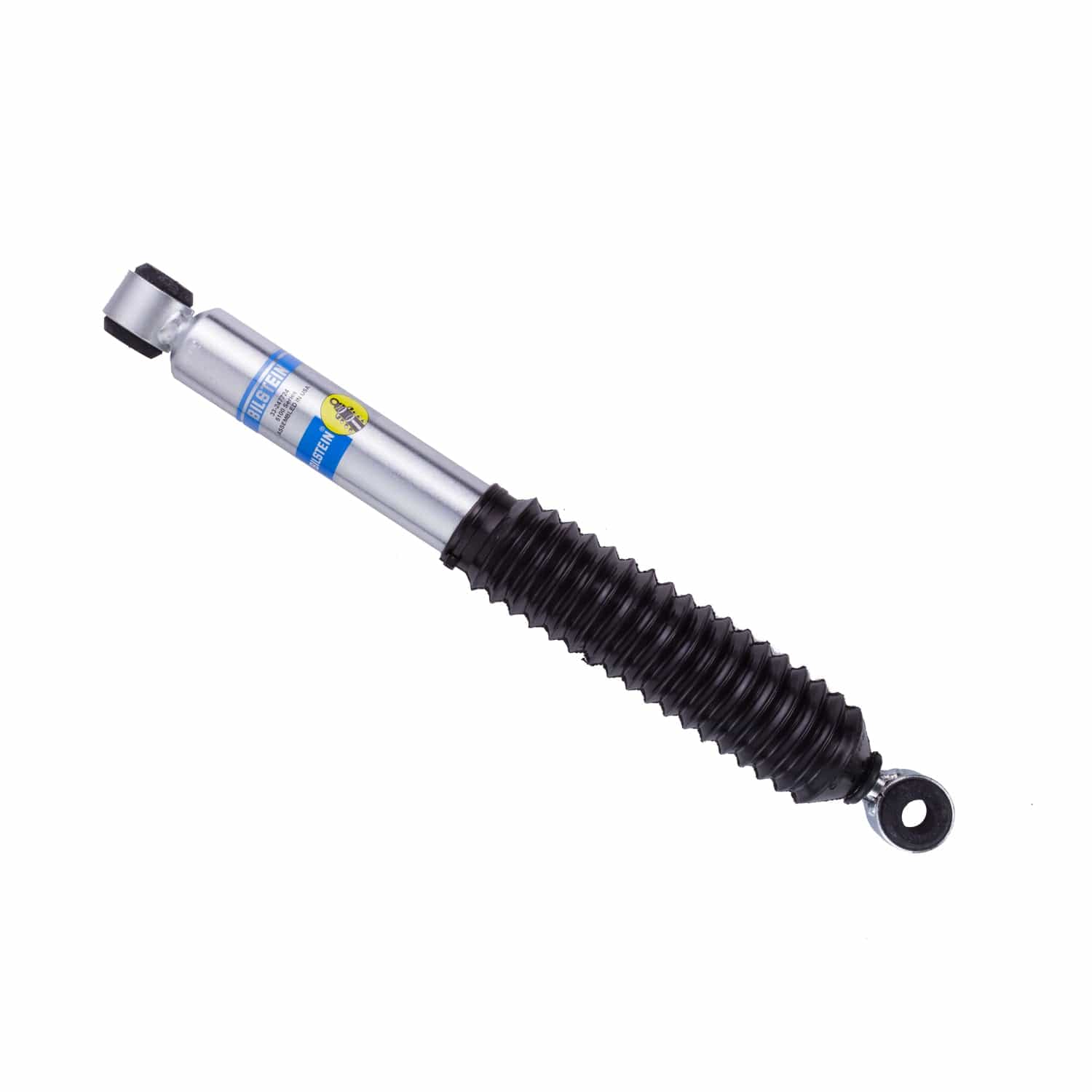

Bilstein 5100 Series 96-04 Toyota Tacoma Rear Left 46mm Monotube Shock Absorber
Bilstein 5100 Series 96-04 Toyota Tacoma Rear Left 46mm Monotube Shock Absorber
SKU:33-247724
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 5100 Series Shock Absorbers are high-performance monotube shocks designed specifically for the 1996-2004 Toyota Tacoma. Engineered as a direct fit for lifted trucks and SUVs, these shocks deliver consistent, fade-free performance under demanding conditions. Featuring a unique velocity-sensitive, digressive piston, they adapt to changing road surfaces to provide optimal handling and ride quality. Constructed with durable materials, the B8 5100 shocks ensure long-lasting performance and improved stability, especially on rough or off-road terrains. Their design emphasizes enhanced control, reduced body roll, and superior damping characteristics, making them a reliable upgrade for off-road enthusiasts and daily drivers alike.
These shocks are tailored for 1996-2004 Toyota Tacoma models, fitting both standard and lifted configurations. They are ideal for vehicles used in off-road, overlanding, or aggressive driving scenarios where enhanced suspension performance is required. The shocks are a direct replacement for factory units, simplifying installation without modifications. The kit includes the left rear shock absorber, ensuring a straightforward upgrade process. Suitable for use on lifted trucks, these shocks improve handling, ride comfort, and durability, making them an excellent choice for drivers seeking performance and reliability in challenging driving conditions.
Share
Overview
Overview
Bilstein B8 5100 Shock Absorbers for the 1996-2004 Toyota Tacoma are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-247724 |
| Part Name | Shock Absorber |
| Vehicle | 1996-2004 Toyota Tacoma |
| UPC | 651860764597 |
| Rear Lift Height | 1 - 1.5 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 13.62 in. |
| Collapsed Length | 346.0 mm |
| Damping Adjustable | No |
| Extended Length | 21.26 in. |
| Extended Length | 540.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 19 mm |
| Notes | A minimum 1" lift block is required for this application |
Vehicle Fitment
- 1996 Toyota Tacoma
- 1997 Toyota Tacoma
- 1998 Toyota Tacoma
- 1999 Toyota Tacoma
- 2000 Toyota Tacoma
- 2001 Toyota Tacoma
- 2002 Toyota Tacoma
- 2003 Toyota Tacoma
- 2004 Toyota Tacoma
