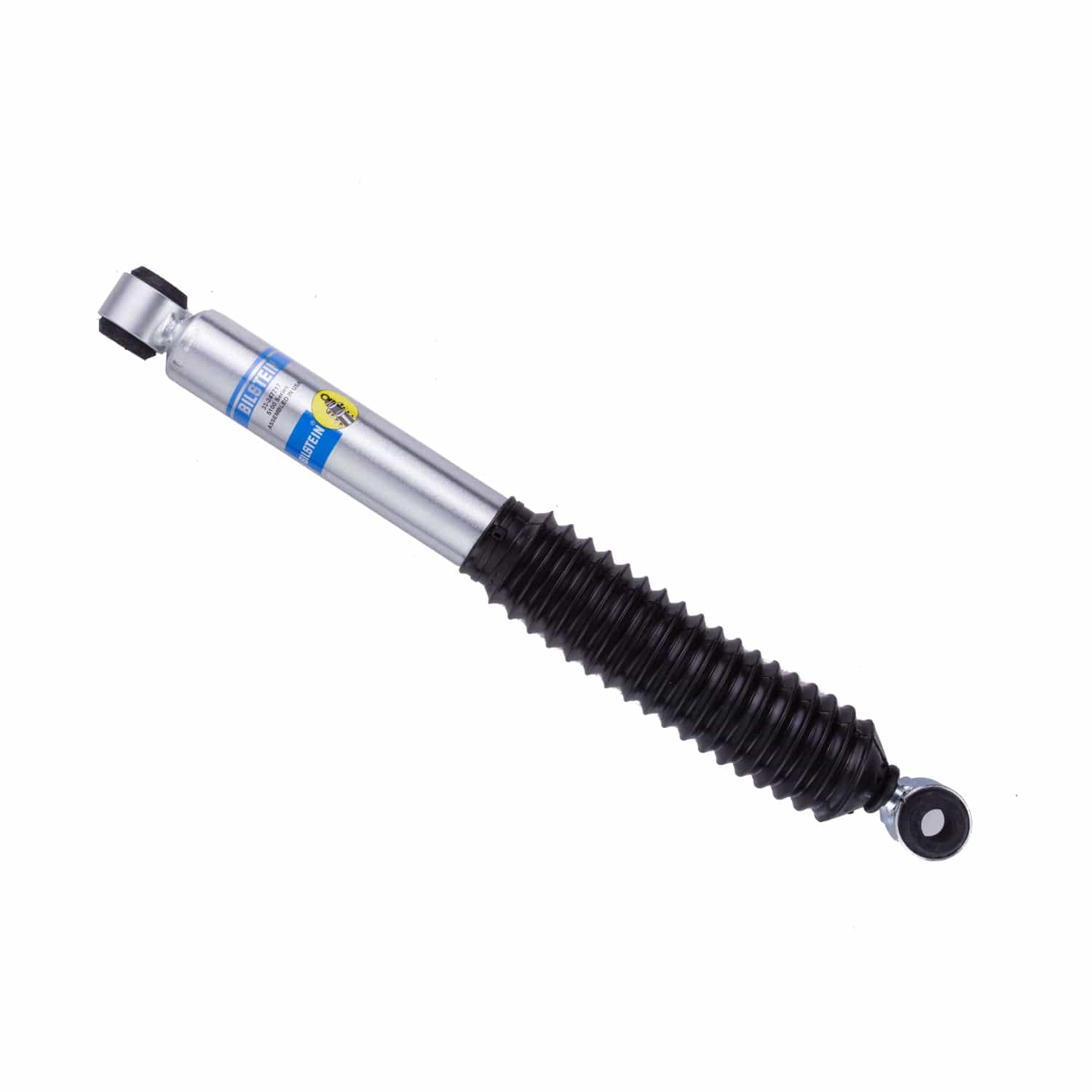

Bilstein 5100 Series 96-04 Toyota Tacoma Rear Right 46mm Monotube Shock Absorber

Bilstein 5100 Series 96-04 Toyota Tacoma Rear Right 46mm Monotube Shock Absorber

33-247717

In stock

$98.40 USD
$164.00 USD $98.40 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 Shock Absorbers for the 1996-2004 Toyota Tacoma are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Specifications
Part Number 33-247717
Part Name Shock Absorber
Vehicle 1996-2004 Toyota Tacoma
UPC 651860764603
Rear Lift Height 1 - 1.5 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Bellows
Collapsed Length 14.07 in.
Collapsed Length 357.5 mm
Damping Adjustable No
Extended Length 22.09 in.
Extended Length 561.0 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 19 mm
Reservoir No
Segment Light Truck
Series B8 5100
Spring Seat Included No
Upper Mount Type Eye 19 mm
Notes A minimum 1" lift block is required for this application
Vehicle Fitment
  • 1996 Toyota Tacoma
  • 1997 Toyota Tacoma
  • 1998 Toyota Tacoma
  • 1999 Toyota Tacoma
  • 2000 Toyota Tacoma
  • 2001 Toyota Tacoma
  • 2002 Toyota Tacoma
  • 2003 Toyota Tacoma
  • 2004 Toyota Tacoma
