| Year | Make | Model |
|---|---|---|
| 2001 - 2007 | Toyota | Sequoia Limited |
| 2001 - 2007 | Toyota | Sequoia SR5 |
| 2000 - 2006 | Toyota | Tundra Base |
| 2000 - 2006 | Toyota | Tundra Limited |
| 2000 - 2006 | Toyota | Tundra SR5 |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-261425 | 0-2" Lift | Front | Shock Absorber | 2 |
| 24-100144 | 0-2" Lift | Rear | Shock Absorber | 2 |

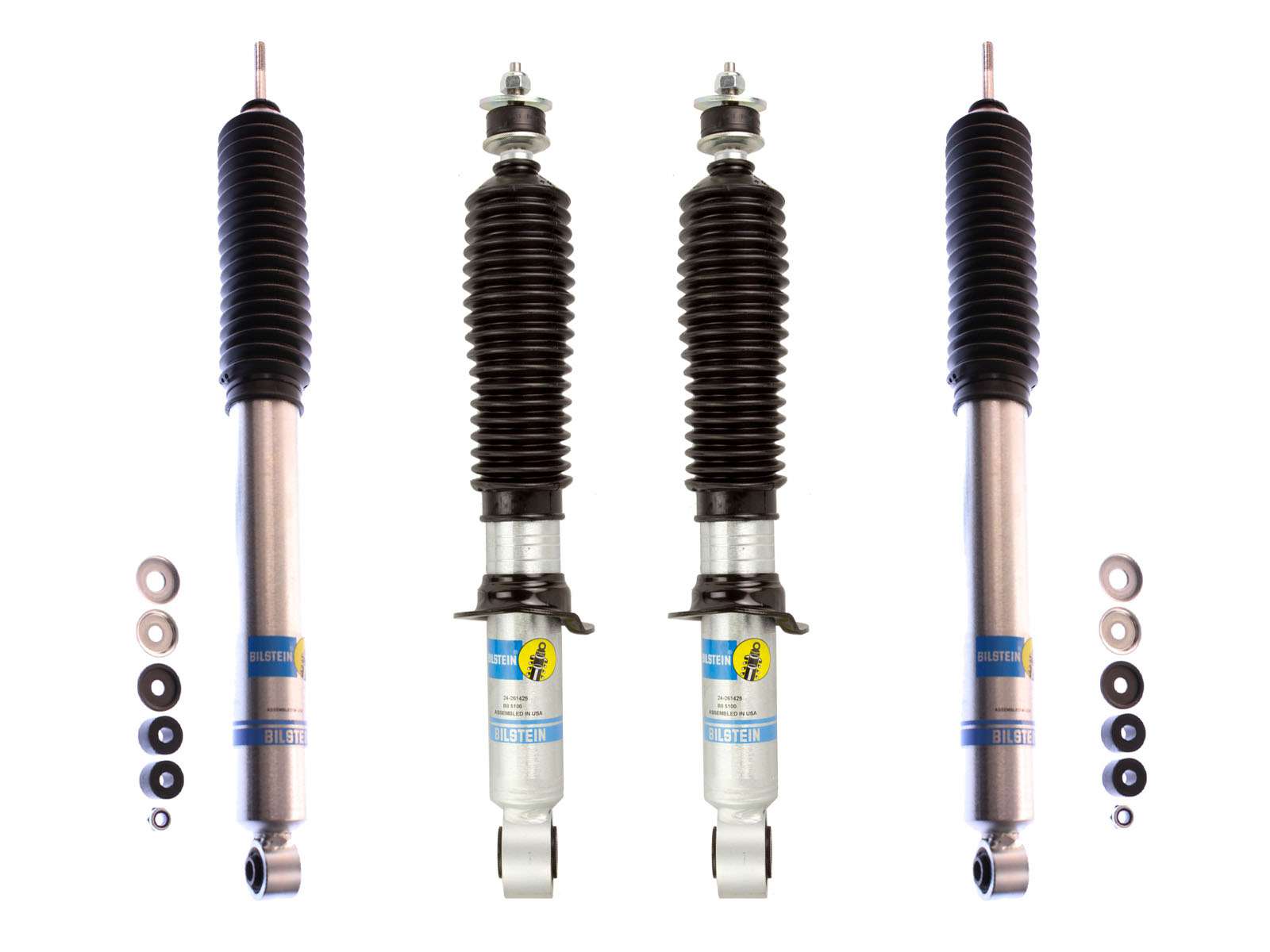

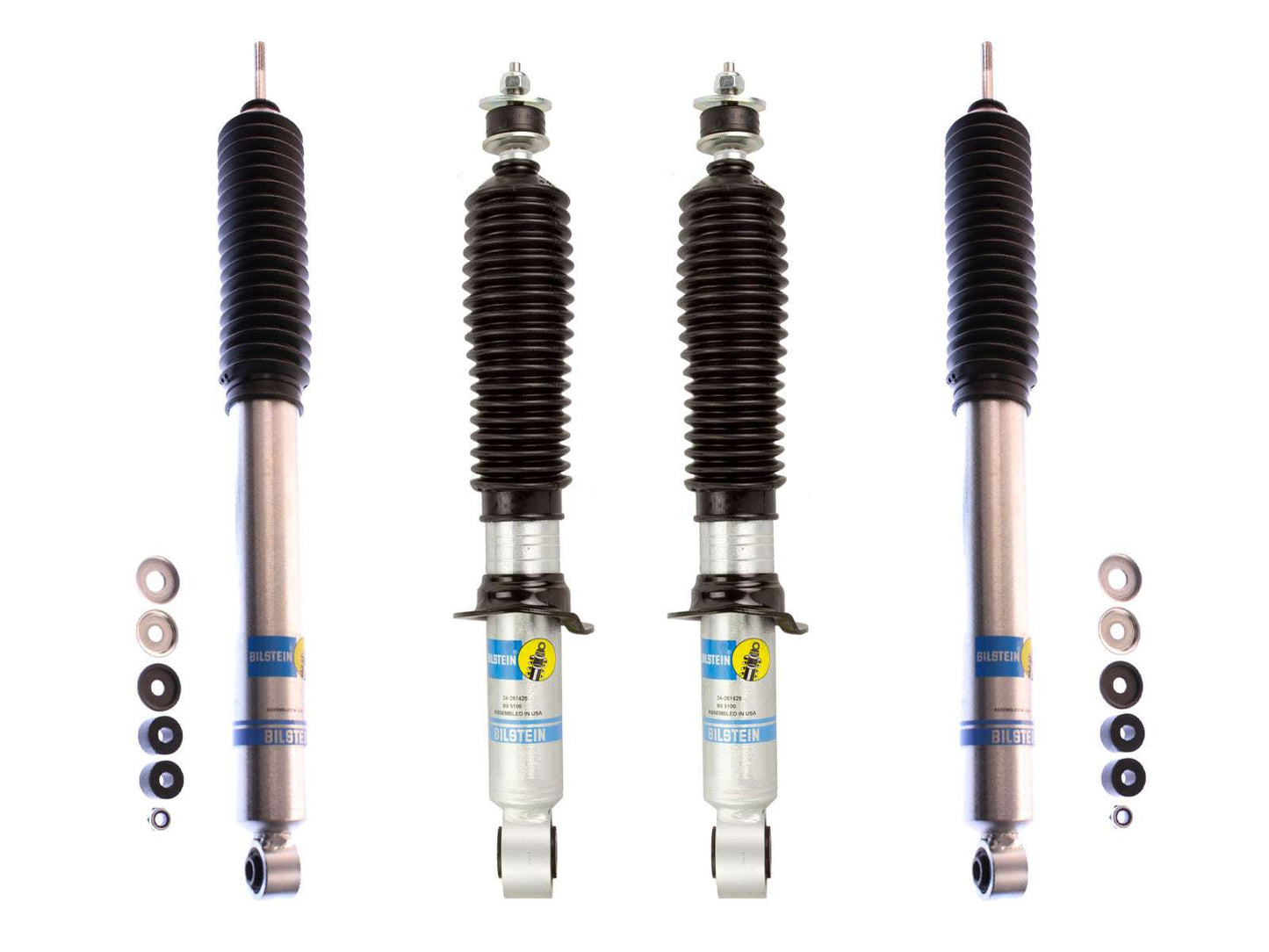

Bilstein 5100 Shocks Set - 1999-2006 Toyota Tundra 4WD RWD
Bilstein 5100 Shocks Set - 1999-2006 Toyota Tundra 4WD RWD
SKU:10547496157471_52689458921759
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-261425 | 0-2" Lift | Front | Shock Absorber | 2 |
| 24-100144 | 0-2" Lift | Rear | Shock Absorber | 2 |
- Package Contains 2 Struts and 2 Shocks
Set of two front struts and two rear shocks. - Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure. - Height settings are adjustable from stock height up to 2"
Height settings are adjustable from 0" (stock height) up to 2" front lift using factory coil springs. Accommodates up to 2" rear lift systems - Important Fitment Note
Rear shock hardware not included, original factory rubber bushings and steel washers are reused for installation. - Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles. - Rear Shock fitment note
Rear 5100 Series Shock work at factory height, or up to 2" of lift (lift block, lift shackle, add-a-leaf). - Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. - Levels Your Truck
Levels the front of your truck to the rear, through the adjustable height coil spring collar, using your factory coil springs, see instructions for height specifics. - Better Handling On and Off-Road
Bilstein's self adjusting digressive piston, providing increased road handling characteristics, and improved off-road handling. - Nitrogen Gas Charged
High pressure nitrogen gas charge for optimum performance in tough conditions. - Durable and long lasting
Zinc plate finish, providing corrosion and rust resistance in harsh environments. - Read More
[Blog Post: Bilstein 5100 vs. 4600, Major Differences](https://www.shocksurplus.com/pages/bilstein-4600-vs-5100-series-the-lowdown)
Bilstein's 5100 series adjustable height struts not only allow the leveling of your vehicle using your factory coil springs, the shocks are also a significant upgrade for on and off-road handling. The corrosion resistant zinc finish provides protection in harsh environments, wet climates, or salty roads. The digressive piston provides an improvement in road handling, decrease in body roll / sway, and a decrease in nose dive.
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2001-2007 Toyota Sequoia are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-261425 |
| Part Name | Shock Absorber |
| Vehicle | 2001-2007 Toyota Sequoia |
| UPC | 651860783765 |
| Front Lift Height | 0 - 2.4 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 13.23 in. |
| Collapsed Length | 336.0 mm |
| Damping Adjustable | No |
| Extended Length | 18.35 in. |
| Extended Length | 466.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Notes | Without Electronic or Self-Leveling Suspension |
Vehicle Fitment
- 2001 Toyota Sequoia
- 2002 Toyota Sequoia
- 2003 Toyota Sequoia
- 2004 Toyota Sequoia
- 2005 Toyota Sequoia
- 2006 Toyota Sequoia
- 2007 Toyota Sequoia
