| Year | Make | Model |
|---|---|---|
| 2021 - 2024 | Ford | Bronco Badlands |
| 2021 - 2023 | Ford | Bronco Base |
| 2021 - 2024 | Ford | Bronco Big Bend |
| 2021 - 2024 | Ford | Bronco Black Diamond |
| 2021 | Ford | Bronco First Edition |
| 2023 - 2024 | Ford | Bronco Heritage Edition |
| 2023 - 2024 | Ford | Bronco Heritage Limited Edition |
| 2021 - 2024 | Ford | Bronco Outer Banks |
| 2021 - 2022 | Ford | Bronco Wildtrak |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-323550 | 1-2.9" Lift | Front | Shock Absorber | 2 |
| 24-323567 | 1-2.5" Lift | Rear | Shock Absorber | 2 |

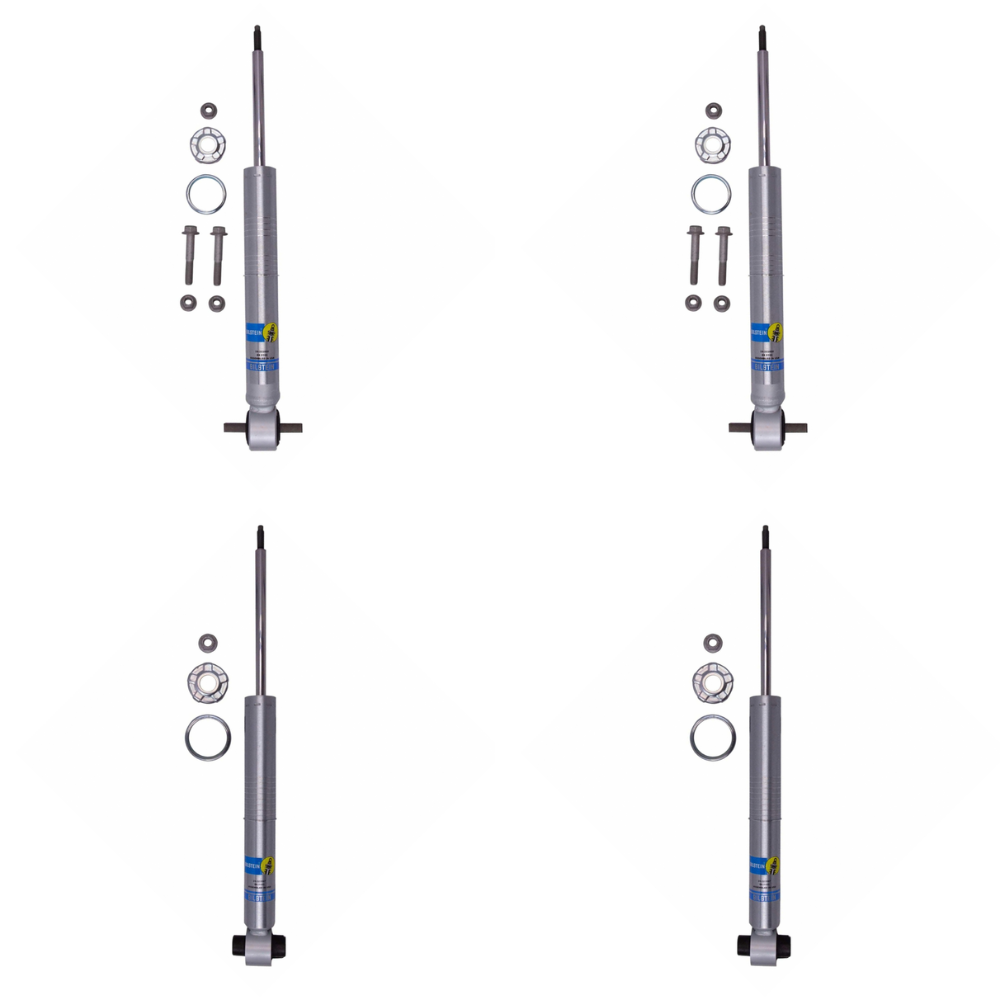

Bilstein 5100 Shocks Set - 2021-2026 Ford Bronco
Bilstein 5100 Shocks Set - 2021-2026 Ford Bronco
SKU:10623823675679_52933039948063
In stock
Regular price
$168.00 USD
Regular price
$235.00 USD
Sale price
$168.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-323550 | 1-2.9" Lift | Front | Shock Absorber | 2 |
| 24-323567 | 1-2.5" Lift | Rear | Shock Absorber | 2 |
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2021-2024 Ford Bronco are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application).
The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-323550 | 1-2.9" Lift | Front | Shock Absorber | 2 |
| 24-323567 | 1-2.5" Lift | Rear | Shock Absorber | 2 |
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2021-2024 Ford Bronco are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-323550 |
| Part Name | Shock Absorber |
| Vehicle | 2021-2024 Ford Bronco |
| UPC | 651860891699 |
| Front Lift Height | 0 - 1.7 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 16.63 in. |
| Collapsed Length | 422.3 mm |
| Damping Adjustable | No |
| Extended Length | 22.80 in. |
| Extended Length | 579.2 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Crossbar |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2021 Ford Bronco
- 2022 Ford Bronco
- 2023 Ford Bronco
- 2024 Ford Bronco
