| Year | Make | Model | Engine |
|---|---|---|---|
| 2015-2020 | Chevrolet | Suburban | 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated |
| 2015-2020 | Chevrolet | Suburban | 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated |
| 2017-2019 | Chevrolet | Suburban | 6.0L 5967CC 364Cu. In. V8 FLEX OHV Naturally Aspirated |
| 2016 | Chevrolet | Suburban | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated |
| 2018-2019 | Chevrolet | Suburban | 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated |
| 2019-2020 | Chevrolet | Suburban | 6.2L 6162CC 376Cu. In. V8 FLEX OHV Naturally Aspirated |
| 2019-2020 | Chevrolet | Suburban | 6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated |
| 2015-2020 | GMC | Yukon XL | 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated |
| 2016-2020 | GMC | Yukon XL | 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated |
| 2015-2020 | GMC | Yukon XL | 6.2L 6162CC 376Cu. In. V8 FLEX OHV Naturally Aspirated |
| 2016-2020 | GMC | Yukon XL | 6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-337007 | 0-1.6" Lift | Front | Shock Absorber | 2 |
| 24-253260 | 0-1" Lift | Rear | Shock Absorber | 2 |

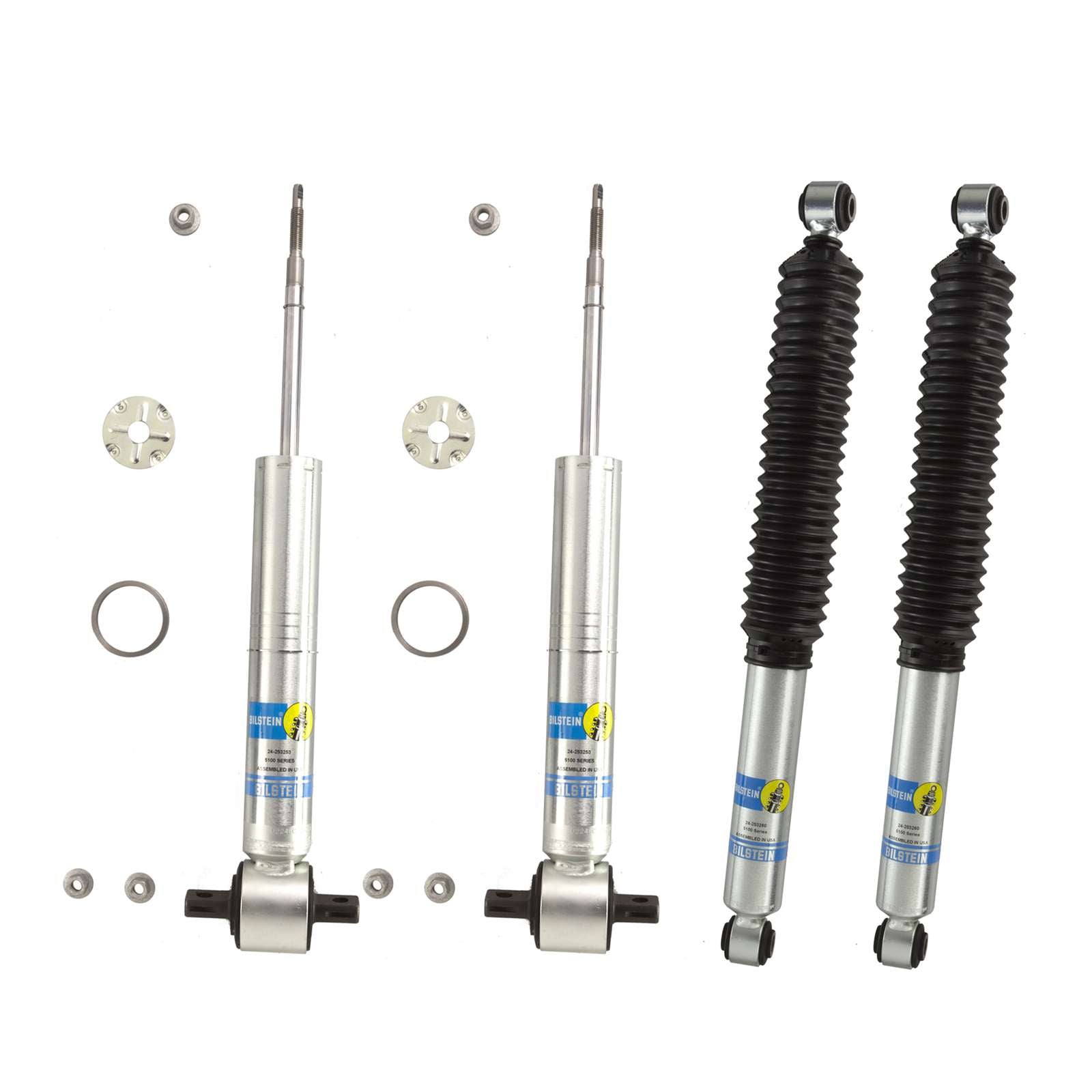

Bilstein 5100 Shocks Set w/0-1.6" lift - 2015-2018 Chevrolet Suburban 1500 4WD RWD
Bilstein 5100 Shocks Set w/0-1.6" lift - 2015-2018 Chevrolet Suburban 1500 4WD RWD
SKU:10547496648991_52689459413279
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-337007 | 0-1.6" Lift | Front | Shock Absorber | 2 |
| 24-253260 | 0-1" Lift | Rear | Shock Absorber | 2 |
The Bilstein 5100 series shocks set is an adjustable height suspension component designed for the Chevrolet Suburban 1500 models from 2015 to 2018. These shocks allow for vehicle leveling using the factory coil springs, accommodating lifts of 0 to 1.6 inches. Constructed with a corrosion-resistant zinc finish, they provide enhanced durability in harsh environments, including wet climates and salty roads. The digressive piston design improves on-road handling by reducing body roll and sway, while also decreasing nose dive during braking, resulting in a more stable and controlled ride both on and off-road.
Compatible with 2015-2018 Chevrolet Suburban 1500 4WD and RWD models, these shocks are a direct bolt-on upgrade that enhances off-road capability and overall ride quality. They are suitable for vehicles used in daily driving, off-road adventures, or mixed-use applications where improved handling and durability are desired. The set includes the necessary shocks for front and rear installation, providing a comprehensive suspension upgrade. These shocks are ideal for owners seeking to improve vehicle stability, handling, and off-road performance while maintaining factory coil spring compatibility.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 24-337007 | 0-1.6" Lift | Front | Shock Absorber | 2 |
| 24-253260 | 0-1" Lift | Rear | Shock Absorber | 2 |
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2015-2020 Chevrolet Suburban are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-337007 |
| Part Name | Shock Absorber |
| Vehicle | 2015-2020 Chevrolet Suburban |
| UPC | 651860947426 |
| Front Lift Height | 0 - 1.6 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 15.00 in. |
| Collapsed Length | 381.0 mm |
| Damping Adjustable | No |
| Extended Length | 18.89 in. |
| Extended Length | 479.7 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2015 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
- 2020 Chevrolet Suburban
