| Year | Make | Model |
|---|---|---|
| 2015 - 2020 | Ford | F-150 King Ranch |
| 2015 - 2020 | Ford | F-150 Lariat |
| 2016 - 2020 | Ford | F-150 Limited |
| 2015 - 2020 | Ford | F-150 Platinum |
| 2015 - 2020 | Ford | F-150 XL |
| 2015 - 2020 | Ford | F-150 XLT |
1
/
of
3
▶ Suspension Drop / Lift Rates
| Part Number | Position | Item | Quantity |
|---|---|---|---|
| 47-310995 | Front | Strut & Spring | 1 |
| 33-253190 | Rear | Shock Absorber | 2 |
Bilstein 6112 Assembled & 5100 Shocks Set - 2015-2020 Ford F-150 4WD
Bilstein 6112 Assembled & 5100 Shocks Set - 2015-2020 Ford F-150 4WD
SKU:10547473285407_52689433362719
Out of stock
Regular price
$1,169.00 USD
Regular price
$1,350.55 USD
Sale price
$1,169.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Position | Item | Quantity |
|---|---|---|---|
| 47-310995 | Front | Strut & Spring | 1 |
| 33-253190 | Rear | Shock Absorber | 2 |
Shock Surplus has made your install easier with this fully assembled 6112 Coil & Spring kit. Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.
Share
Overview
Overview

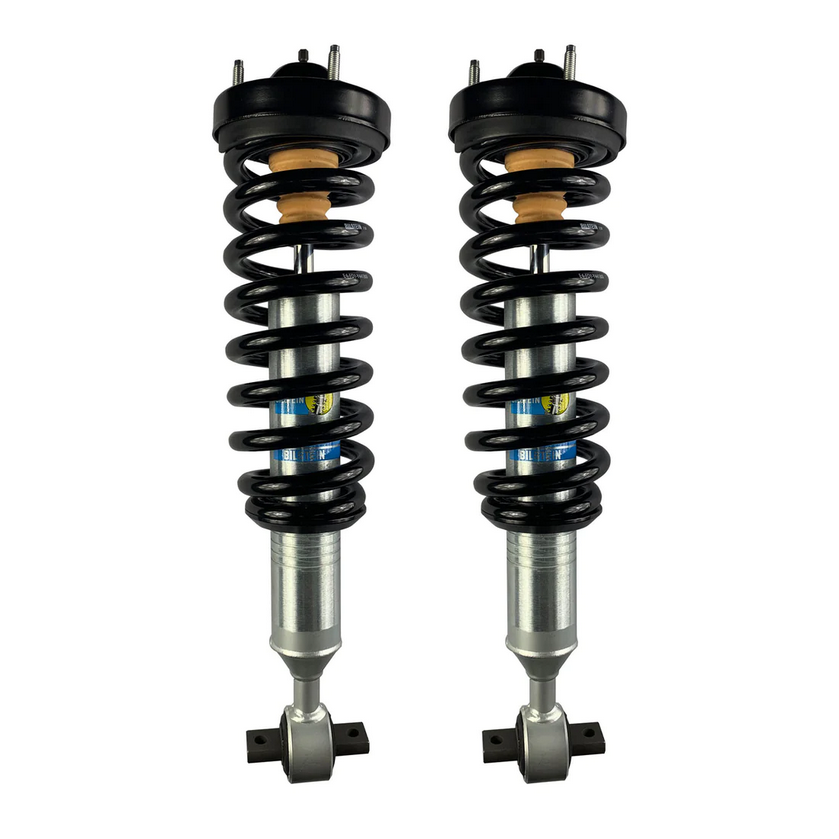

Bilstein Suspension Kit
Part #: 47-310995
Overview
The Bilstein B8 6112 Suspension Kit is a high-performance upgrade designed for the 2015-2020 Ford F-150 4WD. This kit is engineered to enhance ground clearance, accommodate larger tires, and improve wheel travel, making it ideal for off-road enthusiasts and those seeking a more aggressive stance. The kit includes (2) 60mm digressive shock absorbers, custom matched cold wound coil springs, and billet aluminum spring seats, all crafted to deliver a balanced combination of durability, responsiveness, and ride quality. Whether you're tackling rugged terrain or seeking a more commanding look, this suspension kit helps support your vehicle’s capabilities while maintaining comfort and control.Key Features

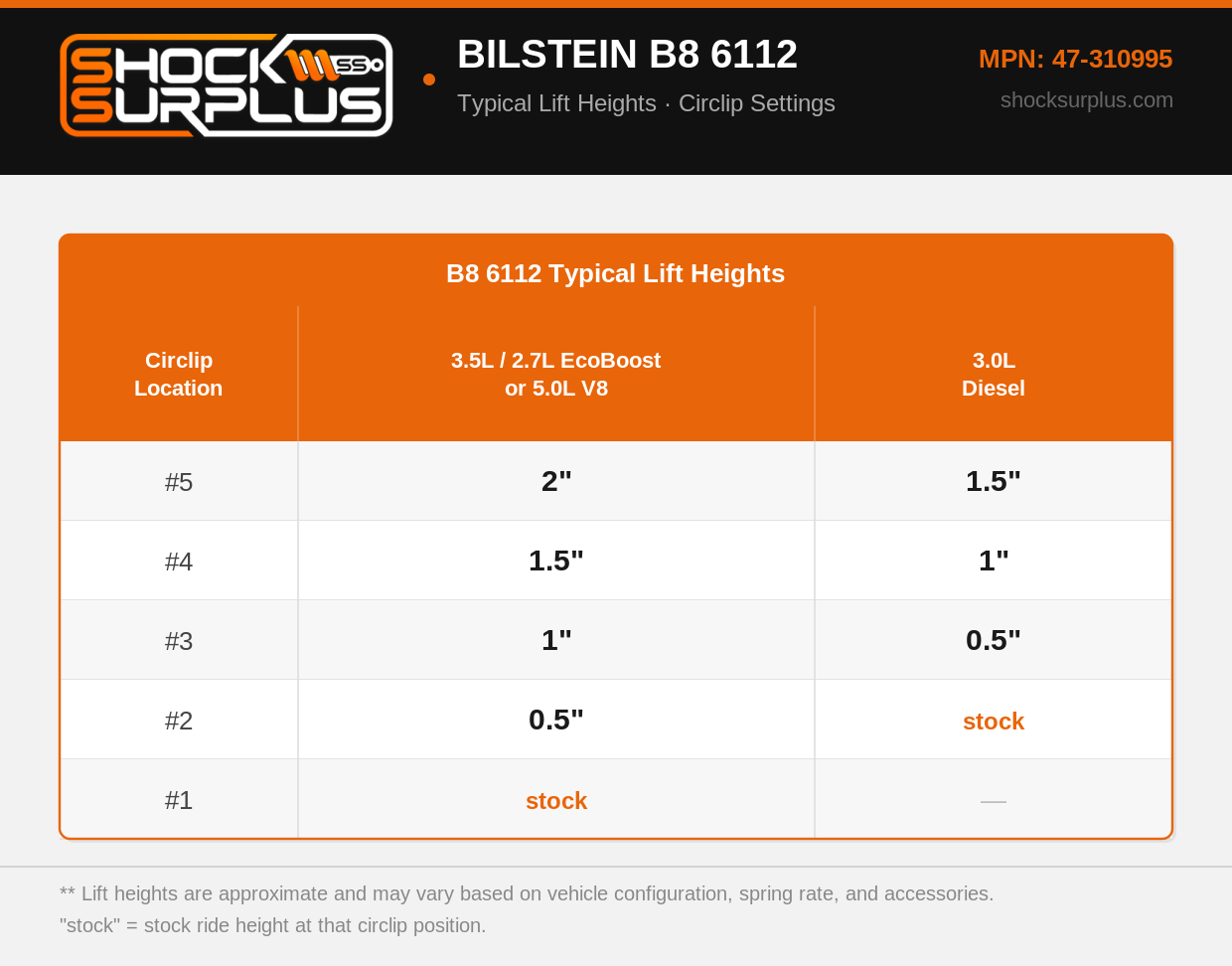

This suspension kit features advanced materials and thoughtful design to optimize performance and longevity. The large 60mm piston provides increased damping capacity for better control and stability. Multiple snap-ring grooves in the shock body allow for adjustable spring seat positions, enabling a front lift of 0 to 2.75 inches depending on your specific application. The custom coil springs are cold wound for consistent performance and durability, while the billet aluminum spring seats ensure secure and precise fitment. Overall, these features work together to enhance your vehicle’s off-road handling, ride height, and load support without compromising comfort.Construction & Design
The Bilstein B8 6112 shocks are constructed with a large digressive piston and a corrosion-resistant coating, ensuring reliable performance in demanding conditions. The coil springs are engineered for strength and flexibility, supporting increased wheel travel and ground clearance. The billet aluminum spring seats are machined for precision, providing a secure fit and easy adjustment options.Driving Feel & Feedback
This suspension kit improves your vehicle’s response and handling, especially on uneven terrain. The increased wheel travel and adjustable lift height contribute to a more confident driving experience, with enhanced stability and control. The shocks deliver a smooth ride while effectively absorbing impacts, reducing body roll, and maintaining tire contact for improved traction.Installation & Fitment
Installation involves replacing factory components with the included shocks, springs, and seats. Proper fitment should be verified against your vehicle’s specifications and the part number provided. While designed for straightforward bolt-on installation, some mechanical expertise is recommended to ensure optimal performance and safety.What’s Included
The package includes (2) 60mm Shock Absorbers, (2) custom cold wound coil springs, and (2) billet aluminum spring seats, providing everything needed for a comprehensive suspension upgrade.
