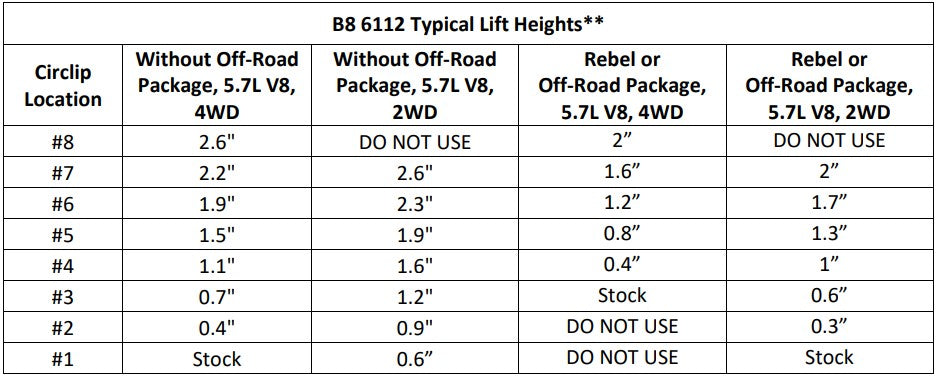

Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
47-2935400-2.75" LiftFrontCoilover1
24-2333540-2" LiftRearShock Absorber2

Bilstein 6112 Strut & Spring + Rear B8 5100 Shocks Set w/0-2.75" lift - 2019-2024 Ram 1500 4WD RWD

Bilstein 6112 Strut & Spring + Rear B8 5100 Shocks Set w/0-2.75" lift - 2019-2024 Ram 1500 4WD RWD

SKU:10547474563359_52689434640671

Out of stock

Regular price $1,169.00 USD
Regular price $1,350.55 USD Sale price $1,169.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
47-2935400-2.75" LiftFrontCoilover1
24-2333540-2" LiftRearShock Absorber2

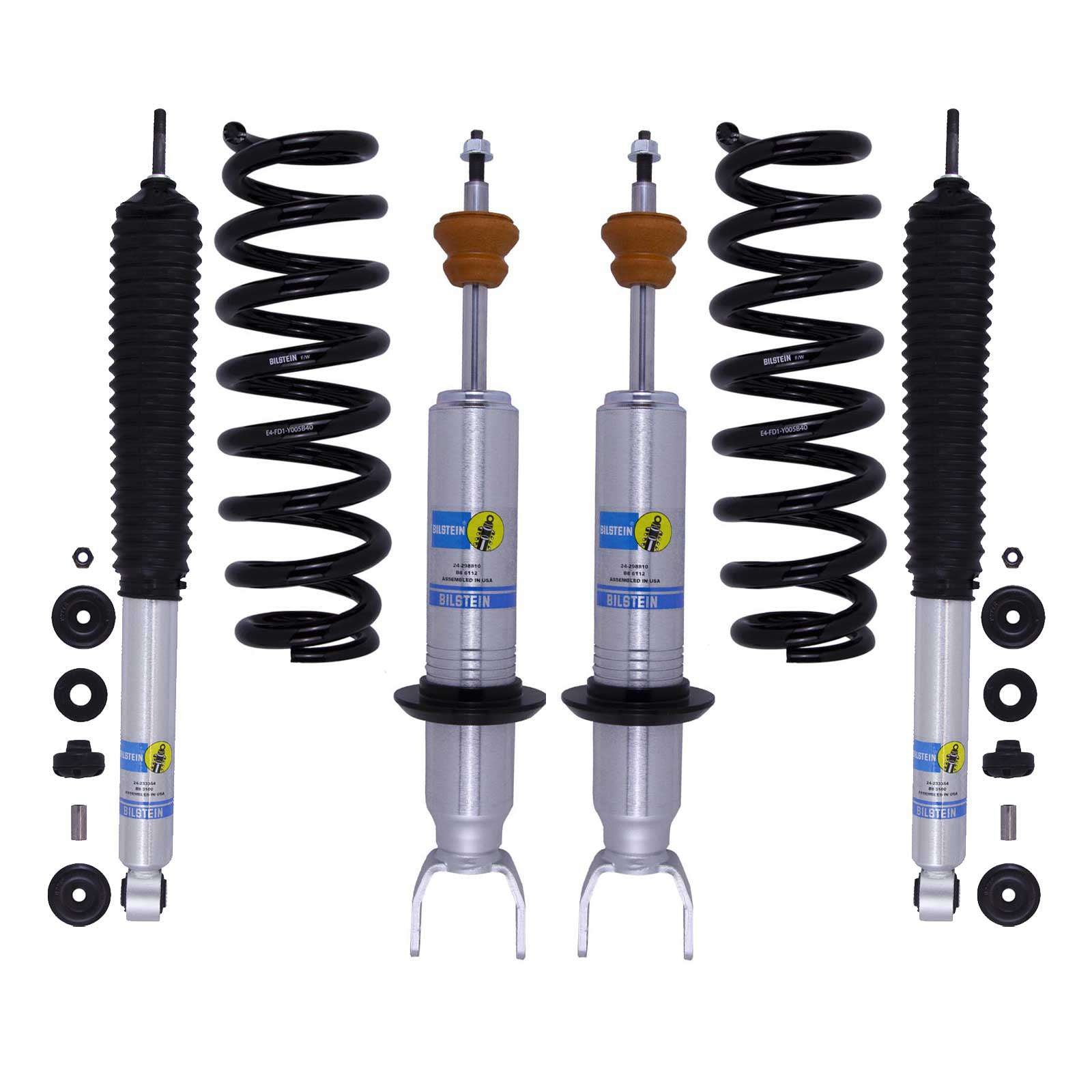

  • Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
    Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation.
  • Bilstein Limited Lifetime Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Front height adjustment from 0-2.75"
    Front height adjustment from 0-2.75" using the included coil spring collar and adjustable circlip. Accommodates up to 2" in the rear
  • Fits 4WD & RWD vehicles
    This product works for 4WD and RWD vehicles.
  • Lift Height May Vary
    Bilstein 47-293540 has not done any testing with this part number for eTorque equipped trucks. Actuat lift heights may vary
  • Coil-Spring Compressor Required
    Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.

Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.

Overview

Bilstein B8 6112 leveling Kit for the 2019-2024 Ram 1500 are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Standard Features

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Specifications
Part Number 47-293540
Part Name Suspension Kit
Vehicle 2019-2024 Ram 1500
UPC 651860855998
Front Lift Height 0.6 - 2.6 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Finish Dampers: Zinc Plated / Springs: Black
Internal Design Monotube
Reservoir No
Segment Light Truck
Series B8 6112
Spring Seat Included Yes
Notes Including factory Off-Road Package; Without Air Suspension
Vehicle Fitment
  • 2019 Ram 1500
  • 2020 Ram 1500
  • 2021 Ram 1500
  • 2022 Ram 1500
  • 2023 Ram 1500
  • 2024 Ram 1500
