| Year | Make | Model | Engine |
|---|---|---|---|
| 2010-2012 | Toyota | Sequoia | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2008-2012 | Toyota | Sequoia | 4.7L 4663CC 285Cu. In. V8 GAS DOHC Naturally Aspirated |
| 2009-2018 | Toyota | Sequoia | 5.7L 5663CC 345Cu. In. V8 FLEX DOHC Naturally Aspirated |
| 2008-2022 | Toyota | Sequoia | 5.7L 5663CC 345Cu. In. V8 GAS DOHC Naturally Aspirated |

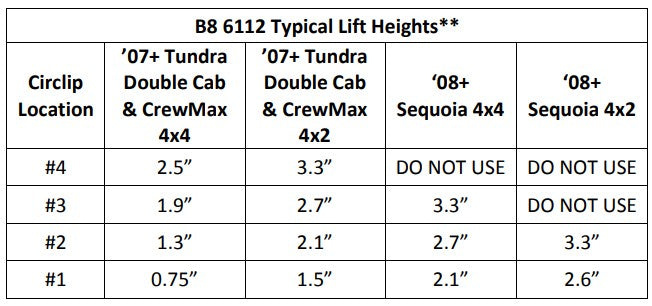

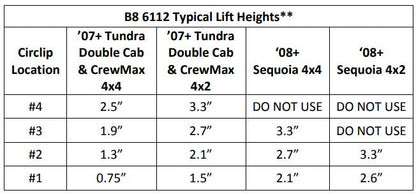

▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 33-187280 | 0-1.5" Lift | Rear | Shock Absorber | 2 |
| 47-310971 | 2.1-3.3" Lift | Front | Coilover | 1 |
Bilstein 6112 Strut & Spring + Rear B8 5100 Shocks Set w/2.1-3.3" lift - 2008-2022 Toyota Sequoia 4WD RWD
Bilstein 6112 Strut & Spring + Rear B8 5100 Shocks Set w/2.1-3.3" lift - 2008-2022 Toyota Sequoia 4WD RWD
SKU:10547474006303_52689434083615
Out of stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 33-187280 | 0-1.5" Lift | Rear | Shock Absorber | 2 |
| 47-310971 | 2.1-3.3" Lift | Front | Coilover | 1 |

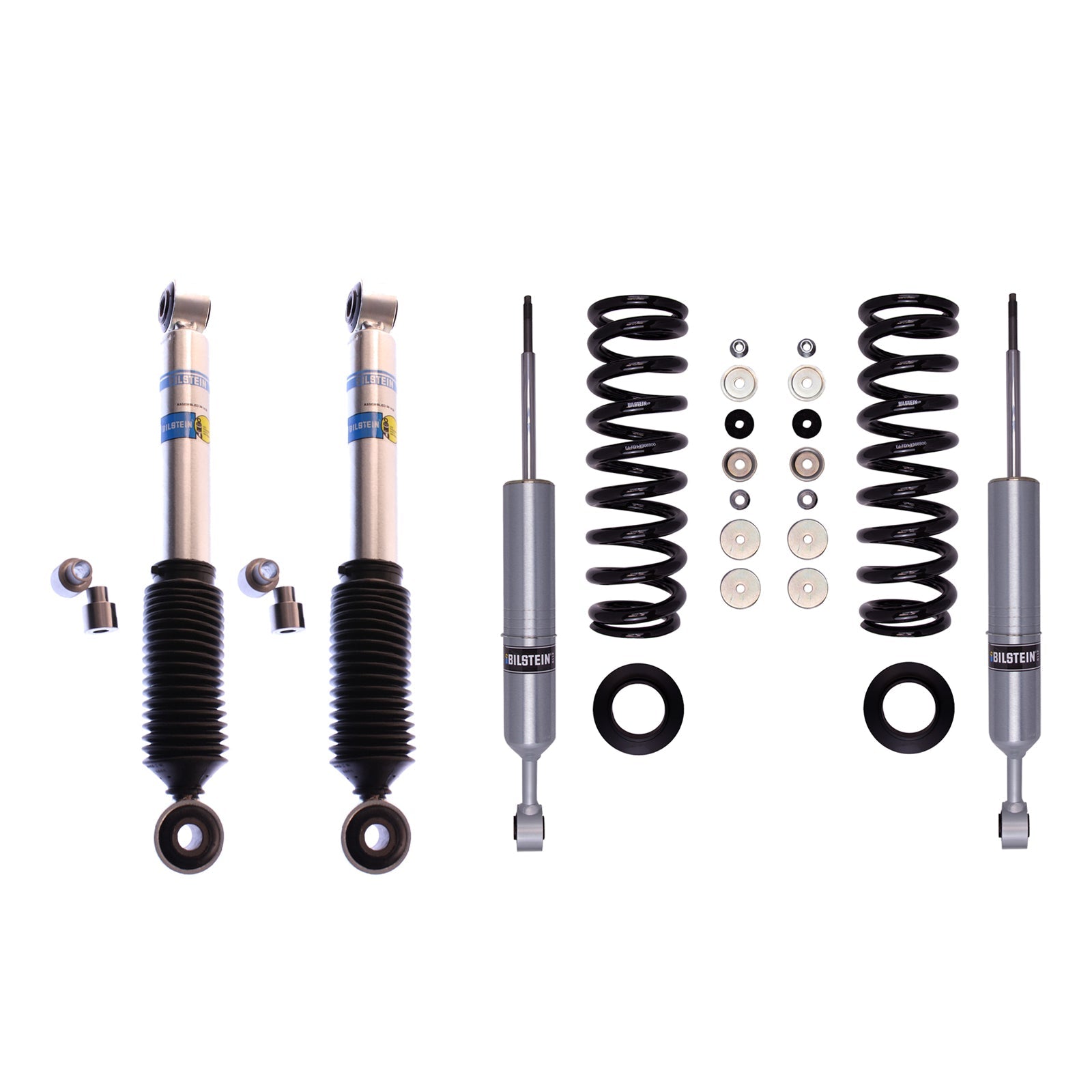

The Bilstein 6112 Strut & Spring set, combined with the B8 5100 shocks, is a high-performance suspension upgrade designed for Toyota Sequoia models from 2008 to 2022. This kit enhances off-road capability and on-road handling by providing adjustable front height from 2.1 to 3.3 inches, accommodating larger tires and leveling the vehicle. Constructed with Bilstein's monotube design and patented digressive valving, these shocks deliver superior heat dissipation, consistent damping, and improved road feedback. The package includes two front shocks, two coil springs, coil spring seats, and two rear shocks, offering a comprehensive solution for increased ride height and stability. The components are engineered for durability and performance, making it suitable for adventure and daily driving alike.
Designed for 2008-2022 Toyota Sequoia 4WD and RWD models, this kit is ideal for off-road excursions, lifting, and leveling applications. It requires coil spring compression for installation, with rear shock hardware reusing factory rubber bushings and steel washers. The kit provides a bolt-on upgrade that enhances vehicle ground clearance and handling characteristics. Suitable for both street and off-road use, it offers adjustable ride height and improved stability under load or unloaded conditions. The package ensures compatibility with factory components, making it a reliable choice for enthusiasts seeking performance and versatility in their suspension system.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 33-187280 | 0-1.5" Lift | Rear | Shock Absorber | 2 |
| 47-310971 | 2.1-3.3" Lift | Front | Coilover | 1 |
Share
Overview
Overview
Bilstein B8 5100 Shock Absorbers for the 2008-2022 Toyota Sequoia are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-187280 |
| Part Name | Shock Absorber |
| Vehicle | 2008-2022 Toyota Sequoia |
| UPC | 651860611259 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 13.71 in. |
| Collapsed Length | 348.3 mm |
| Damping Adjustable | No |
| Extended Length | 19.29 in. |
| Extended Length | 490.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 19.1 mm |
| Notes | Without Self-Leveling or Electronic Suspension |
Vehicle Fitment
- 2008 Toyota Sequoia
- 2009 Toyota Sequoia
- 2010 Toyota Sequoia
- 2011 Toyota Sequoia
- 2012 Toyota Sequoia
- 2013 Toyota Sequoia
- 2014 Toyota Sequoia
- 2015 Toyota Sequoia
- 2016 Toyota Sequoia
- 2017 Toyota Sequoia
- 2018 Toyota Sequoia
- 2019 Toyota Sequoia
- 2020 Toyota Sequoia
- 2021 Toyota Sequoia
- 2022 Toyota Sequoia
