| Year | Make | Model |
|---|---|---|
| 2015 - 2020 | Ford | F-150 King Ranch |
| 2015 - 2020 | Ford | F-150 Lariat |
| 2016 - 2020 | Ford | F-150 Limited |
| 2015 - 2020 | Ford | F-150 Platinum |
| 2015 - 2020 | Ford | F-150 XL |
| 2015 - 2020 | Ford | F-150 XLT |
1
/
of
5
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-310995 | 0-2" Lift | Front | Coilover | 1 |
| 25-311372 | 0-2" Lift | Rear | Shock Absorber | 2 |
Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set - 2015-2020 Ford F-150 4WD
Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set - 2015-2020 Ford F-150 4WD
SKU:10547473678623_52689433755935
Out of stock
Regular price
$1,521.00 USD
Regular price
$1,604.85 USD
Sale price
$1,521.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-310995 | 0-2" Lift | Front | Coilover | 1 |
| 25-311372 | 0-2" Lift | Rear | Shock Absorber | 2 |

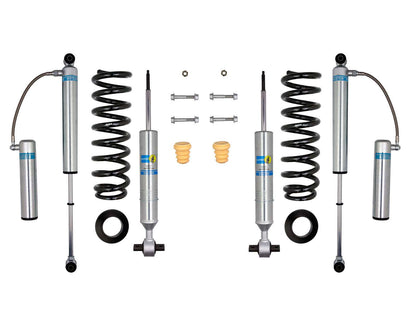

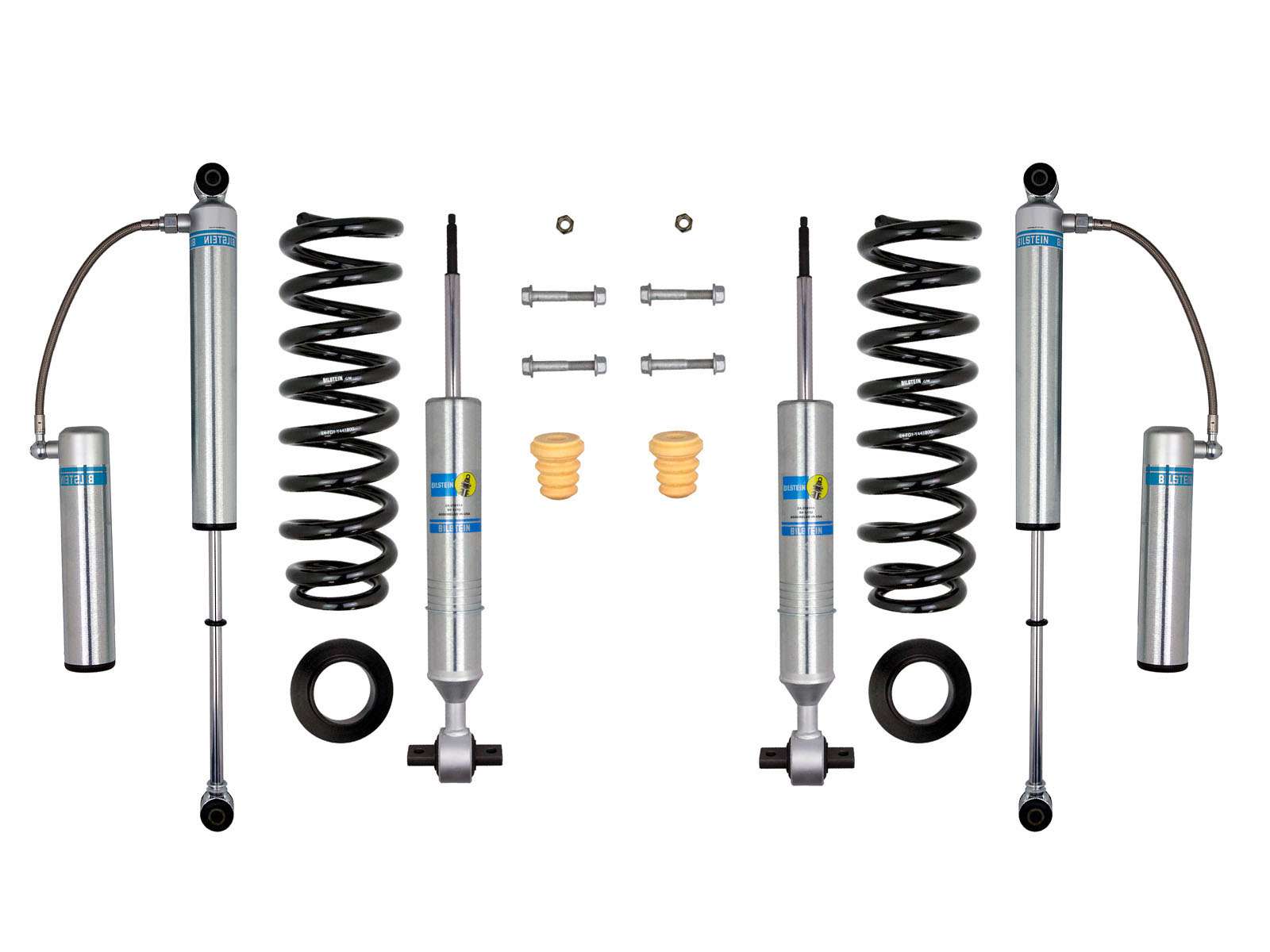

- Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation. - Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure. - Front height adjustment from 0-2"
Front height adjustment from 0-2" using the included coil spring collar and adjustable circlip. Accommodates up to 2" in the rear - Designed for 4WD vehicles
This product only works for 4WD vehicles. - Coil-Spring Compressor Required
Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.
Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. Bilstein 5160 Reservoir shock absorbers are a long lasting and high performance shock, suitable for even the most aggressive environments. Reservoirs ensure shock fade does not occur, while keeping hydraulic oil inside the shock at the coolest temperature possible. The perfect shock for owners that are off-road and off-trail more often than not. These shocks will also dominate the road, and provide excellent control. Shaft Diameter: 14mm, with 46mm smooth body monotube design.
Share
Overview
Overview
Bilstein Suspension Kit
Part #: 47-310995
Overview
The Bilstein B8 6112 Suspension Kit is a high-performance upgrade designed for the 2015-2020 Ford F-150 4WD. This kit is engineered to enhance ground clearance, accommodate larger tires, and improve wheel travel, making it ideal for off-road enthusiasts and those seeking a more aggressive stance. The kit includes (2) 60mm digressive shock absorbers, custom matched cold wound coil springs, and billet aluminum spring seats, all crafted to deliver a balanced combination of durability, responsiveness, and ride quality. Whether you're tackling rugged terrain or seeking a more commanding look, this suspension kit helps support your vehicle’s capabilities while maintaining comfort and control.Key Features
This suspension kit features advanced materials and thoughtful design to optimize performance and longevity. The large 60mm piston provides increased damping capacity for better control and stability. Multiple snap-ring grooves in the shock body allow for adjustable spring seat positions, enabling a front lift of 0 to 2.75 inches depending on your specific application. The custom coil springs are cold wound for consistent performance and durability, while the billet aluminum spring seats ensure secure and precise fitment. Overall, these features work together to enhance your vehicle’s off-road handling, ride height, and load support without compromising comfort.Construction & Design
The Bilstein B8 6112 shocks are constructed with a large digressive piston and a corrosion-resistant coating, ensuring reliable performance in demanding conditions. The coil springs are engineered for strength and flexibility, supporting increased wheel travel and ground clearance. The billet aluminum spring seats are machined for precision, providing a secure fit and easy adjustment options.Driving Feel & Feedback
This suspension kit improves your vehicle’s response and handling, especially on uneven terrain. The increased wheel travel and adjustable lift height contribute to a more confident driving experience, with enhanced stability and control. The shocks deliver a smooth ride while effectively absorbing impacts, reducing body roll, and maintaining tire contact for improved traction.Installation & Fitment

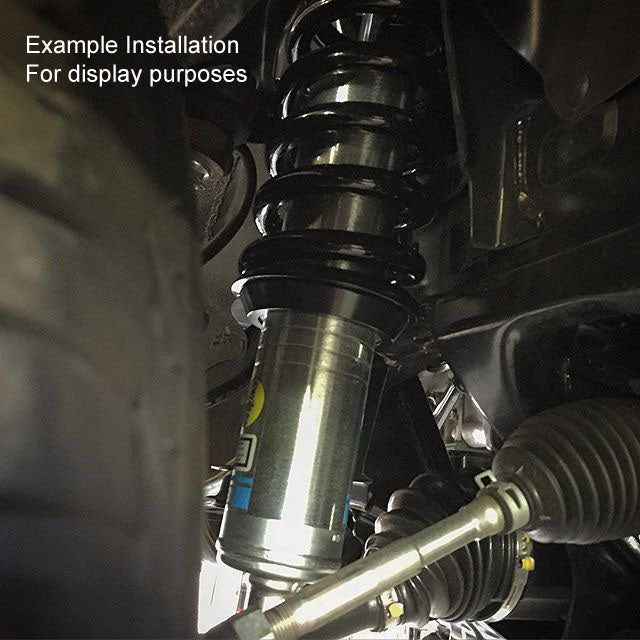

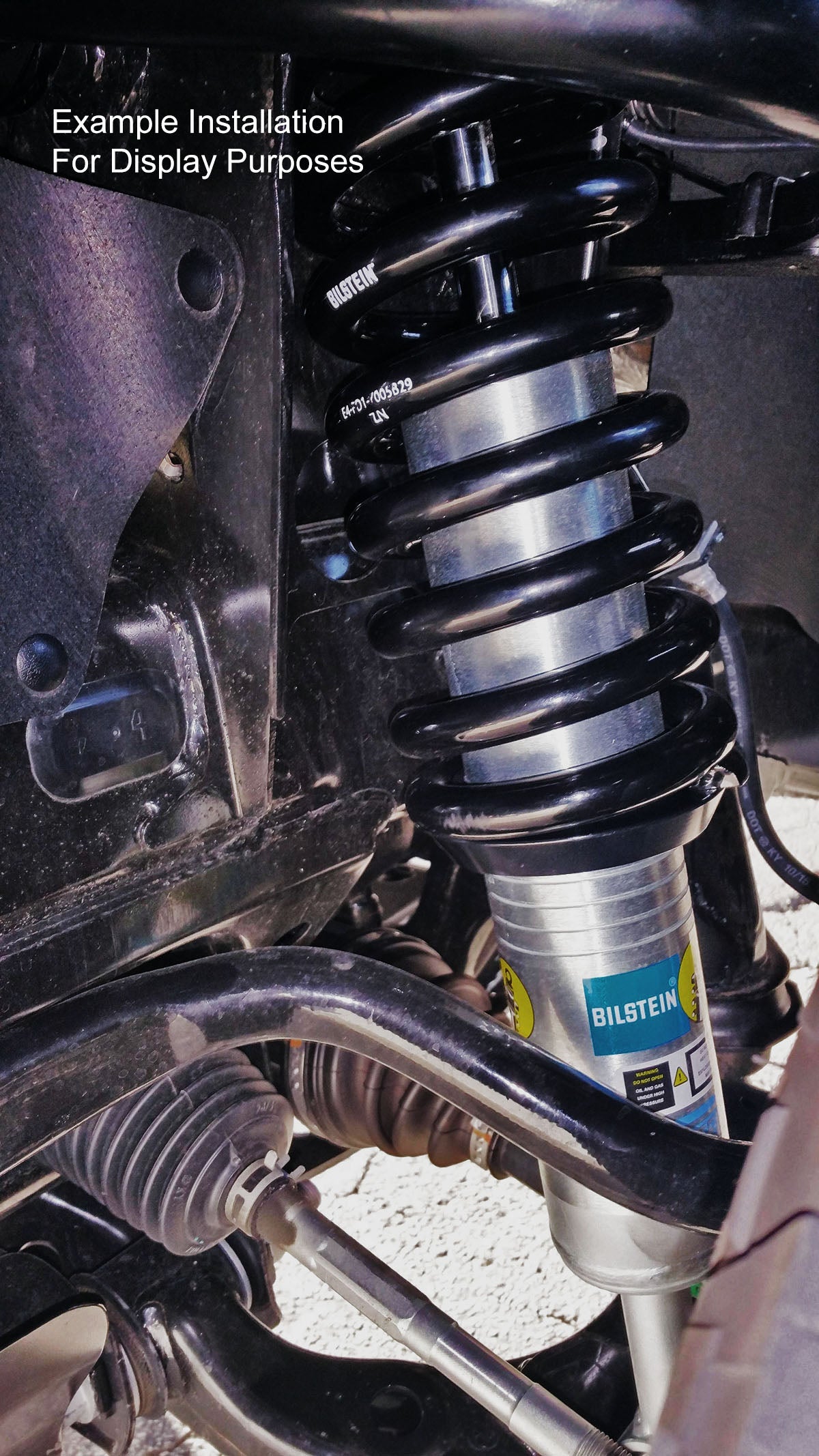

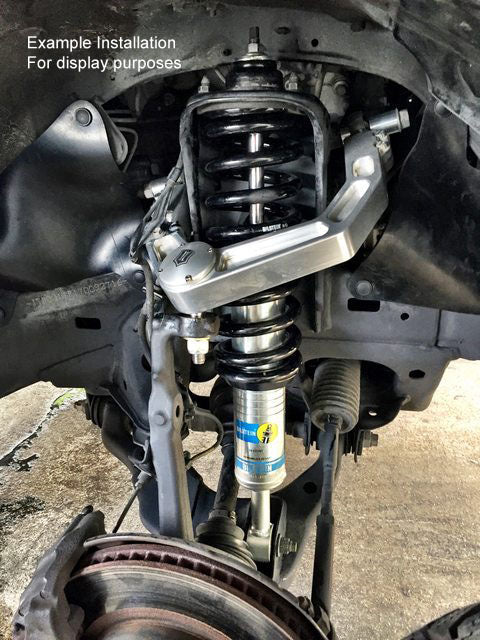

Installation involves replacing factory components with the included shocks, springs, and seats. Proper fitment should be verified against your vehicle’s specifications and the part number provided. While designed for straightforward bolt-on installation, some mechanical expertise is recommended to ensure optimal performance and safety.What’s Included
The package includes (2) 60mm Shock Absorbers, (2) custom cold wound coil springs, and (2) billet aluminum spring seats, providing everything needed for a comprehensive suspension upgrade.
