| Year | Make | Model |
|---|---|---|
| 2019 - 2024 | Ram | 1500 Big Horn |
| 2019 - 2024 | Ram | 1500 Laramie |
| 2019 - 2021 | Ram | 1500 Laramie Longhorn |
| 2021 - 2024 | Ram | 1500 Limited Longhorn |
| 2019 - 2024 | Ram | 1500 Lone Star |
| 2021 | Ram | 1500 Longhorn |
| 2019 - 2024 | Ram | 1500 Rebel |
| 2019 - 2024 | Ram | 1500 Tradesman |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-293540 | Factory | Front | Coilover | 1 |
| 25-325102 | 0-2" Lift | Rear Left | Shock Absorber | 1 |
| 25-316919 | 0-2" Lift | Rear Right | Shock Absorber | 1 |
Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set - 2019-2024 Ram 1500 4WD RWD
Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set - 2019-2024 Ram 1500 4WD RWD
SKU:10547475939615_52689436016927
Out of stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-293540 | Factory | Front | Coilover | 1 |
| 25-325102 | 0-2" Lift | Rear Left | Shock Absorber | 1 |
| 25-316919 | 0-2" Lift | Rear Right | Shock Absorber | 1 |

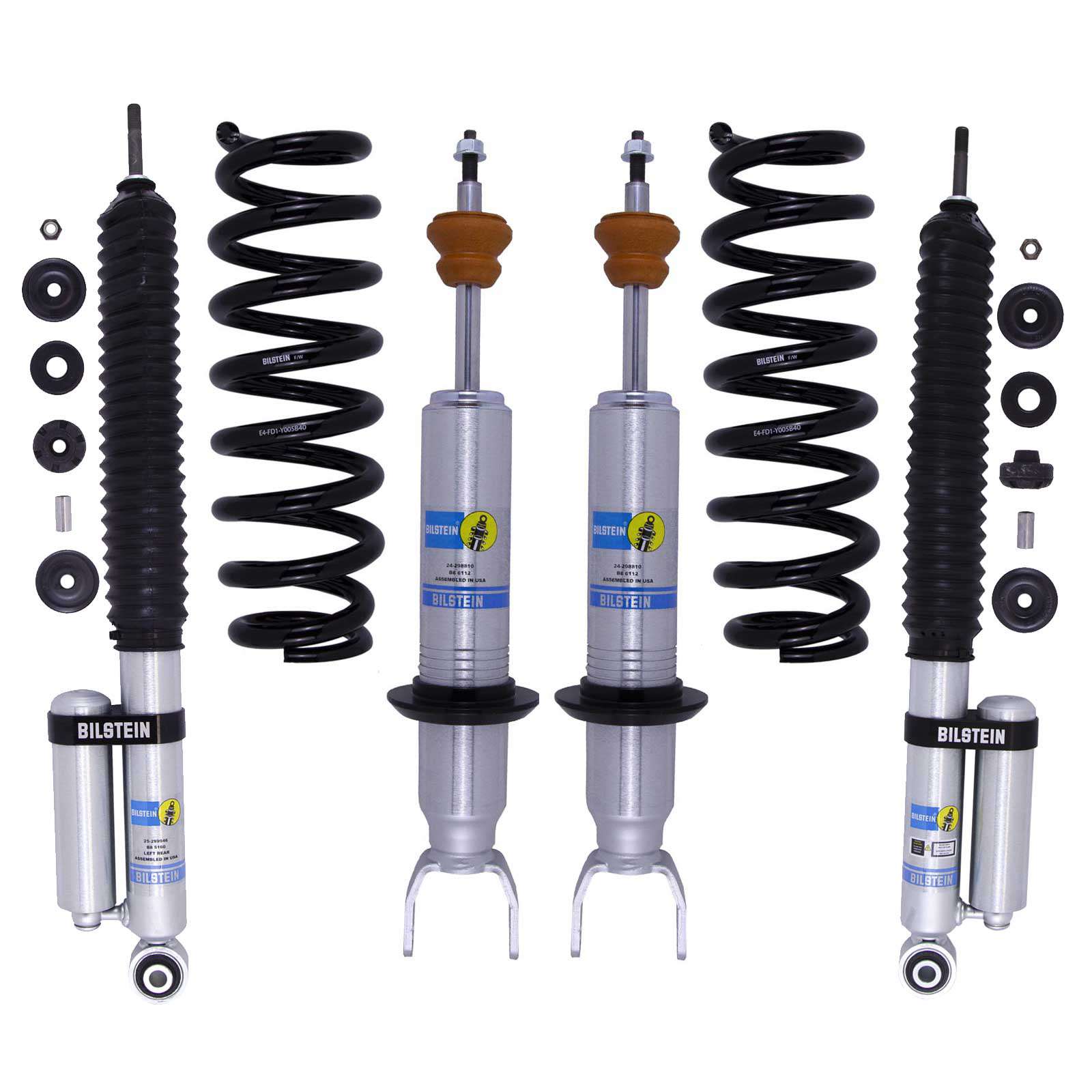

- Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation. - Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure. - Lifts your vehicleat factory height or with up to 2" in the rear
- For vehicles with no suspension modifications or up to 2" in the rear
- Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles. - Lift Height May Vary
Bilstein 47-293540 has not done any testing with this part number for eTorque equipped trucks. Actuat lift heights may vary - Coil-Spring Compressor Required

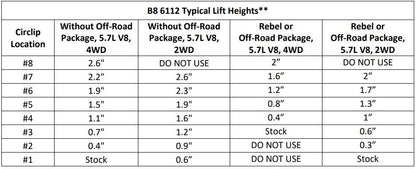

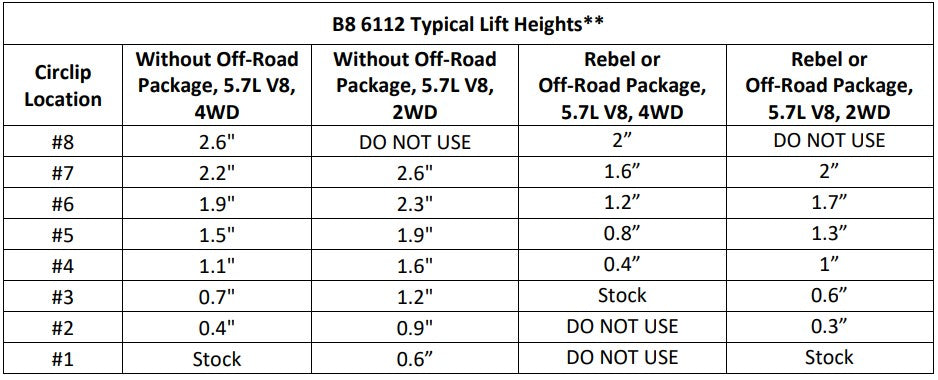

Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.
Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. Bilstein 5160 Reservoir shock absorbers are a long lasting and high performance shock, suitable for even the most aggressive environments. Reservoirs ensure shock fade does not occur, while keeping hydraulic oil inside the shock at the coolest temperature possible. The perfect shock for owners that are off-road and off-trail more often than not. These shocks will also dominate the road, and provide excellent control. Shaft Diameter: 14mm, with 46mm smooth body monotube design.
Share
Overview
Overview
Bilstein B8 6112 leveling Kit for the 2019-2024 Ram 1500 are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Standard Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | 47-293540 |
| Part Name | Suspension Kit |
| Vehicle | 2019-2024 Ram 1500 |
| UPC | 651860855998 |
| Front Lift Height | 0.6 - 2.6 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Finish | Dampers: Zinc Plated / Springs: Black |
| Internal Design | Monotube |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6112 |
| Spring Seat Included | Yes |
| Notes | Including factory Off-Road Package; Without Air Suspension |
Vehicle Fitment
- 2019 Ram 1500
- 2020 Ram 1500
- 2021 Ram 1500
- 2022 Ram 1500
- 2023 Ram 1500
- 2024 Ram 1500
