| Year | Make | Model |
|---|---|---|
| 2021 - 2024 | Ford | F-150 King Ranch |
| 2021 - 2024 | Ford | F-150 Lariat |
| 2021 - 2023 | Ford | F-150 Limited |
| 2021 - 2024 | Ford | F-150 Platinum |
| 2024 | Ford | F-150 STX |
| 2021 - 2024 | Ford | F-150 Tremor |
| 2021 - 2024 | Ford | F-150 XL |
| 2021 - 2024 | Ford | F-150 XLT |
1
/
of
2
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-323841 | Factory | Front | Coilover | 1 |
| 25-311372 | Factory | Rear | Shock Absorber | 2 |
Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set - 2021-2026 Ford F-150 4WD
Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set - 2021-2026 Ford F-150 4WD
SKU:10547476136223_52689436213535
Out of stock
Regular price
$1,521.00 USD
Regular price
$1,604.85 USD
Sale price
$1,521.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-323841 | Factory | Front | Coilover | 1 |
| 25-311372 | Factory | Rear | Shock Absorber | 2 |

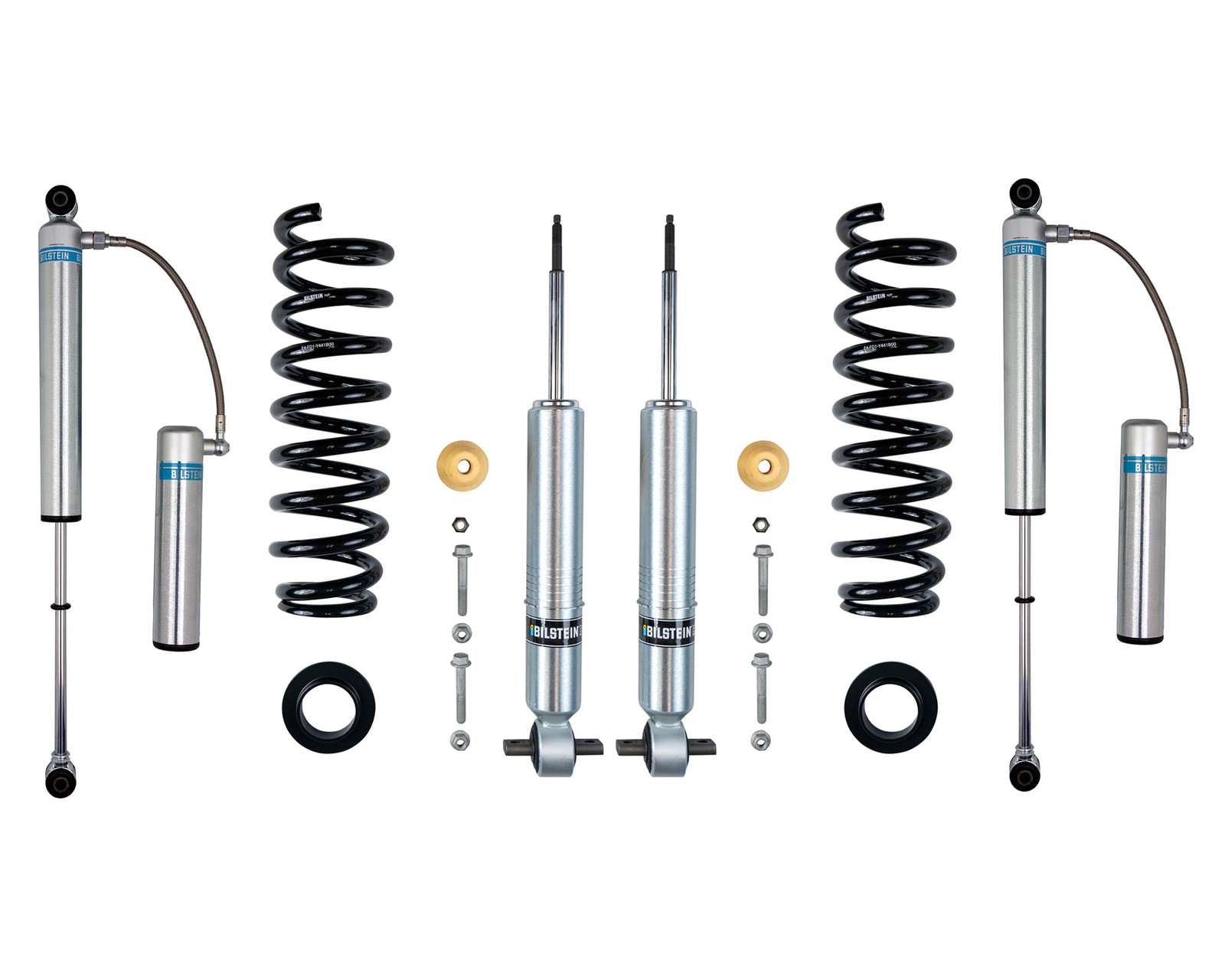

- Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation. - Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure. - Designed for 4WD vehicles
This product only works for 4WD vehicles. - Coil-Spring Compressor Required

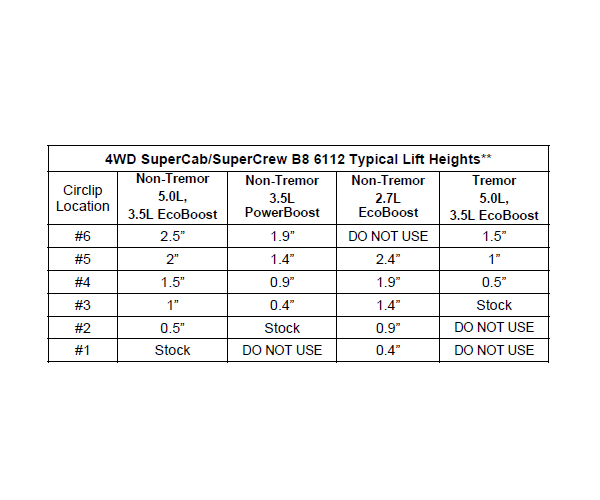

Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.
Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. Bilstein 5160 Reservoir shock absorbers are a long lasting and high performance shock, suitable for even the most aggressive environments. Reservoirs ensure shock fade does not occur, while keeping hydraulic oil inside the shock at the coolest temperature possible. The perfect shock for owners that are off-road and off-trail more often than not. These shocks will also dominate the road, and provide excellent control. Shaft Diameter: 14mm, with 46mm smooth body monotube design.
Share
Overview
Overview
Bilstein Suspension Kit
Part #: 47-323841
Overview
The Bilstein B8 6112 Suspension Kit is a high-performance upgrade designed for the 2021-2024 Ford F-150. This kit enhances ground clearance, accommodates larger tires, and improves wheel travel for off-road and on-road versatility. It is ideal for truck enthusiasts seeking a reliable, durable suspension solution that supports aggressive driving, improved handling, and a commanding stance. The kit includes components engineered to optimize ride quality and vehicle stability, making it suitable for both daily driving and off-road adventures.Key Features
This suspension kit features advanced engineering and premium materials to deliver a balanced combination of comfort and performance. Key features include:- 60mm digressive piston for consistent damping and increased responsiveness
- Multiple snap-ring grooves for adjustable spring seat positioning, allowing 0-2.75 inches of front lift
- Custom matched cold wound coil springs designed for optimal load support and ride height
- Billet aluminum spring seats for durability and precise adjustment
- Heavy-duty construction to withstand demanding off-road conditions
- Designed for easy installation with bolt-on compatibility
Construction & Design
The kit’s shock absorbers feature a large 60mm piston with a digressive design, providing excellent damping control and heat dissipation. The coil springs are cold wound for consistent spring rates and longevity. Billet aluminum spring seats ensure secure fitment and allow for fine-tuning of ride height, supporting a customized lift height based on your preferences and driving needs.Driving Feel & Feedback
This suspension upgrade enhances vehicle stability and handling, especially over rough terrain. The increased wheel travel and improved damping response contribute to a smoother ride and better control, giving you confidence during off-road excursions or challenging road conditions. The kit helps maintain a comfortable ride while supporting aggressive driving dynamics.Installation & Fitment
Installation involves replacing factory components with the provided shock absorbers, coil springs, and spring seats. Proper fitment should be verified against the vehicle’s specifications and the part number. The kit is designed for straightforward bolt-on installation, but professional installation is recommended to ensure optimal performance and safety.What’s Included
The package includes (2) 60mm shock absorbers, (2) custom cold wound coil springs, and (2) billet aluminum spring seats, providing all necessary components for a complete suspension upgrade.
