Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
47-3110150-2.8" LiftFrontCoilover1
25-3113890-2" LiftRearShock Absorber2

Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set w/0-2.8" lift - 2009-2018 Ram 1500 4WD

Bilstein 6112 Strut & Spring + Rear B8 5160 Reservoir Shocks Set w/0-2.8" lift - 2009-2018 Ram 1500 4WD

SKU:10547473645855_52689433723167

Out of stock

Regular price $1,521.00 USD
Regular price $1,604.85 USD Sale price $1,521.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
47-3110150-2.8" LiftFrontCoilover1
25-3113890-2" LiftRearShock Absorber2

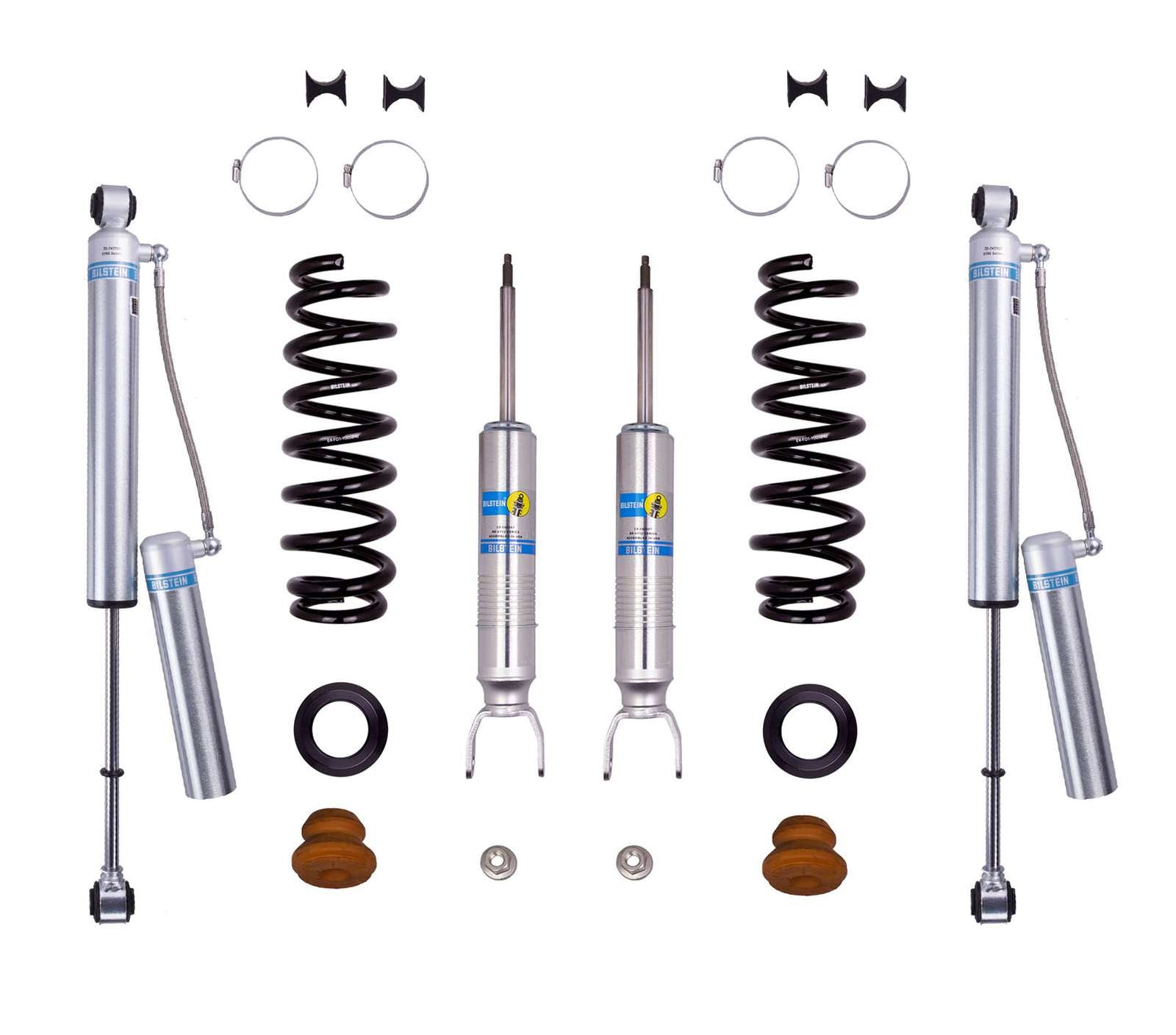

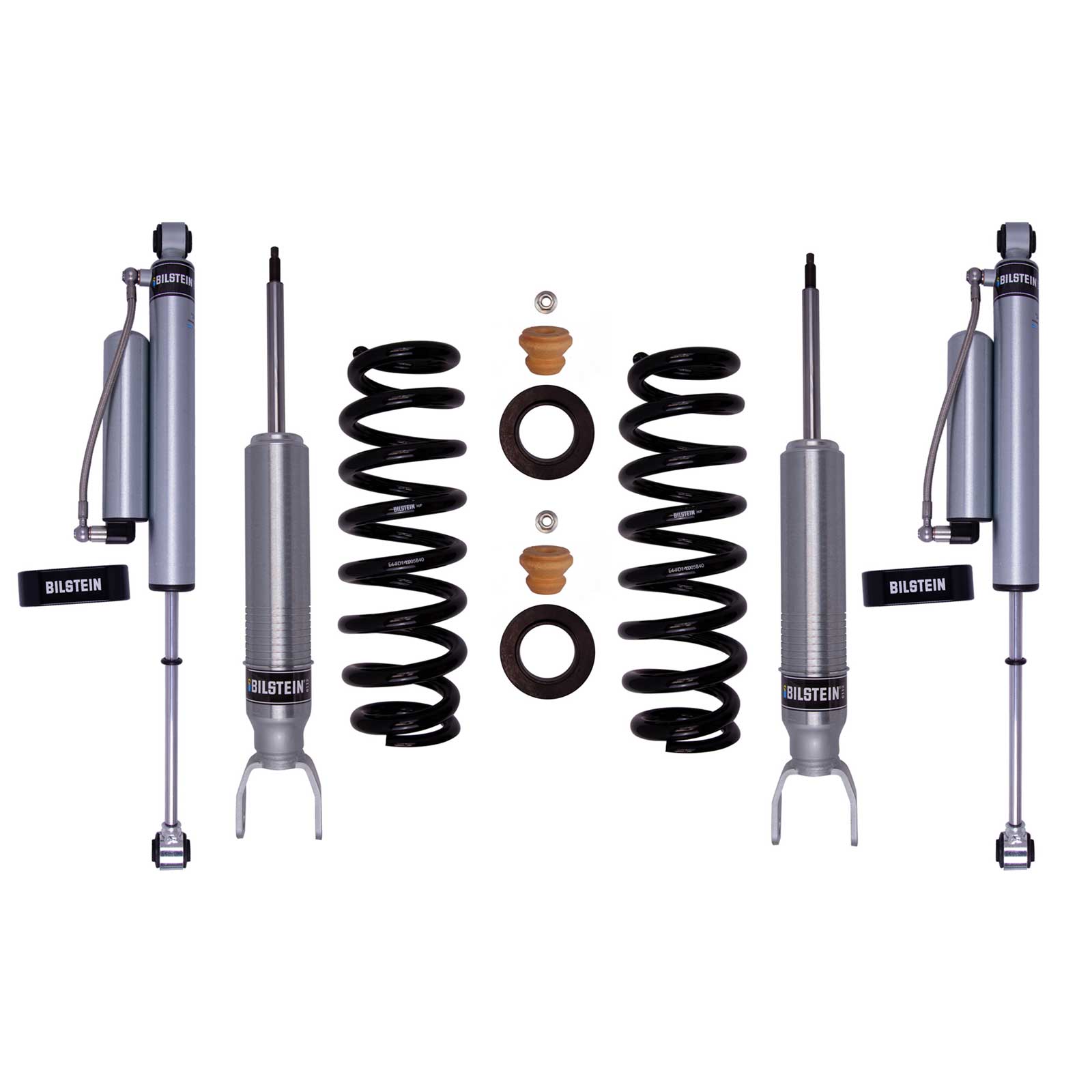

  • Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
    Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation.
  • Bilstein 90-Day Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Front height adjustment from 0-2.8"
    Front height adjustment from 0-2.8" using the included coil spring collar and adjustable circlip. Accommodates up to 2" in the rear
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Important Fitment Note
    Fits V8 and V6 models. See the above table for which circlip location is right for your vehicle.
  • Coil-Spring Compressor Required
    Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.

Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. Bilstein 5160 Reservoir shock absorbers are a long lasting and high performance shock, suitable for even the most aggressive environments. Reservoirs ensure shock fade does not occur, while keeping hydraulic oil inside the shock at the coolest temperature possible. The perfect shock for owners that are off-road and off-trail more often than not. These shocks will also dominate the road, and provide excellent control. Shaft Diameter: 14mm, with 46mm smooth body monotube design.

Overview

Bilstein B8 6112 leveling Kit for the 2011-2018 Ram 1500 are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Standard Features

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Specifications
Part Number 47-311015
Part Name Suspension Kit
Vehicle 2011-2018 Ram 1500
UPC 651860868936
Front Lift Height 0.8 - 2.8 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Finish Dampers: Zinc Plated / Springs: Black
Internal Design Monotube
Reservoir No
Segment Light Truck
Series B8 6112
Spring Seat Included Yes
Notes Without Air Suspension
Vehicle Fitment
  • 2011 Ram 1500
  • 2012 Ram 1500
  • 2013 Ram 1500
  • 2014 Ram 1500
  • 2015 Ram 1500
  • 2016 Ram 1500
  • 2017 Ram 1500
  • 2018 Ram 1500
