| Year | Make | Model |
|---|---|---|
| 2021 - 2026 | Ford | Bronco VI (U725) |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-314009 | 0.3-2.8" Lift | Rear | Coilover | 1 |
| 47-313996 | 0.8-3.4" Lift | Front | Coilover | 1 |
Bilstein 6112 Strut & Spring Set w/0.8-3.4" lift - 2021-2026 Ford Bronco 4 DR 4WD
Bilstein 6112 Strut & Spring Set w/0.8-3.4" lift - 2021-2026 Ford Bronco 4 DR 4WD
SKU:10547476300063_52689436377375
Out of stock
Regular price
$1,846.00 USD
Regular price
$2,013.70 USD
Sale price
$1,846.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-314009 | 0.3-2.8" Lift | Rear | Coilover | 1 |
| 47-313996 | 0.8-3.4" Lift | Front | Coilover | 1 |

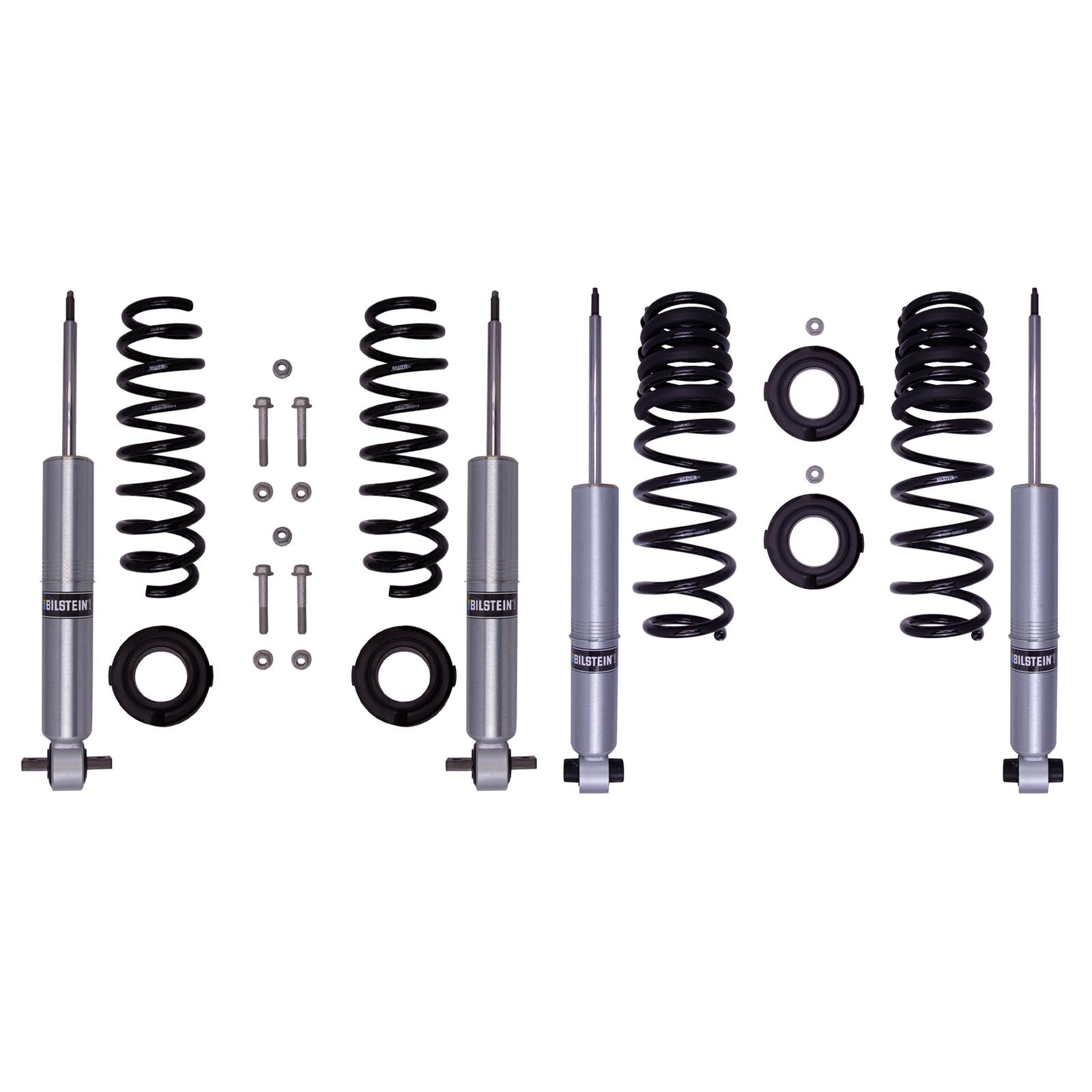

- Package Contains 4 Shocks, 4 Coil Springs, and 4 Coil Spring Seats
Kit includes FULL set of 6112. Coil spring compressor required for installation. - Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure. - Front height adjustment from 0.8-3.4"
Front height adjustment from 0.8-3.4" using the included coil spring collar and adjustable circlip. Accommodates 0.3-2.8" in the rear - Designed for 4WD vehicles
This product only works for 4WD vehicles. - Coil-Spring Compressor Required
Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.
Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road.
Share
Overview
Overview
Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
