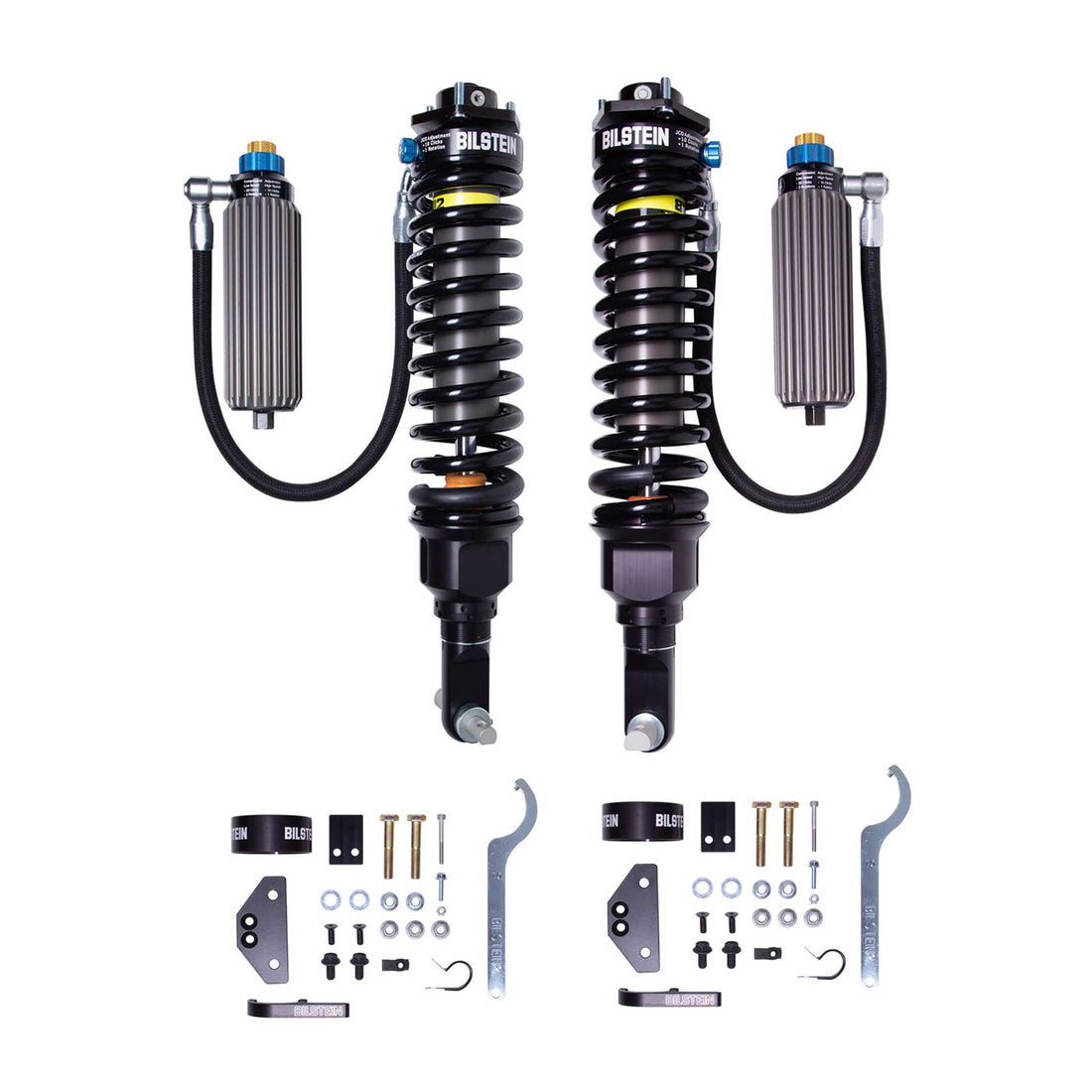

• Bilstein 8112 ZoneControl DSA+ Shocks Front Pair w/0.7-2" lift - 2021-2026 Ford Bronco 4WD
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3142270.7-2" LiftFrontCoilover1
41-3143190.7-2" LiftFrontCoilover1

Bilstein 8112 ZoneControl DSA+ Shocks Front Pair w/0.7-2" lift - 2021-2026 Ford Bronco 4WD

Bilstein 8112 ZoneControl DSA+ Shocks Front Pair w/0.7-2" lift - 2021-2026 Ford Bronco 4WD

10552447402271_52706317041951

In stock

$1,584.00 USD
$1,726.85 USD $1,584.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3142270.7-2" LiftFrontCoilover1
41-3143190.7-2" LiftFrontCoilover1

The Bilstein 8112 ZoneControl DSA+ Shocks Front Pair are high-performance coilovers designed for 2021-2026 Ford Bronco 4WD models. These coilovers feature a dual-speed adjustable damping system with three compression zones and two rebound zones, controlled by three independent pistons, providing precise tuning for on-road comfort and off-road capability. Constructed with a triple piston design and internal hydraulic jounce control, they effectively handle massive suspension inputs while maintaining a smooth ride. The coilovers lift the vehicle by 0.7-2 inches in the front, with specific height adjustments for Sasquatch trims up to 1.4 inches. Reservoir mounts, washers, bushings, and nuts are included, and factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp offers a cleaner, more compact appearance.

These coilovers are engineered exclusively for 4WD Ford Bronco models within the specified years and are suitable for both daily driving and off-road adventures. They are a direct bolt-on replacement for factory shocks, designed to lift the front end and improve suspension performance. The kit includes two coilovers, reservoir mounts, and all necessary hardware, ensuring straightforward installation. Compatible with vehicles equipped with a 0.7-2 inch lift, they are ideal for enhancing off-road capability without sacrificing on-road comfort. Suitable for use on rugged trails or daily commutes, these coilovers deliver durability, precise damping control, and improved ride quality in a versatile, performance-oriented package.

Part NumberLift/LoweredPositionItemQuantity
41-3142270.7-2" LiftFrontCoilover1
41-3143190.7-2" LiftFrontCoilover1

Overview

  • Contains 2 Coilovers
    Pair for strut & spring assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 0.7-2" in the front
    Springs will lift the vehicle 0.7-2" in the front.
  • Sasquatch Front Lift Height 0-1.4"
    The lift height for Sasquatch trim is different from Non-Sasquatch.
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Bilstein’s ZoneControl CR DSA+ coilovers deliver serious off-road capability without compromising on-road comfort. Featuring Dual Speed Adjustability (DSA), they allow you to fine-tune both low-speed and high-speed compression for any terrain—whether you’re driving daily or tackling rugged trails. The built-in Internal Hydraulic Jounce Control (JCO) acts as a hydraulic bump stop, providing extra cushioning on hard impacts to protect your suspension and improve ride comfort. Combined with position-sensitive damping and a remote reservoir for improved cooling, these coilovers give you complete control over your ride in any condition.
