• Bilstein 8112 ZoneControl DSA+ Shocks Front Pair w/2.25-3.25" lift - 2007-2021 Toyota Tundra 4WD RWD
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3260842.25-3.25" LiftFrontCoilover1
41-3260912.25-3.25" LiftFrontCoilover1

Bilstein 8112 ZoneControl DSA+ Shocks Front Pair w/2.25-3.25" lift - 2007-2021 Toyota Tundra 4WD RWD

Bilstein 8112 ZoneControl DSA+ Shocks Front Pair w/2.25-3.25" lift - 2007-2021 Toyota Tundra 4WD RWD

10552447336735_52706316976415

Out of stock

$1,366.00 USD
$1,488.95 USD $1,366.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3260842.25-3.25" LiftFrontCoilover1
41-3260912.25-3.25" LiftFrontCoilover1

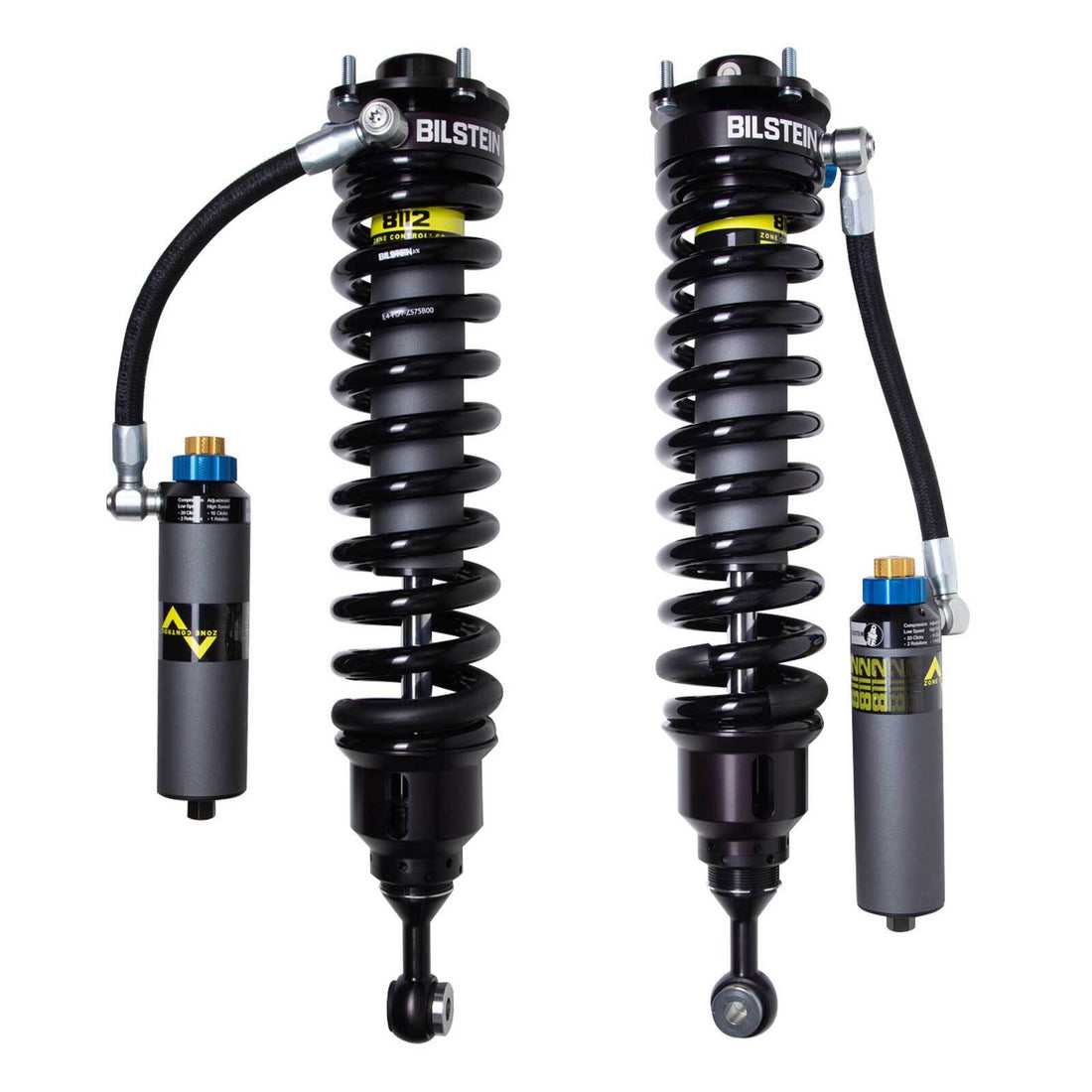

The Bilstein 8112 ZoneControl DSA+ coilover shocks are high-performance front suspension components designed for 2007-2021 Toyota Tundra models with 4WD or RWD. These coilovers feature a triple piston design with position-sensitive damping, offering three compression zones and two rebound zones controlled by independent pistons. They provide adjustable low-speed and high-speed compression via Dual Speed Adjustability (DSA), enabling precise tuning for on-road comfort or off-road capability. The internal hydraulic jounce control acts as a hydraulic bump stop, enhancing ride quality and protecting suspension components during hard impacts. Reservoir mounts, washers, bushings, and nuts are included for installation, with factory shock mounting bolts reused. An optional billet aluminum reservoir clamp is available for a cleaner look. These coilovers lift the vehicle 2.25-3.25 inches in the front, improving ground clearance and off-road performance while maintaining ride comfort.

Designed to fit 2007-2021 Toyota Tundra 4WD and RWD models, these coilovers are suitable for both daily driving and off-road use. They require aftermarket upper control arms, with Bilstein B8 Control Arm Kit # 51-304706 recommended for proper fitment. The kit includes two coilovers for strut and spring assemblies, providing a complete upgrade for lifted trucks. Reusing factory shock mounting bolts simplifies installation. These coilovers are engineered for durability, offering a combination of off-road capability and on-road comfort, making them ideal for trucks that see rugged terrain or need a significant lift for aesthetic or functional reasons.

Part NumberLift/LoweredPositionItemQuantity
41-3260842.25-3.25" LiftFrontCoilover1
41-3260912.25-3.25" LiftFrontCoilover1

Overview

  • Contains 2 Coilovers
    Pair for strut & spring assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 2.25-3.25" in the front
    Springs will lift the vehicle 2.25-3.25" in the front.
  • Afermarket UCA
    Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended.
  • Fits 4WD & RWD vehicles
    This product works for 4WD and RWD vehicles.
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Bilstein’s ZoneControl CR DSA+ coilovers deliver serious off-road capability without compromising on-road comfort. Featuring Dual Speed Adjustability (DSA), they allow you to fine-tune both low-speed and high-speed compression for any terrain—whether you’re driving daily or tackling rugged trails. The built-in Internal Hydraulic Jounce Control (JCO) acts as a hydraulic bump stop, providing extra cushioning on hard impacts to protect your suspension and improve ride comfort. Combined with position-sensitive damping and a remote reservoir for improved cooling, these coilovers give you complete control over your ride in any condition.
