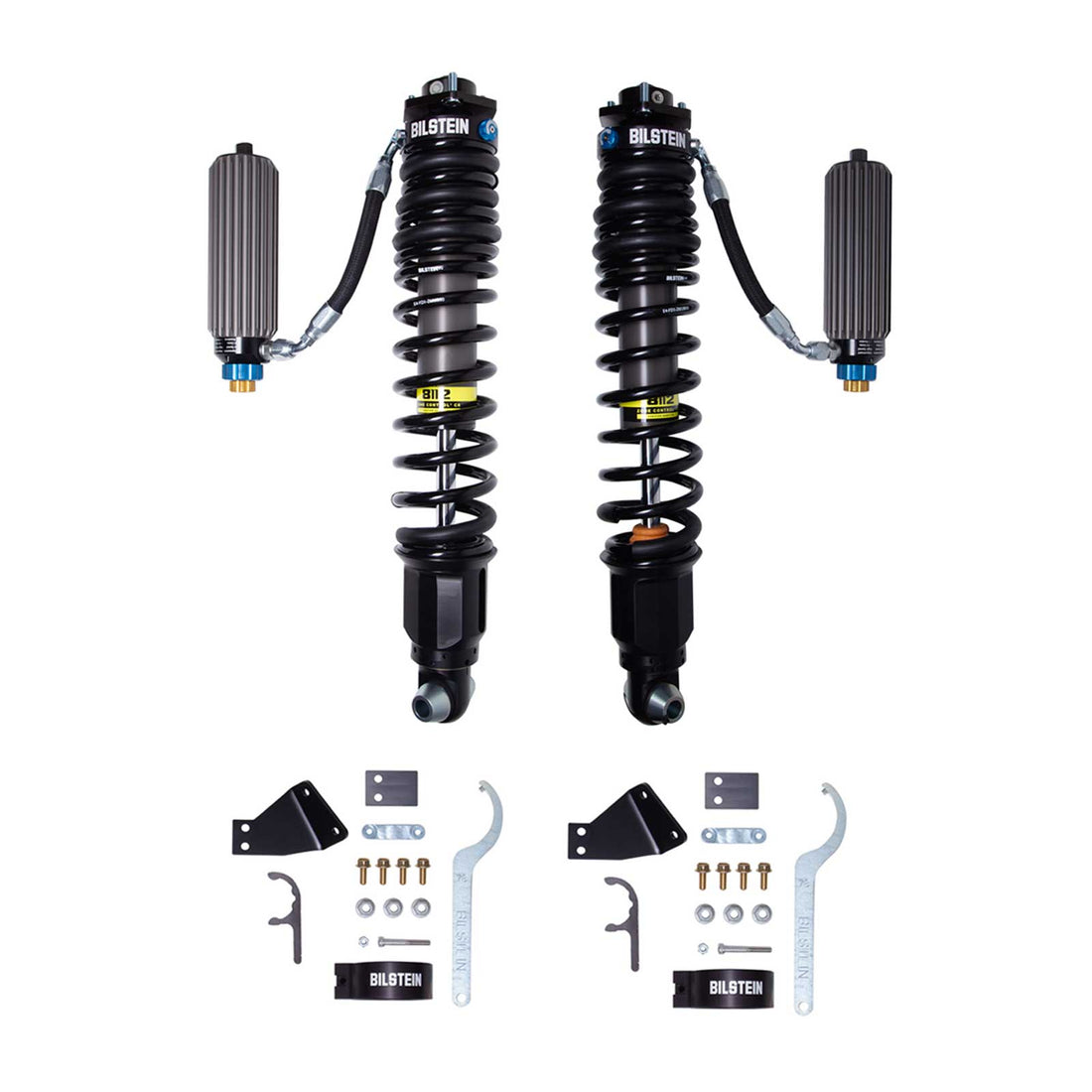

• Bilstein 8112 ZoneControl DSA+ Shocks Rear Pair w/1.2-2.2" lift - 2021-2026 Ford Bronco 4WD
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3143261.2-2.2" LiftRearCoilover1
41-3143331.2-2.2" LiftRearCoilover1

Bilstein 8112 ZoneControl DSA+ Shocks Rear Pair w/1.2-2.2" lift - 2021-2026 Ford Bronco 4WD

Bilstein 8112 ZoneControl DSA+ Shocks Rear Pair w/1.2-2.2" lift - 2021-2026 Ford Bronco 4WD

10552447435039_52706317074719

In stock

$1,584.00 USD
$1,726.85 USD $1,584.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3143261.2-2.2" LiftRearCoilover1
41-3143331.2-2.2" LiftRearCoilover1

The Bilstein 8112 ZoneControl DSA+ Shocks Rear Pair is a high-performance coilover suspension system designed for 2021-2026 Ford Bronco 4WD models. These coilovers feature a dual-speed adjustable damping system with three compression zones and two rebound zones, controlled by three independent pistons, allowing precise tuning for various terrains. Built with a triple piston design, they provide a balance of comfort and control, handling massive suspension inputs while maintaining livability for daily driving. The internal hydraulic jounce control acts as a hydraulic bump stop, enhancing ride quality and protecting the suspension during hard impacts. These coilovers also include reservoir mounts, washers, bushings, and nuts, with factory shock mounting bolts reused for installation, and an optional billet aluminum reservoir clamp for a cleaner look. They lift the vehicle by 1.2-2.2 inches in the rear, with specific height adjustments for Sasquatch trims, offering serious off-road capability without sacrificing on-road comfort.

Designed exclusively for 4WD Ford Bronco models from 2021 to 2026, this coilover kit is a direct bolt-on upgrade that reuses factory mounting hardware. It is ideal for off-road enthusiasts seeking enhanced suspension performance, whether for trail riding or daily driving. The kit includes two coilovers for the rear suspension, providing adjustable lift and damping control. The system is engineered to accommodate the vehicle’s specific lift height requirements, with the Sasquatch trim offering a rear lift of 0.5-1.1 inches. These coilovers deliver superior handling, improved stability, and increased durability, making them suitable for rugged off-road conditions while maintaining a smooth on-road ride. They are designed for easy installation and are backed by a Bilstein 2-year warranty against defects and premature failure.

Part NumberLift/LoweredPositionItemQuantity
41-3143261.2-2.2" LiftRearCoilover1
41-3143331.2-2.2" LiftRearCoilover1

Overview

  • Contains 2 Coilovers
    Pair for strut & spring assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle1.2-2.2" in the rear
  • Springs will lift the vehicle 1.2-2.2" in the rear
  • Sasquatch Rear Lift Height 0.5-1.1"
    The lift height for Sasquatch trim is different from Non-Sasquatch.
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Bilstein’s ZoneControl CR DSA+ coilovers deliver serious off-road capability without compromising on-road comfort. Featuring Dual Speed Adjustability (DSA), they allow you to fine-tune both low-speed and high-speed compression for any terrain—whether you’re driving daily or tackling rugged trails. The built-in Internal Hydraulic Jounce Control (JCO) acts as a hydraulic bump stop, providing extra cushioning on hard impacts to protect your suspension and improve ride comfort. Combined with position-sensitive damping and a remote reservoir for improved cooling, these coilovers give you complete control over your ride in any condition.
