| Year | Make | Model |
|---|---|---|
| 2021 - 2024 | Ford | Bronco Badlands |
| 2021 - 2023 | Ford | Bronco Base |
| 2021 - 2024 | Ford | Bronco Big Bend |
| 2021 - 2024 | Ford | Bronco Black Diamond |
| 2022 - 2024 | Ford | Bronco Everglades |
| 2021 | Ford | Bronco First Edition |
| 2023 - 2024 | Ford | Bronco Heritage Edition |
| 2023 - 2024 | Ford | Bronco Heritage Limited Edition |
| 2021 - 2024 | Ford | Bronco Outer Banks |
| 2021 - 2024 | Ford | Bronco Wildtrak |
▶ Suspension Drop / Lift Rates
| Part Number | Item | Quantity |
|---|---|---|
| 41-314333 | Coilover | 1 |
| 41-314326 | Coilover | 1 |
| 41-314319 | Coilover | 1 |
| 41-314227 | Coilover | 1 |
Bilstein 8112 ZoneControl DSA+ Shocks Set w/0.7-2" lift - 2021-2026 Ford Bronco 4WD
Bilstein 8112 ZoneControl DSA+ Shocks Set w/0.7-2" lift - 2021-2026 Ford Bronco 4WD
SKU:10547500384543_52689463279903
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Item | Quantity |
|---|---|---|
| 41-314333 | Coilover | 1 |
| 41-314326 | Coilover | 1 |
| 41-314319 | Coilover | 1 |
| 41-314227 | Coilover | 1 |

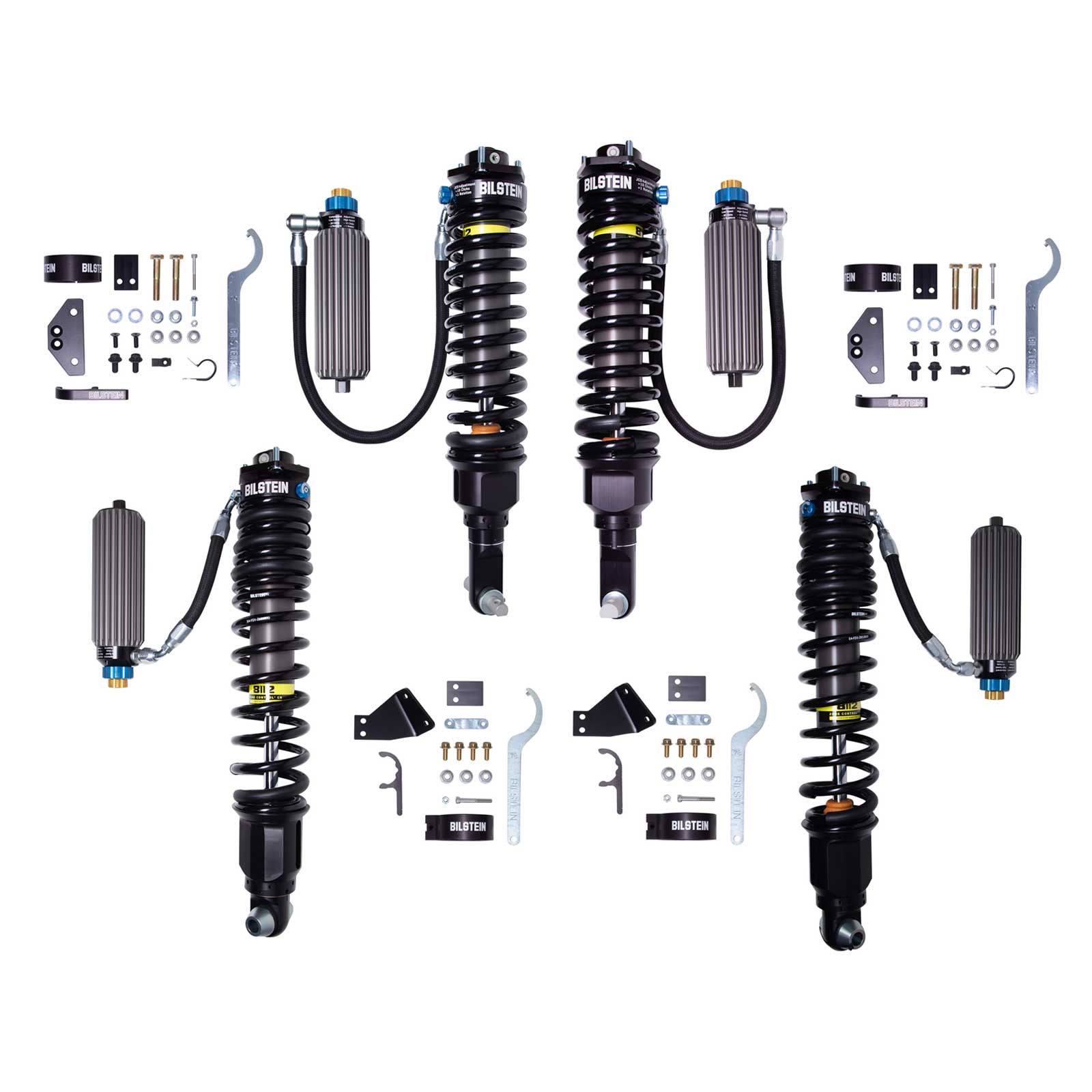

- Contains 4 Coilovers
Full set of 4 strut & spring assemblies. - Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. - Lifts your vehicle 0.7-2" in the front
- Springs will lift the vehicle 0.7-2" in the front and 1.2-2.2" in the rear
- Sasquatch Front Lift Height 0-1.4"
The lift height for Sasquatch trim is different from Non-Sasquatch. - Designed for 4WD vehicles
This product only works for 4WD vehicles. - Sasquatch Rear Lift Height 0.5-1.1"
The lift height for Sasquatch trim is different from Non-Sasquatch. - Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. - ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. - Compression (C)
Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. - Rebound (R)
Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed. - Triple Piston Design
- Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control
Bilstein���s ZoneControl CR DSA+ coilovers deliver serious off-road capability without compromising on-road comfort. Featuring Dual Speed Adjustability (DSA), they allow you to fine-tune both low-speed and high-speed compression for any terrain���whether you���re driving daily or tackling rugged trails. The built-in Internal Hydraulic Jounce Control (JCO) acts as a hydraulic bump stop, providing extra cushioning on hard impacts to protect your suspension and improve ride comfort. Combined with position-sensitive damping and a remote reservoir for improved cooling, these coilovers give you complete control over your ride in any condition.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl CR DSA+) for the 2021-2024 Ford Bronco is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV's. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-314333 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2021-2024 Ford Bronco |
| UPC | 651860936178 |
| Rear Lift Height | 0.5 - 1.1 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 18.40 in. |
| Collapsed Length | 467.1 mm |
| Damping Adjustable | Yes |
| Extended Length | 26.60 in. |
| Extended Length | 674.6 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 25.4 mm with Heim Spacers |
| Reservoir | Yes - Finned Aluminum |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2021 Ford Bronco
- 2022 Ford Bronco
- 2023 Ford Bronco
- 2024 Ford Bronco
