| Year | Make | Model |
|---|---|---|
| 2003 - 2009 | Lexus | GX470 Base |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2009 | Toyota | 4Runner Sport |
| 2003 - 2009 | Toyota | 4Runner SR5 |
| 2007 - 2009 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |
| 2007 | Toyota | FJ Cruiser TRD Special Edition |
| 2005 - 2015 | Toyota | Tacoma Base |
| 2005 - 2015 | Toyota | Tacoma Pre Runner |
1
/
of
4

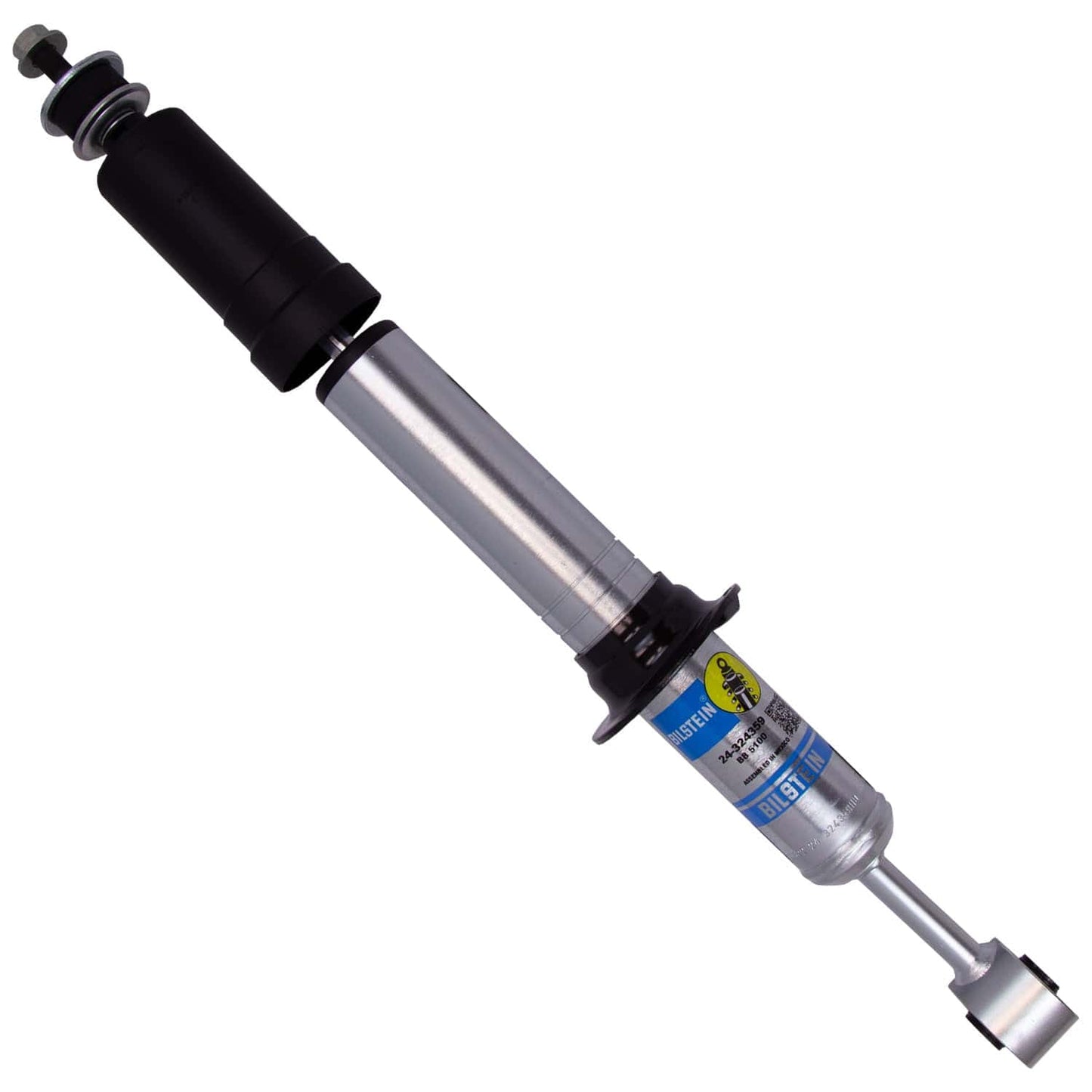

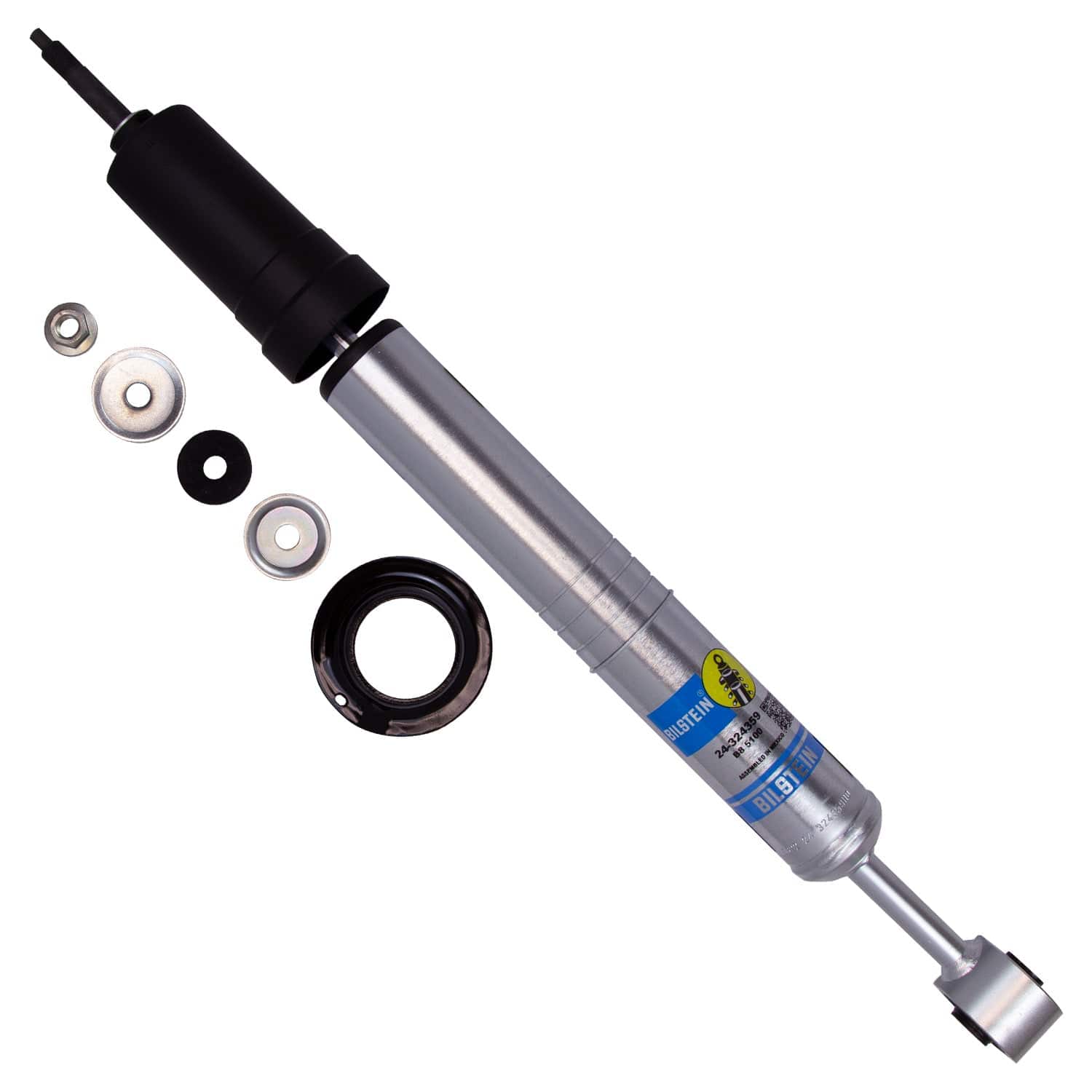

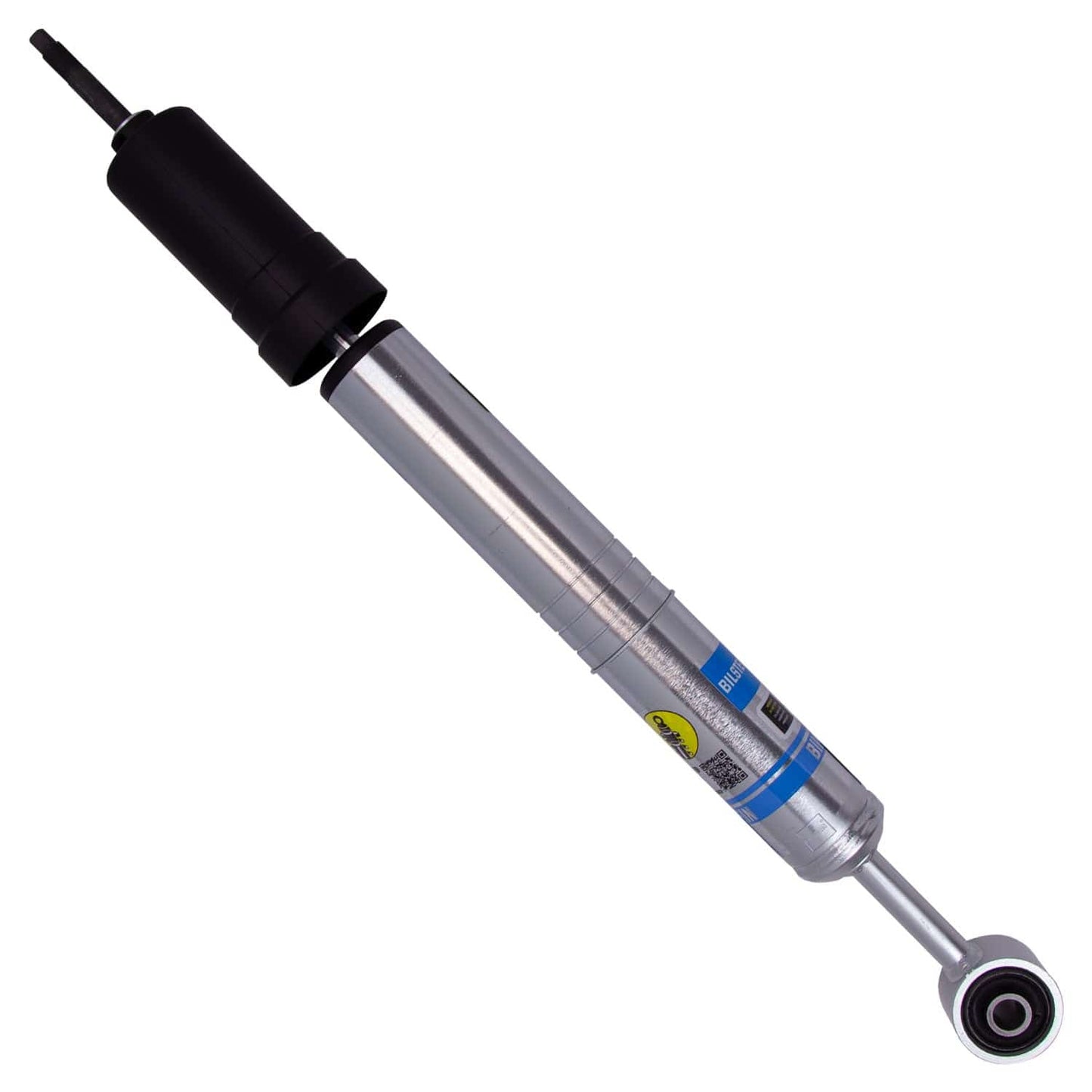

Bilstein B8 5100 46mm Shock Absorber 05-15 Toyota Tacoma/03-09 4Runner
Bilstein B8 5100 46mm Shock Absorber 05-15 Toyota Tacoma/03-09 4Runner
SKU:24-324359
In stock
Regular price
$149.29 USD
Regular price
$235.00 USD
Sale price
$149.29 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2007-2009 Toyota FJ Cruiser are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-324359 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2009 Toyota FJ Cruiser |
| UPC | 651860887005 |
| Front Lift Height | 0 - 2.5 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Straight |
| Collapsed Length | 17.03 in. |
| Collapsed Length | 432.5 mm |
| Damping Adjustable | No |
| Extended Length | 22.59 in. |
| Extended Length | 573.7 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.2 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |

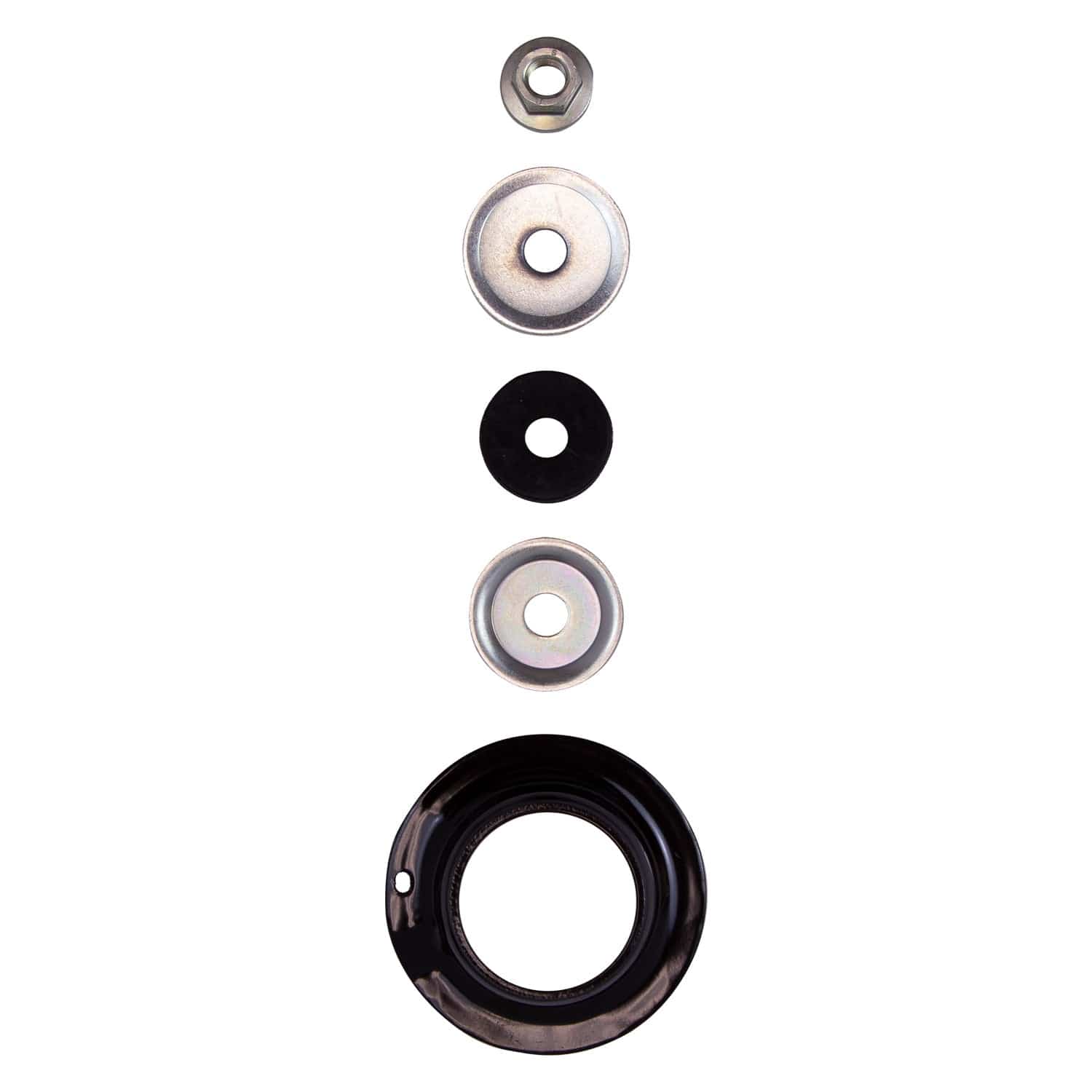

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2007 Toyota FJ Cruiser
- 2008 Toyota FJ Cruiser
- 2009 Toyota FJ Cruiser
