| Year | Make | Model |
|---|---|---|
| 2021 - 2024 | Ford | Bronco Badlands |
| 2021 - 2023 | Ford | Bronco Base |
| 2021 - 2024 | Ford | Bronco Big Bend |
| 2021 - 2024 | Ford | Bronco Black Diamond |
| 2021 | Ford | Bronco First Edition |
| 2023 - 2024 | Ford | Bronco Heritage Edition |
| 2023 - 2024 | Ford | Bronco Heritage Limited Edition |
| 2021 - 2024 | Ford | Bronco Outer Banks |
| 2021 - 2022 | Ford | Bronco Wildtrak |

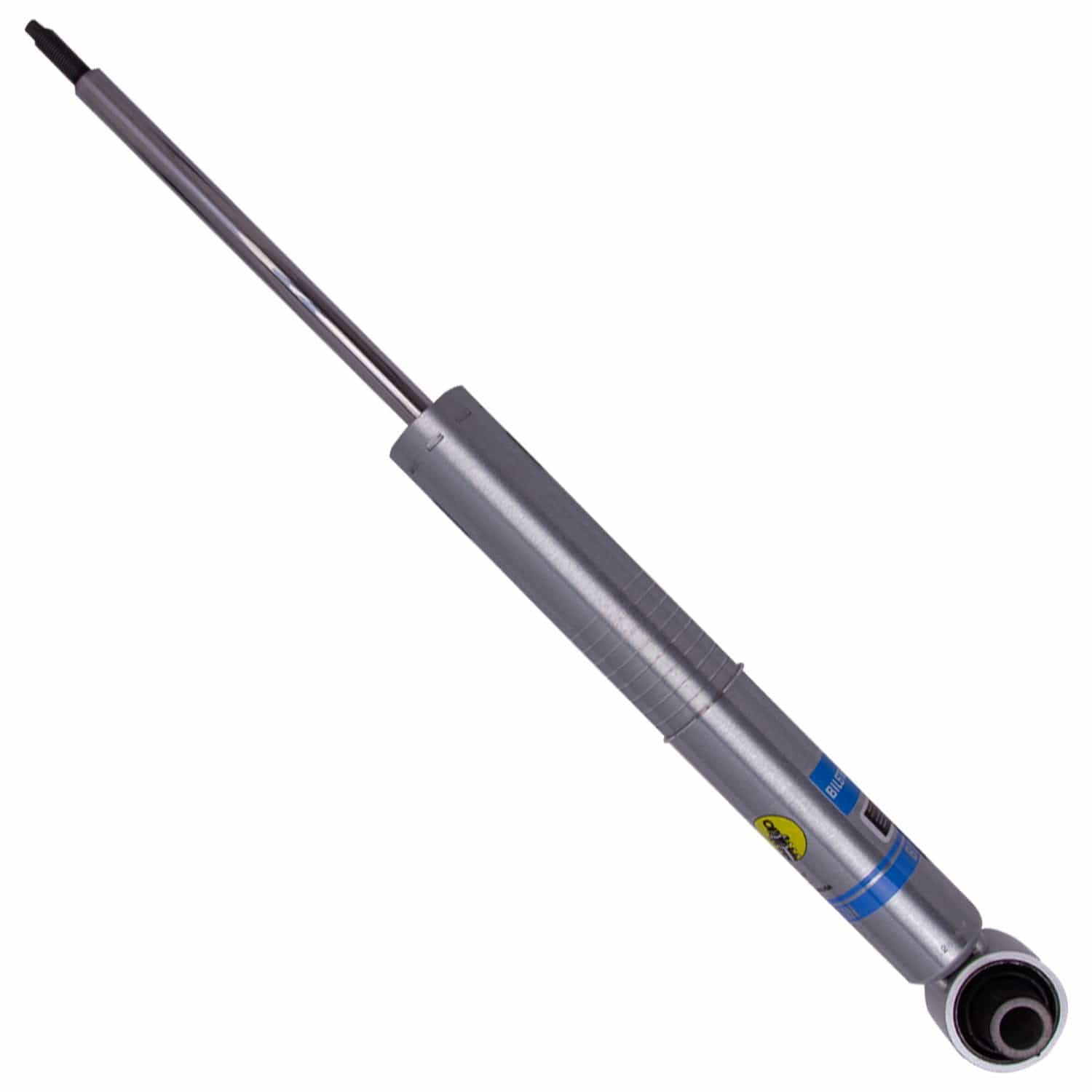

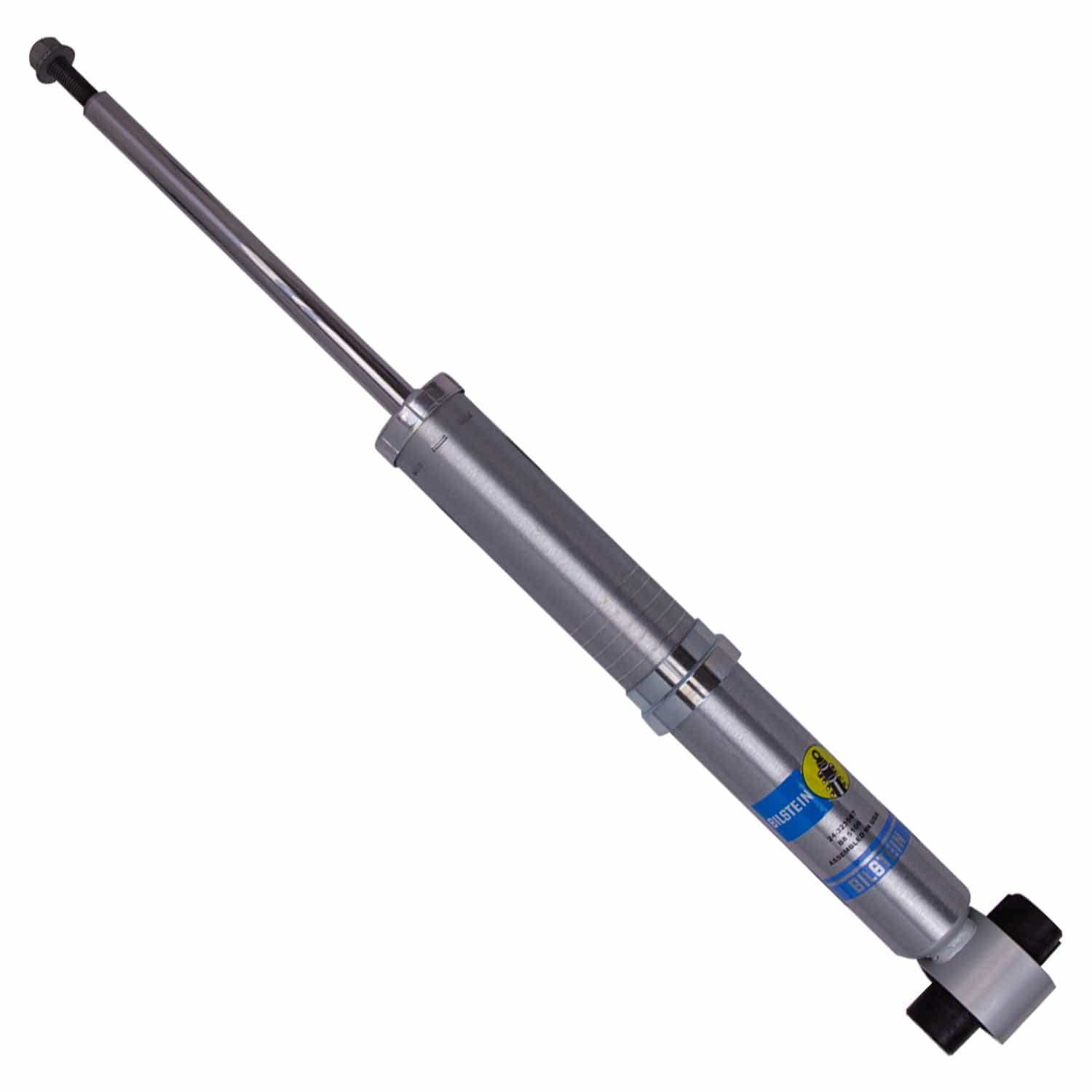

Bilstein B8 5100 Ride Height Adj Rear Shock | Ford Bronco 21-24 (24-323567) (25.56 in.)
Bilstein B8 5100 Ride Height Adj Rear Shock | Ford Bronco 21-24 (24-323567) (25.56 in.)
SKU:24-323567
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 5100 Ride Height Adjustable Rear Shock Absorbers are engineered for the 2021-2024 Ford Bronco, offering a versatile upgrade for trucks and SUVs with OE coilover-style suspension. Featuring multiple snap-ring grooves, these shocks allow for customizable spring seat positioning, enabling a front lift of 0 to 3 inches when used with OE springs. The monotube design incorporates a 46mm digressive piston and a self-adjusting deflective disc valve, ensuring optimal damping performance across various terrains. Constructed with high-quality materials, these shocks deliver improved ride quality, enhanced stability, and increased off-road capability, making them suitable for both daily driving and trail use.

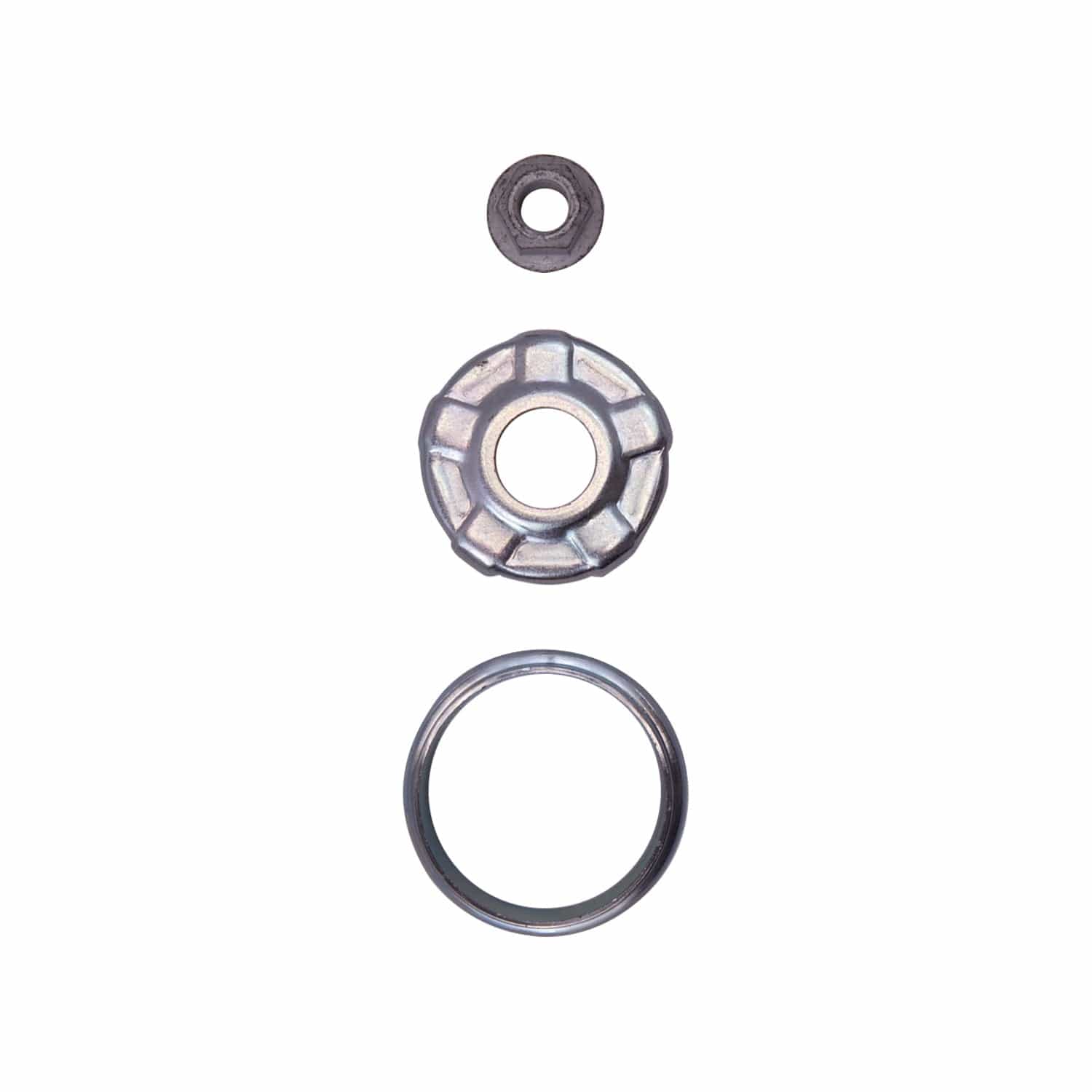

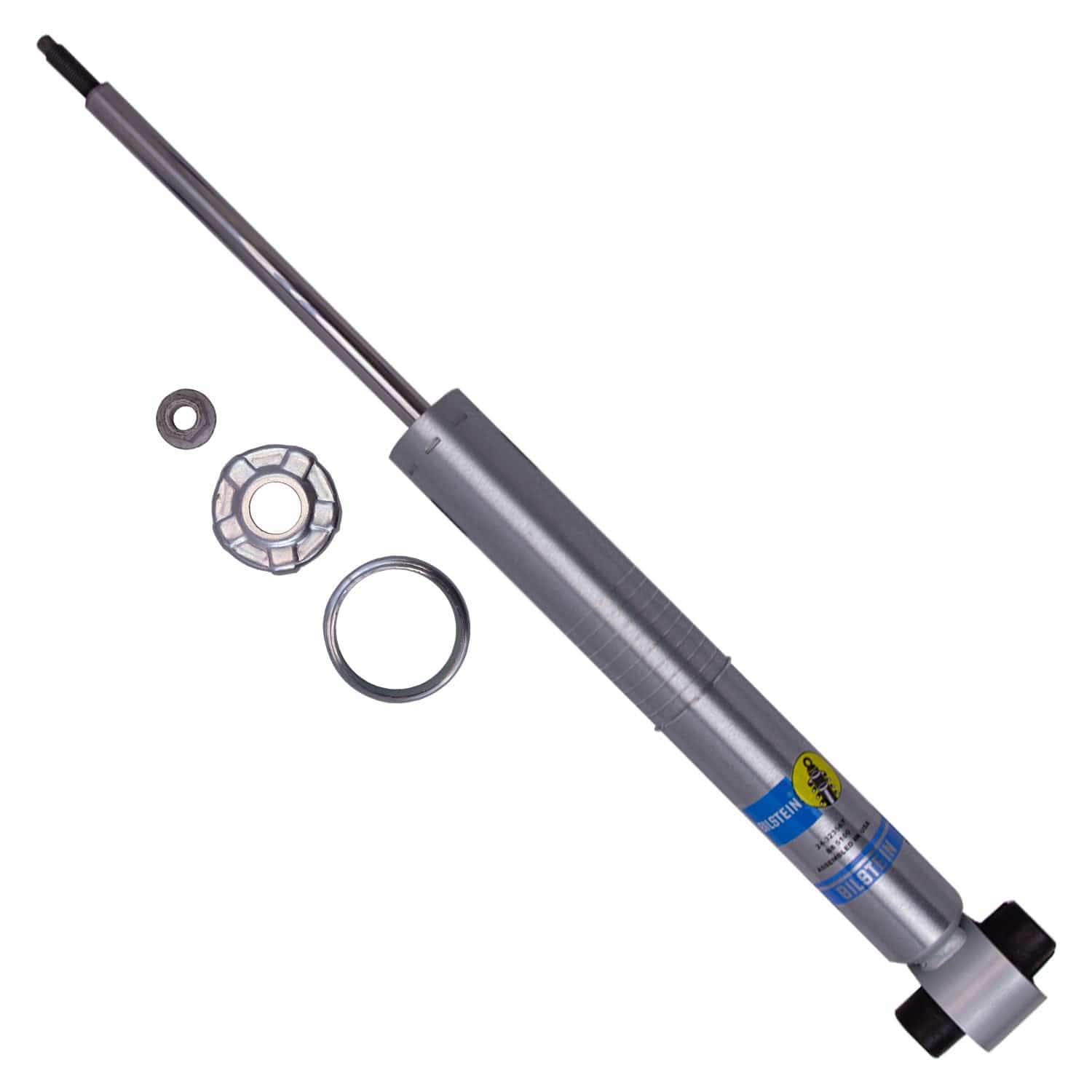

Designed specifically for 2021-2024 Ford Bronco models, these shocks are a direct replacement for OE components and are compatible with vehicles equipped with coilover suspension systems. They are ideal for off-road enthusiasts seeking adjustable ride height and superior damping performance. Installation involves replacing the existing shocks with these bolt-on units, providing a straightforward upgrade process. The kit includes the shock absorbers and necessary mounting hardware. Suitable for off-road, trail, and overland applications, these Bilstein shocks enhance vehicle handling, ride comfort, and versatility in demanding conditions.
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2021-2024 Ford Bronco are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-323567 |
| Part Name | Shock Absorber |
| Vehicle | 2021-2024 Ford Bronco |
| UPC | 651860891705 |
| Rear Lift Height | 0 - 1.4 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 17.11 in. |
| Collapsed Length | 434.6 mm |
| Damping Adjustable | No |
| Extended Length | 25.56 in. |
| Extended Length | 649.3 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 20.2 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2021 Ford Bronco
- 2022 Ford Bronco
- 2023 Ford Bronco
- 2024 Ford Bronco
