Year | Make | Model |
---|---|---|
2021 - 2024 | Ford | Bronco Badlands |
2021 - 2023 | Ford | Bronco Base |
2021 - 2024 | Ford | Bronco Big Bend |
2021 - 2024 | Ford | Bronco Black Diamond |
2022 - 2024 | Ford | Bronco Everglades |
2021 | Ford | Bronco First Edition |
2023 - 2024 | Ford | Bronco Heritage Edition |
2023 - 2024 | Ford | Bronco Heritage Limited Edition |
2021 - 2024 | Ford | Bronco Outer Banks |
2021 - 2022 | Ford | Bronco Wildtrak |
1
/
of
4

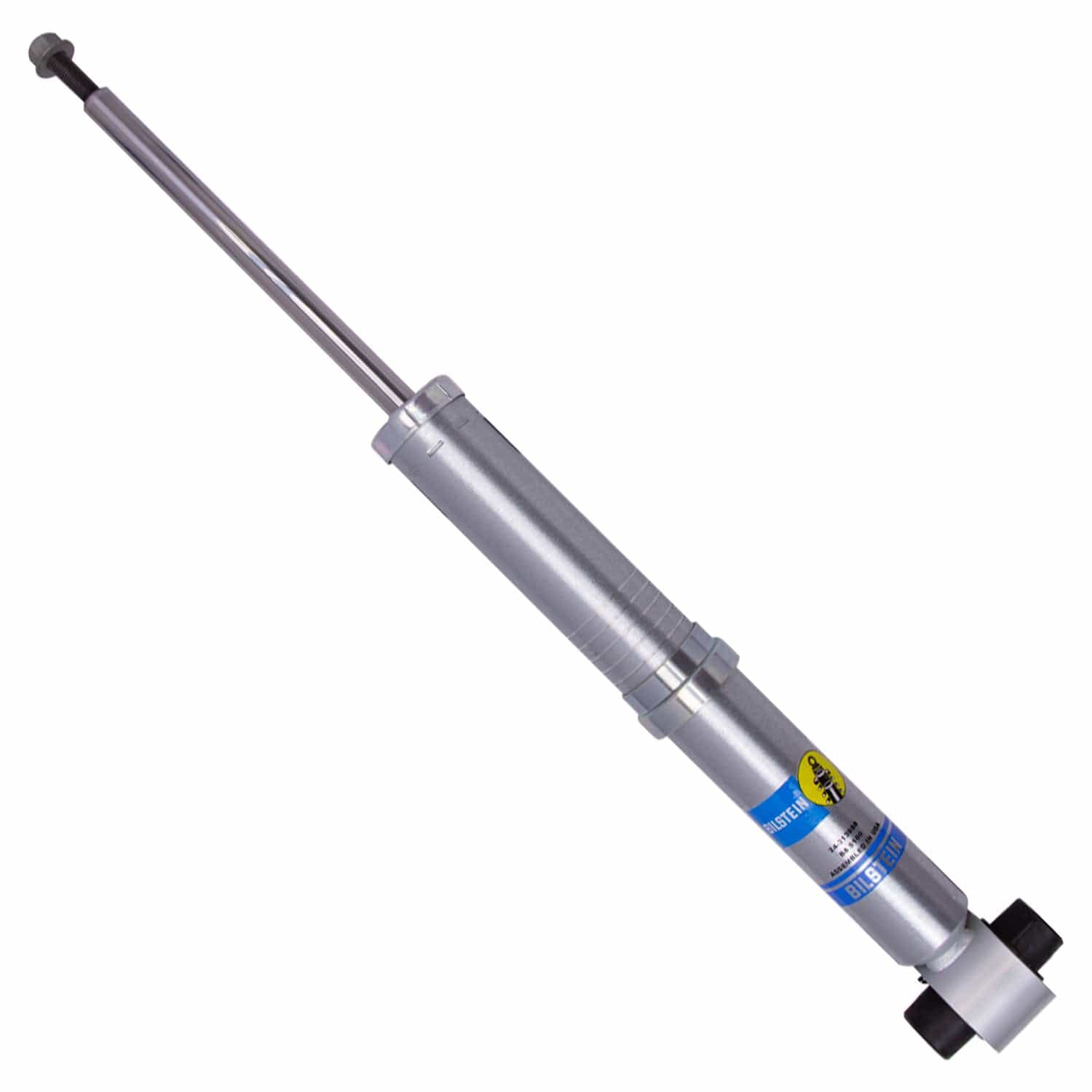

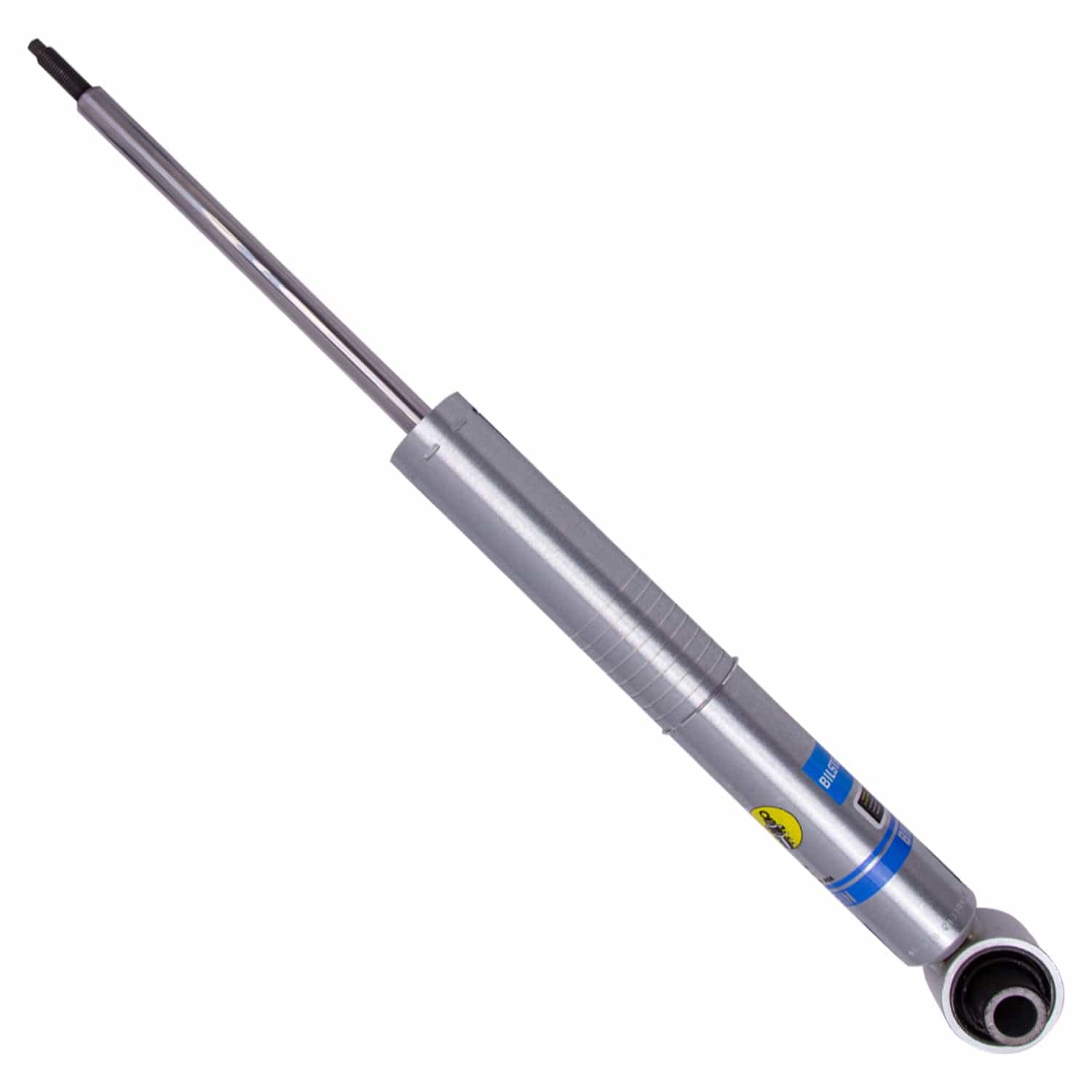

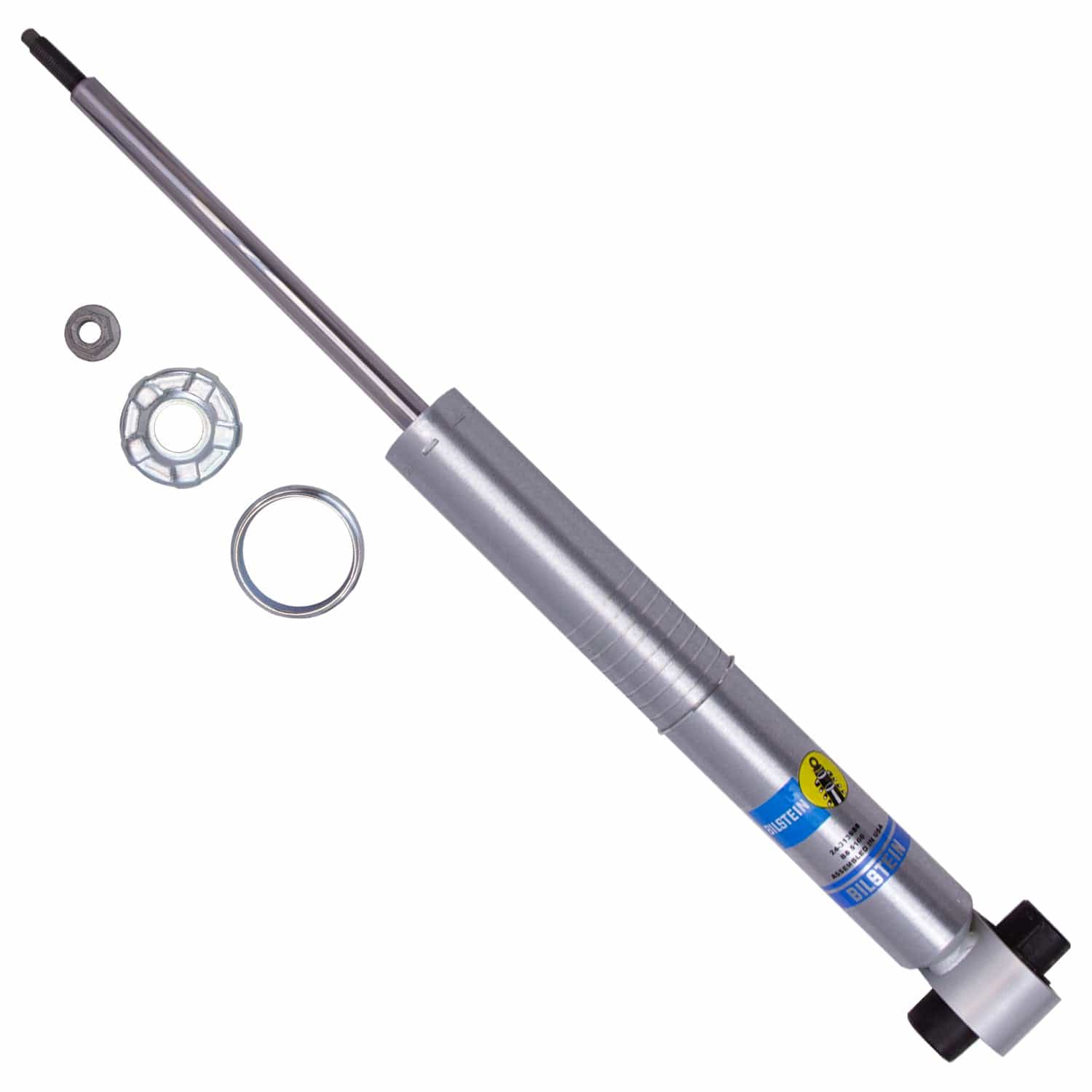

Bilstein B8 5100 (Ride Height Adjustable) Suspension Rear Shock Absorber for 2021-2024 Ford Bronco 4DR - 25.56 in. Extended
Bilstein B8 5100 (Ride Height Adjustable) Suspension Rear Shock Absorber for 2021-2024 Ford Bronco 4DR - 25.56 in. Extended
SKU:24-313988
In stock
Regular price
$145.03 USD
Regular price
$235.00 USD
Sale price
$145.03 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2021-2024 Ford Bronco are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
Part Number | 24-313988 |
Part Name | Shock Absorber |
Vehicle | 2021-2024 Ford Bronco |
UPC | 651860875507 |
Rear Lift Height | 0 - 1.4 in. |
Body Design | Snap Ring Grooved Body (Coilover) |
Body Diameter (ID) | 46 mm |
Boot Included | No |
Collapsed Length | 17.11 in. |
Collapsed Length | 434.6 mm |
Damping Adjustable | No |
Extended Length | 25.56 in. |
Extended Length | 649.3 mm |
Finish | Zinc Plated |
Internal Design | Monotube |
Lower Mount Type | Eye 20.2 mm |
Reservoir | No |
Segment | Light Truck |
Series | B8 5100 (Ride Height Adjustable) |
Spring Seat Included | No - Reuse OEM |
Upper Mount Type | Stem |
Vehicle Fitment
- 2021 Ford Bronco
- 2022 Ford Bronco
- 2023 Ford Bronco
- 2024 Ford Bronco
