| Year | Make | Model |
|---|---|---|
| 2004 - 2007 | Buick | Rainier CXL |
| 2004 - 2005 | Buick | Rainier CXL Plus |
| 2008 | Chevrolet | Trailblazer Base |
| 2003 - 2006 | Chevrolet | Trailblazer EXT LS |
| 2002 - 2006 | Chevrolet | Trailblazer EXT LT |
| 2002 - 2004 | Chevrolet | Trailblazer EXT North Face |
| 2002 - 2007 | Chevrolet | Trailblazer LS |
| 2002 - 2009 | Chevrolet | Trailblazer LT |
| 2002 - 2003 | Chevrolet | Trailblazer LTZ |
| 2002 - 2004 | Chevrolet | Trailblazer North Face |
| 2005 - 2009 | GMC | Envoy Denali |
| 2002 - 2009 | GMC | Envoy SLE |
| 2002 - 2009 | GMC | Envoy SLT |
| 2005 - 2006 | GMC | Envoy XL Denali |
| 2002 - 2006 | GMC | Envoy XL SLE |
| 2002 - 2006 | GMC | Envoy XL SLT |
| 2006 - 2009 | Saab | 9-7x 4.2i |
| 2006 - 2009 | Saab | 9-7x 5.3i |
| 2005 | Saab | 9-7x Arc |
1
/
of
3

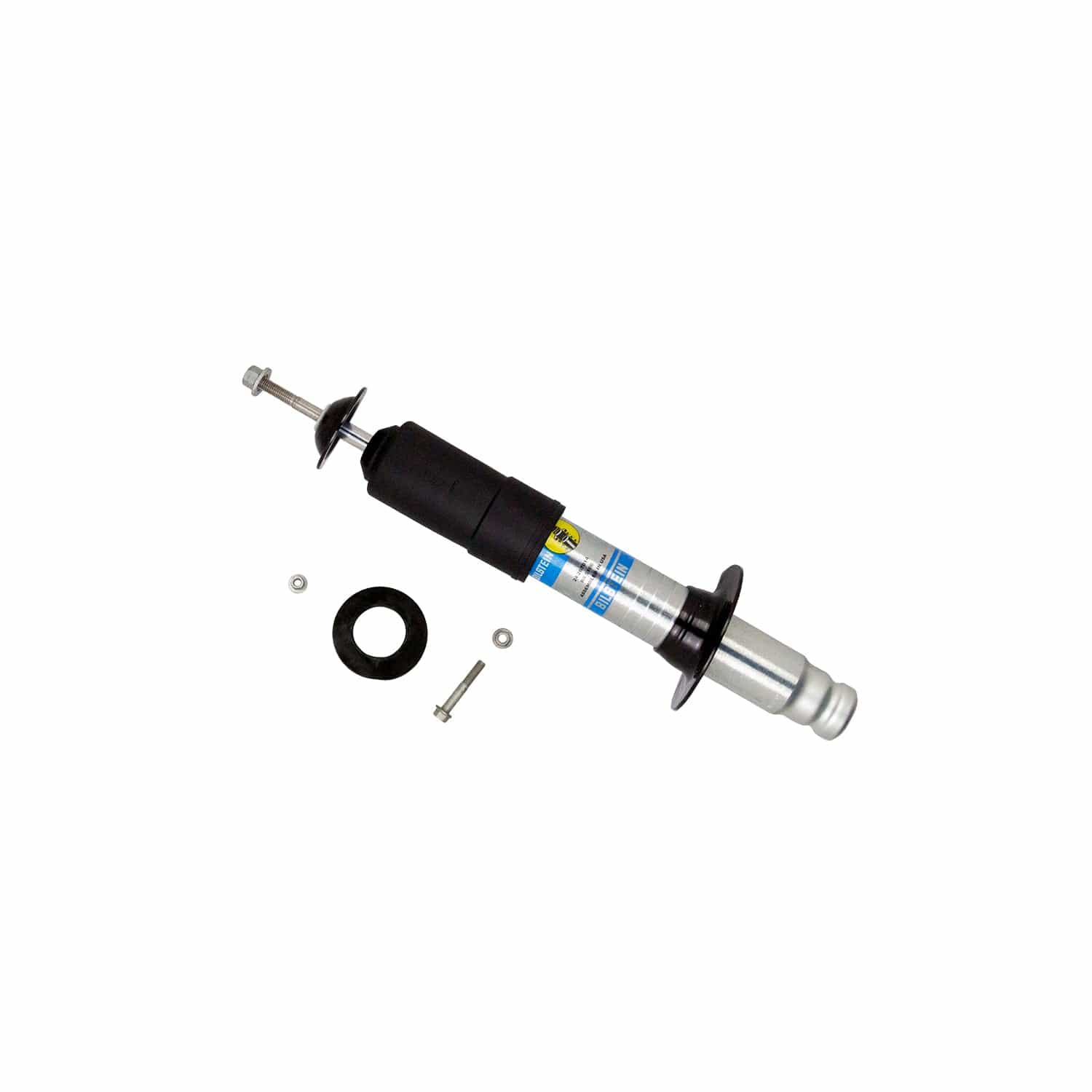

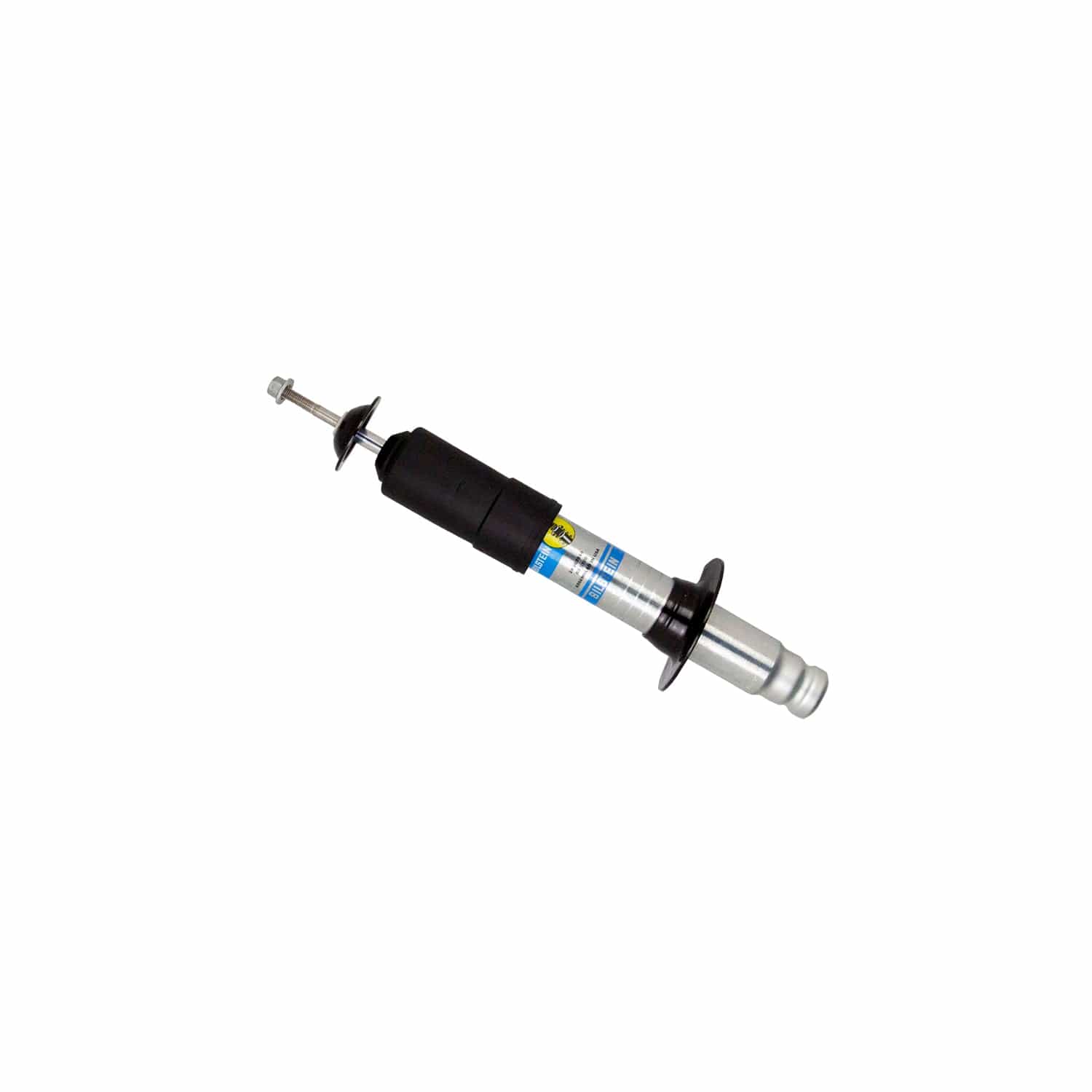

Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2002-2004 Oldsmobile Bravada
Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2002-2004 Oldsmobile Bravada
SKU:24-267014
In stock
Regular price
$145.03 USD
Regular price
$235.00 USD
Sale price
$145.03 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2002-2004 Oldsmobile Bravada are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-267014 |
| Part Name | Shock Absorber |
| Vehicle | 2002-2004 Oldsmobile Bravada |
| UPC | 651860804521 |
| Front Lift Height | 0 - 2.25 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Straight |
| Collapsed Length | 11.26 in. |
| Collapsed Length | 286.1 mm |
| Damping Adjustable | No |
| Extended Length | 16.41 in. |
| Extended Length | 416.9 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Base Cup |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2002 Oldsmobile Bravada
- 2003 Oldsmobile Bravada
- 2004 Oldsmobile Bravada
