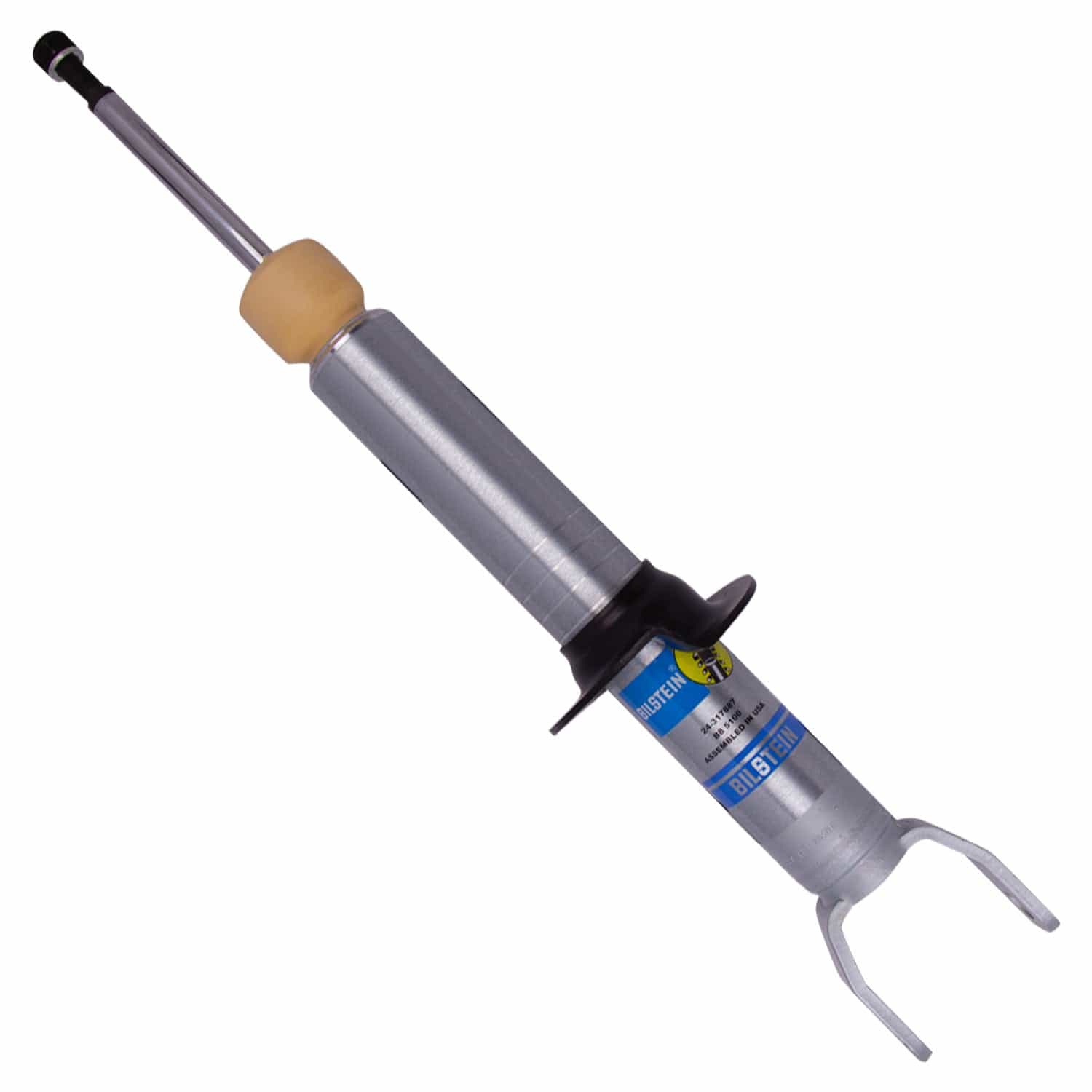

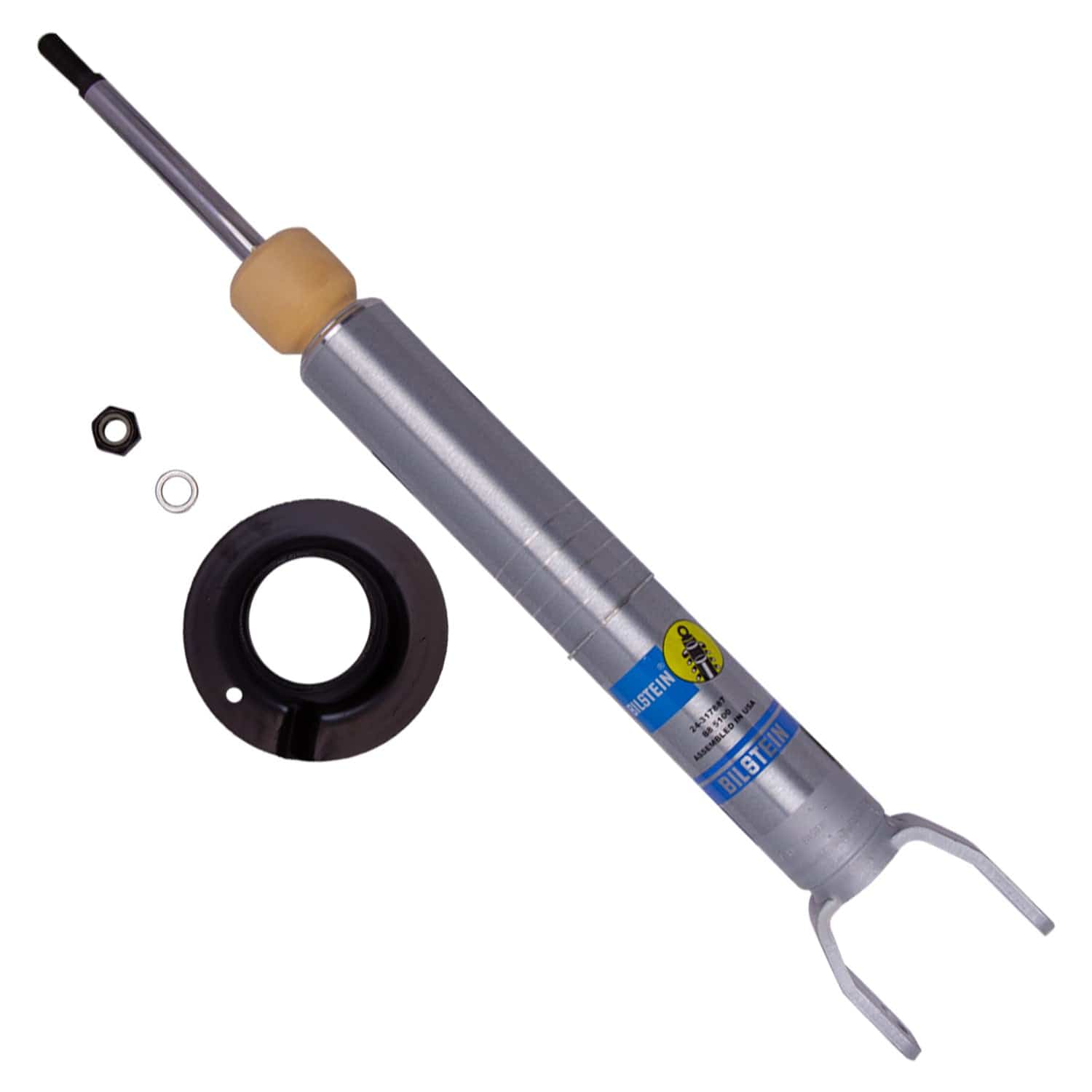

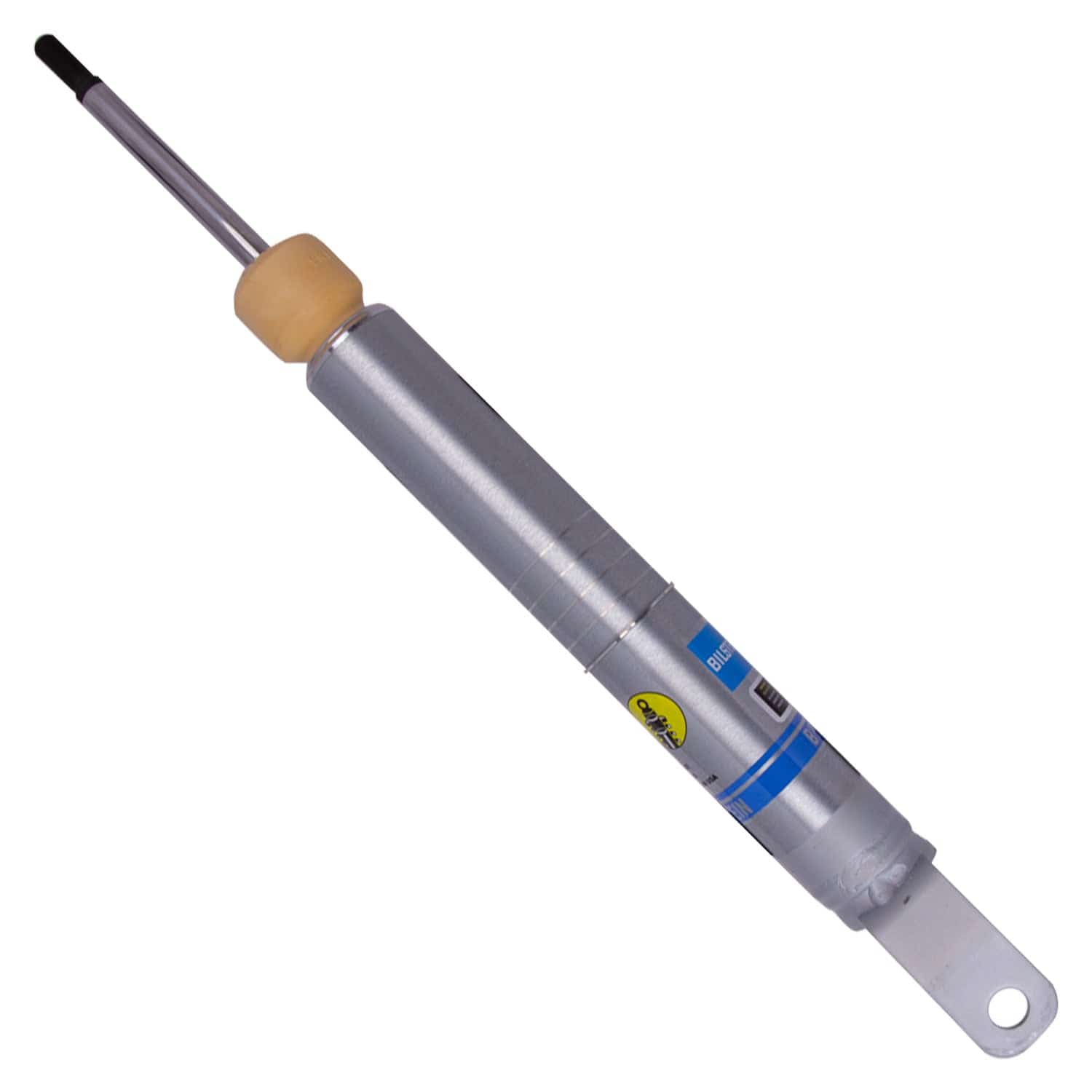

Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2009-2010 Dodge Ram 1500 - 21.46 in. Extended
Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2009-2010 Dodge Ram 1500 - 21.46 in. Extended
SKU:24-317887
In stock
Regular price
$145.03 USD
Regular price
$235.00 USD
Sale price
$145.03 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2009-2010 Dodge Ram 1500 are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-317887 |
| Part Name | Shock Absorber |
| Vehicle | 2009-2010 Dodge Ram 1500 |
| UPC | 651860900483 |
| Front Lift Height | 0 - 2.8 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 15.12 in. |
| Collapsed Length | 384.0 mm |
| Damping Adjustable | No |
| Extended Length | 21.46 in. |
| Extended Length | 545.2 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |

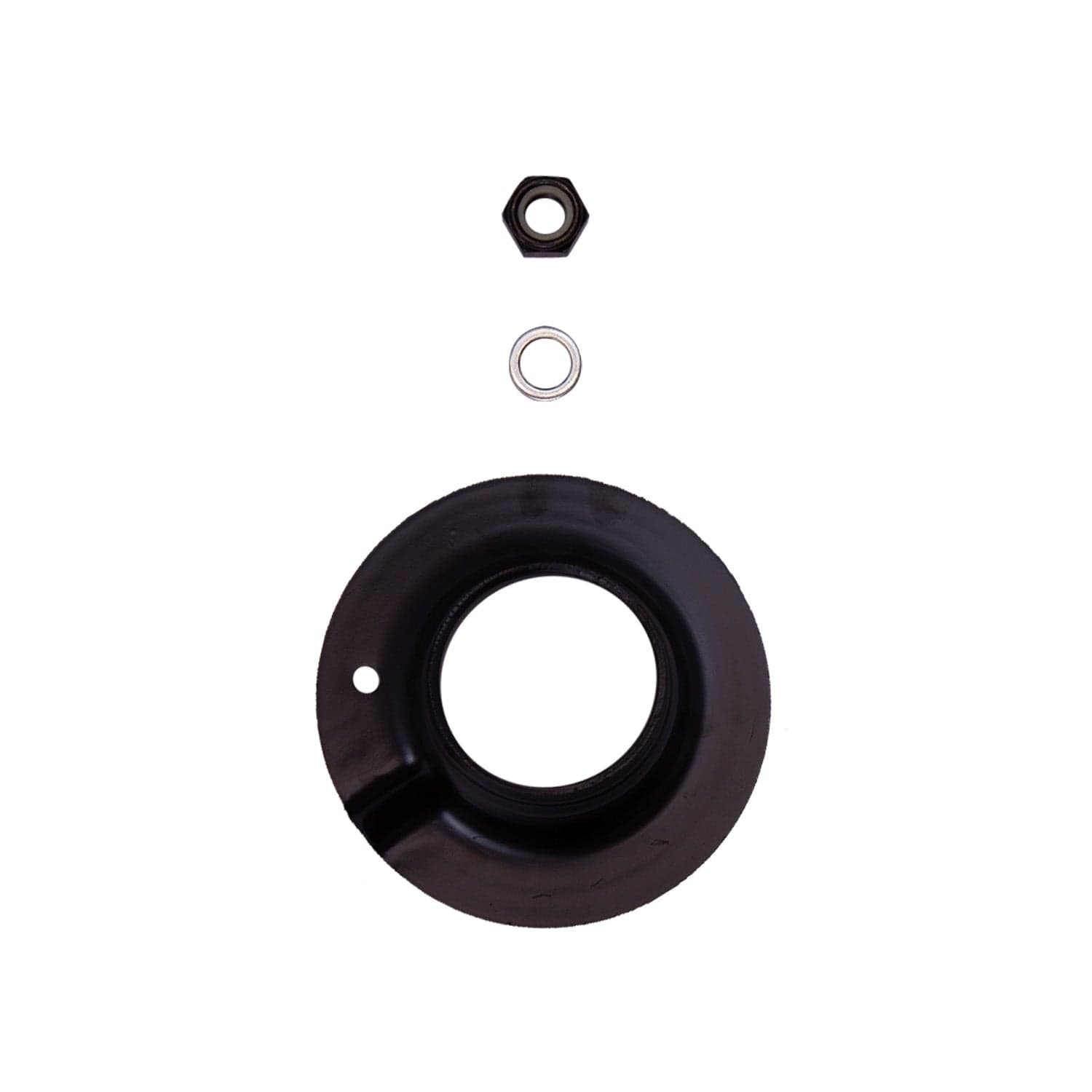

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Notes | Without Air Suspension |
Vehicle Fitment
- 2009 Dodge Ram 1500
- 2010 Dodge Ram 1500
