| Year | Make | Model |
|---|---|---|
| 2015 - 2020 | Chevrolet | Colorado Base |
| 2015 - 2022 | Chevrolet | Colorado LT |
| 2015 - 2022 | Chevrolet | Colorado WT |
| 2015 - 2022 | Chevrolet | Colorado Z71 |
| 2018 - 2020 | GMC | Canyon All Terrain |
| 2021 - 2022 | GMC | Canyon AT4 |
| 2015 - 2020 | GMC | Canyon Base |
| 2017 - 2022 | GMC | Canyon Denali |
| 2021 - 2022 | GMC | Canyon Elevation |
| 2021 - 2022 | GMC | Canyon Elevation Standard |
| 2015 - 2020 | GMC | Canyon SL |
| 2015 - 2020 | GMC | Canyon SLE |
| 2015 - 2020 | GMC | Canyon SLT |

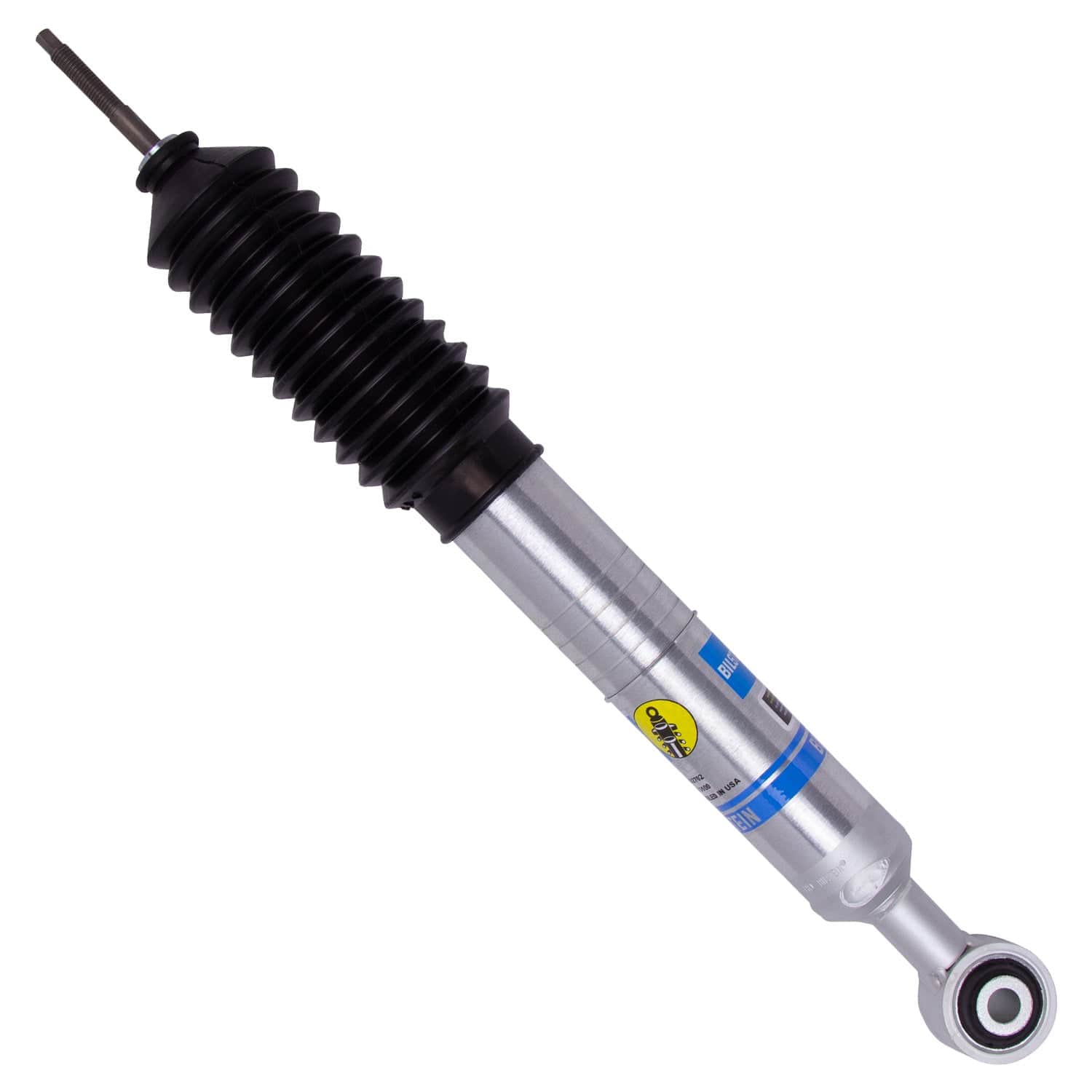

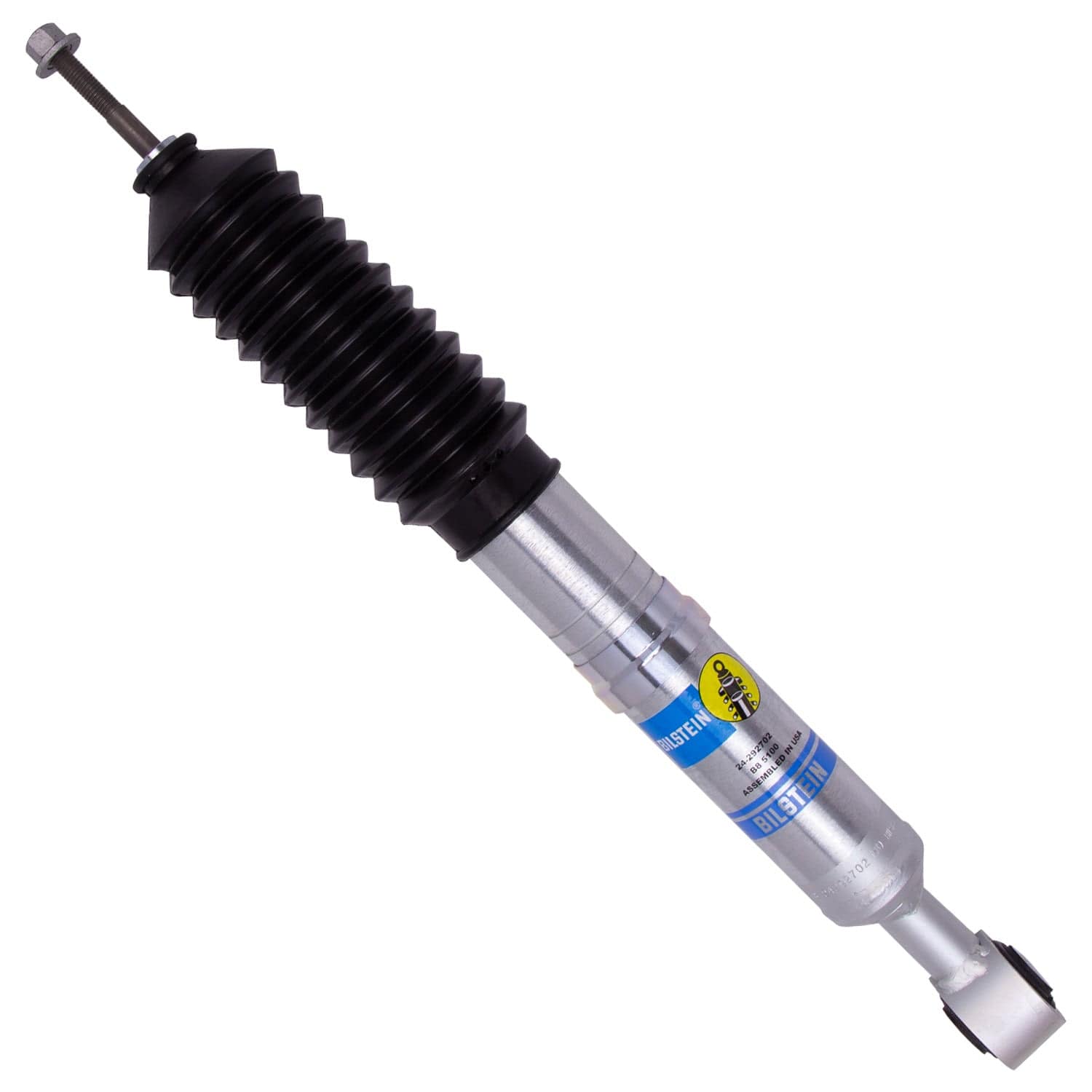

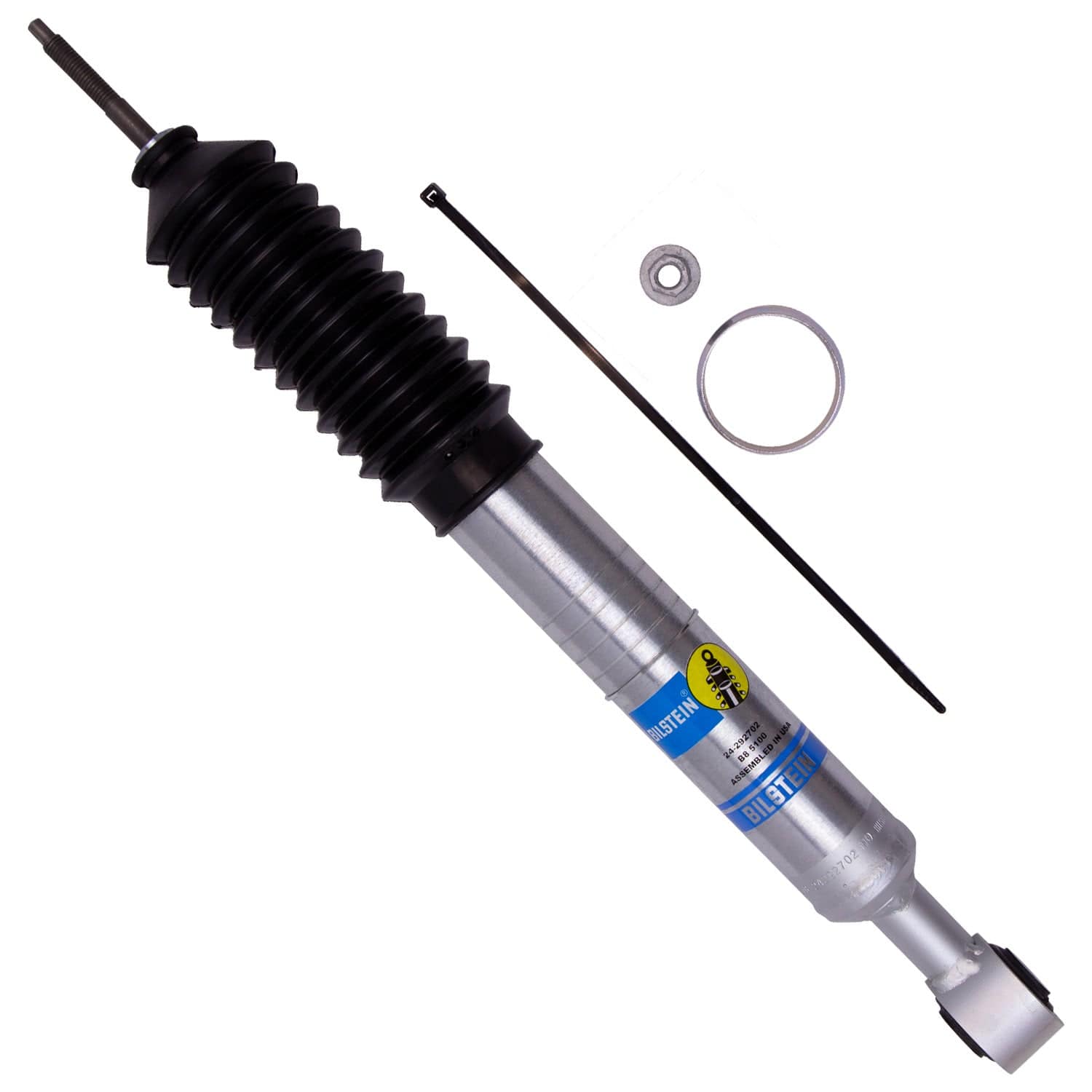

Bilstein B8 5100 Shock Absorbers | Chevy Colorado 2015-22 (24-292702)
Bilstein B8 5100 Shock Absorbers | Chevy Colorado 2015-22 (24-292702)
SKU:24-292702
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 5100 Shock Absorbers are high-performance, ride height adjustable shocks designed specifically for the Chevrolet Colorado from 2015 to 2022. These monotube shocks feature a 46mm digressive piston and a self-adjusting deflective disc valve setting, ensuring optimal damping performance across various driving conditions. The multiple snap-ring grooves allow for customizable spring seat positions, enabling a front lift of 0 to 3 inches when used with OE springs. Constructed with durable materials, these shocks provide enhanced stability, improved handling, and increased load-carrying capacity, making them ideal for off-road adventures or lifted truck setups.
Designed for 2015-2022 Chevrolet Colorado models with front OE coilover style suspension, the Bilstein B8 5100 shocks serve as direct replacements or upgrades for factory units. They are suitable for trucks and SUVs seeking improved ride quality, off-road capability, or lift customization. The shocks are easy to install with bolt-on fitment and are compatible with vehicles equipped with OE springs, offering versatile performance for street, trail, or mixed-use applications. The kit includes the shock absorbers, ready for installation on compatible vehicles to enhance overall suspension performance.
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2015-2022 Chevrolet Colorado are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-292702 |
| Part Name | Shock Absorber |
| Vehicle | 2015-2022 Chevrolet Colorado |
| UPC | 651860845302 |
| Front Lift Height | 0 - 1.9 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 14.76 in. |
| Collapsed Length | 375.0 mm |
| Damping Adjustable | No |
| Extended Length | 19.45 in. |
| Extended Length | 494.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2015 Chevrolet Colorado
- 2016 Chevrolet Colorado
- 2017 Chevrolet Colorado
- 2018 Chevrolet Colorado
- 2019 Chevrolet Colorado
- 2020 Chevrolet Colorado
- 2021 Chevrolet Colorado
- 2022 Chevrolet Colorado
