| Year | Make | Model |
|---|---|---|
| 2015 - 2020 | Chevrolet | Colorado Base |
| 2015 - 2022 | Chevrolet | Colorado LT |
| 2015 - 2022 | Chevrolet | Colorado WT |
| 2015 - 2022 | Chevrolet | Colorado Z71 |
| 2018 - 2020 | GMC | Canyon All Terrain |
| 2021 - 2022 | GMC | Canyon AT4 |
| 2015 - 2020 | GMC | Canyon Base |
| 2017 - 2022 | GMC | Canyon Denali |
| 2021 - 2022 | GMC | Canyon Elevation |
| 2021 - 2022 | GMC | Canyon Elevation Standard |
| 2015 - 2020 | GMC | Canyon SL |
| 2015 - 2020 | GMC | Canyon SLE |
| 2015 - 2020 | GMC | Canyon SLT |
Bilstein B8 5100 F&R Shock Absorbers | GMC Canyon 15-22 / Colorado 15-22 (24-292702) (SPF292702-12K)
Bilstein B8 5100 F&R Shock Absorbers | GMC Canyon 15-22 / Colorado 15-22 (24-292702) (SPF292702-12K)
SKU:24-292702
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments

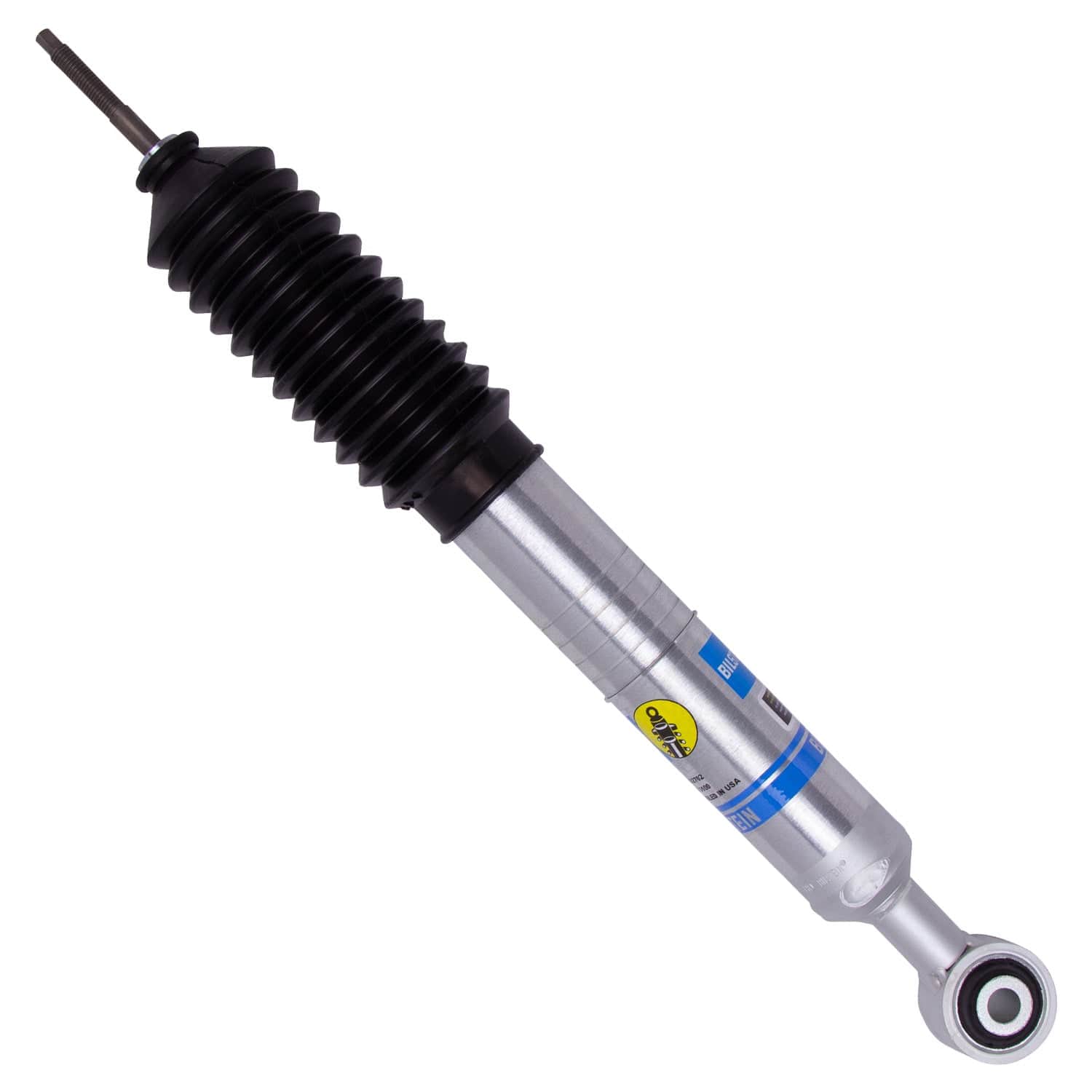

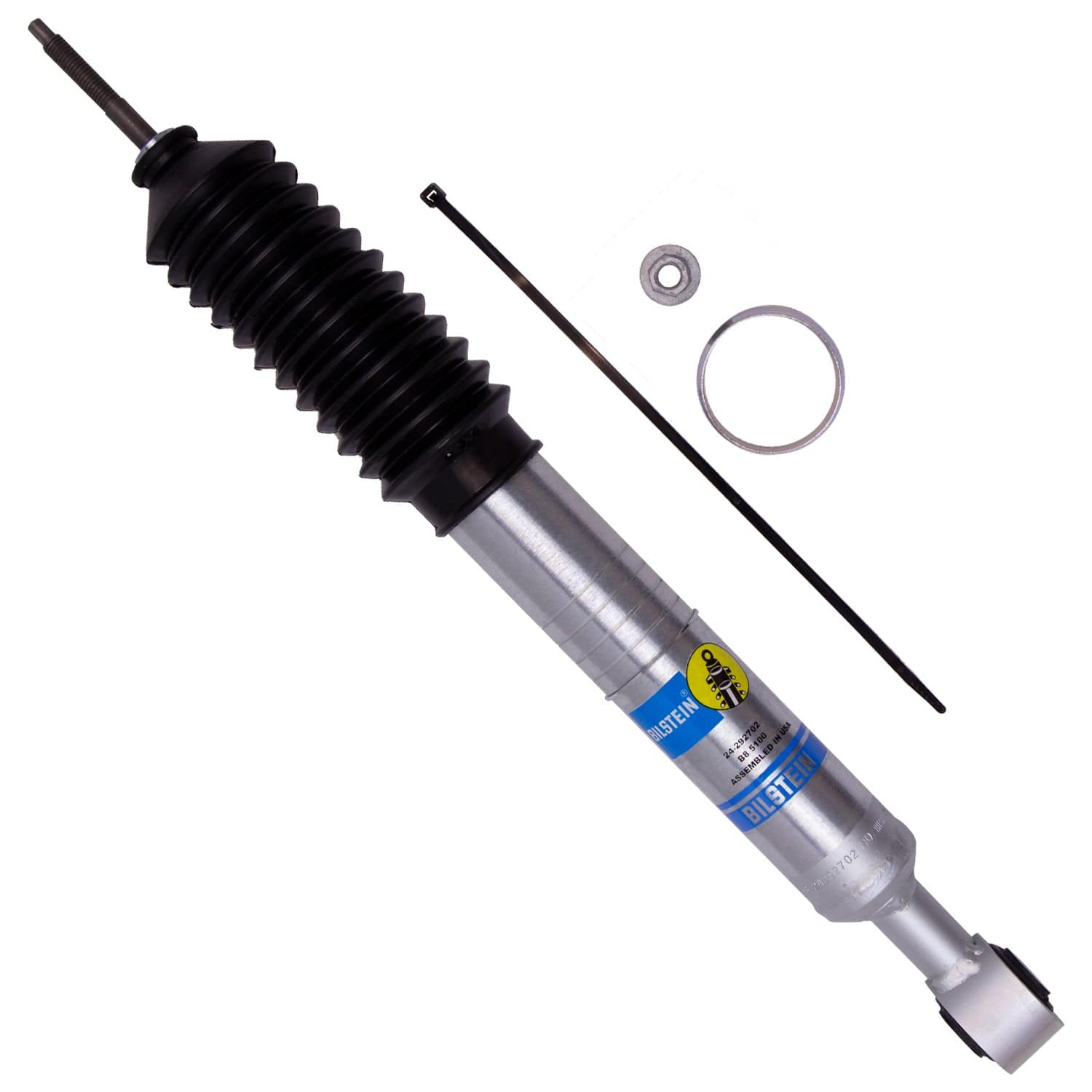

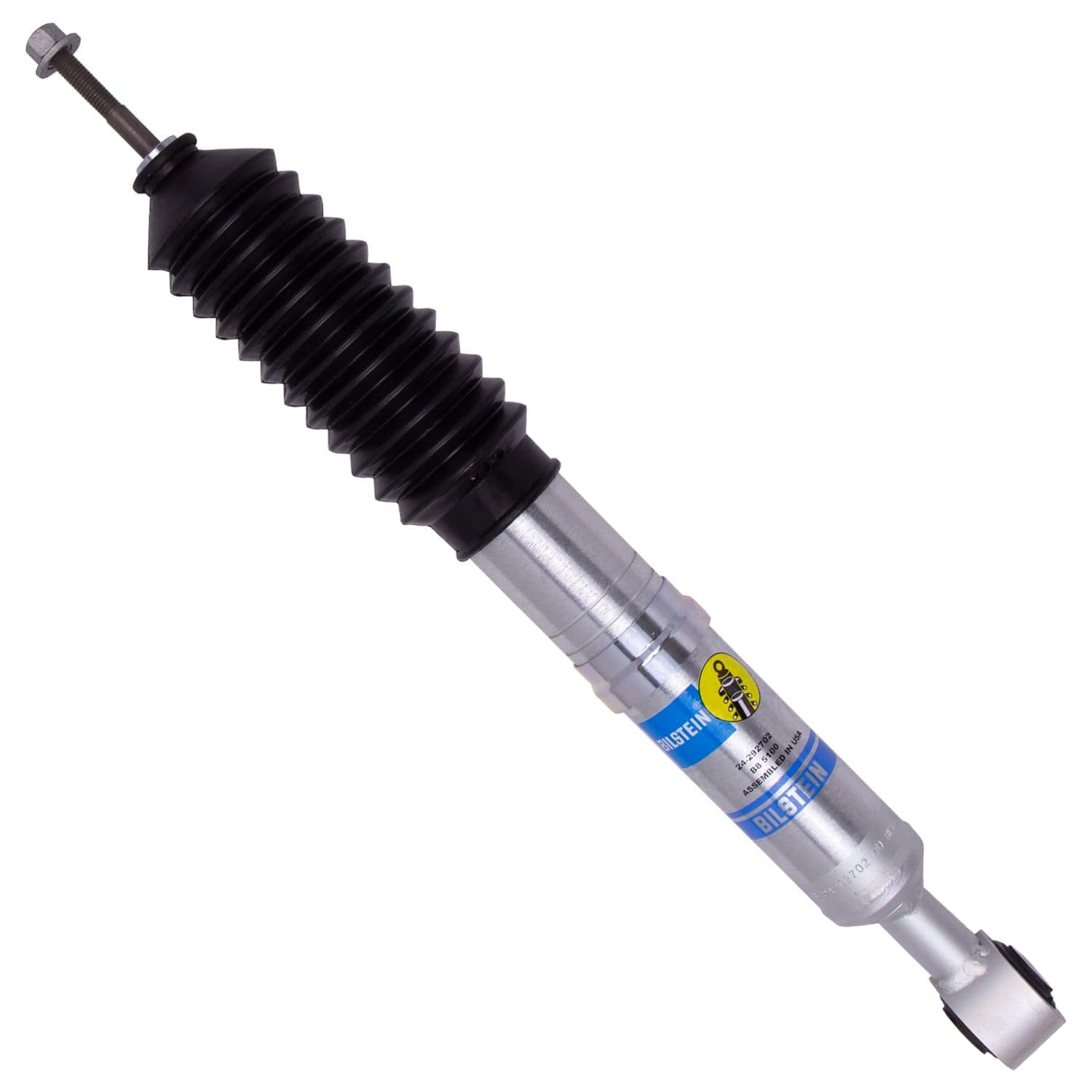

The Bilstein B8 5100 shock absorbers are high-performance, ride height adjustable components designed for the 2015-2022 GMC Canyon and Colorado models. These monotube shocks feature a 46mm digressive piston and a self-adjusting deflective disc valve, providing precise damping control and enhanced ride quality. The multiple snap-ring grooves in the shock body allow for customizable spring seat positioning, enabling 0 to 3 inches of front lift when used with OE springs. Constructed with durable materials, these shocks are engineered to improve off-road capability, handling, and stability while maintaining ride comfort. Their adjustable design makes them suitable for a variety of driving conditions, from daily commuting to off-road adventures.
Designed specifically for vehicles with front OE coilover style suspension, these shocks are compatible with 2015-2022 GMC Canyon and Colorado trucks and SUVs. They serve as direct replacements for factory shocks, offering an upgrade in performance and adjustability. The kit includes the necessary shock absorbers for both front and rear applications, ensuring a comprehensive suspension enhancement. Ideal for off-road enthusiasts and those seeking improved load handling, these shocks are suitable for vehicles used in off-road, towing, or performance driving scenarios. Installation is straightforward for those familiar with suspension components, providing a reliable upgrade for a variety of driving needs.
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2015-2022 GMC Canyon are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-292702 |
| Part Name | Shock Absorber |
| Vehicle | 2015-2022 GMC Canyon |
| UPC | 651860845302 |
| Front Lift Height | 0 - 1.9 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 14.76 in. |
| Collapsed Length | 375.0 mm |
| Damping Adjustable | No |
| Extended Length | 19.45 in. |
| Extended Length | 494.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2015 GMC Canyon
- 2016 GMC Canyon
- 2017 GMC Canyon
- 2018 GMC Canyon
- 2019 GMC Canyon
- 2020 GMC Canyon
- 2021 GMC Canyon
- 2022 GMC Canyon
