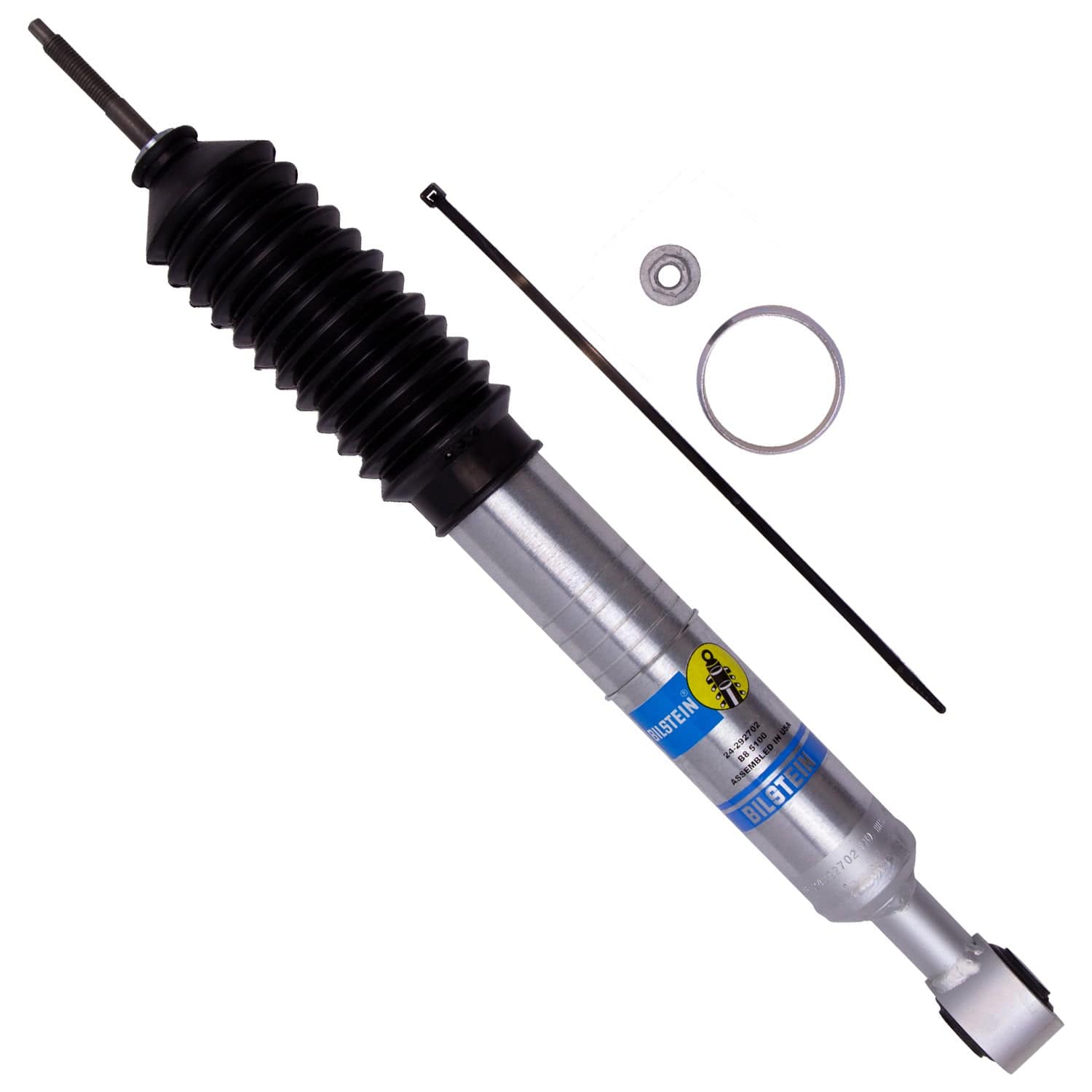

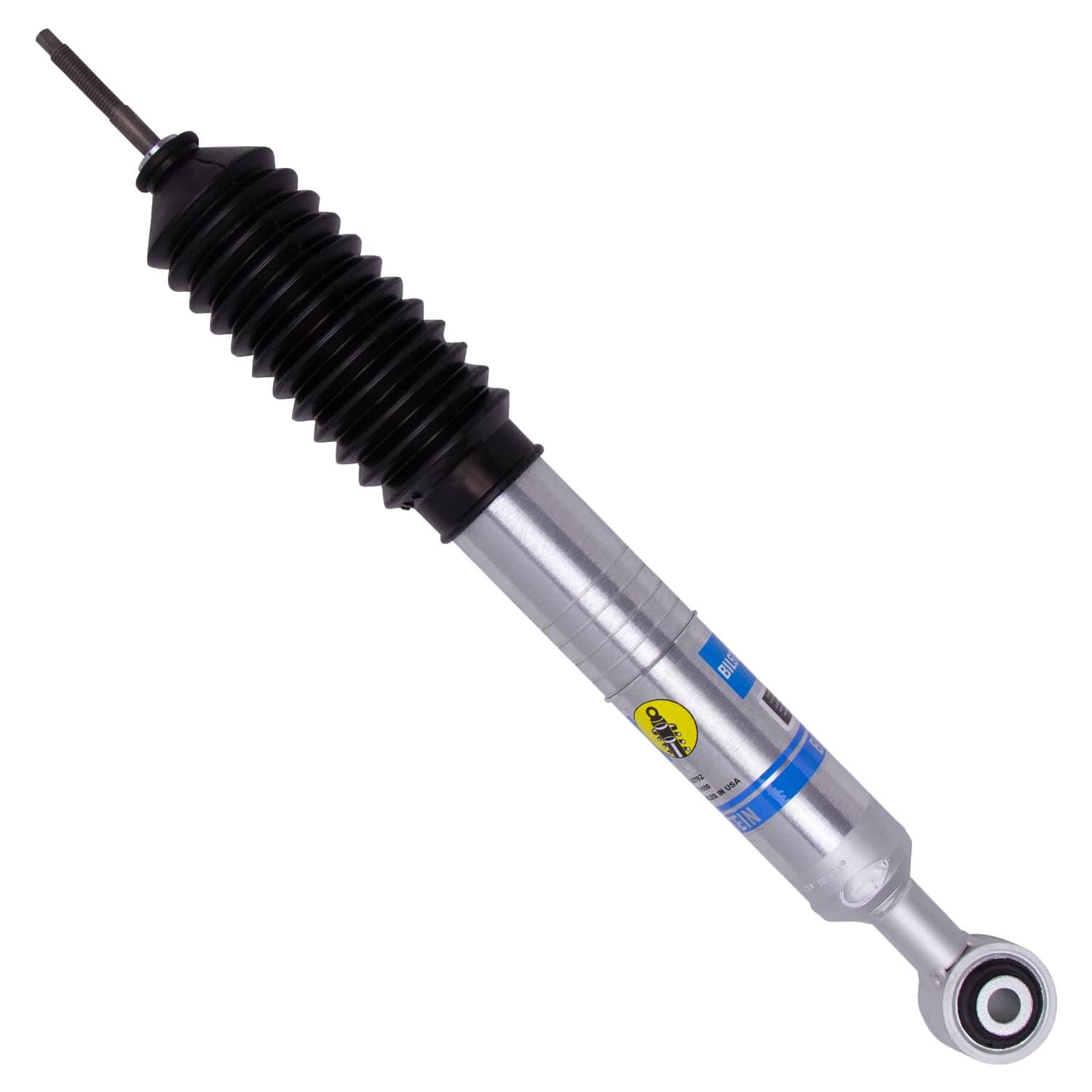

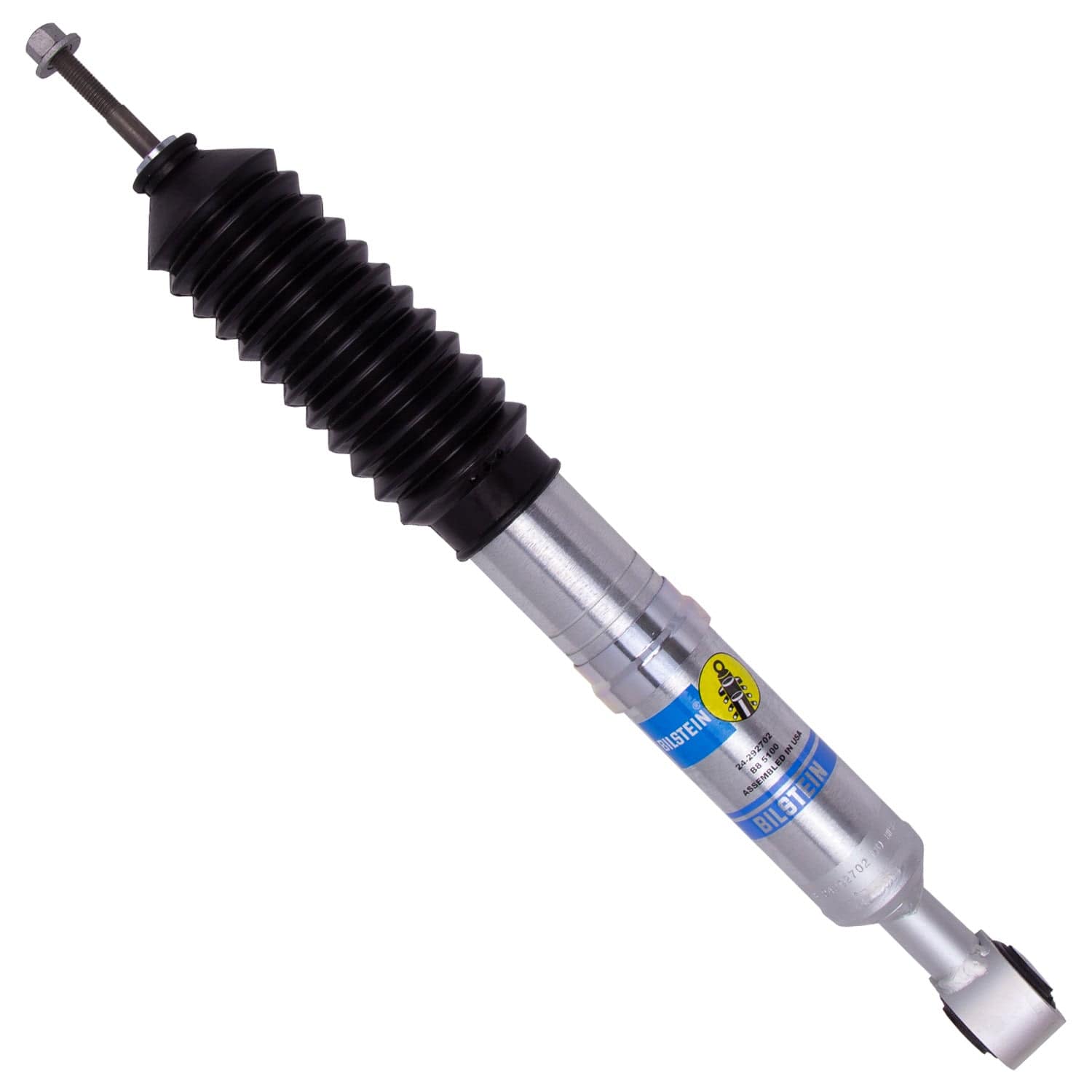

Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2016-2022 Chevrolet Colorado

Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2016-2022 Chevrolet Colorado

SKU:24-292702

Out of stock

Regular price $176.00 USD
Regular price $245.85 USD Sale price $176.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 5100 Ride Height Adjustable Shock Absorbers are high-performance suspension components designed specifically for the 2016-2022 Chevrolet Colorado. These monotube shocks feature a 46mm digressive piston and a self-adjusting deflective disc valve setting, ensuring optimal damping characteristics. The shock absorbers are engineered to provide a customizable ride height, with multiple snap-ring grooves allowing for 0-3 inches of front lift when used with OE springs. Constructed for durability and consistent performance, they deliver improved handling, stability, and off-road capability, making them ideal for trucks and SUVs that require both comfort and performance upgrades.

Designed for 2016-2022 Chevrolet Colorado models with front OE coilover style suspension, these shocks serve as a direct replacement or upgrade for stock components. The adjustable feature allows for fine-tuning ride height to suit various driving conditions, whether for daily driving, off-road adventures, or towing. Installation involves replacing the existing front shocks, with the kit including the shock absorbers themselves. Suitable for applications requiring lift or improved ride quality, the Bilstein B8 5100 shocks are a versatile choice for enhancing vehicle performance and versatility.

Overview

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2016-2022 Chevrolet Colorado are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
Part Number 24-292702
Part Name Shock Absorber
Vehicle 2016-2022 Chevrolet Colorado
UPC 651860845302
Front Lift Height 0 - 1.9 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Bellows
Collapsed Length 14.76 in.
Collapsed Length 375.0 mm
Damping Adjustable No
Extended Length 19.45 in.
Extended Length 494.0 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Reservoir No
Segment Light Truck
Series B8 5100 (Ride Height Adjustable)
Spring Seat Included No - Reuse OEM
Upper Mount Type Stem
Vehicle Fitment
  • 2016 Chevrolet Colorado
  • 2017 Chevrolet Colorado
  • 2018 Chevrolet Colorado
  • 2019 Chevrolet Colorado
  • 2020 Chevrolet Colorado
  • 2021 Chevrolet Colorado
  • 2022 Chevrolet Colorado
