| Year | Make | Model |
|---|---|---|
| 2015 - 2020 | Chevrolet | Colorado Base |
| 2015 - 2022 | Chevrolet | Colorado LT |
| 2015 - 2022 | Chevrolet | Colorado WT |
| 2015 - 2022 | Chevrolet | Colorado Z71 |
| 2018 - 2020 | GMC | Canyon All Terrain |
| 2021 - 2022 | GMC | Canyon AT4 |
| 2015 - 2020 | GMC | Canyon Base |
| 2017 - 2022 | GMC | Canyon Denali |
| 2021 - 2022 | GMC | Canyon Elevation |
| 2021 - 2022 | GMC | Canyon Elevation Standard |
| 2015 - 2020 | GMC | Canyon SL |
| 2015 - 2020 | GMC | Canyon SLE |
| 2015 - 2020 | GMC | Canyon SLT |

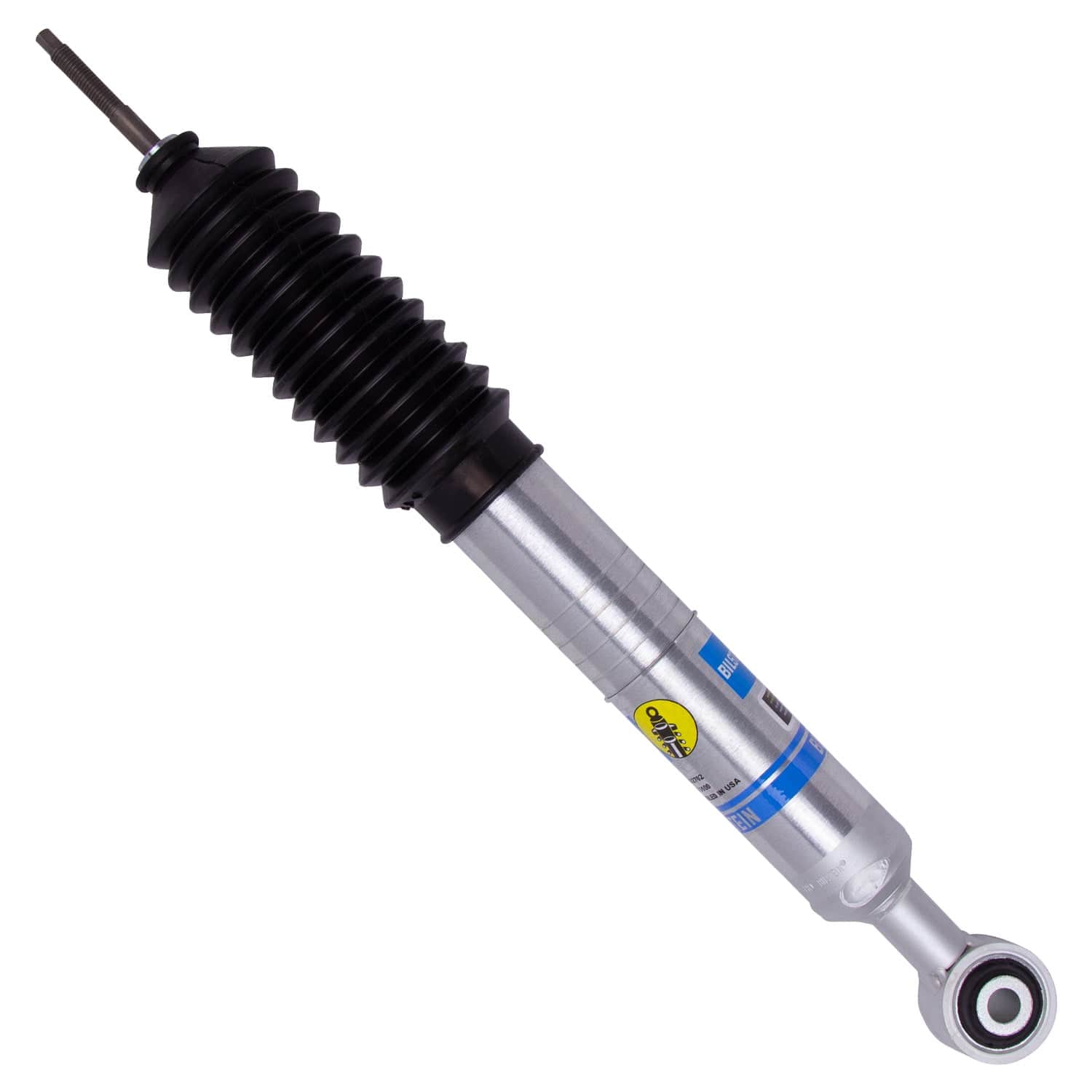

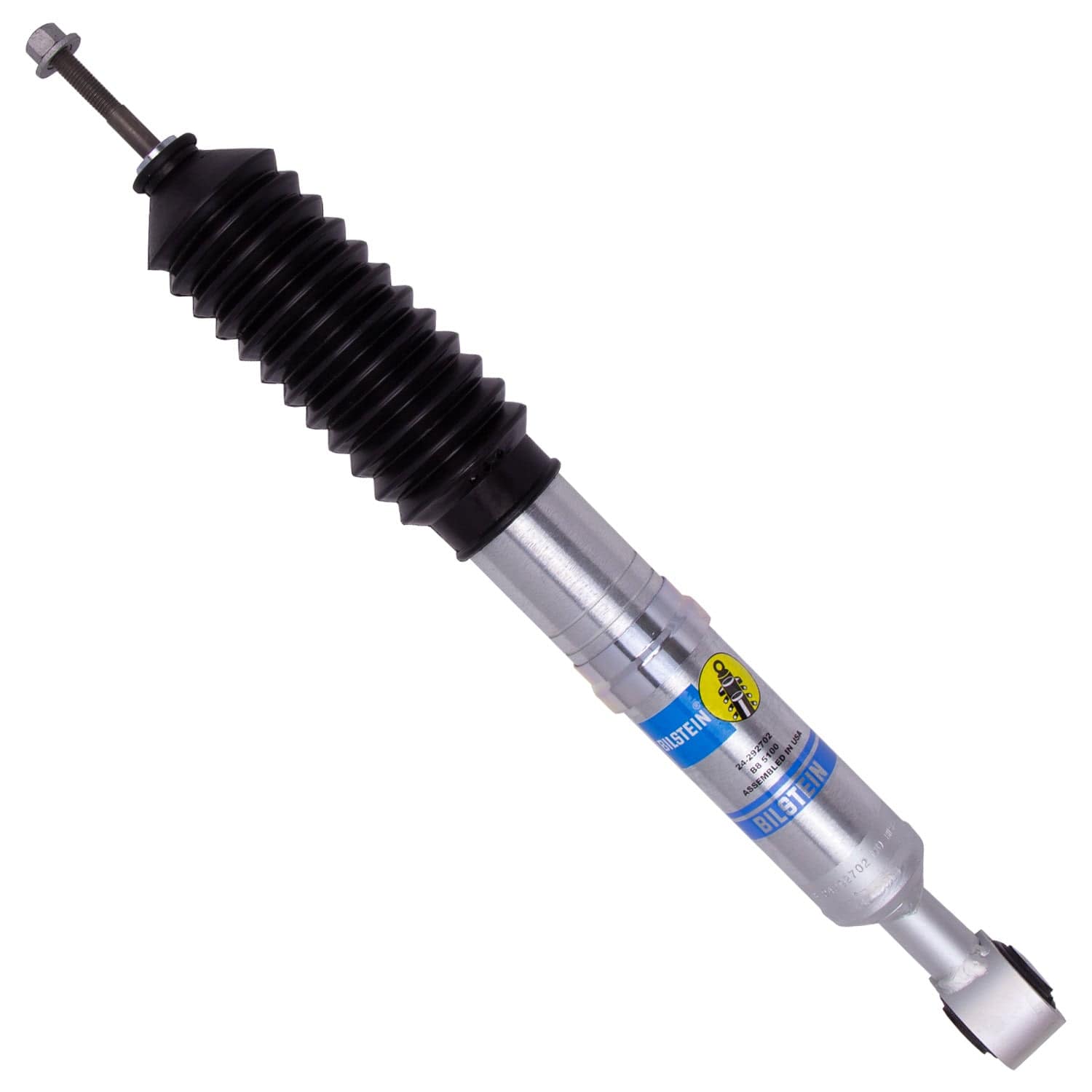

Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2016-2022 GMC Canyon
Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2016-2022 GMC Canyon
SKU:24-292702
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 5100 Ride Height Adjustable Shock Absorbers are high-performance suspension components designed for 2016-2022 GMC Canyon trucks. These monotube shocks feature a 46mm digressive piston and a self-adjusting deflective disc valve setting, ensuring optimal damping performance. The adjustable design allows for a front lift of 0 to 3 inches by utilizing multiple snap-ring grooves, making them suitable for trucks with OE coilover-style suspension. Constructed with durable materials, these shocks provide improved ride quality, handling, and off-road capability, making them an excellent upgrade for both street and off-road applications.

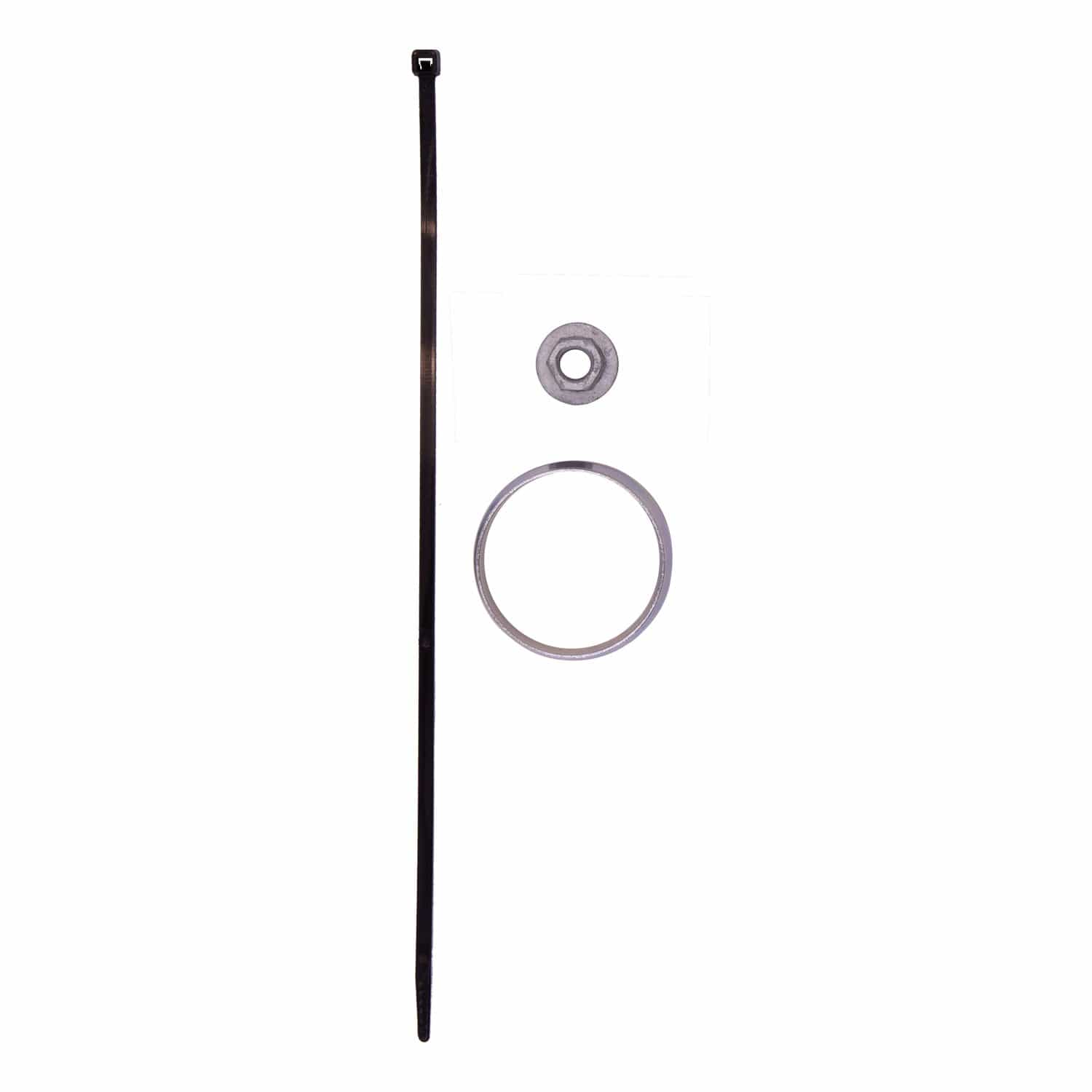

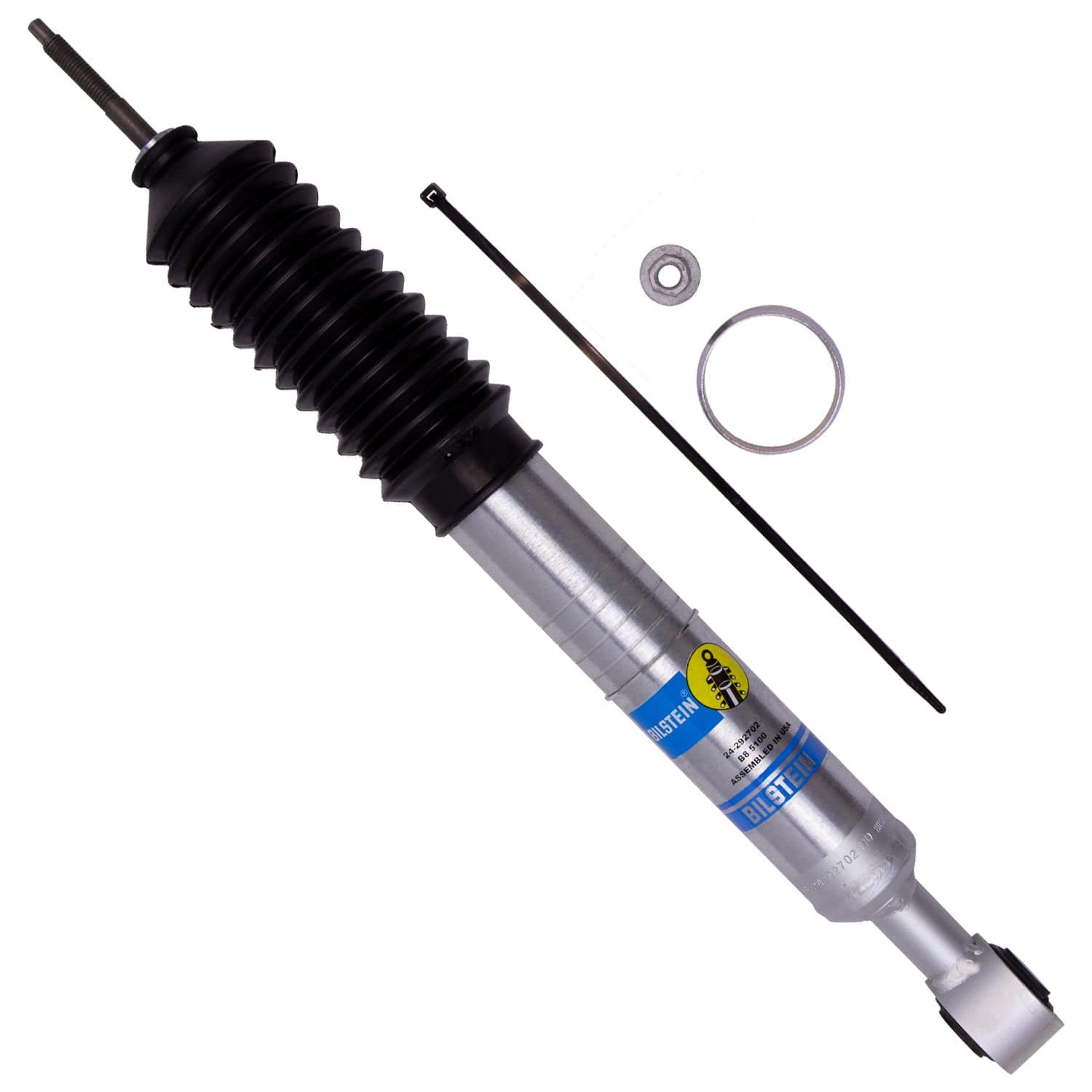

Designed specifically for 2016-2022 GMC Canyon models, these shocks are compatible with vehicles equipped with OE coilover-style front suspension. They serve as a direct replacement or upgrade for factory shocks, offering adjustable ride height and enhanced stability. Installation involves replacing the existing front shocks, with the adjustable feature allowing for customization based on driving needs. The kit includes the shock absorbers and necessary mounting hardware. Ideal for enthusiasts seeking improved performance, ride height adjustment, and durability, these Bilstein shocks are suitable for daily driving, off-road adventures, and performance tuning.
Share
Overview
Overview
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2016-2022 GMC Canyon are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-292702 |
| Part Name | Shock Absorber |
| Vehicle | 2016-2022 GMC Canyon |
| UPC | 651860845302 |
| Front Lift Height | 0 - 1.9 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 14.76 in. |
| Collapsed Length | 375.0 mm |
| Damping Adjustable | No |
| Extended Length | 19.45 in. |
| Extended Length | 494.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2016 GMC Canyon
- 2017 GMC Canyon
- 2018 GMC Canyon
- 2019 GMC Canyon
- 2020 GMC Canyon
- 2021 GMC Canyon
- 2022 GMC Canyon
