| Year | Make | Model |
|---|---|---|
| 2019 - 2023 | Ford | Ranger Lariat |
| 2019 - 2023 | Ford | Ranger XL |
| 2019 - 2023 | Ford | Ranger XLT |
1
/
of
2

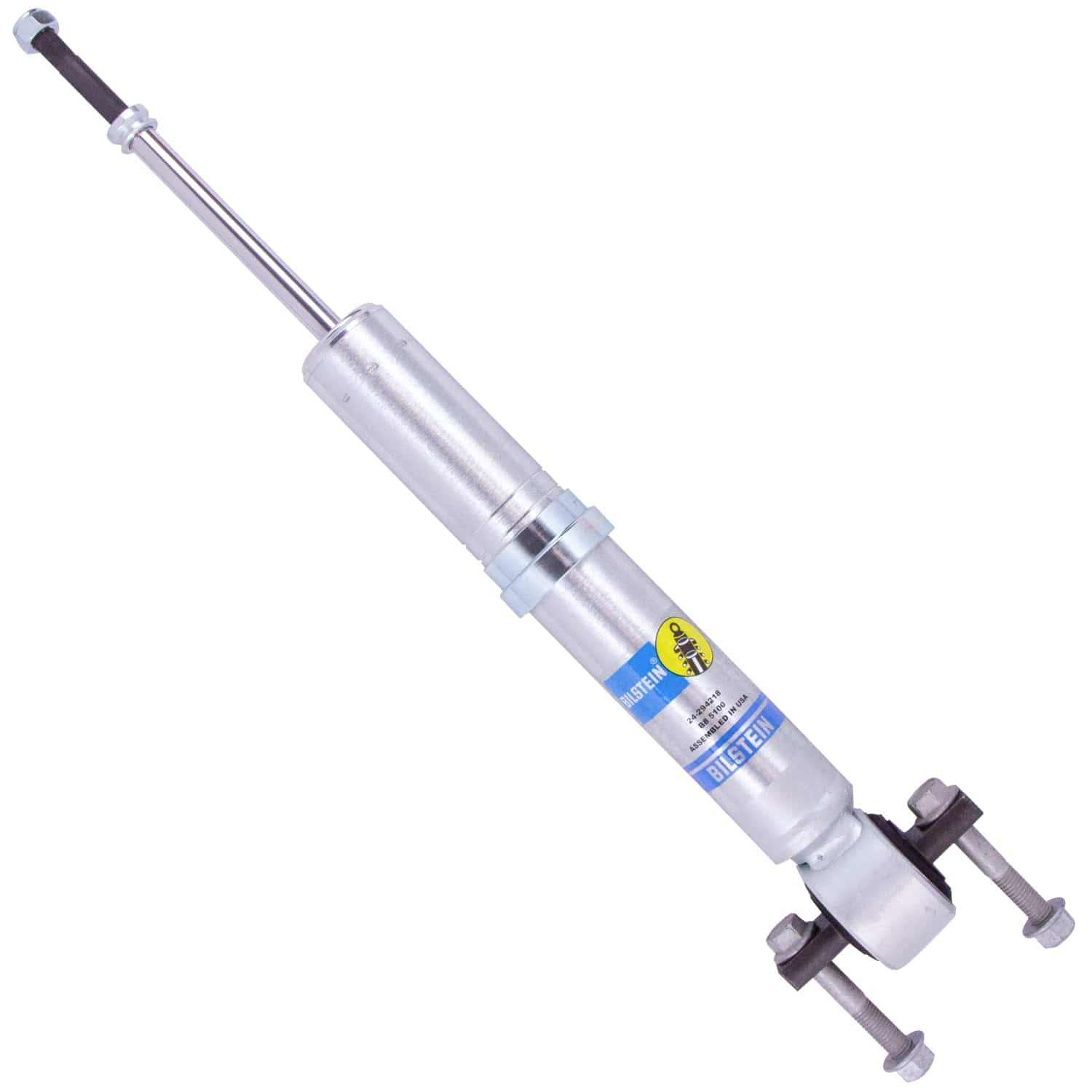

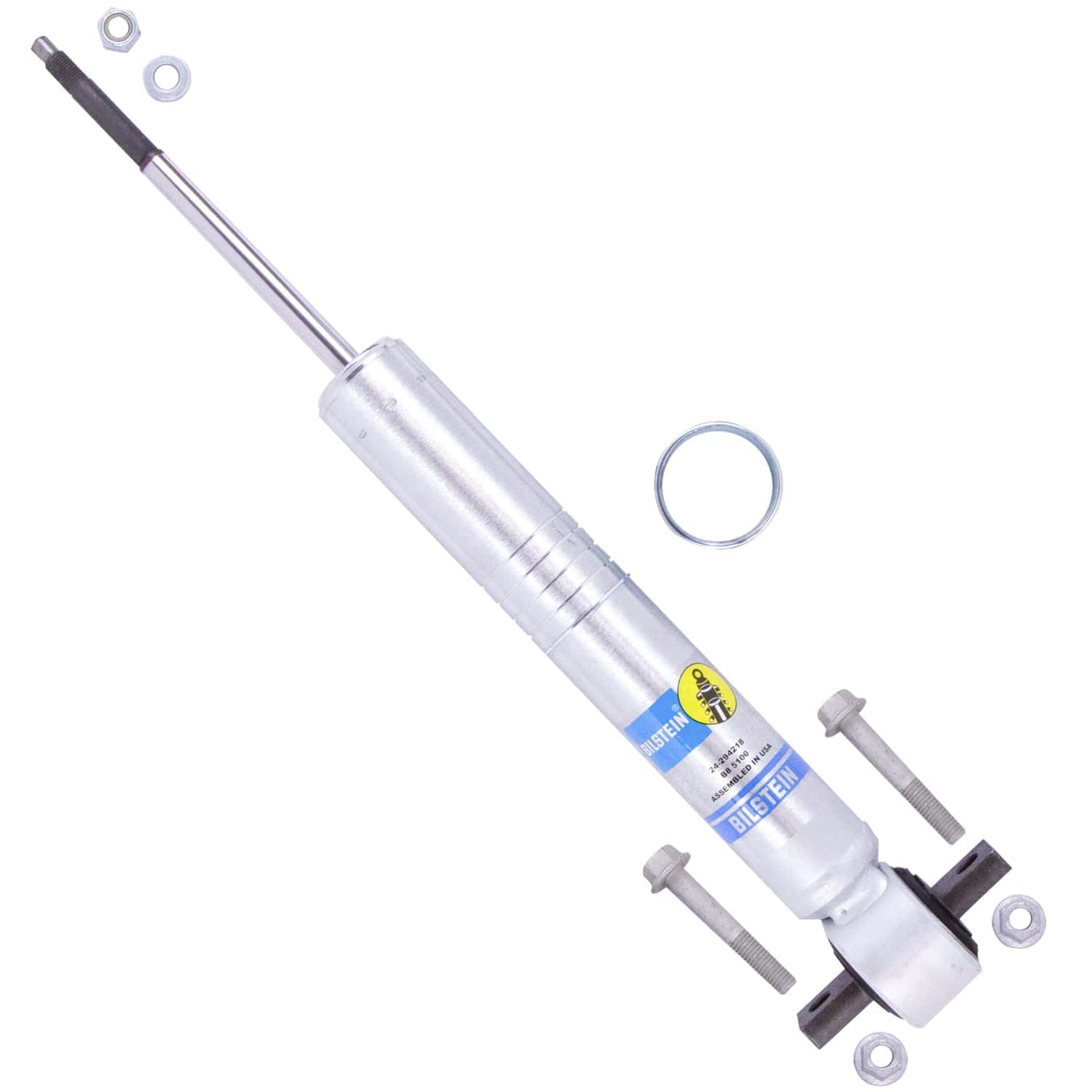

Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2019-2023 Ford Ranger
Bilstein B8 5100 (Ride Height Adjustable) Suspension Shock Absorber for 2019-2023 Ford Ranger
SKU:24-294218
In stock
Regular price
$145.03 USD
Regular price
$235.00 USD
Sale price
$145.03 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2019-2023 Ford Ranger are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-294218 |
| Part Name | Shock Absorber |
| Vehicle | 2019-2023 Ford Ranger |
| UPC | 651860861562 |
| Front Lift Height | 0 - 2.5 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 14.59 in. |
| Collapsed Length | 370.5 mm |
| Damping Adjustable | No |
| Extended Length | 19.26 in. |
| Extended Length | 489.2 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Crossbar |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
| Notes | Without Tremor Off-Road Package |
Vehicle Fitment
- 2019 Ford Ranger
- 2020 Ford Ranger
- 2021 Ford Ranger
- 2022 Ford Ranger
- 2023 Ford Ranger
